Quickly and easily install a 4-way trailer connector on your Nissan Frontier with this custom wiring harness. T-One connector plugs directly into existing wiring - no cutting, splicing or tapping required.
Features:
Specs:
Installation
This custom-fit T-One connector plugs into your Nissan Frontier's wiring harness, which is located beneath the rear of the vehicle, along the driver's-side frame rail. Once you've plugged in the tow harness, connect the included jumper harness with relays to activate functions. This harness plugs into the 12-pin plug that is located behind the passenger's-side kick panel in your cab.
Once installation is complete, the 4-way flat connector will be stowed beneath your Nissan Frontier, near the trailer hitch. A mounting bracket (sold separately) is recommended to keep the connector secure.
It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.
Video of T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

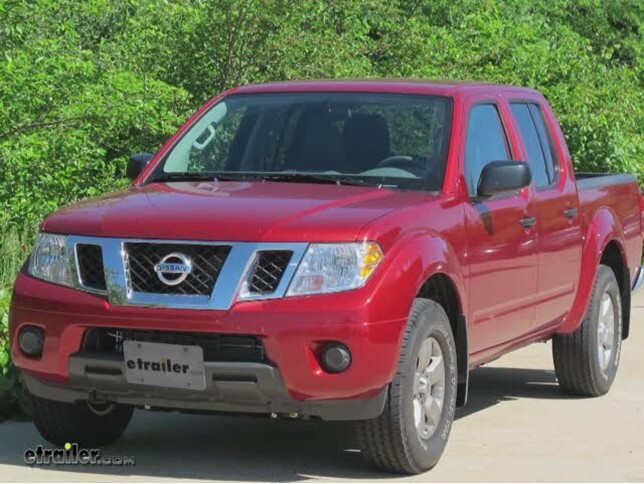

Today on 2012 Nissan Frontier we are going to install the tow ready T1 connector part number 118525. This is a two-part harness. The first piece we'll be adding to the passengers side kick panel. First, we'll remove the passenger's side threshold trim then the kick panel. To remove the trim, we'll simply take a flat blade screwdriver or a trim inaudible tool and get it underneath and pry it free from the plastic fasteners. To remove the kick panel we'll need to remove plastic screw cap and then use our trim panel tool or our flat blade screw driver to pop free the kick panel.
Now with that out of our way we'll need to locate the 12 pin plug back in behind the wire harnesses that run to the kick panel. As you can see, the plug can be difficult to see but is hidden inside the manufacturers wiring. Before we install our connector into the 12-pin plug, we'll fast install the relays on to our harness. The three relays are provided with the install kit. Now with our relays installed we can go ahead and plug in to the 12-pin connector.
Now we have our connectors secure we need to go ahead and route the wire and relays in behind the kick panel and secure them with the black zip ties provided with the install kit. In cases where these relays could cause a rattle the install kit also provides form padding with two way adhesive that you can stick to the interior metal components or plastic components to avoid any rattling. Now with our piece of form padding reinstalled, we can go ahead and reinstall the interior trim components. Now with that piece of our harness installed we can move to the back of the truck underneath on the driver's side inner frame rail, you'll find two plugs. There's a gray and black plug.
We will be using the six pin gray plug to install our tow ready harness part number118263. First, we'll need to locate the manufacturers' plug located on the inside of the driver's side frame rail. As you can see here, there are two plugs. We are going to remove the cap off the gray plug, take our new tow ready harness and plug it directly it directly into the manufacturers wiring. We'll make sure we have it firmly pressed into the connector and locked in place.
Now with the plug installed we can go ahead and route our wire over to the center of the hitch and secure it with some black zip ties. All right with our wires secured, we'll go ahead and take our side cutters and cut back the excess in the zip ties and there you have it for the install of the tow ready T1 connector part number 118252 on our 2012 Nissan Frontier.
