Hopkins Custom Fit Vehicle Wiring for the 2012 Armada by Nissan

Hopkins Custom Fit Vehicle Wiring

(38 reviews)

Code:   N40975



Shipping Special

Shipping Weight: 1.25 pounds

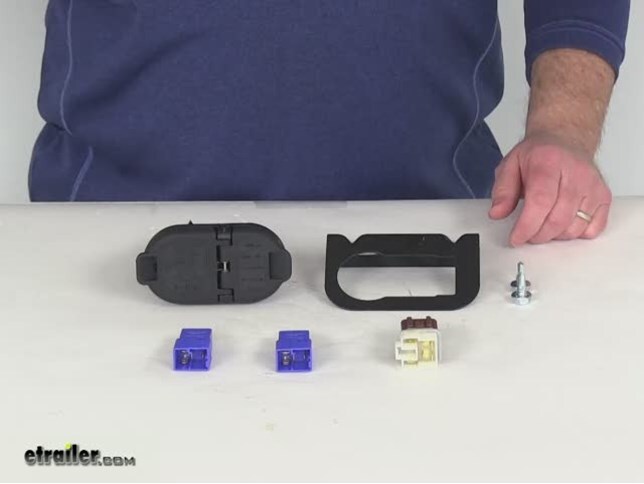

Factory Style 7-Way and 4-Way Flat Vehicle End Trailer Connector - 2012 Armada by Nissan

Factory Style 7-Way and 4-Way Flat Vehicle End Trailer Connector

  • Plugs into the Nissan Armada's factory plug behind the bumper and provides a 7-way and 4-way trailer connector hook-up
    • Includes the 3 relays required to activate the wiring harness
      • 2004-05 Nissan Titans only require 2 relays
  • Mounting bracket and installation screws included
    • Trailer connectors and mount bracket snap together

Pollak 7-way and 4-way Vehicle End Trailer Connectors with relays to activate the Nissan tow package

40975 + C57000 Factory Style 7-Way and 4-Way Flat Vehicle End Trailer Connector

Video of Factory Style 7-Way and 4-Way Flat Vehicle End Trailer Connector

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video install wiring 2004 nissan armada
Trailer Wiring Harness Installation- 2004 Nissan Armada
Video install trailer wiring 2010 nissan titan n40975
Trailer Wiring Harness Installation - 2010 Nissan Titan

Video Transcript for Trailer Wiring Harness Installation- 2004 Nissan Armada

Today on this 2004 Nissan Armada we are going to install part number N40975 from Hoppy. We are also going to use part number 18140 from Tow Ready. This is the bracket we will use to connect to the hitch. These are the two parts that come with the Hoppy kit. This bracket, and this connector, they just snap together. Mounting this to the hitch is going to be a little bit different. That is where we are going to use the other part number 18140. This will clamp to the hitch, and then we will mount this to the bracket. :35

If you look at the vehicle, there is not a very good place to attach this to. You could put it off to the side here, but that would require an extra long lead from your trailer to go around and make a right hand turn. It is not a good idea to put it that far out. We are going to move it here where there are a couple options. You can mount our bracket like this and mount it below, but it does look out of place. What we can do is actually take our bracket, put a small bend in it and put it like this and attach it which brings it a little bit closer. What we will do is take this piece and put it in a bench vice, grab a pair of plyers and pull up on this to make a gentle curve. You should end up with something like this. 1:18

Lets go ahead and install our bracket. Run the clamp around it, pull it through the clamp, and then take the threaded part, and push it towards the band itself and it locks in place. Then you can tighten it up. We will cut off our excess, That will leave a sharp edge, so we will leave it long and fold it up inside, that way you have a rounded edge instead of a sharp edge. We will that through the top, put this on, add a fender washer which you can get from any hardware store. Then bolt it together. This vehicle has the factory wiring harness built it, it is tucked up behind the bumper up here, so I have to reach in and pull it out. It does have a fastener that holds it in place. Pop it out and bring it to you. 2:49

Take off our cap, and then take our connector and snap it into place. Then plug our wiring together. Now take your wires, and zip tie them up and out of the way. We will go ahead and point out where the relays are going to be located on this vehicle. We are on the passenger side of the vehicle underneath the hood next to the battery. There are two fuse panel covers, we are going to remove the one closest to the battery. This vehicle has all the relays installed from the factory, so we got lucky. But, if you did not have it you would have to put a blue relay here.,located in Tow 1. In this socket you would install the brown one in location Tow 2. If you needed a 3rd one, there is an extra socket over here for it. Some models need this one, some do not. It also varies between the years, so take a look at what you have and what you need on your vehicle. That will finish our install of part number N40975 from Hoppy and part number 18140 from Tow Ready.

Customer Reviews

Factory Style 7-Way and 4-Way Flat Vehicle End Trailer Connector - N40975

Average Customer Rating:  4.9 out of 5 stars   (38 Customer Reviews)

- N40975

by: John O.06/20/2013

The product is great just as it is advertised. But the really wonderful part is Dana M.I knew what I wanted but the part number was a old one not in the system. She found what I needed,she is an asset to 85386


It is working as advertised

John O - 06/22/2014


- N40975

by: missie03/04/2013

Wow!!! From the time I opened the package to the time I was ready to hook up to the trailer was 13 minutes!!!! My '07 Armada needed the extra blue relay under the dash, but thanks to your forums and customer reviews I was prepared for that by the time the package arrived. I ordered on a Sunday night and even with a blizzard hitting your area of the US hard, I still had my parts by that following Friday morning!!! Bravo to all who put customer service #1that is something that seems to have been forgotten by many companies but obviously not etrailer.coms!!! Thank you for providing exactly the product that was described, and the service that you promised!!!! Sincerely, Jason, Missie, and Family 68617

- N40975

by: Bobby V.05/25/2011

Excellent customer service. Quick shipping. Easy installation. The video was clear and helpful. Could not ask for more from etrailer. Will order from them again. 15343

- N40975

by: Patrick R.08/09/2012

Great product. It is exactly what I was looking for and it was Shipped quickly. 2008 Nissan Armada 51173

- N40975

by: Brent L.05/19/2011

Easy to install on my 2010 Nissan Titan. All I had to do was plug it into the factory wiring. The only problem I ran into was there is a third relay that needs to be installed for this to work properly. Without it all of the trailer lights worked except for the running lights. I took my truck into a Nissan dealer and they added the relay, somewhere under the dash. 14769

- N40975

by: Mike L.08/19/2014

Ordered for new hitch install on '06 Titan. Put the hitch on first then realized I could have installed the plug mounting plate on the hitch bracket first and would have been easier. Regardless, still installed in about 10 minutes so no complaints. Fit perfectly and looks good too. Nice quality plug. Overall, very satisfied with purchase. 147409

- N40975

by: Marc S.07/15/2011

Great product, but for the 2006 Nissan Armada, you need another blue relay to install under the steering column to the left. you have to remove the lower dash to be able to see it. There is a relay plug there that you need to put in a blue relay to make the running lights work. 19471

- N40975

by: Wayne H.09/02/2014

Product installed as video said it should. Followed the simple directions and I couldn't be more satisfied. This was my first purchase with etrailer, and would not hesitate to make any needed purchases in the future. Thank you for the great service! 149495

- N40975

by: Mike P08/09/2012

I placed my order for a trailer conversion kit for my 2006 Nissan Titan. It came in a day ahead of the scheduled delivery date, I installed every thing and it worked like a charm. Thanks!!!!!!!!! 51218

- N40975

by: Alan M10/21/2014

Didn't work as expected. I have a 2010 Titan LE and my receiver is round tube, not square. Had to modify the bracket to fit the receiver. But still nice to have the 4 prong attachment with the 7. 157119

- N40975

by: Neal P.12/21/2011

I ordered a hitch and trailer wiring and the service was great, received my items in a timely manner and everything was correct . I still need a trailer brake which I will be ordering soon. 28447

- N40975

by: Mark03/22/2013

This was a great experience for me ! The lady I worked with over the phone was of great help putting the wright supplies together for mt truck ! Thanks,Mark with Wild Hogs Motorsports 71895

- N40975

by: Gary B/03/29/2012

Customer Service was exceptional - product was usable right out of the package- follow-up and communication was surprisingly pleasant – I would order from again 35503

- N40975

by: Yanel02/19/2011

Etrailer never disappoints. Item arrived in just a few days... shipping was lightning fast. Product installed on my Titan with no modifications needed. Thanks Etrailer! 7487

- N40975

by: Ivan03/11/2013

This adapter is exactly what I was looking for. It had both 7 way and 4 way connectors. It looks great and plugged strait in to the harness already on my Armada. 69991

- N40975

by: Brian C.09/15/2013

Wiring was exactly what I needed for 2012 Nissan Titan. Works great and was easy to install-came with instructional video also. 99982

- N40975

by: Kevin C09/28/2012

Excellent product and excellent service. I would recommend anytime. I like that delivery was very prompt. 56010

- N40975

by: Bill O.08/29/2011

high quality. just what I wanted. easy to install. speedy delivery. Very happy with quality and delivery time. 23061

- N40975

by: James01/16/2013

Perfect! Had it installed in 20 minutes. Hooked up to my trailer, and everything worked. Thank you. 63255

- N40975

by: James P01/19/2012

Great price, great product, and was updated along the way... look forward to the next purchase 29920

- N40975

by: Don P05/11/2011

Recieved the trailer electrical stuff just fine. The best kit in the industry. Thanks 13485

- N40975

by: Joe Harper06/03/2011

7/4way went on real easy. Did not need the fuses because my Infiniti already had them. 16055

- N40975

by: rafael05/12/2011

High quality product and easy to install. Would but products from this company again. 13621

- N40975

by: Jeff T.12/31/2013

Shipped fast and installed very fast and easy. Looks factory installed. 111591

- N40975

by: Josh04/01/2012

thanks to etrailer for getting me the right product for my vehicle. 35855

- N40975

by: Luis Villarreal12/31/2011

Excellent products! everything fits & works great.Thanks! 28941

- N40975

by: kevin L02/07/2012

easy install. Took a total of maybe 5 minutes. perfect 31300

- N40975

by: Smoke09/20/2010

Complete in under 5 mins Great Kit. Plain and simple 3470

- N40975

by: Tim S.06/02/2014

Easy to install works great on 2012 Nissan Titan 133799

- N40975

by: M J c11/13/2014

product jast as described.....AAA+++... ........ 160823

- N40975

by: Sonny B11/13/2013

Excellent product and very easy to install. 107226

- N40975

by: Roman.M11/20/2012

Great product, easy to install. Thank y ou! 59806

- N40975

by: Jason03/19/2011

Great product. Quick and easy to instal l. 9842

- N40975

by: Paul M10/21/2014

Simple install. Good quality. 157027

- N40975

by: Jim D.06/28/2011

Very easy to install. 18139

- N40975

by: James Lundeen12/03/2014

Excellent product 163172

- N40975

by: oj04/22/2013

EASY!!! 77278

- N40975

by: cheryl12/05/2012

AAAA + 60683


Ask the Experts about this Hopkins Custom Fit Vehicle Wiring
Do you have a question about this Custom Fit Vehicle Wiring?

  • Nissan Towing Relays for Towing Circuits on 2008 Nissan Titan Pickup
  • The relays in the Valley 7-Way and 4-Way Connector, part # N40975, are the relays you will need to activate the towing circuits on your 2008 Nissan Titan. The relays are available individually, without having to purchase the trailer connector. The CURT Relay Kit for Nissan, part # C57000, is just the relays for Nissan vehicles that do not have the tow package but add trailer wiring later. Once installed, all of the trailer wiring functions should work.
    view full answer...

  • How to Activate Nissan Titan 7 Way Wiring Harness Using Factory 7 Way Kit # N40975
  • The # N40975 Trailer Wiring Kit will include detailed instructions on how to install this part and the associated relays. There is a relay panel under the hood, in the engine bay, by the battery on the passenger side. If you remove the cover you will see some open ports. Trailer Tow 1 is where the blue relay goes and Trailer Tow 2 is where the brown relay goes. I have included a video showing the installation of this harness below. Most likely, your current harness is missing the...
    view full answer...

  • Stop and Turn Signals Work But Tail Lights Do Not Work on Trailer
  • The first thing I would check is the trailer wiring running light fuse located in the power distribution box under the hood. Once the fuse box is located check the legend on the lid to determine the correct fuse to check. Blown running light fuses are a common problem with the Nissan Titan trucks. If the running light fuse is not blown or missing, you should also check fuses in the cab of the truck. Again use the legend on the cover, you will have a fuse box on the passengers side and...
    view full answer...

  • Everything Works Except Trailer Running Lights After Wiring is Installed on a 2006 Nissan Armada
  • I thought this one over for a while and could not come up with a definite solution. I asked our installer and he has not had the opportunity to install a harness on this vehicle yet. I then jumped on the internet and found a couple of interesting notes on the 2006 Armada. Apparently there is a relay socket under the dash just to the left of the steering column. Since your vehicle did not have the towing package installed at the factory this relay was not installed and will be needed to...
    view full answer...

  • Trailer Turn Signals/Brake Lights Not Working on Trailer Towed by 2004 Nissan Titan
  • This does sound like a bad or missing relay. You can test the 7-Way connector without the trailer attached to see if you get any signal at all on the turn signal/brake light circuit. If you do get a signal but the lights are not working on the trailer, it could be that the extra load from the trailer lights is not allowing them to function properly. No signal would indicate a problem further up, most likely a blown fuse or relay. The 2004 Nissan Titan should only need 2 relays out of...
    view full answer...

  • No Brake Lights or Turn Signals on a 2006 Nissan Titan
  • You are correct, you will need relays for the brake and turn signals on your 2006 Nissan Titan, if they were not factory installed. The CURT Relay Kit for Nissan, part # C57000, will have the large, brown relay that will activate the 12-volt power circuit and the two, small blue relays that activate the brake and turn signals. These relays are installed under the hood. We have a video showing the installation of the relays, see link, at about 6 minutes in. Since the 12 volt power...
    view full answer...

  • How to Locate the Vehicle Side Electric Brake Control Harness on a 2012 Nissan Titan
  • I have attached a brake controller installation video on a Nissan Titan for you to check out. It shows exactly where the brake controller harness will be located under the dash. The truck in the video is a 2008 model, but it will be the same for your 2012 model. I have also attached a photo of the under side of the dash that shows where the harness will be located. The harness will be located underneath and left of the steering column, taped to another harness near the emergency brake pedal....
    view full answer...

  • Parts Needed to Install an Electric Trailer Brake Controller on a 2007 Nissan Titan or Frontier
  • If you have a 2007 Nissan Titan or Frontier and the truck has a factory installed 7-Way trailer connector all you will need is the brake controller and vehicle specific wiring harness. I recommend going with a proportional brake controller that engages the trailer brakes in proportion to how much the truck is breaking. This will reduce wear and tear on the truck and trailer and make for safer braking situations. For a proportional controller with wiring harness, I recommend the Tekonsha...
    view full answer...

  • Trailer Lights Not Working When Using Tow Ready Wiring Harness, # 118384, On 2007 Nissan Titan
  • The Tow Ready Wiring Harness, # 118384, is for a Nissan Titan with the factory 7-Way trailer connector. It will plug into the back of your 7-Way on your vehicle and the other end will plug into the tow vehicles trailer harness connector, behind the bumper on the drivers side. This harness does not come with relays because they are usually installed already when the factory 7-Way is on the vehicle. You might check the accessory fuse block to make sure you have the three relays installed...
    view full answer...

  • How To Maintain a Trailer Battery Using A 7-Way Trailer Connector On a 2008 Nissan Pathfinder
  • You will not need a fuse to charge your trailer battery while towing. If you are trying to maintain a charge for a trailer battery via the 7-Way, you will want to use the top right pin on the 7-Way (if looking at the front of the vehicle side plug). It is the 12 volt power source. On the trailer side connector, attach the wire coming from the top right pin (if looking at the back of the plug) to the trailer battery positive terminal. Now when the trailer is connected and you are towing,...
    view full answer...

  • TroubleshootingTrailer Running Light Issues on a 2006 Nissan Titan Using Factory Style 7-Way # 30608
  • it sounds as if one of the relays is not in the correct location or a fuse is blown. I would double check the owners manual to determine the location of all the towing relays and fuses and see if everything is in the correct spot and in good working order. I have included a link to the installation instructions and a video showing installation on a 2006 Nissan Titan for reference. There could be one additional relay needed. If you look under the dash, and to the left of the steering...
    view full answer...

  • Installing the Tekonsha Prodigy 2 Brake Controller with Wiring # 90885-3050P on a 2010 Nissan Titan
  • On your 2010 Nissan Titan SE Crew if you have the plug behind the bumper you can use the Valley Factory Style 7-Way and 4-Way Flat Connector, part # N40975. This will give you a 7-way and a 4-Way at the rear of your vehicle. It also comes with the relays that are needed to activate the wiring harness. Sometimes the vehicle might already have the relays installed. There are some Titans that might require a 4th relay that will have to be purchased from the Nissan Dealer. I am including...
    view full answer...

  • Relays Needed for a 2013 Nissan Titan
  • It sounds like you are looking for are the tow package relays for your 2013 Nissan Titan. If that is the case, then you will want the Curt Relay Kit, # C57000. These relays are required if your truck does not have 12v power or turn signals at the 7-way trailer connector. These relays fit into the under-hood fuse box and are for the turn signals and 12v power. I have attached a video showing how to install these relays. Some trucks will require a third relay, part # 38666-1, for the...
    view full answer...

  • Taillights Not Working on a 2007 Nissan Titan with Factory Tow Package Trailer Wiring
  • The first thing I would check is the trailer wiring running light fuses located in the power distribution box under the hood, they should be fuse number 32 and 36. Once the fuse box is located check the legend on the lid to verify the correct fuses to check. Blown running light fuses are a common problem with the Nissan Titan trucks, and if the fuse is blown you need to make sure your trailer wiring is not shorted before plugging it in again or you will continue to blow fuses. Next,...
    view full answer...

  • Will the Curt # C57000 Relay Kit Work on 2008 Nissan Titan
  • The Curt Relay Kit, part # C57000 is indeed compatible with the 2008 Nissan Titan. I have confirmed this with Curt. If you needed the Trailer connector as well, you would be better off going with part # N40975, which includes that 7-way and 4-pole connector as well as the relays. The relays install as shown in the video I have linked to.
    view full answer...

  • Are Tow Package Relays Available for a 2009 Nissan Titan
  • Yes, we do have the relays by themselves. They are part # C57000. We also have a video which I have linked showing installation on a 2008 Nissan Armada and another video showing installation on a 2006 model. Installation will be similar on your 2009 Nissan Titan. Consult the vehicle owners manual for the proper location of the relays on your truck.
    view full answer...

  • How to Install 7-Way Trailer Connector N40975 On a 2004 Nissan Titan Without Tow Package
  • We do carry the wiring harness you need. For a 2004 Nissan Titan that does not have a towing package, you will need the Factory Style 7-Way and 4-Way Flat Vehicle End Trailer Connector, # N40975 that you have referenced. The harness comes with the required relays that activate the wiring harness. On your 2004, you will only need 2 of the relays. To install the harness, you will first need to find the factory connector under the truck, rear of the spare tire. There will be a port to plug...
    view full answer...

  • Relay Recommendation for a Nissan Pathfinder
  • It sounds like you need to install a few relays to complete your trailer wiring harness. For just the relays you would want the Curt Relay Kit # C57000. I attached an installation video that shows where these are installed for you to check out also.
    view full answer...

  • Installation of 7-way Trailer Connector on 2006 Nissan Titan
  • Yes, we have a kit, item # N40975 that will hook up to your existing wiring and provide a 7-way connector on your 2006 Nissan Titan. The kit includes the vehicle end 7-way trailer connector, relays and mounting bracket. You will have to install the relays under the hood in the passengers side fuse block (see video link). The port for the trailer wiring harness is located behind the rear bumper near the spare tire on the driver side.
    view full answer...

  • No Tail Lights at the Trailer Connector on a 2010 Nissan Titan
  • It sounds like the trailer wiring running light fuse may be blown. This fuse is located in a power distribution box under the hood at the rear of the drivers side of the 2010 Nissan Titan. Once the fuse box is located check the legend on the lid to determine the correct fuse to check. If this does not solve the issue, let me know, I will be glad to look into the issue further.
    view full answer...

  • Trailer Turn Signals and Brake Lights Not Working on a Trailer Towed by a 2004 Nissan Titan
  • Since the shop replaced some parts and tested the circuits, it sounds like you have a ground issue on the trailer side. First, make sure that the vehicle side and trailer side connectors are clean and free of any corrosion. Corrosion can build up on the pins but also in the backs of the connectors where the wires attach. Next, make sure that the main ground from the trailer connector is attached to a clean metal surface. Then do the same for the trailer lights. If you recently added...
    view full answer...

  • How Do I Install Hopkins Nissan 7-Way Connector and Relays part N40975
  • We do not have a diagram, but we do have a video that should be very helpful. Valley offers a similar part that requires the same relays. Follow the video and it should be pretty straightforward. Check out the link below.
    view full answer...

  • Where Does a Brake Controller Wiring Harness Install on a 2012 Nissan Armada
  • To install the Hopkins trailer brake controller wiring harness # HM47635 you will need to locate the factory harness. The harness is located underneath the dash, to the left of the steering column, taped to another harness near the emergency brake pedal. I have linked a video and some instructions on another harness that fits that should help. The Hopkins trailer brake controller wiring harness # HM47635 is compatible with Hopkins brand brake controllers that accept the plug, like the...
    view full answer...

  • Relay Kit for Trailer Wiring on a 2005 Nissan Armada
  • The relay kit, # C57000, will fit your 2005 Nissan Armada. On some Nissan vehicles, including the Armada, there is an additional relay needed in the in-cab fuse panel inside the vehicle. You will need to consult the vehicle owners manual for all of the fuse and relay locations related to trailer wiring. The extra relay can be obtained at a Nissan dealer. If you want to add the complete wiring package, minus the extra relay required, use # N40975. I have included a video that should help...
    view full answer...

  • Need Replacement 7-way Harness and Bracket For 2010 Nissan Titan
  • For a replacement harness with a 7 and 4-Way connector and bracket, you will need the OEM Style 7-Way and 4-Way Trailer Connector, part # HM40975. Only the bracket and the 7-way/ 4-pole connector is included. The existing wiring harness will plug into the rear of the # HM40975.
    view full answer...

  • Only Some Trailer Lights Work with 2005 Nissan Titan with Factory Tow Package
  • We do separately offer only the relays for Nissan vehicles that come as part of the kit you referenced, part # N40975. The three relays by themselves are available as part # C57000. I have linked a video showing installation of these relays in a 2011 Titan. These install in the relay box behind the battery; the underside of the box cover should have labels for each relay socket. If these relays are missing or damaged then this kit should take care of the issue. You might also want to check...
    view full answer...

  • Are the Relays Included with Custom Trailer Wiring Harness for 2004 Nissan Pathfinder Armada Needed
  • In your case the relays may have been installed at the factory for your vehicle and may not be necessary. I would proceed by installing the connector that mates with the plug at the rear of the vehicle and testing it for function with a circuit tester, item # 3808 if needed. If any of the functions are not working then the relays are most likely needed. The 3 relays included in the Factory Style 7-Way and 4-Way Flat Vehicle End Trailer Connector, item # N40975 activate the following...
    view full answer...

  • How to Charge a Trailer Battery Via a 7-Way on a Trailer Towed by a 2008 Nissan Pathfinder
  • If you are trying to maintain a charge for a trailer battery via the 7-Way, you will want to use the top right pin on the 7-Way (if looking at the front of the vehicle side plug). It is the 12 volt power source. On the trailer side connector, attach the wire coming from the top right pin (if looking at the back of the plug) to the trailer battery positive terminal. Now when the trailer is connected and you are towing, the tow vehicle will provide a maintenance charge to the trailer battery. If...
    view full answer...

  • No Power to Trailer Wiring Harness # N40975 Installed on a 2011 Nissan Armada
  • It is possible that the relays are not in the correct locations for wiring harness # N40975. Consult the owners manual for all of the locations and make sure they are in the right spots. On some Nissan vehicles an additional relay is needed next to the steering column under the dash. It will be a small blue relay. You can obtain the relay from the dealer or use one of the blue ones in kit # C57000.
    view full answer...
