Install a 4-way trailer connector on your Kia Rio with this wiring harness with tail light converter. Harness splices into existing wiring. SMT construction ensures superior performance.
Tech Tip: It is always a good idea to apply a small amount of grease to all electrical connections to help prevent corrosion.
Warning: Overloading circuit can cause fires. Do not exceed lower of towing manufacturer rating or:
Read Kia Rio owner's manual and instruction sheet for additional information.
Surface Mount Technology (SMT) is a method for constructing electrical circuits where components are mounted onto the surface of printed circuit boards.
Video of Curt Circuit Protected Converter w/ SMT
Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

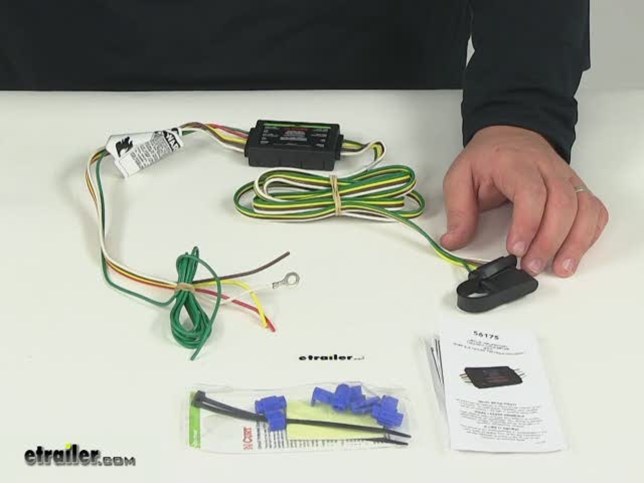

Today we're going to be reviewing part number C56175. This is the Curt Circuit Protected Tail Light Converter with surface mount technology. The SMT technology is just a method for constructing electrical circuits where components are mounted onto the surface of printed circuit boards. This unit is designed to convert your vehicle's light functions to be used to property tow, using a 4-way flat trailer connector. This unit does provide the 4-pull flat trailer connector for the vesicle. It's got the nice little dust cap on it, so it's going to protect the connection points. To see if this fits your particular vehicle, you can use the fit guide, located right here on our website.
It's a very quick and easy installation. It's a solid 1 piece unit so it just has the exposed wires, everything is pre-assembled. Basically, all you have to do is make the connections and get everything located in the right spot. Pretty simple operation. Comes with some nice detailed instructions.
Got some photos in there to walk you through the installation and to find the location of all the connections that you need to make. It's made from 16 gauge bonded wire with a 4-flat plug. It's going to give it a nice factory appearance. It's a simple do it yourself instruction, or installation. All the instructions are located on every package, so again the connection points are highlighted and indicated in the instructions based on the type of vehicle that you have. This unit can be used with 5-pull, 6-pull, or 7-pull adapters. Just keep in mind, it is not recommended for vehicles with LED lights. Here in this package, it's going to come with 4 Scotchlok connectors.
It's going to come with 2 zip ties, and it's going to come with a self tapping screw for the ground wire connection. You can see here that on the white wire, it's going to have that ring terminal already located on it. That way you can do an easy ground connection. Just make sure you're getting it to a nice clean surface on the vehicle. It's also going to come with 2 sided adhesive tape. That's designed so that way you can mount the converter box to a nice flat, clean location.
A little tech tip, is you always want to apply a small amount of grease to the electrical connections to help prevent any corrosion. You can find some dielectric grease right here on our website. I believe it's underneath the related items on the right hand side of your screen. Also, keep in mind that overloading a circuit can cause fire, so you do not want to exceed the lower of either the telemanufacture 00:02:23 rating or the max stop and turn light, which is going to be 3 amps, or the max tail lights, which is 7.5 amps. To go over the wiring real quick, on this unit, the wiring codes are all indicated right here on the converter. The brown wire is going to be for your tail light circuit. The yellow is going to be for the left turn circuit. Red is your brake light circuit. Green is for the right turn circuit. Then your white wire is going to be for your ground. Again, make sure this is a fit for your vehicle. You should have plenty of wiring as long as the vehicle is in the fit guide for this particular converter. It's just going to allow you to tow properly with all the lights functioning as they should, using the 4-way flat trailer connector, which is already included on 1 side of the converter box, coming out here. Plenty of wire. That way you can get it to where it needs to go. I believe that's going to do it for today's review of part number C56175. This is the Curt Circuit Protected Tail Light Converter. .
