Tow Ready Custom Fit Vehicle Wiring for the 2005 Tucson by Hyundai

Tow Ready Custom Fit Vehicle Wiring

(28 reviews)

Code:   118397



Shipping Special

Shipping Weight: 1.4 pounds

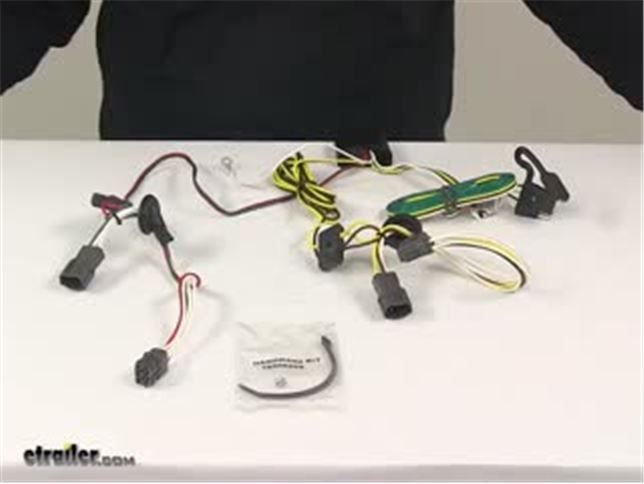

T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector - 2005 Tucson by Hyundai

Quickly and easily install a 4-way trailer connector on your Hyundai Tucson with this custom wiring harness. T-One connector plugs directly into existing wiring - no cutting, splicing or tapping required. Circuit-protected converter guards against shorts.


  • Provides a 4-way flat trailer connector at the back of your Hyundai Tucson to power your trailer's signal lights
    • Compatible with 5-pole, 6-pole and 7-pole adapters (sold separately)
  • Connects quickly and easily - no cutting or splicing of wires
    • Locate connection points behind tail lights
    • Plug in T-connector
  • Includes circuit-protected tail light converter to ensure that your Hyundai Tucson's wiring matches that of your trailer
    • Provides protection against electrical shorts and overloads
  • Constructed of 16-gauge bonded wire
  • Comes with dust cap for 4-way flat connector


  • Maximum amperage:
    • Stop/turn lights: 2.1 amps per circuit
    • Tail lights: 5 amps per circuit
  • 1-Year limited warranty


This custom-fit T-One connector plugs into your Hyundai Tucson's wiring harness, which is located behind the driver's-side and passenger's-side tail lights. You will have to remove some interior trim and the tail light assemblies to access this harness.

T-One Connection Location Points Behind Tail Lights

Once installation is complete, the 4-way flat connector will be stowed in the spare tire compartment of your rear cargo area.

It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.

Circuit-Protected Tail Light Converter

A tail light converter is built into this T-One connector. Because most trailers run on a two-wire system - wherein the brake and turn signals are carried on one wire - the separate brake and turn signals from your Hyundai Tucson's three-wire system need to be combined so they are compatible with the wiring system of your trailer. The tail light converter combines the brake and turn signal functions of your automobile so that they run on one wire to properly activate your trailer's tail lights. Note: This will not affect how the tail lights on your Hyundai Tucson operate.

This converter safeguards itself and your vehicle against possible electrical shorts and overloads with integrated short circuit protection. Just install the connector as indicated and rest assured that the wiring system of your vehicle will remain feedback-free.

118397 Tow Ready T-1 T-Connector - 4 Wire

Video of T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Transcript for Trailer Wiring Harness Installation - 2009 Hyundai Tucson

Today on our 2009 Hyundai Tucson, we'll be installing the Tow Ready T1 Vehicle Wiring Harness with Four Full Flat Connector, party number 118397. Next, we'll go ahead and show you how to use the new Four Full Connector. To use the Four Full Connector, we'll simply take it out from underneath the cargo cover and run it out and down to the hitch or accessory. Be careful to stay away from the latch as pinching the wire off in the latch can damage it, however the weather stripping is thick enough that it won't and we can simply close the cargo door on it. Then, once we're finished using our new Four Full Connector we'll simply roll it up and store it underneath the rear cargo lid. To begin our install, we'll first need to remove the spare tire cargo cover, then the spare tire cargo trey. Next, we'll need to remove the rear threshold.

To remove the rear threshold we'll first remove the four push pins along the inside edge. These push pins will turn in the center and then remove the entire pushpin as a piece. Next, we'll gently pull up on the rear threshold unlocking the fasteners underneath, being careful not to break them. Next, underneath the threshold we're two screws holding both rear quarterpanels. We'll go ahead and remove these screws now; keep in mind each process we do on one side will get repeated identically on the opposite side. Now with those screws removed, we can gently pull out on the rear quarterpanels and release the plastic fasteners underneath.

It may be necessary to use an interior trim panel tool or flat-bladed screwdriver to assist in popping the fasteners free. Now, on the passenger's side we'll go ahead and remove the tail edge assembly. To remove the tail assembly there are three fasteners we'll go ahead and remove and then gently pop the tail light assembly towards the outside of the vehicle, releasing the alignment tabs underneath. Then we'll go ahead and remove the manufacturer's wiring from the tail light assembly by pressing on the locking tab and removing the connector from the socket. Next, we'll go ahead and take the manufacturer's grommet behind the tail light assembly and push it inside the vehicle, routing the manufacturer's wiring back inside. Next, we'll take the yellow and brown wire connector that will match the manufacturer's plug, connect the manufacturer's wiring to the socket side of the T1 Wiring Harness.

We'll take the other hand that already has the pre-installed grommet and feed it back out behind the tail light assembly, securing it with the grommet behind the tail light. Now with the wire installed, we can go and re-install the driverside tail light assembly. Next, we'll take the remaining portion of our wiring harness and route it over the passenger side. Be careful to make sure you stay away from the latch as pinching the latch can damage the wire. We cap it on the back edge near the push-pin fasteners to stay away from the latch and/or possible damage. Next, we'll go ahead and repeat the same process of removing the tail light assembly and installing the T connector, only this will be the red and green wire assembly. Note we'll also be taking the white wire with the pre-attached ring terminal to be the ground for our converter and securing here underneath the trim panel and rear threshold.

We'll use a self-tapping screw and locate an area where the sheet metal doubles up for our good ground. Now with our ground secure, we'll go ahead and mount the converter box. The converter box has 2A 00:04:30 adhesive already so we'll go ahead and remove the cover of the 2A 00:04:33 adhesive and attach it to a clean, flat surface, preferably sheet metal as seen here underneath the quarterpanel on the passenger side. Now, with the converter box secured we can reinstall all of our interior trim components. We have now completed our install of the Tow Ready T1 Vehicle Wiring Harness with Four Full Connector, part number 118397 on our 2009 Hyundai Tucson. .
