Trailer Wiring > 2012 > GMC > Terrain

Curt Custom Fit Vehicle Wiring for the 2012 Terrain by GMC

Curt Custom Fit Vehicle Wiring

ratingratingratingratingrating (196 reviews)


Code:   56094

Retail:$39.57

Price:$27.45


Shipping Special

Shipping Weight: 1 pounds

Quantity:






Curt T-Connector Vehicle Wiring Harness with 4-Pole Flat Trailer Connector - 2012 Terrain by GMC

Quickly and easily install a 4-way trailer connector on your GMC Terrain with this custom harness. T-connector plugs directly into existing wiring - no cutting, splicing or tapping required.

Features:

  • Provides a 4-way flat trailer connector at the back of your GMC Terrain to power your trailer's signal lights
    • Compatible with 5-pole, 6-pole and 7-pole adapters (sold separately)
  • Connects quickly and easily - no cutting or splicing of wires
    • Locate connection points behind tail lights
    • Plug in T-connector
  • Comes with dust cap for 4-way flat connector
  • Made in the USA
  • Limited 1-year warranty


Installation

This custom-fit T-connector plugs into your GMC Terrain's wiring harness, which is located behind the driver's-side and passenger's-side tail lights. You will have to remove the tail light assemblies to access this harness.


Once installation is complete, the 4-way connector will be stowed beneath your GMC Terrain, near the trailer hitch. A mounting bracket (sold separately) is recommended to keep the connector secure.


It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.

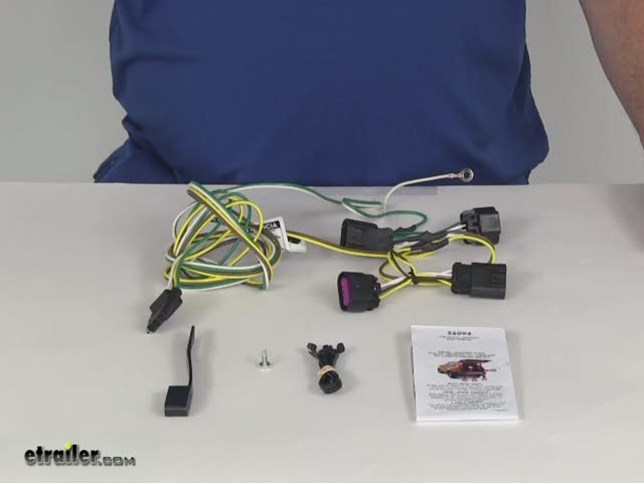

56094 CURT T-Connector - 4 Wire





Video of Curt T-Connector Vehicle Wiring Harness with 4-Pole Flat Trailer Connector


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

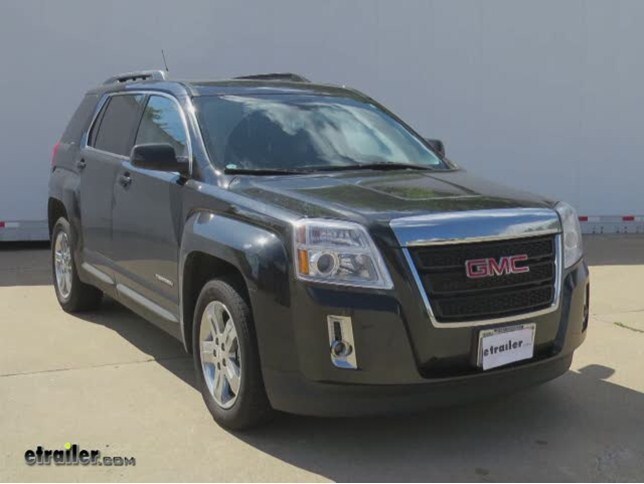

Video install wiring harness 2012 gmc terrain 56094
Trailer Wiring Harness Installation - 2012 GMC Terrain
Video install trailer wiring 2015 chevrolet equinox 56094
Trailer Wiring Harness Installation - 2015 Chevrolet Equinox
Video install trailer wiring 2013 chevrolet equinox 56094
Trailer Wiring Harness Installation - 2013 Chevrolet Equinox
Video install trailer wiring 2012 chevrolet equinox 56094
Trailer Wiring Harness Installation - 2012 Chevrolet Equinox

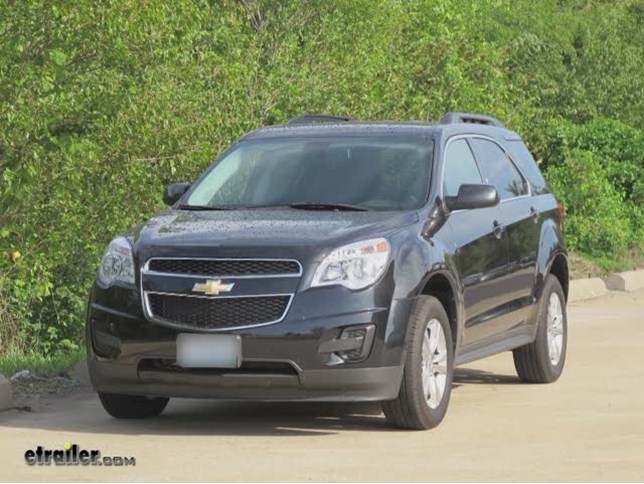

Video install trailer wiring 2011 chevrolet equinox 56094
Trailer Wiring Harness Installation - 2011 Chevrolet Equinox
Video Wiring Harness Install 2010 Chevrolet Equinox
Trailer Wiring Harness Installation - 2010 Chevrolet Equinox

Video Transcript for Trailer Wiring Harness Installation - 2012 GMC Terrain

Today in our 2012 GMC Terrain, well be installing the Curt T-Connector 4-Pole Flat Trailer Connector part number 56094. To begin our install, well first go ahead and open up the rear cargo hatch. Well need to remove both rear taillight assemblies and to do this there are two fasteners that have plastic caps and then the fasteners to remove. Well go ahead and use a small screwdriver to remove the plastic caps and then we can remove the two screw fasteners underneath. Once we removed the screw fasteners, well then go ahead and pop the taillight assembly out of its current position being careful not to break the alignment tabs underneath. Now with the taillight assembly removed, well go ahead and press the manufacturers wire connector locking tab and remove it from the taillight assembly. Well go ahead and set the taillight assembly aside for reinstallation.

Now with one side done, well go ahead and repeat the same process on the other side. With both taillights out of the way, we can now take our new wiring harness and start putting it into position. Well take the 4-pole connector and feed it down between the bumper fascia and the body or sheet metal of the vehicle until it drops down underneath. As were starting here on the driver side, well then take the green wire connector and follow the 4-pole connector leaving the yellow and brown connector behind the driver side taillight assembly where we can plug into the manufacturers wiring. Once weve plugged into the wiring, we can then go ahead and plug the connector back into the driver side taillight assembly and reinstall it. Next well get underneath the vehicle and well take our 4-pole connector and green wire connector, start routing to the center of the vehicle and the passenger side, keep in mind when routing your wire to stay away from any moving components such as steering or suspension or excessive heat such as exhaust. Now that we have the green wire connector over on the passenger side, well go ahead and feed it up behind the passenger side taillight assembly.

Now well go ahead and take the new wiring harness, plug it into the manufacturers wiring and the other end into the back of the passenger side taillight assembly. Next well take our white wire with the pre-attached ring terminal and this will be ground wire for our new 4-pole connector. Well need to secure it to the body of the vehicle. Note I recommend to locate an area where the sheet metal doubles up here behind the passenger side taillight assembly. Using a self-tapping screw, well go ahead and secure the ring terminal now. Once completed, well go ahead and reinstall the passenger side taillight assembly.

Next well get back underneath the vehicle and start securing our wire. Well use the black zip ties provided with the install kit to secure the wiring behind the bumper to the fascia brackets. Well then use some longer zip ties and secure the wiring to the hitch as it runs to the center of the vehicle. Well then take our 4-pole connector and wrap it up with some black electrical tape to help bundle up our wires as we route it over the hitch and secure it to the chain loop with the cap provided. Now that weve completed securing our wiring, well go ahead and cut off the excess zip ties to clean up our install look and now we can check for operation of the new 4-pole connector. With the ignition on and our test light grounded to the open terminal of the 4-pole, well test the first cover terminal which will be the brown wire for our running light circuit, the second will be the yellow wire for the left turn signal, left braking and the third will be the green wire for the right turn signal, right braking. Now that we know our 4-pole connector is ready to go, were ready to hit the road and that does it for the install of the Curt T-Connector Vehicle Wiring Harness 4-Pole Flat Connector part number 56094 on our 2012 GMC Terrain.

.




Customer Reviews

Curt T-Connector Vehicle Wiring Harness with 4-Pole Flat Trailer Connector - 56094

Average Customer Rating:  ratingratingratingratingrating4.9 out of 5 stars   (196 Customer Reviews)

Quickly and easily install a 4-way trailer connector on your vehicle with this custom harness. T-connector plugs directly into existing wiring - no cutting, splicing or tapping required.


- 56094

ratingratingratingratingrating by: no name01/14/2013


This wiring harness is very easy to install. I had a bit of trouble getting the tail lights out of our 2012 equinox but with a a second set of hand they slipped out without doing any damage. I used extra zip ties and wire loom to help protect the wire. Be sure to keep it away from the exhaust if you have a V6 with duel exhaust tips. I modified a Curt rubber tube cover to secure the harness to the receiver. I made sure to leave extra wire in behind the hitch so that I can pull it through when I need it. 63065






- 56094

ratingratingratingratingrating by: Ed H.06/24/2014


I've seen many aftermarket hitches that are obviously not built for a specific car, and they look terrible when installed. The hitch I purchased from Etrailer.com was a perfect fit for my car. It was built by Curt Mfg., and was surprisingly easy to install. I had the wiring harness installed in about 45 minutes, and it just plugs into existing wiring (no splicing). And the hitch bolted onto the car with no cutting, drilling or hammering. It was done in about an hour. The finished installation looks like it came with the new car ! The process was much less expensive than having the dealer install it. Excellent product !! 137454






- 56094

ratingratingratingratingrating by: Bill R.06/15/2014


Look, I have no doubt that the product is excellent. After all, it fits perfectly into and with the original equipment. The installation (I took my laptop out to my Equinox and ran through it, step by step) went without a misstep--well, I did drop a screw that held the rear light bracket in place and spent a while retrieving it from inside the car frame, but that was my fault. I also want to note that the video is correct in suggesting using longer zip ties, but I was able to make use of the provided ties, supplementing them with a few of my own. But here's the real deal: The staff at etrailer.com babysit you all the way from order to delivery and beyond. Amazon's a great way to shop, BUT I've ordered twice from etrailer and I'm convinced it is the place to go if you want the right part and SERVICE. Seriously. 135638






- 56094

ratingratingratingratingrating by: Dan M07/05/2013


Just installed Curt Kit # 56094 on my 2011 Terrain. Instructions are simple and easy to follow. Only took about an hour to complete. Etrailer was a pleasure to deal with, I recommend them highly. 87811





Comments

PatrickWiring harness has been working perfectly. Install was very easy.

Dan M - 07/10/2014

5506



- 56094

ratingratingratingratingrating by: Kurt E.05/25/2013


Fit perfect. Good instructions. Easy do it yourself install. 81994





Comments

Working well. Have only used it a few times but it has always worked perfectly.

Kurt E - 05/25/2014

4425



- 56094

ratingratingratingratingrating by: James Ruble08/17/2012


I need a wiring product for my 2012 terrain the the local didn't stock the right one. To order One would take three to four days and I needed it quicker then that (poor planning on my part) and they ask over double the price that I got from you. You also gave an option on shipping te and cost. I was very pleased with your service You can always purchase like products but when it comes to service your company stands out. I will be purchasing a flat tow bar in the near future and be ordering it from you. Keep up the good excellent service. Thanks Jim 52012






- 56094

ratingratingratingratingrating by: Chris M.06/28/2012


To EASY to install. I purchased this product for my 2012 GMC Terrain AWD 4 Cylinder. Just like the instructions I removed the screws for the tail lights, popped them off (you need to pull straight back and a little hard because the tail lights have straight clips behind them, they won't break, the clips go straight into the vehicle body) and clipped in the harness as directed. Too EASY. When putting the tail lights back on be cautious not to smash the rubber lining which runs above the tail lights on the vehicle itself. GREAT PRODUCT!!!!!!! 46024






- 56094

ratingratingratingratingrating by: Rob B05/28/2013


The wiring is very easy to install and worked perfectly for me the first time I used it. The video walkthrough was spot on, it only takes about 15-20 minutes to install and doesn't require you to run a wire up to your batterey at the front end of the vehicle. Besides installing the ground wire with the self-tapping screw, the rest of the instalation only involves plugging in the 4-way adapters to your existing taillight wiring. The product arrived as decribed and I would absolutely reccomend this product. 82234






- 56094

ratingratingratingratingrating by: Glen M.10/17/2014


I found the products I purchased from etrailer to be very good, easy to install at a reasonable price . I was pleased with my customer service from placing the order to delivery and follow up. I highly recommend etrailor and next time a purchase auto accessories I will start with etrailor. 156554






- 56094

ratingratingratingratingrating by: Dave07/31/2014


Pretty Easy. The Chevy Equinox tail light assembly has only two screws each. Easy to remove with a phillips screw driver. The wiring harness is pretty self explanatory. The wire coloring matched the basic wiring from the tail light, making it easy to match up. The harness has more than enough length to reach the hitch. It was a little tricky finding metal to drill for the ground but all and all a good product. The entire wiring project took me less than an hour. 143748






- 56094

ratingratingratingratingrating by: E Whitestone10/22/2011


Of the two Wire Harness's available for the Terrain and Equinox from etrailer, the Curt #56094 is absolutely the one to purchase. With this one, you do not have to run a wire all the way from the back of the vehicle to the front and make a Battery connection, like you have to with the other harness available. Excellent quality and installs easily, without the hassle of running a wire to the Battery. Curt trailer products are second to none. 25947






- 56094

ratingratingratingratingrating by: Stan S.05/09/2014


I bought this for my 2014 equinox, not being very mechanically gifted I had worry if I could actually do this but after reading what other customers had written I thought I would give it a try. Was I ever surprised at the ease of installing it. Any time I need something I will alway head straight to Etrailer.com I was so impressed with the quality and instructions I must give them an A++ and a at-a-boy 129725






- 56094

ratingratingratingratingrating by: Warren S.05/22/2014


The product was just like what I saw in the video and just as easy to install. I installed the trailer hitch and the wiring myself with my brother's help. We finished in less time than was estimated and checked out the wiring with a voltmeter. Everything worked just fine. Thanks for the installation video. I would not have tried the install myself if it were not for your video. Thanks. 131864






- 56094

ratingratingratingratingrating by: bob class04/24/2014


I had the chevy dealer install the hitch and wiring harness. They told me that the equipment was of great quality and easy to install. I was able to do these type things years ago, but at 75, a person has to admit it's time to let the younger guy's do the work. This is the second hitch and harness I've gotten from you. I have recomended you to several of my frends. Thanks Bob C. 127132






- 56094

ratingratingratingratingrating by: Robert M06/25/2013


The install went without a hitch, (No pun intended). I liked the product for the 2013 Equinox and the fit was perfect. I would recommend you finish protecting the wire with either plastic spiral wrap or the plastic split wrap to protect the wire from wearing against any sharp edges under the vehicle. It is readily available from your big box hardware store. 86044






- 56094

ratingratingratingratingrating by: William J.10/31/2013


This was a small challenge. I did it myself and have very few tools. additionally at 75 with knee replacements I cannot get up and down very well, nor can I sit on my knees. (Butt only) Other than the minor adjustments normal for metal sizing once treated all went very well. Zero issues...."IF" you don't count some pain. Very well constructed product. 105845






- 56094

ratingratingratingratingrating by: Sam H.03/18/2012


Quick delivery. Clear instructions, good quality (good powder coating job). Easy to install (you don't need to move the tail pipe). Make sure weld nuts on the vehicle are cleaned out well before starting. A little grease to the bolts also makes them thread easier. Used with a trailer light kit. As always, very satisfied w/ etrailer.com products. 34262






- 56094

ratingratingratingratingrating by: Jim B04/20/2011


Received hitch and wiring harness very quick. It took me about an hour to install both. Th Curt Trailer Hitch Receiver and Wiring Harness were both quality products. I had reviewed the on line video for installing both and had no problem at all. My wife is extremely proud of both her new Chevy Equinox and her new trailer hitch. thanks 12072






- 56094

ratingratingratingratingrating by: Dale H.02/26/2012


Simple installation...I mean SIMPLE!!! The only suggestion that I could make would be to have some sort of mounting bracked for the trailer connector instead of letting it dangle loose. I know the instructions show the rubber cap keeping it in place, but that is still a little flimsy. Otherwise, very easy and took 15 mins to install. 32587






- 56094

ratingratingratingratingrating by: john w04/28/2011


Everything about e trailer is great. The web site is first class to start with. All the info is clear and very helpful. Video instruction is awesome and so is the price, free shipping and speed of delivery. Clearly you know how to please your customers. I will recommend etrailer.com highly. Oh ya the product was perfect too! Thank You! 12498






- 56094

ratingratingratingratingrating by: Jan O.07/23/2013


Installing the hitch and the wiring was amazingly simple thanks to the instructional videos posted on your website. My husband installed the hitch and I installed the wiring and we were finished quickly. PLUS everything worked exactly as it should! Thanks for saving us lots of money by showing us how to do it ourselves! 91087






- 56094

ratingratingratingratingrating by: richard03/02/2013


Both the hitch and the wiring harness were a breeze to install. Watched both install video's before attempting to the job and it made it very easy. Hitch looks great and wiring the harness with the T connectors made the electrical hookup a snap. Thanks for all the info (videos) that made this job simple. 68428






- 56094

ratingratingratingratingrating by: Indiana Dave04/14/2014


I received the towing hardware a few days earlier than I thought I might. I read the instructions a couple of times and had the hardware installed, by myself, within 30 minutes. It took me about the same amount of time to install the wiring harness. There were no surprises and I could not be happier. 124906






- 56094

ratingratingratingratingrating by: AndyTK05/17/2011


Curt T-Connector wire harness. Easily installed on my 2011 Chevy Equinox. Fit like a factory wire harness complete with waterproof connections. The video shows it all. Only thing I added was some black plastic wire loom to complete the illusion of a factory installation. Thanks for a great product. 14443






- 56094

ratingratingratingratingrating by: Pat L09/09/2013


Excellent video instructions - installed as described without issues. Hint: Before you route the passenger side wire bundle back up into the tail light assembly, make sure you have routed the wiring package and connectors in/around the hitch assembly through the openings and holes that you desire. 99137






- 56094

ratingratingratingratingrating by: Mikey01/30/2010


Perfect fit. Easy to install. Wish they made a 5-pin version for trailers that have back-up lights. I had to splice in the fifth wire. Also added my own ribbed flex conduit (identical to factory install) to protect the wires from chaffing. You should consider offer it on your site. 2678






- 56094

ratingratingratingratingrating by: Mike F.07/23/2011


Couldn't ask for a more elegant and efficient install. Took all of a half an hour, and it was that long only because of my arthritis. Those cable ties become a bear when you fingers don't work right. And the dealer had the audicity to want a hundred dollars to do the same thing. 20013






- 56094

ratingratingratingratingrating by: Steve P.03/19/2011


Easiest installation of automotive electrics I have ever had to do!!! Drilled one small hole for the ground wire and everything else was a simple connection. Even removing the tail lights to make the connection was very easy. etrailer's video installation guide was very helpful! 9830






- 56094

ratingratingratingratingrating by: Halbert J.07/26/2013


Product was as I ordered it, delivery was fast and securely packaged. Installed product with no problem. Instructions were clear and easy to read, with pictures. etrailer took the work and worry out of my project. Highly Recommend, great parts and even better service. 91683






- 56094

ratingratingratingratingrating by: Brian F09/12/2012


Purchased the Curt harness and DrawTite hitch from etrailer. Both arrived when promised, great customer service, products installed very easily and exactly as described. Could not have been easier. Glad I did not pay someone to do this and ordered from etrailer instead! 54441






- 56094

ratingratingratingratingrating by: Bob W.05/07/2014


from start to finish, I did the install on the hitch and the wiring harness in less than 40 minutes. I was totally amazed. i watched the videos that was on your site was very helpful. thank you so much. just wished i could of received a hat with my order. Thank you 129506






- 56094

ratingratingratingratingrating by: Fred k.12/28/2012


very easy to install on my 2013 GMC Ter ain 62130





Comments

I recieved the harness pronto, but after removing the two screws holding the tailight assembly in on my 2013 GMC Terrain, the assembly dont want to come out, Im afraid to us much pressure on plastic. Any suggestions?

comment by: Ben M - 10/26/2013


2236

Check out the link to the video. At about the 30 second mark, our installer removes the driver side tail light. After that, you can see the two plastic pins, and their corresponding holes, close to the outside edge of the body. Wiggle slightly as you pull straight back, and you should be fine.

Patrick B - 10/29/2013




- 56094

ratingratingratingratingrating by: Charlie T of Iowa03/17/2011


5 screws and some electrical tape combined with 10 minutes of time and it was done. Oh ya, 5 zip ties too. Same total time though. Super easy. Watch the video before the product arrives and you will sail through the install without the directions. 9564






- 56094

ratingratingratingratingrating by: Dave J.06/01/2012


Website easy to use, organizes product that fit your vehicle so it is easy to find what you need. Not just instructions, but links to videos, questions and answers as well are great. And the hitch and harness were easy and quick to install. 42372






- 56094

ratingratingratingratingrating by: Martin V02/27/2014


Product arrived on time. I ordered it on Sunday, within about 30 minutes I received two emails from different people telling me that my order was being taken care off. Product worked perfectly and would recommend this product and company. 117923






- 56094

ratingratingratingratingrating by: JuanP07/02/2013


Great easy to install wiring was just as easy no cutting or drilling just watch the video and follow the instructions all of the info is there it took me about 50 mins from start to finish now just to see how it handles over the years 87068






- 56094

ratingratingratingratingrating by: JuanP07/02/2013


Great easy to install wiring was just as easy no cutting or drilling just watch the video and follow the instructions all of the info is there it took me about 50 mins from start to finish now just to see how it handles over the years 87064






- 56094

ratingratingratingratingrating by: Ric M.10/14/2013


This wiring harness was an exact fit for my 2013 Equinox and installation was easy after watching the etrailer.com instructional video. I was totally satisfied with every aspect of this purchase and highly recommend etrailer.com 103777






- 56094

ratingratingratingratingrating by: Glen M.08/08/2014


The product (wiring harness) was installed in about 20 minutes. The video I watched was exact and helpful. I would recomend this product to anyone with a Chevy Equinox. The hitch and wiring looks like it was factory installed. 145276






- 56094

ratingratingratingratingrating by: 1359110/25/2014


Ordered trailer hitch my 2013 Equinox with curt wiring, The shipment came as ordered very fast plus free shipping installed as the viedo showed very pleases with E-Trailer would recommend them very highly great place to shop. 157903






- 56094

ratingratingratingratingrating by: Don I06/07/2012


Completely satisfied with product and service. Watched the video and installed myself in about a half hour. Should be much less time for someone younger than my age (77). It takes me longer to get up off the ground nowadays. 43092






- 56094

ratingratingratingratingrating by: Terry Kinnaman08/01/2011


Bridget was most helpful in suggesting I might need this. The instructions were very good to help me get behind the tail lights. installation was about 40 minutes. The GM connectors make installation very straight forward. 20657






- 56094

ratingratingratingratingrating by: Joan10/20/2014


The hitch is not installed as yet, but since I have done business with you before I am sure it is fine. The prior purchase just towed a trailer with a full sized vehicle on it for 150 miles with no problems. Thanks. 156970






- 56094

ratingratingratingratingrating by: Heidi C09/06/2013


Trailer Wiring. Works great and it was easy to install, especially with the video provided online. It's installed into the rear lights so there is no spicing of any wires, just a quick connect and it's out of sight. 98613






- 56094

ratingratingratingratingrating by: Adam L.06/20/2014


So Easy!!! The videos provided were amazingly easy to follow. Install took about 15 min. Way easier than the old days of having to splice wires together. Alot safer and more dependable too. Amazing Product. 136703






- 56094

ratingratingratingratingrating by: Ron B.11/08/2013


These trailer adapters are well worth the money. It simplifies the hook up for trailer lights and it is all water tight. After watching the video it took no time at all and I was done. Great product line. 106738






- 56094

ratingratingratingratingrating by: Bob S.06/16/2014


Received it faster than I figured. I did not have any trouble installing the hitch. It took only a half hour to install just like they said on the web. Wiring took a little longer. I am very satisfied. 135705






- 56094

ratingratingratingratingrating by: chris09/13/2012


Installed the product myself in about 20 to 30 min on my 2011 GMC Terrain, and it was extremely easy. I hauled a trailer with it this past weekend all of the lights worked perfectly just like they should. 54599






- 56094

ratingratingratingratingrating by: Curt.O07/13/2012


Great quality product. Very easy to install and I'm a klutz. ettrailer only sells the best at a great price. I've purchase hitches from them for years and always the same result. Great service 47909






- 56094

ratingratingratingratingrating by: Dan11/18/2011


Installation only took about 15 minutes. Watch the video if you have any questions. All together, I saved about $100 by installing my own hitch and wiring vs taking it to U-Haul to have it done. 27138




52
198
Show More Reviews

Ask the Experts about this Curt Custom Fit Vehicle Wiring
Expert Answers about Curt T-Connector Vehicle Wiring Harness with 4-Pole Flat Trailer Connector - 56094Do you have a question about this Custom Fit Vehicle Wiring?


  • Do I Need a Tow Package To Install 4-Way Trailer Wiring on 2012 Chevrolet Equinox
  • We do have wiring kits, that will work with your 2012 Chevrolet Equinox, that do not require the vehicle have a tow package. However, the item you selected, Tow Ready T-One Vehicle Wiring Harness, part # 118264, will only fit the 2010-2012 Equinox models that are equipped with the factory tow package. If your 2012 Chevrolet Equinox will not be equipped with a factory tow package, you could use either the Tow Ready Custom Fit Vehicle Wiring, # 118494, or the Curt Custom Fit Vehicle Wiring,...
    view full answer...

  • Comparing Trailer Wiring Harnesses # 56094 and # 118494 for a 2011 Chevy Equinox
  • The Curt T-Connector Vehicle Wiring Harness with 4 Pole Trailer Connector, # 56094, will fit your 2011 Chevy Equinox and will work to operate the trailer stop, turn, and tail lights. But, it does not have a circuit protected or powered converter to protect your vehicle wiring. If given the option, I will always recommend the circuit protected powered converter, # 118494, because it is designed to protect your vehicles sensitive wiring. What it does is virtually eliminate the extra power...
    view full answer...

  • Trailer Wiring Recommendation for a 2010 Chevrolet Equinox, Circuit Protected vs Unprotected
  • We stock both the Tow Ready Custom Fit Vehicle Wiring, # 118494, and the Curt Custom Fit Vehicle Wiring, # 56094, because we have customers that request both styles. Many times customers do not want to run the extra wire to the vehicle battery, so they order the # 56094 harness. The Battery connection is the biggest advantage of the # 118494 harness for protecting the vehicle circuitry. I would use the circuit protected model, # 118494, because there is always a possibility of a short...
    view full answer...

  • Does Hidden Hitch # 90145 Include Everything Needed To Tow a Trailer With 2012 Chevy Equinox
  • The Hidden Hitch Class II 1-1/4 Inch Hitch, part # 90145, will fit a 2012 Chevrolet Equinox. It is the trailer hitch and includes the ball mount and pin and clip. To be able to tow with this hitch you will still need to purchase the hitch ball and the wiring harness for lighting the trailer lights. I am including links to the installation instructions and a install video of the hitch being installed on a 2010 Equinox (same on the 2012 model). The wiring harness for your Equinox would...
    view full answer...

  • Does the T-Connector Wiring Harness Violate the Warranty on 2010 Chevy Equinox
  • The T-Connector Wiring Harness for the 2010 Chevy Equinox, part # 56094, is very easy to install. You will simply plug it into the factory connectors behind your tail lights and you will be ready to tow. Installing a wiring harness will not interfere with your warranty. I would recommend two things. If you will be towing frequently, I suggest a mounting bracket like the 4 and 5-flat Trailer Connector Mounting Box, part # 18145, to keep your plug from dragging the ground. I also recommend...
    view full answer...

  • What are the Differences Between Trailer Wiring Options for a 2012 Chevrolet Equinox
  • The Curt wiring harness, # 56094 and the Tow Ready harness # 118264, are for different variations of a 2012 Chevy Equinox. Tow Ready harness # 118264 is designed for vehicles that have a factory tow package. Curt harness # 56094 is for a vehicle that does not have the factory tow package. You are correct in that the Curt harness would receive power through the vehicle wiring to the trailer lights. Any problem could affect the vehicle electrical system. Another option is to use the...
    view full answer...

  • Does the Computer have to be Reset to Install a Curt Trailer Wiring Harness on a 2012 GMC Terrain
  • I went over the installation instructions and you will not have to have the computer reset when you install the Curt wiring harness, # 56094, on your 2012 GMC Terrain. If you are apprehensive about it, you could always disconnect the negative battery cable prior to installing the harness. You will use any programmed information, like stereo presets, but that is easy enough to reset.
    view full answer...

  • Does a T-Connector Trailer Harness Need to be Plugged into Vehicle ECU
  • Curt T-Connector harness part # 56094 does not need to be plugged into the computer of the vehicle. T-Connector style harnesses plug into the tail light wiring connectors with an additional wire that will need to be grounded to the vehicle body or chassis. Sometimes there is another wire that will need to be run to the battery.
    view full answer...

  • Which Curt Trailer Wiring Harness Fits a 2013 Chevy Traverse LT
  • Curt trailer wiring harness # 56094 does not fit a 2013 Chevy Traverse. It is made to fit the 2010 to 2013 Chevy Equinox and GMC Terrain. Curt wiring harness # C56181 is correct for a 2013 Chevy Traverse. I have included a link to the installation instructions for you to the right.
    view full answer...

  • 2013 Chevy Equinox hitch
  • The basics of what you are going to need to pull your fishing boat with your 2013 Chevy Equinox is a wiring harness for the lights and a ball mount and ball. Providing that your boat and trailer are within the weight limits, and you do not have the tow package the Curt T-Connector Harness # 56094 will provide an economical way to hook up your trailer brake lights. I have attached a brief installation video that takes you step by step as well as the installation instructions. If you...
    view full answer...

  • Will Trailer Wiring Harness 118264 Fit a 2014 Chevy Equinox without Factory Tow Package
  • If your 2014 Chevy Equinox did not come with the factory tow package then the factory connection point is probably not functional. You can test it with a circuit tester such as # 3808 while someone runs through the lighting functions on the vehicle. If it is functional then you can use harness # 118264. If it turns out not to be functional then you will need either harness # 56094 or # 118494. I recommend the powered harness # 118494 because the direct connection to the battery is sued...
    view full answer...

  • Hitch Recommendation for 2013 GMC Terrain
  • The biggest difference between the Hidden Hitch part # 87572 and the Curt Hitch part # 13591 that you referenced is the round tube vs. square tube. Another difference is that the Hidden Hitch uses a couple more attachment points. Other than that it looks like the Curt costs a little less. Either would work great for you. If it was me, I would probably go with the Curt based on the price difference. To complete your towing setup you may also be interested in the Curt Trailer Wiring Harness...
    view full answer...

  • Trailer Hitch Recommendation for a 2012 Chevrolet Equinox
  • All of the trailer hitches that fit the 2013 Chevrolet Equinox fit the 2012 Equinox because they have the same trailer hitch bolt pattern on the frame rails. We have several different trailer hitch options for your 2012 Equinox, so I attached a link to all of them for you to check out. The trailer hitch that I recommend is the Curt Class III Trailer Hitch, # 13591. This hitch will save you some money over the Draw-Tite and Hidden Hitch Class III trailer hitches without sacrificing any...
    view full answer...

  • Advantage to Using the T-One 118494 with Powered Converter over Using the Curt 56094 Wiring Harness
  • The T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector, # 118494, allows you to operate trailer stop, turn, and tail lights but also includes a converter to protect your vehicle's wiring. This powered converter connects directly to your vehicle's battery to avoid overloading the electrical system. If there was ever a short or problem with the trailer's wiring, the only damage that could occur would be to the harness and not your vehicles wiring system. I am including a video...
    view full answer...

  • Trailer Lights do not Work with the Curt T-Connector Harness # 56094 on a 2013 Chevrolet Equinox
  • According to Curt, the T-Connector Trailer Wiring Harness, # 56094, that you installed is compatible with your 2013 Chevrolet Equinox. It sounds like there may be an issue with the wiring harness itself since your trailer lights work with another vehicle. The first step I recommend taking is to inspect the connections for the wiring harness and make sure it is grounded properly. If you see any pinched, frayed or damaged wires, the harness could be shorting out, which would explain why...
    view full answer...

  • Troubleshooting No Power on the 4-Way Curt Harness part # 56094 on a 2008 Chevy Equinox
  • If you tested the 4-way of the Curt Connector part # 56094 with a circuit tester like our part # 3808 and got no power out of any of the pins with the different taillight function applied the first thing I would do is make sure you grounded the white wire of the harness to a clean metal surface that touches the vehicle frame. The next thing I would do is make sure that all of the connectors are securely in place. You could even unplug them and then replug them back in. I attached an...
    view full answer...

  • Trailer Wiring Harness for a 2011 Chevy Equinox LS
  • There are several wiring harnesses available for the 2011 Chevy Equinox but # C58044 will not fit. I have included a link to the harnesses that do fit. If your Equinox does not have the factory tow package the most popular option is # 56094. I have linked the instructions and a video showing a typical installation for you. If your Equinox does have the factory tow package you would use harness # 118264. I have linked a video and the instructions for this harness as well.
    view full answer...

  • Hitch Recommendation for a 2011 GMC Terrain with Least Visibility
  • Check out the picture I attached of the Curt Hitch part # 13591 installed on a 2011 GMC Terrain. You'll see that the cross tube is almost completely out of sight. I also attached an install video and instructions for this hitch for you to check out. To complete your towing setup you may also be interested in the Curt Trailer Wiring Harness part # 56094. Installation vid and instructions attached as well. For a ball mount, hitch ball, and pin and clip, I would recommend the etrailer...
    view full answer...

  • Which Wiring Harness for Installation on a 2010 Chevrolet Equinox
  • The wiring harness you will need for your 2010 Chevrolet Equinox is the Curt T-Connector Vehicle Wiring Harness, item # 56094. The installation is different for the 2010 Equinox and you will need to install the connectors behind each taillight on the vehicle.
    view full answer...

  • Can Trailer Hitch and Trailer Wiring Harness from 2014 Chevy Equinox Be Moved to 2014 Model
  • The hitch and wiring used on your 2012 Equinox can indeed be reused on your 2014 model. Both vehicles use the same hitches and wiring. However, the installation hardware for the hitch is not meant to be reused and should be replaced. To obtain replacement hardware, go to the the # RHK product page by using the link provided below. Type in the hitch part # C12291, select the name of the hitch manufacturer from the drop-down menu, and choose a quantity of 1. I'll link you to some install...
    view full answer...

  • Wiring Harness Recommendation for a 2014 Chevy Equinox
  • The Curt Wiring Harness part # 56094 that you referenced would work well on your 2014 Chevy Equinox. Like you noticed, it does not have a converter box or require a power wire run to the vehicle battery. I attached an install video for you to check out as well. For a hitch you also might be interested in the Curt Hitch part # 13591. For ball mounts I recommend the etrailer Ball Mount Kit # 989900. It comes with 2 ball mounts, 2 balls, a hitch pin with clip, and a carrying bag.
    view full answer...

  • Will Pilot Skull with L.E.D. Eyes Hitch Receiver Cover # CR-018 Fit Hitch on 2014 Chevy Equinox
  • Yes, the Pilot Skull with L.E.D. Eyes Hitch Receiver Cover # CR-018 will fit the hitch on your 2014 Chevrolet Equinox. Your car could be equipped with either a 1-1/4-inch Class II or a 2-inch Class III trailer hitch, and the Pilot hitch cover is designed to be able to work with both sizes. If you need a 4-pole trailer wiring harness to power your LED-equipped hitch cover you can use part # 56094 from Curt, which is a simple plug-and-play harness that plugs in to your tail lights without...
    view full answer...

  • Hitch Recommendation for a 2015 Chevy Equinox
  • The Curt Hitch part # 13591 that you referenced is the correct hitch for your 2015 Chevy Equinox. Check out the install video I attached. For trailer wiring you would want the Curt Wiring Harness part # 56094. For ball mounts I recommend the etrailer Ball Mount Kit # 989900. It comes with 2 ball mounts, 2 balls, a hitch pin with clip, and a carrying bag.
    view full answer...

  • Best Trailer Hitch and Wiring Recommendations for a 2014 Chevy Equinox LT
  • Yes, the Draw-Tite trailer hitch # 75681 will fit your 2014 Chevy Equinox LT. I have included a link to the right to a video showing installation for you. If you plan on doing some towing you might be interested in etrailer ball mount kit # 989900. It comes with 2 ball mounts; one with a 3/4 inch rise or 2 inch drop and one with a 2-3/4 inch rise or 4 inch drop. It also includes a 1-7/8 inch ball, 2 inch ball, hitch pin with clip, and a storage bag. If the ball mount kit does not...
    view full answer...

  • After Installing Brake Controller on 2011 Chevy Silverado, Trailer Brakes Lock Up Right Away
  • Do you happen to have a 6-Way trailer connector or are you using a 7-Way to 6-Way adapter? Usually when this happens and a 6-Way is involved it means that the 12 volt circuit and brake output circuit are switched. On just a 7-Way, there could be a short that is causing power draw to the brake output pin. And it could be a problem with the brake controller. There are some tests you can do to test the brake controller. In the truck cab you will need to sever the blue wire several inches...
    view full answer...

  • Does the BCM Need to be Reprogrammed to Install a Trailer Connector Harness on a 2010 Chevy Equinox
  • I spoke with my contacts at Curt and Tow Ready, who both make wiring harnesses for the 2010 Chevy Equinox. They stated you will NOT have to reprogram the BCM or anything else to install the Curt T-Connector, # 56094, or T-One with Upgraded Circuit Protected Modulite, # 118494. I recommend the T-One with Upgraded Circuit Protected Modulite, # 118494, as it has a powered Modulite that will help protect your vehicles sensitive wiring. I have included a link to the installation details below....
    view full answer...


Expert Answers about Curt T-Connector Vehicle Wiring Harness with 4-Pole Flat Trailer Connector - 56094Do you have a question about this Custom Fit Vehicle Wiring?



GMC Terrain Accessories


Info for this part was:


Test Fit:
Joe V

Photos by:
Theodore B

Video Edited:
Zack K

Video by:
Andrew K

Expert Research:
DeAnne T

Expert Research:
Robert G

Expert Research:
Patrick B

Expert Research:
Michael H

Expert Research:
Jameson C

Video Edited:
Joshua S

Test Fit:
Nicholas E

Expert Research:
John H

Updated by:
Adele M

Test Fit:
Shane T

Video by:
Alan C

Video Edited:
Sue W

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.










Stay Connected


Subscribe to email newsletter

Email

privacy - we don't send unsolicited email





Free Shipping on Orders Over $99

Only 22 Hours 51 Minutes Remaining


etrailer.com reviewsetrailer.com reviews

All images, layout and content copyright etrailer.com
