Quickly and easily install a 4-way trailer connector on your GMC Terrain with this custom wiring harness. T-One connector plugs directly into existing wiring. Powered ModuLite reduces strain on wiring system.
Features:
Specs:
Installation
This custom-fit T-One connector plugs into your GMC Terrain's wiring harness, which is located behind the driver's-side and passenger's-side interior trim panels in your rear cargo area. Once you've plugged in the T-connector, run the hot lead up to your car battery. Connect the lead to the included fuse holder, and then connect the fuse holder to the positive terminal on your battery and insert the provided fuse.
Once installation is complete, the 4-way flat connector will be stowed beneath your GMC Terrain, near the trailer hitch. A mounting bracket (sold separately) is recommended to keep the connector secure.
It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.
A ModuLite power module is built into this T-One connector. Because most trailers run on a two-wire system - wherein the brake and turn signals are carried on one wire - the separate brake and turn signals from your GMC Terrain's three-wire system need to be combined so they are compatible with the wiring system of your trailer. This power module functions as a tail light converter to combine the brake and turn signal functions of your automobile so that they run on one wire to properly activate your trailer's tail lights. Note: This will not affect how the tail lights on your GMC Terrain operate.
With a ModuLite, your trailer's lights will be powered without overloading your GMC Terrain's electrical system. Because the module draws power directly from your car's battery and bypasses the electrical routes that are used by a basic wiring harness, there is virtually no draw on your tail light circuits.
Video of T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

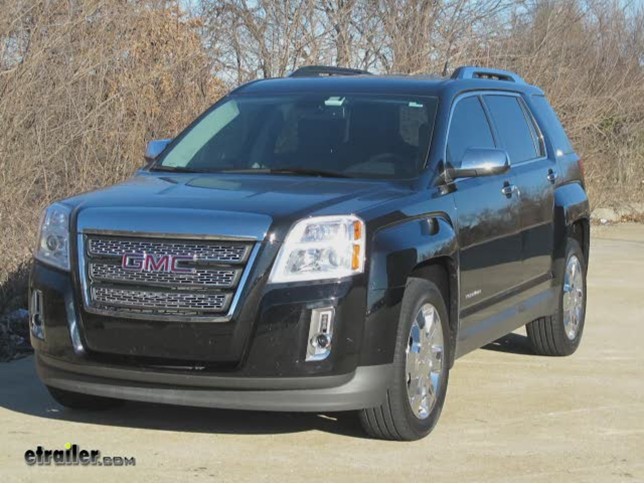

Today on our 2010 GMC Terrain, we're going to install the Tow Ready T-One Connector part number 118494. First, we'll need to access the rear cargo area. We'll remove the two tail light screw lens covers and then we're going to remove the two fasteners. With our fasteners removed, we can go ahead and gently pry the lens away from the body of the vehicle. See, now exposes the tail light wiring harness. We can go ahead and disconnect the tail light lens.
With the driver side wiring exposed, we can go ahead and take our new T-One connector and plug in line with the manufacturers. On the driver side, we use the yellow and brown wiring end connectors.Next, we'll go ahead and take the remaining part of our wiring harness feed down through the cabin between the bumper cover and the sheet metal. All right, next we need to feed our green wire over the passenger side. Anytime your routing your wires, take precautions so stay away from the excess feed such as the exhaust or moving components such as the steering or suspension. So for routing the green wire, we're going to go in the bumper structure and then feed through it over the passenger side.I'm using the piece of tubing or piece of step wire as the pole wire so we can get it over to the passenger side.
Once, you get your pole wire fed over to the passenger side, let me take a piece of black electrical tape, tape my green wire off to my pole wire. Now, we'll fed over the passenger side. I'm going to go ahead and use my same pole wire to feed it up between the bumper cover and a sheet metal, guess, we fed it down on the driver side. Now, we're up behind the tail light, we'll go ahead and remove the electrical tape and our pole wire, make our connection with the manufacturers. We'll be plugging in line with the manufacturer's connection.
Now, here on the passenger side we're going to go ahead and reinstall our tail light lens. All right, now before I can go ahead and mount my converter box, I want to install the black wire onto our red power wire coming out on the converter box while the butt connector that connected to.So, first we need to strip back the wire. Now, we can go ahead and connected to with the butt connector. All right, now before you might the converter box here's the quick tech tip I recommend to go ahead and tape up the butt connector connection, this will help keep out any moisture, dirt and debris from our electrical connection. Now, we've got our connections main we're going to go ahead and mount our converter box.
Looking for our solid flat mount surface typically a piece of sheet metal. So go ahead and peel back the double side of easel up behind the bumper cover below the driver side tail light as a good flat clean surface for me to go ahead and mount the converter box to. With our converter box, we can now go ahead and run our 4-pole over the center of the hitch. To secure our wiring I just fuse the black zip ties. Okay, a little bit pole wiring that we're going to need for this application so I'm going to double it up and secure it here above the hitch. Next here on the driver side behind the tail light, we're going to mount the ground wire. Ground wire, the white wire with the ring terminal are already connected. Now, in mounting the ground wire it's best to go through at least two layers of sheet metal. Be peeled back the tape here covering an access hole, you can see that the sheet metal doubles up. So go ahead and mount there underneath the tape using the self tapping screw provided in our install kit. Then, we can just reinstall our tape. Now, we can go ahead and make my connection with the tail light and reinstall it. Once we complete that, we can begin routing our black power wire up to the vehicle's battery. With our wire pulled up into the hinge compartment, we're going to go ahead and remove the fuse box cover which will have the battery terminal post that we can connect to. Here's the post that we can go ahead and attach our power wire tube, all we do that we're going to go ahead and secure our wire and our fuse holder. Our fuse holder will take and cut in half, strip back both sides of the wire, one side will get the butt connector and add to our power wire the other side will get the ring terminal that will attach to the positive battery terminal.Now before I attach my power wire, we can go ahead and cut our power wire to length and if we dont need to hold the excess. With the excess of our power wire cut-off and our wire strip back, we can go ahead and add our butt connector. Then, we can add our fuse holder. Now, go ahead and remove the battery post so we can install the ring terminal on to the positive battery. Now, we can go ahead and reinstall the fuse cover. All right, with our fuse cover reinstall we can now go ahead and add the fuse to our fuse holder. With our fuse holder can be installed that completes the installation of our Tow Ready T-One Connector part number 118494 on our 2010 GMC Terrain. .
