Quickly and easily install a 4-way trailer connector on your vehicle with this custom harness. T-connector plugs directly into existing wiring - no cutting, splicing or tapping required.
Features:
Installation
This custom-fit T-connector plugs into your vehicle's wiring harness, which is located behind the driver's-side and passenger's-side tail lights. You will have to remove the tail light assemblies and interior trim paneling to access this harness.
Once installation is complete, the 4-way connector will be stowed in an out-of-the-way location within your cargo area.
It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.
Video of Curt T-Connector Vehicle Wiring Harness with 4-Pole Flat Trailer Connector
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

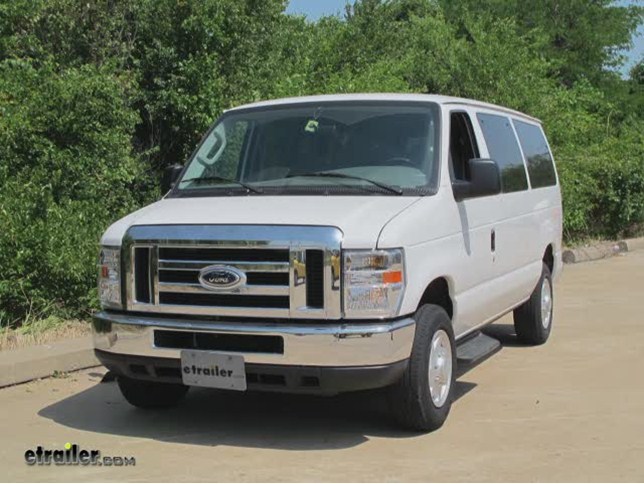

Today on this 2006 Ford E350 van were going to install part number C56020 from Curt. The first thing we need to do is go ahead and remove the two taillights. Then well disconnect the taillights from the wire harnesses. Now well go ahead and get inside the van. Well open up the doors and remove the panel for the jack storage compartment. Next well remove the threshold.
Also well remove the fasteners here. Well take the four pole and insert it on the passengers side and run it out to the jack storage compartment. Well pull it through. Well also pull one half of a wire harness with the yellow wire all the way through with this connector. Well go ahead and take that yellow wire connector, well route it underneath the carpet over to the other side.
Well sneak it underneath the plastic, and then well use a piece of scrap wire fashioned into a hook and pull the wire back up through to the taillight. Well make our connection to the wire harness. Well be using the factory wire harness with the green wire with the red stripe. Well connect up to that. Well leave that side alone for now.
Then well go ahead and do the same thing over on the passengers side. At this point we can go ahead and snatch the other half of the T connector onto the taillight and reinstall the taillight on both sides. Then we can go ahead and reinstall the threshold and the jack storage compartment cover. With all interior components reinstalled we can go ahead and show how to use the wire harness. First well go ahead and shut the drivers side door.
Well tuck the wire underneath the edge of the door, and then we can go ahead and shut the other door. The door sealed around it will protect the wire, keep it from hurting it or anything like that. Just make sure you stay away from the latch. Then well pull out what we need to go down to our hitch, and then its ready for use. At this time well go ahead and install the four pole cover as well. With that, that will finish up our install of part number C56020 from Curt on our 2006 Ford E350 van.
2004 - 2010 Ford Van E-150
2004 - 2010 Ford Van E-250
2004 - 2010 Ford Van E-350
2009 - 2011 Ford Van without factory 4-flat or 7-way connector
2004 - 2008 Ford Van without factory 7-way connector
