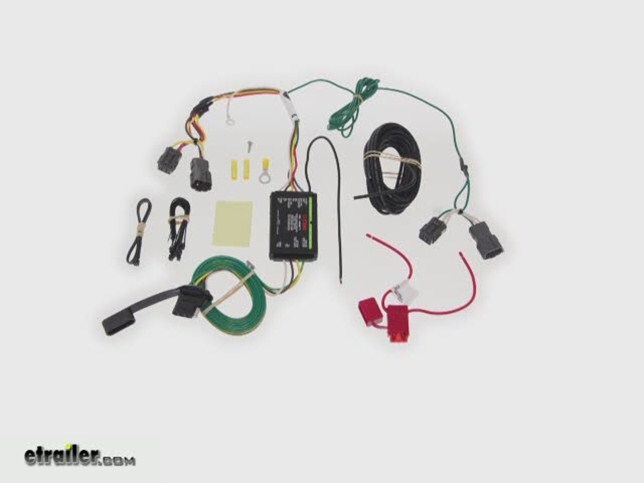

Quickly and easily install a 4-way trailer connector on your vehicle with this custom harness. T-connector plugs directly into existing wiring. Powered converter reduces strain on wiring system and is made using SMT to ensure superior performance.
This custom-fit T-connector plugs into your vehicle's wiring harness, which is located behind the driver's-side and passenger's-side tail lights. You will have to remove the tail light assemblies to access this harness. Once you've plugged in the T-connector, run the hot lead up to your car battery. Connect the lead to the included fuse holder, and then connect the fuse holder to the positive terminal on your battery.
Once installation is complete, the 4-way connector will be stowed beneath your vehicle, near the trailer hitch. A mounting bracket (sold separately) is recommended to keep the connector secure.
It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.
A tail light converter is built into this T-connector. This converter is a circuit-protected, battery-powered unit that bypasses the electrical routes that are used by a basic wiring harness. As a result, there is virtually no draw on your tail light circuits.
Because most trailers run on a two-wire system - wherein the brake and turn signals are carried on one wire - the separate brake and turn signals from your vehicle's three-wire system need to be combined so they are compatible with the wiring system of the trailer. This converter combines the brake and turn signal functions of your automobile so that they run on one wire to properly activate your trailer's tail lights. Note: This will not affect how the tail lights on your vehicle operate.
Curt builds each tail light converter using surface-mount technology (SMT). This method of construction involves soldering electronic components directly to the surface of a printed circuit board. SMT eliminates the need for leads, which are used in older through-hole technology. The result is a circuit board that is smaller yet provides more routing area and that offers superior performance, reliability and durability.
Circuit boards constructed using SMT have been shown to perform better under rough conditions with excessive vibration than those made using the through-hole method. And where would vibration be more likely to occur than in towing applications? Curt converters also produce less heat, leading to increased durability and longer life. In addition, lower levels of resistance ensure better performance, especially for parts that operate at higher frequencies.
Each Curt circuit board is made using high-quality components that are pieced together in the most technologically savvy fashion, leading to greater predictability and reliability in functioning.
2011 - 2013 Kia Sorento 4 Cylinder models
2011 - 2013 Kia Sorento Base I4 without factory tow package
2011 - 2013 Kia Sorento EX I4 without factory tow package
2011 - 2013 Kia Sorento EX V6 without factory tow package
2011 - 2013 Kia Sorento LX I4 without factory tow package
2011 - 2013 Kia Sorento LX V6 without factory tow package
2011 - 2013 Kia Sorento V6 EX without Factory Tow Prep Package
2011 - 2013 Kia Sorento V6 LX without Factory Tow Prep Package
Video of Curt T-Connector Vehicle Wiring Harness with 4-Pole Flat Trailer Connector
Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.
Today, we're going to be taking a look at the currency connector vehicle wiring harness with the four pull flat trailer connector. This product fits certain models and years of the Kia Sorento. It's going to provide your four way flat trailer connector at the back of the vehicle to power your trailer signal lights. It is compatible with five pull, and six pull and seven pull adapters. Adapters are sold separately. And it's going to come with a dust cap for the four way flat connector, that way you can cover up the connection points when your plug's not being used.
The black box here, it's pre wired in. This is going to be your tail light converter. This is going to ensure that your vehicle's wiring matches that of your trailer. This module's going to connect directly to the battery through the wiring to avoid overloading the vehicle's electrical system. It's going to be constructed using surface mount technology, which is going to offer consistent, reliable performance.
The unit's going to connect quickly and easily.When it comes to installing it, all you have to do is locate the connection points behind your tail lights, then you're going to have two connectors. These are your t connectors. This side with the yellow wire's going to go to the driver's side of the vehicle. This side with the green wire's going to the passenger's side of your vehicle. So locate your connection points behind the tail lights, plug in your connectors.
The plugs are going to match up perfectly with the ports on the vehicle. It's a custom fit wiring harness, so they're going to snap together for nice, tight, secure fit. Once you get those connected, you'll need to make a ground connection. That's going to be your white wire with ring terminal attached to it. You want to get that grounded on a nice metal surface with the included grounding screw, and then you'll need to mount the converter box to a nice, clean, out of the way location using the provided double sided adhesive tape.
Once you have that done, you'll need to run your hot lead to the vehicle battery.That's going to be your black wire here. It's going to get connected to the bundle black wire with one of the included butt connectors. The other end of the black wire runs to the vehicle battery. It's going to get another butt connector attached to it, and it's going to connect to one half of the included fuse holder. The other half of the fuse holder gets a ring holder attached to it, and that's going to get connected to the positive post on the vehicle battery. It does come with your ten amp fuse. It goes right in fuse holder there, then you just close the cap to keep it safe and secure. Once you have all that done, you can go ahead and secure any excess or slack in the wiring with the included cable ties. Now, once your install is complete, the four way connectors are going to be set up beneath the vehicle, near the trailer hitch. We do recommend a mounting bracket to keep the connector secure. That's sold separately. You can find it here at etrailer.com.We also recommend that you use a small amount of dielectric grease on all your electrical connections, like the plugs on the vehicle and the four pull connector itself, to help prevent corrosion to those connection points. That grease is sold separately. Also, and you can find that here. It's dielectric grease, but you can get it here at etrailer.com. Now when it comes to the maximum amperage for your stop and turn lights, we're looking at five amps per circuit, and for the tail lights, we're looking at five amps per circuit. The unit's also going to come with very detailed insulation and wiring instructions. It's going to walk you through the entire process step by step. That's going to do it for today's look at the currency connector vehicle wiring harness with the four pull flat trailer connector.
