Quickly and easily install a 4-way trailer connector on your Chrysler Town and Country with this custom harness. T-connector plugs directly into existing wiring. Powered converter reduces strain on wiring system and is made using SMT to ensure superior performance.
This custom-fit T-connector plugs into your Chrysler Town and Country's wiring harness, which is located behind the driver's-side and passenger's-side tail lights. You will have to remove the tail light assemblies to access this harness. Once you've plugged in the T-connector, run the hot lead up to your car battery. Connect the lead to the included fuse holder, and then connect the fuse holder to the positive terminal on your battery.
Once installation is complete, the 4-way connector will be stowed beneath your Chrysler Town and Country, near the trailer hitch. A mounting bracket (sold separately) is recommended to keep the connector secure.
It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.
A tail light converter is built into this T-connector. This converter is a circuit-protected, battery-powered unit that bypasses the electrical routes that are used by a basic wiring harness. As a result, there is virtually no draw on your tail light circuits.
Curt builds each tail light converter using surface-mount technology (SMT). This method of construction involves soldering electronic components directly to the surface of a printed circuit board. SMT eliminates the need for leads, which are used in older through-hole technology. The result is a circuit board that is smaller yet provides more routing area and that offers superior performance, reliability and durability.
Circuit boards constructed using SMT have been shown to perform better under rough conditions with excessive vibration than those made using the through-hole method. And where would vibration be more likely to occur than in towing applications? Curt converters also produce less heat, leading to increased durability and longer life. In addition, lower levels of resistance ensure better performance, especially for parts that operate at higher frequencies.
Each Curt circuit board is made using high-quality components that are pieced together in the most technologically savvy fashion, leading to greater predictability and reliability in functioning.
Video of Curt T-Connector Vehicle Wiring Harness with 4-Pole Flat Trailer Connector
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

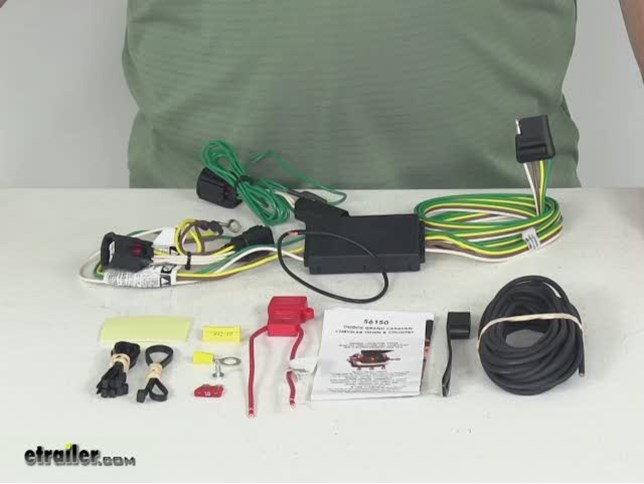

Today we're going to review part number C56150. This is the Curt T-connector, vehicle wiring harness with the four-way flat trailer connector. Now, this part is a custom-fit part number. It is designed to fit the Chrysler Town & Country and the Dodge Grand Caravan, starting in 2011. What I would recommend on a custom-fit part number is go to our website, use our fit guide, put in your year and model vehicle, and it'll show you if this part will work for your application. This does provide this four-way flat trailer connector to the back of your vehicle to power your trailer's signal lights. It does connect quickly and easily.
Use these plug-in T-connectors and you just located your connection points behind your taillights, plug them in, run this hot lead to your battery, ground the white wire, and you'd be ready to go. It does include this powered taillight converter right here, this black box, and this will connect directly to the battery, and that avoids overloading your vehicles electrical system. This converter right here is constructed using a SMT, or surface-mount technology. It gives you consistent, reliable performance and it does maximize your trailer light yield and intensity while producing minimal heat. It also ensures superior operation in any rough road conditions. For the four-way, it does come with this included dust cap. It helps protect the four-way when you're not using it.
Basically, what you would do with the dust cap, you could just put this around it, go ahead and slide that down over the base of it, just like that. And then when you're not using the four-way, you just put the dust cap right over the terminals, and that'll help protect the terminals from any damage and also from the elements. A few specs on this wiring harness; the maximum amperage in the stop and turn light circuit is 3 amps per circuit. On the taillights, it's 6 amps per circuit. This part includes everything shown here. It comes with the wiring harness. It comes with an extra set of wire.
This is a length of wire to run to your battery. It comes with a nice set of detailed instructions that show you the connection points, tells you how to hook everything up; in-line fuse holder; a 10-amp fuse; a grounding screw; eyelet connector; two butt connectors; a piece of double-faced tape, that's for attaching your converter to your vehicle; and then a couple extra cable ties to take up any slack in the wiring. What I'm going to show you now is briefly how this would attach to your vehicle. What you're going to do is go to the back of the vehicle, and then behind your driver's light and passengers' taillights, what you'd want to do is start with the driver's side. This T-connector with the yellow wire in it, that would be for your driver's side, so you go behind your taillight, unplug it, match up your connectors, T this plug-in connector into there. Then what you want to do, it has a white wire on it, you do want to make this a ground. You do need this as a good clean ground for this harness to work.
So if you have a screw already in the vehicle that you can use, if not, they include a grounding screw that you can make your own ground. Then what you'll do is you'll take this T-connector. It has this length of green wire. This will run over to the passenger's side. And same thing, you'll, behind the taillights, you'll plug in this T-connector. Then what you want to do is you want to attach this converter down so it doesn't bounce around, so again, you just take this double-faced tape, stick it on there, peel it off and adhere that to the vehicle. Then your connection here is the black wire that comes out of this converter. This is your power wire. This is going to go to your battery in the front of your vehicle. What you'll want to do there is take this length of wire, use one of these butt connectors, attach your power wire to one end. Let's pull out both ends here. There we go. We've got an end here and an end here. You'll take that butt connector, put it to the power wire, connect it to one end of the length of wire, and then you'd run this up to the front of the vehicle. When you get up there with this end, you'll take this other butt connector and put it one. You're not going to hook it to the battery yet. What you're going to want to do is connect this in-line fuse holder to the butt connector and then the other end of the in-line fuse holder, you'll get this eyelet connector, put it on and then that's what'll connect to the positive post of your battery. Then what you'll want to do, pop open the in-line fuse holder, take this 10-amp fuse, go ahead and push it into the holder, put the cap back on it and that'll protect your system that's hooked up to your vehicle. Again, there's some cable ties to take up any length of this wire that might be hanging down that you want to tie up. That should do it for the review on part number C56150. This is the Curt T-connector vehicle wiring harness with the four-way flat trailer connector. .
