Quickly and easily install a 4-way trailer connector on your Chevrolet Venture with this custom wiring harness. T-One connector plugs directly into existing wiring - no cutting, splicing or tapping required. Includes tail light converter.
This custom-fit T-One connector plugs into your Chevrolet Venture's wiring harness, which is located behind the driver's-side interior trim panel in your rear cargo area. You will need to remove the storage compartment door or trim panel to access the harness.
Once installation is complete, the 4-way flat connector will be stowed in an out-of-the-way location within your cargo area.
It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.
Tail Light Converter
A tail light converter is built into this T-One connector. Because most trailers run on a two-wire system - wherein the brake and turn signals are carried on one wire - the separate brake and turn signals from your Chevrolet Venture's three-wire system need to be combined so they are compatible with the wiring system of your trailer. The tail light converter combines the brake and turn signal functions of your automobile so that they run on one wire to properly activate your trailer's tail lights. Note: This will not affect how the tail lights on your Chevrolet Venture operate.
Video of T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector
Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

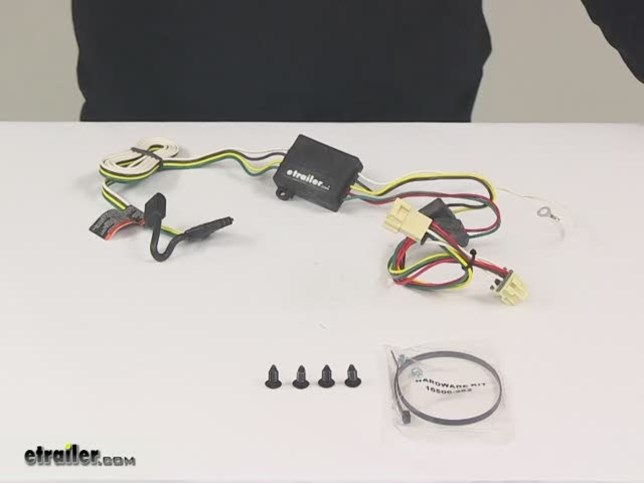

Today were going to be taking a look at the T1 vehicle wiring harness with the four-pole flat trailer connector. This product is going to fit a 1999 to 2005 Pontiac Montana, 97 to 2004 Oldsmobile Silhouette, 97 to 98 Pontiac Transport van, and a 97 to 2005 Chevrolet Venture. Its going to provide your four-way flat trailer connector to the back of your vehicle to power your trailer signal lights. It is compatible with five-pole, six-pole and seven-pole adapters. Adapters are sold separately. Its going to come with a dust cap for the full reflect connector.
That way you can cover up the connection points when your plug is not being used. Thats going to be tethered directly to the plug housing. That way you dont have to worry about misplacing that or losing that cover. Its going to include your taillight converter. Thats going to be the black box thats pre-wired into the system. This is included to ensure that your vehicles wiring matches that of your trailer's.
The unit is going to connect quickly and easily. You dont have to worry about cutting or splicing any wires. All you have to do is locate the connection point in the rear cargo area, and simply plug in your connector. Vehicle-specific, so its going to match up perfectly with the ports on your vehicle. These plugs are going to snap-lock together for a nice, tight, secure fit into their connection points. Once you have that plugged in, youll need to make your ground connection.
Youll notice this white wire that has a ring terminal attached to it. Thats going to be your ground wire. Youre going to have this hardware kit thats going to come with a zip tie and two self-tapping screws. You can use one of those as a grounding screw to get this grounded to a nice clean metal surface. Then you can use the other screw to mount your converter box, if you want ...
A couple of options when it comes to mounting the converter box. You want to get it in a nice, clean out-of-the-way location. On one side its going to have some double-sided adhesive tape, that way you can just peel and stick it to the mounting location. Its got the small tab in it, so if you want to add some security to it, you can go ahead and use that second screw, and you can get it secured that way. Or you could use a zip tie to tie it off to maybe a wiring harness or another location within the vehicle. A lot of options when it comes to getting that mounted. It looks like its also going to come with some replacement fasteners right there, four of them. Overall, really simple installation. You could also use the zip ties to secure any excess or slack in the wiring that you may have. Then once your install is complete, the four-way connector is going to be stowed in an out-of-the-way location within the rear cargo area. You can see weve got plenty of wiring all bundled up. That way you can easily extend it out and get it connected as-needed. Now when it comes to the maximum amperage for the stop and turn lights, were looking at 2.1 amps per circuit. For the taillights were looking at 4 amps per circuit. The unit does come with detailed installation instructions to walk you through that whole process step by step. We also recommend that you use a small amount of dielectric grease on all your electrical connections, like the plugs on the vehicle and the four-pole connector itself. That grease is going to do a great job at preventing corrosion to the connection points. If you need some of that, it is sold separately. You can find it here at etrailer.com and its going to be called dielectric grease. Thats going to do it for todays look at the T1 vehicle wiring harness with the four-pole flat trailer connector.
