Trailer Wiring > 1995 > Chevrolet > Tahoe

Tow Ready Custom Fit Vehicle Wiring for the 1995 Tahoe by Chevrolet

Tow Ready Custom Fit Vehicle Wiring

ratingratingratingratingrating (17 reviews)


Code:   118319

Retail:$18.52

Price:$15.95


Shipping Special

Shipping Weight: 1 pounds

Quantity:






T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector - 1995 Tahoe by Chevrolet

Quickly and easily install a 4-way trailer connector on your Chevrolet Tahoe with this custom wiring harness. T-One connector plugs directly into existing wiring - no cutting, splicing or tapping required.

Features:

  • Provides a 4-way flat trailer connector at the back of your Chevrolet Tahoe to power your trailer's signal lights
    • Compatible with 5-pole, 6-pole and 7-pole adapters (sold separately)
  • Connects quickly and easily - no cutting or splicing of wires
    • Locate connection points along frame rail
    • Plug in T-connector
  • Constructed of 16-gauge bonded wire
  • Comes with dust cap for 4-way flat connector


Specs:

  • Maximum amperage: 7.5 amps per circuit
  • 1-Year limited warranty


Installation

T-One Connection Location Points

This custom-fit T-One connector plugs into your Chevrolet Tahoe's wiring harness, which is located beneath your vehicle, along the driver's-side frame rail.


Once installation is complete, the 4-way flat connector will be stowed beneath your Chevrolet Tahoe, near the trailer hitch. A mounting bracket (sold separately) is recommended to keep the connector secure.


It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.



118319 Tow Ready T-1 T-Connector - 4 Wire



Video of T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

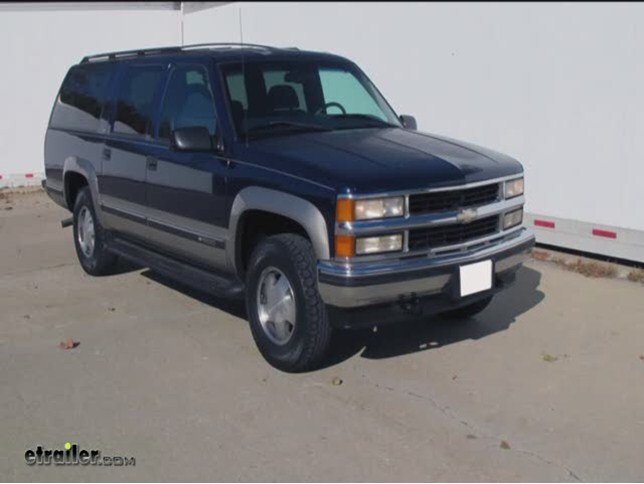

Video install trailer wiring harness 1999 chevrolet suburban 118319
Trailer Wiring Harness Installation - 1999 Chevrolet Suburban
Video install trailer wiring 1998 chevrolet suburban 118319
Trailer Wiring Harness Installation - 1998 Chevrolet Suburban
Video wiring install 1993 chevy suburban
Trailer Wiring Harness Installation - 1993 Chevrolet Suburban

Video Transcript for Trailer Wiring Harness Installation - 1999 Chevrolet Suburban

Today on this 1999 Chevrolet Suburban, we're going to install part number 118319. This is Tow Ready's T-1 connector. One thing to know is that a majority of these trucks have tow packages already installed. On the Suburban, it's typically located on the left hand side. It's also a great alternative in case your wire harness is damaged and it's too short or you don't want to splice wires. Our connection point is right behind the stock hitch on this particular vehicle. Go ahead and disconnect the connection point.

Pull up on a small tab and then pull it apart. Then, we'll connect the matching ends of the T connector between both halves. Connection is already made and now we need to take our white wire to ring terminal and ground it to the frame. We use a provided self-tapping screw to do this. We'll go ahead and route our wiring harness over the hitch into the safety chain loops. Then, we have a cap to help hold it in place. It's already installed and it's a good idea to try it out before we use it on a trailer. Go ahead and test it out.

We'll take our tester and connect it to the ground wire, which will be our white wire, and then we'll test the brown wire for running lights. Yellow for left turn, and green for right turn. Our brake will be a constant left and right signal. With that, it'll finish it for our install of part number 118319 Tow Ready for our 1999 Chevrolet Suburban. .




Customer Reviews

T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector - 118319

Average Customer Rating:  ratingratingratingratingrating4.8 out of 5 stars   (17 Customer Reviews)

Quickly and easily install a 4-way trailer connector on your vehicle with this custom wiring harness. T-One connector plugs directly into existing wiring - no cutting, splicing or tapping required.


- 118319

ratingratingratingratingrating by: Frederick07/03/2013


Could not have been an easier installation. Truly plug and play. No muss, no fuss. The only issue I had was trying to drill a pilot hole for the ground wire. Just not happening in the frame of a 1997 Tahoe, even with bullet tip drill bits. Finally had to wedge the ground wire loop in between the hitch and the frame. Works great. Great communication from etrailer.com, great product, and a great experience. 87380






- 118319

ratingratingratingratingrating by: Allen R.05/06/2013


Item wouldn't fit in one end of plug. Had to saw some of the plastic off to be able to fit entirely down in truck's harness. After doing so, the latch was able to stay connected and the T harness worked great. 79116






- 118319

ratingratingratingratingrating by: Jeff H.09/20/2012


Saved me $8 to $20 over local prices for this item. Shipping was reasonably quick and online experience is uncomplicated and smooth. I wish all online retailers were as well run as etrailer.com, seriously! 55256






- 118319

ratingratingratingratingrating by: Jay G11/08/2011


Hooked right up to vehicles stock plug and then to 7 flat connector, easy as one, two, three. thank you for great products 26709






- 118319

ratingratingratingratingrating by: John C05/08/2011


Just what I needed. Installation was simple. Better than the job my Chevy dealer did when I brought the truck 13078






- 118319

ratingratingratingratingrating by: Joaquin M.07/02/2014


Great product. Took less than 15 min to install. Tech support was great! I would buy from these guys again! 138794






- 118319

ratingratingratingratingrating by: Mike09/07/2013


Haven,t used this product yet. I know from past experiance it will be just fine. 98779






- 118319

ratingratingratingratingrating by: Michael P07/07/2014


Excellent Product. This was a 10 minute job start to finish with my Suburban. 139669






- 118319

ratingratingratingratingrating by: Tim L.07/20/2011


Fast response on delivery. Easy installation. Great doing business with you. 19768






- 118319

ratingratingratingratingrating by: Nick B06/15/2011


Simple to do with only drilling one hole for the ground wire. 17058






- 118319

ratingratingratingratingrating by: mike h12/22/2010


perfect fit took all of 3 minutes to install works perfectly 4473






- 118319

ratingratingratingratingrating by: Paul G07/28/2012


5 minute install - very good quality - works excellent! 49659






- 118319

ratingratingratingratingrating by: Shane from MD.05/06/2014


Everything was perfect and right on time thanks. ?? 129246






- 118319

ratingratingratingratingrating by: David S04/07/2012


Fit was perfect and easy! Thanks etrailer.com!!! 36465






- 118319

ratingratingratingratingrating by: LD04/21/2014


great service,great product,money well spent 126259






- 118319

ratingratingratingratingrating by: Kevin09/26/2013


Excellent fit and easy to install/ 101657






- 118319

ratingratingratingratingrating by: Jim02/08/2012


Product priced very well 31359




17
17


Ask the Experts about this Tow Ready Custom Fit Vehicle Wiring
Expert Answers about T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector - 118319Do you have a question about this Custom Fit Vehicle Wiring?


  • Hardwiring a Brake Controller for a 1999 Chevy Tahoe
  • Unfortunately, the 1999 Tahoe does not have the port under the dash to plug in the brake controller wiring adapter. You will need to hardwire your controller. We have a how to pagethat you might find helpful, I have linked to it below. There are wires ran from the above the spare tire to the engine compartment for the trailer brakes and the 12v trailer lead. Under the hood, these wires which are usually blue and orange, and are bundled with tape and located below the brake booster. You...
    view full answer...

  • Brake Controller Installation on 1998 Chevy Suburban
  • GM did not start using the port under the dash until the 1999 model year. You will need to hardwire the controller into the existing vehicle wiring. Depending on what the tow package on your vehicle included, some of the wiring might be in place. Does the Suburban already have a trailer connector? If so, is it a 4-pole or a 7-Way? GM typically ran a blue and an orange wire from the rear of the vehicle up to the engine bay that terminates under the brake booster. In a 12 year old...
    view full answer...

  • Brake Controller Recommendation for a 1996 Chevy Suburban 1500
  • We carry a lot of brake controllers, but there is one I recommend the most. The Tekonsha Prodigy P2, # 90885. This is one of our best selling and highest rated controllers. This brake controller does its job well. It is easy to use, easy to understand, and looks good. I have included a link to the installation details below. This controller is a good, solid product. You can be confident with it. I see that you will more than likely need to hard wire the brake controller on your 1996...
    view full answer...

  • How to Wire a Brake Controller on a 1999 Chevy Suburban K1500
  • Your 1999 Chevrolet Suburban will need to be hard wired for installation of a brake controller. The Suburban did not get the wiring update that the pickup did until the 2000 model year, so the Universal Brake Control Wiring Adapter, item # 20263, will not work on your Suburban. You will need to splice the red wire from the back of the brake controller to the wire at the back of the brake pedal switch that carries power only when the brake pedal is pressed. You will also need to wire...
    view full answer...

  • Wiring a Brake Controller on a 1999 Chevrolet Suburban
  • Your 1999 Chevrolet Suburban does not have a port under the dash to connect a brake controller harness. You will need to hardwire the Prodigy controller, item # 90185, with brake controller 7 and 4-way installation kit, item # ETBC7, or a 6 and 4-way installation kit, item # ETBC6, depending on the connector you need for your trailer. These kits come with everything needed to install the brake controller and wiring from scratch as long as you have a 4-way connector installed on your Suburban. If...
    view full answer...

  • How to Install The Primus IQ Brake Controller on a 1998-1999 Chevrolet Tahoe Classic
  • Installation of a brake controller on your 1998-1999 Chevrolet Tahoe Classic is pretty straight forward. You will need several items to complete the install. First, you will need a working 4-Way connector, item # 118319, if you do not already have one. I have linked installation instructions for you to review. Once you have a working 4-Way connector you will need a Brake Controller 7 & 4 Way Installation Kit, item # ETBC7, to complete the wiring from the back of the vehicle, to the brake...
    view full answer...

  • How to Install a Break Controller from Scratch on a 1996 Chevy Suburban
  • To install the Tekonsha P2 Proportional Brake Controller, # 90885, on your 1996 Chevy Suburban, you will need a couple of items. First, the brake controller. Next, Tow Ready Custom Fit Vehicle Wiring, # 118319, if you do not already have one. Last, a 7 and 4 Way Installation Kit, # ETBC7. You will need to hardwire the brake controller but it is not all that difficult for the average do-it-yourselfer. Start by installing the 118319 harness. Installation is simple. The unit plugs in...
    view full answer...

  • Brake Controller for 1999 Chevy Tahoe Towing a 2006 Fleetwood Bayside Camper with Electric Brakes
  • Since brake controllers are not vehicle-specific, you can use any of our brake controllers with your 1999 Chevy Tahoe and 2006 Fleetwood Bayside camper. The Dexter Axle Predator Electric Brake Controller, part # 58-8, is a great choice. It is inertia-activated, meaning you have a lot of mounting options for inside your Tahoe, has an LED display showing voltage output, and works with 1 or 2 axles. If you don't already have a 4-way connector on the back of your vehicle, you will need the...
    view full answer...

  • Installation of Brake Controller on a 1999 GMC Yukon
  • The 1999 GMC Yukon will not have a brake controller plug-in port under the dash. To install a brake controller on your vehicle you will need to hardwire the brake controller with the Brake Controller 7 and 4 Way Installation Kit, part # ETBC7. To install the # ETBC7 kit you will need to have a 4-Way connector at the rear of your vehicle. If you need to install a 4-Way connector you can use the Tow Ready T-One Wiring Harness, part # 118319. The Tow Ready harness will plug into a connection...
    view full answer...

  • How to Add a 7-Way Trailer Connector to a 1994 Chevy Suburban
  • The intended applications for the Pollak 7- and 4-Pole Trailer Connector, # HM40975, are listed below. Replaces factory 7-way connector on Chevrolet, Ford, GMC and Nissan trucks and SUVs Can be used to add a connector to 2003 and newer GM pickups and SUVs Exact replacement for Chrysler/Dodge vehicles with 7-pole socket from the factory To add a 7-Way to your 1994 Chevy Suburban, you will first need a 4-Way harness. If you do not already have one, you will need T-One Vehicle Wiring...
    view full answer...

  • Parts Needed to Add a 4-Way and a 7-Way Trailer Connector to a 1998 Chevy Tahoe
  • The connection point for the Tow Ready wiring harness, # 118319, is along the inside of the left (driver side) rear frame rail. The wiring harness will plug in line with the factory harness. I have included a link to the installation details for you along with a link to a video that shows a typical installation on a similar vehicle. Regarding the other harness that you have found I do not have any information on its function. To add a 7-Way trailer connector, you will need to use # ETBC7....
    view full answer...

  • Recommendation for a Brake Controller on a 1999 Chevrolet Tahoe and Installation Instructions
  • Between the Tekonsha Prodigy P2 Brake Controller, item # 90885, and the Tekonsha P-3 Trailer Brake Controller, item # 90195, I would recommend the P2 if you are going to be towing mostly one trailer that does not have a wide range of loads on it at different times, like a travel trailer. Both the P2 and P3 brake controllers are excellent options, the only reason I do not recommend the P3 is that the it is more complicated to setup and operate because of all of the extra functions it...
    view full answer...

  • How To Install A 7-Way Trailer Connector On A 1994 GMC Jimmy
  • To install a 7-way connector on the back of your vehicle you will first need to install a 4-flat connector and then use the Brake Controller 7 & 4 Way Installation Kit, # ETBC7, to hardwire a 7-way connector to the your vehicle. If you have the full size 1994 GMC Jimmy you will need to install the Tow Ready T-One Wiring Harness, # 118319. This will give you a 4-flat trailer connector at the rear of your vehicle. If you have the smaller 1994 GMC S-15 Jimmy you will need to use the...
    view full answer...

  • Everything Needed for a 1998 Chevy Tahoe to Tow a Cargo Trailer
  • The 1998 Tahoe needs to be wired for all the functions you need. You would need to start by installing a 4-Way wiring harness, like part # 118319, and then use a kit to upgrade to the round 7-Way plug needed for the trailer, part # ETBC7. The electric brake controller and 12 volt auxiliary line can then be connected to that round 7-Way. The 12 volt auxiliary line could be used to charge the trailer battery powering the alarm system. You can view all the parts you would need using the links...
    view full answer...

  • Wiring a Trailer Brake Controller With or Without Factory 7-Way on a 2000 Chevy Tahoe
  • Your 2000 Chevy Tahoe will have a port for brake controller wiring adapter, # 20263. You will want to look in the electrical junction box on the drivers side, left of the brake pedal under the dash. I have included an FAQ on installing a brake controller on Chevy and GM pickups that will also apply to your Tahoe. The first two pictures show the box you are looking for and where it and the connection point for the adapter is located. Some models have a factory 7-Way pre-wired through the...
    view full answer...

  • Do You have a Brake Controller Wiring Diagram For a 1998 Chev. Tahoe,7 way-Brake Controller
  • To wire your 1998 Chevrolet Tahoe for a 7-way connector and a brake controller you will need a 4 way wiring harness for your vehicle, part number 118319 and a Brake Controller 7 & 4 Way Installation Kit, part number ETBC7, along with the V52650 brake controller you selected. You will attach the 4-way wiring harness inline with the connector located on the inside left rear frame rail. Then you will connect this 4-way to the 7-way kit to power the taillight functions. After this is done you...
    view full answer...

  • Parts Needed to Install an Electric Trailer Brake Controller on a 1999 Chevy Tahoe
  • Installing a brake controller on a 1999 Chevy Tahoe requires a hardwire installation because there are no brake controller wiring harnesses available for your vehicle. Instead, you will first need to install a 4-Way trailer connector, # 118319, if the vehicle does not already have one. You will then need to install 4 and 7 Way installation Kit, # ETBC7. I have included a link to an FAQ article and a video that show how to install an ETBC7 kit and brake controller. If your Tahoe already...
    view full answer...

  • How to Install a Brake Controller on a 1999 GMC Suburban
  • Your 1999 GMC Suburban does not have a port under the dash to connect a brake controller harness. You will need to hardwire the Hopkins Agility Brake Controller # HM47294 with brake controller 7 and 4-way installation kit, item # ETBC7, or a 6 and 4-way installation kit, item # ETBC6, depending on the connector you need for your trailer. These kits come with everything needed to install the brake controller and wiring from scratch as long as you have a 4-way connector installed on your...
    view full answer...

  • Parts Needed to Install a Brake Controller and 7-Way Trailer Connector on a 1999 Chevy Suburban
  • In order to install a brake controller on a 1999 Chevy Suburban, you will need to hardwire it and a 7-Way trailer connector. To start, if your Suburban does not have a 4-Way trailer connector already, you will need Tow Ready Custom Fit Vehicle Wiring, # 118319. I have included a link to the installation details and a video for you. You would then need to install a 4 and 7 Way Installation Kit, # ETBC7. This kit provides a 7-Way trailer connector and all of the wiring needed to install...
    view full answer...

  • Will Draw-Tite Hitch Part 41511 Fit 1999 2 Door 4-Wheel Drive Chevrolet Tahoe Full Size
  • I called our representative at Draw-Tite, and he informed me that Full-Size is used to differentiate from the smaller or mid-size Blazer model. If you have the bigger model Tahoe, or the full-size Tahoe, then yes, the Draw-Tite Class III Max-E-Loader Trailer Hitch Receiver, part # 41511, will fit your 1999 2 door 4 wheel-drive Chevrolet Tahoe. In addition to part # 41511, you may need the following, to complete your towing setup: Hitch ball part # 19247, or part # 19260 Ball...
    view full answer...

  • T-One Vehicle Wiring Harness for 1993 Chevy Suburban
  • Yes, we do! The T-One Vehicle Wiring Harness with 4 Pole Trailer Connector, code # 118319, is a custom-fit for the 1993 Chevy Suburban. We also have a video that walks you step-by-step through how to install it. If you will be towing a trailer that has a 7-pole or 6-pole plug, we have kits that make upgrading a breeze. The Brake Controller 7 and 4 Way Installation Kit - 10 Gauge, code # ETBC7, or Brake Controller 6 and 4 Way Installation Kit, 10 Gauge, code # ETBC6, has all the parts...
    view full answer...

  • Installing a Brake Controller on a 1994 Chevy Blazer From Scratch
  • Yes. We have numerous brake controls to choose from. Our most popular model is the Prodigy, # 90185. But before you can start using it, there are a couple of things you will need, and some installations that need to be complete. First of all, you will need to install Tow Ready Custom Fit Vehicle Wiring, # 118319. This is a simple T-One connector that plugs in line with your vehicles taillights. I have included the instructions and an installation video below. Next you will need to...
    view full answer...

  • What is Needed to Install a Brake Controller in a 1999 GMC Yukon
  • There is not a place under your dash for you to plug in a brake controller. You will need to use a brake controller 7-Way installation kit, part # ETBC7, in your 1999 GMC Yukon to hard wire and install a brake controller. I attached installation instructions and an installation video for this product for you to check out also. If you do not have a 4-Way present at the rear of your vehicle, you will need one before you can install the # ETBC7. I would recommend a custom fit wiring # 118319....
    view full answer...

  • Parts Needed to Install a Hopkins Trailer Brake Controller on a 1999 Chevy Tahoe
  • On a 1999 Chevy Tahoe, you will need to hardwire the brake controller, # HM47295, in order to install it. Hardwiring is not too difficult and I will include some helpful documents that explain the installation. First, if the Tahoe does not already have a 4-Way trailer connector, you will need to install one. The correct 4-Way is # 118319. I have included a link to the installation instructions for you. After you have installed the 4-Way or if you already have a 4-Way, you will then need...
    view full answer...

  • Parts Needed to Make a Tekonsha Primus Brake Controller Fully Functional on a 1997 Chevy Tahoe
  • The first thing you are going to need is a 4-way trailer connection at the rear of your 1997 Chevrolet Tahoe if you do not have one. For that you will need a Tow Ready T-One Vehicle Wiring Harness # 118319. I attached installation instructions and video for this product for you to check out. Next, you will need to convert the 4-way to a 7-way so that the Tekonsha PRIMUS IQ Electronic Brake Controller # TK90160 that you referenced can function. For that you will need a Brake Controller...
    view full answer...

  • Trailer Wiring Harness Options for a 1993 Chevrolet Blazer 4x4
  • Yes, there are wiring kits available for a 1993 Chevrolet Blazer 4x4. I assume you are looking for a trailer wiring harness. If this is the case, then I recommend the Tow Ready T-One Vehicle Wiring Harness, # 118319. This is a plug-in style wiring harness that connects in-line with the trucks tail light harness. The tail light harness can be found along the left rear frame rail by the bumper. I have attached the installation instructions for you to check out. If you cannot easily access...
    view full answer...

  • Hardwiring in a Trailer Brake Controller on a 1996 Chevy Suburban
  • The 1996 Chevy Suburban does not have any tow package wires or a plug to plug in a brake controller. You will need to hardwire in the controller. If you just need the red wire for the brake input then to find it you will need to use a circuit tester such as # 3808. You will probe the wires on the brake switch located above the brake pedal until you find the one that only has power when the brake pedal is pressed. If it has power with the headlights on or turn signals on then it is not...
    view full answer...

  • Brake Controller Installation for a 1999 GMC Yukon
  • For your 1999 GMC Yukon to install a brake controller you will have to do a hard wire installation to connect your brake controller. Unfortunately there is not a quick connection port available on your year Yukon. If you already have a 4-way, you can then use the # ETBC7 to install a 7-way. If you need to establish a 4-way you can use # 189319. I have included some links to installing the # ETBC7, and the hardwired installation of a brake controller for your reference. If you don't...
    view full answer...

  • Trailer Wiring Harness for 1998 Chevrolet Suburban Without Tow Package Wiring
  • New trucks that have a factory tow package are typically equipped with a round RV-style 7-way socket like the one in the linked picture. This is the vehicle-side female socket into which a male trailer plug is inserted. This 7-way connector carries all functions for the trailer: stop, turn and tail lights, 12V power for a trailer's accessory functions, a reverse light signal (if needed for a reverse lockout solenoid) and also the signal for electric trailer brakes. The photo shows the typical...
    view full answer...

  • Recommended Ball Mount and Trailer Ball for 1999 Chevy Tahoe
  • A 1999 Chevy Tahoe would have been equipped from the factory with a 2 inch receiver. I would recommend the # 2923 ballmount, which features a 2 inch drop. To determine the size trailer ball you would need, I would recommend calling your trailer rental place to determine what size couplers their trailers use. For a 2 inch ball, use part # 19247 or for a 1-7/8 inch ball, use part # 19260. If your Tahoe does not already have a 4-pole trailer connector, you will need a T-1 Vehicle Wiring...
    view full answer...
