2008 Impala by Chevrolet Custom Fit Vehicle Wiring Tow Ready 118417

Tow Ready Custom Fit Vehicle Wiring for the 2008 Impala by Chevrolet

Rating: rating rating rating rating rating
25 reviews

Code: 118417

Retail:$27.86

Price:$20.95

Shipping Weight: 1 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Quantity:

Trailer Wiring Harness Installation - 2012 Chevrolet Impala - Video
Trailer Wiring Harness Installation - 2007 Chevrolet Impala - Video
Trailer Wiring Harness Installation - 2007 Chevy Impala - Video

T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector - 2008 Impala by Chevrolet

Quickly and easily install a 4-way trailer connector on your Chevrolet Impala with this custom wiring harness. T-One connector plugs directly into existing wiring - no cutting, splicing or tapping required.

Features:

Provides a 4-way flat trailer connector at the back of your Chevrolet Impala to power your trailer's signal lights
- Compatible with 5-pole, 6-pole and 7-pole adapters (sold separately)
Connects quickly and easily - no cutting or splicing of wires
- Locate connection points behind passenger's-side tail light
- Plug in T-connector
Constructed of 16-gauge bonded wire
Comes with dust cap for 4-way flat connector

Specs:

Maximum amperage: 7.5 amps per circuit
1-Year limited warranty

Installation

This custom-fit T-One connector plugs into your Chevrolet Impala's wiring harness, which is located behind the passenger's-side tail light. You will have to remove some carpeting and the tail light assembly to access this harness.

T-One Connection Location Points Behind Tail Lights

Once installation is complete, the 4-way flat connector will be stowed beneath your Chevrolet Impala, near the trailer hitch. A mounting bracket (sold separately) is recommended to keep the connector secure.

It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.

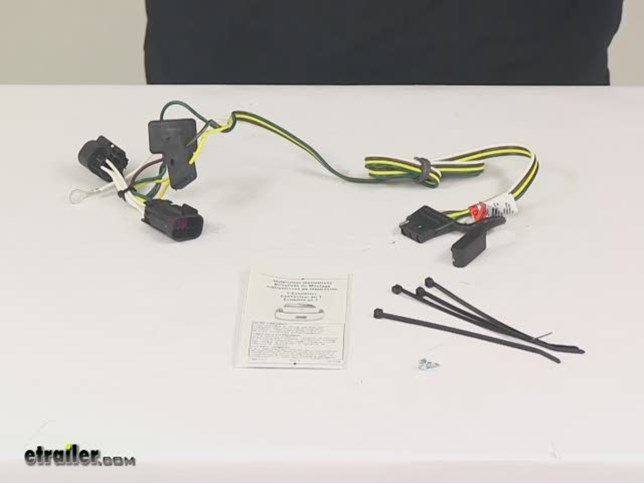

118417 Tow Ready T-1 T-Connector - 4 Wire

Video of T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video install trailer wiring 2012 chevrolet impala 118417

Trailer Wiring Harness Installation - 2012 Chevrolet Impala

Trailer Wiring Harness Installation - 2007 Chevrolet Impala

Video wiring install 2007 chevrolet impala

Trailer Wiring Harness Installation - 2007 Chevy Impala

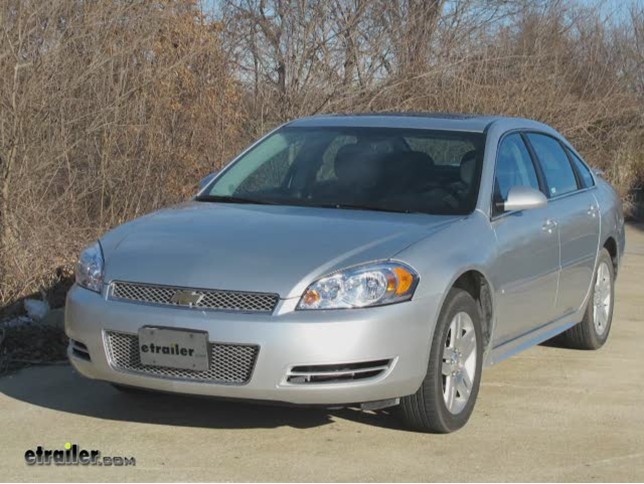

Video Transcript for Trailer Wiring Harness Installation - 2012 Chevrolet Impala

Today on our 2012 Chevy Impala we're going to install tow ready T1 Connector part number 118417. First we are going to need to access the rear cargo area. Then our first step will be removing the rear threshold. There are a couple of fasteners that will need to be removed first. Now we are going to get our trim tool or a flat headed screw driver to get underneath the threshold and just pry it up. There's several plastic fasteners underneath threshold still holding it in place.

Once we have it free we can go ahead and take it out and set it out of the way. Now we need to remove the passenger's side tail light to access the wiring. We'll remove the cargo hook here first. This will allow us to pull the cuffing back and access the other two fasteners holding in the tail light. We can go ahead and remove the passenger's side tail light.

With the tail light removed you can see we can now access the rear tail light wiring. We'll match identically with our tow ready connector. Underneath there's a locking tab that you'll need to press as you release the connector. Then we take our toll ready connector plug it in-line with the manufacture's. Now as you press them together securely locking them in place.

Now with the connections made we can take the other end of our four-pole connector we are going to run it down between the bumper cover and the sheet metal of the vehicle. Just down and over to our hitch. The white wire with a ring terminal preassembled with our ground wire. We'll take our self-tapping screw and run it directly into the sheet metal. With our ground wire is secured we can go and reinstall the tail light line assembly and into your trim components.

Now with the interior trim components reinstalled we can go ahead and get up under the vehicle and round our wire over to our hitch. Then I'll take some black zip ties and secure the wire to the top of the hitch. After I secure my wire I'll just take my pliers side cutters cut off the excess from the zip ties, clean up the install a little bit and that now completes the installation of our new tow ready T1 Connector part number 118417 on our 2012 Chevy Impala.
