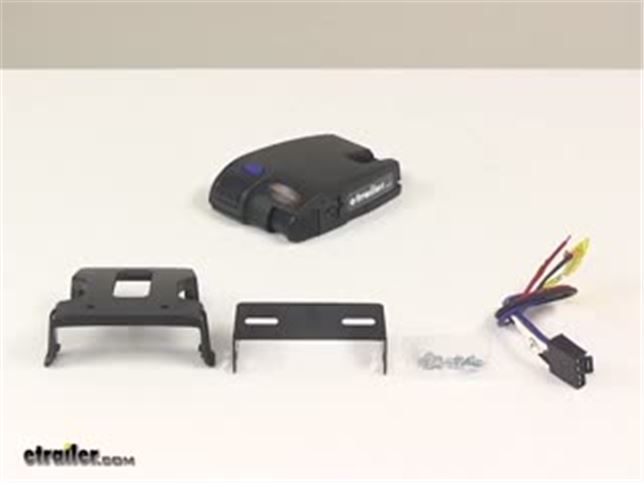

Tekonsha Brake Controller for the 1990 Ford Aerostar

Tekonsha Brake Controller

ratingratingratingratingrating (180 reviews)


Code:   TK90160

Retail:$107.91

Price:$94.95


Shipping Special

Shipping Weight: 2 pounds

Quantity:






Tekonsha Primus IQ Trailer Brake Controller - 1 to 3 Axles - Proportional - 1990 Ford Aerostar

Proportional brake controller automatically levels when mounted within a 70-degree vertical range. Includes digital display, 3 boost levels, battery protection and continuous diagnostics. Easily transfer between different automobiles.

Features:

  • Brake controller activates trailer brakes in proportion to your Ford Aerostar's braking action
    • Automatically adjusts trailer's braking based on deceleration of tow vehicle
    • Activates immediately - no pausing like with time-delayed brake controllers
  • Automatic-leveling ability - internal sensor detects deceleration even if controller is not mounted flat
    • Position anywhere from 0 degrees (level) to 70 degrees in the vertical plane
  • 3 Boost levels let you adjust initial braking power and aggressiveness
  • Continuous diagnostic check alerts you to any potential problems
  • Integrated safeguards protect your vehicle and trailer
    • Minimizes drain on car battery when not in use
    • Prevents trailer brakes from overheating by reducing power output to them during prolonged stops
  • Easy-to-read LED display
  • Built-in, slide-bar manual override
  • Quick-disconnect feature lets you easily remove and store the control when not in use
    • Replacement wiring harness (sold separately) and replacement bracket (6927 - sold separately) required to move the controller from one vehicle to another
  • Plug-in, vehicle-specific brake-control adapter (sold separately) can be used for certain applications to reduce installation time


Specs:

  • Application: trailers with up to 3 axles (6 brake assemblies)
    • Designed for use with electric brakes only
  • Dimensions: 4-3/8" wide x 5" long x 2-1/2" tall
  • Mounting: between 0 degrees (level) and 70 degrees in the vertical plane
  • Limited lifetime warranty


Proportional Braking

With a proportional brake controller, you can get heavy-duty emergency braking, general braking or slow-to-an-idle braking for your trailer automatically. The intensity with which your trailer brakes are activated and the rate at which they are applied are dependent on the deceleration of your tow vehicle. This means that, unlike time-delay controllers - which send the same amount of preset power to your trailer brakes every time - proportional controllers are able to adapt to every braking situation differently. So, if you slam on the brakes in your truck, your trailer brakes will activate with that same extreme intensity. And if you merely slow down as you approach a red light, your trailer will gradually brake in the same manner. Just set the initial power level, select a boost setting, and you're good to go.


As long as the Primus IQ controller is properly mounted and is pointed in the direction of travel, it will sense - via an internal inertia sensor - how your tow vehicle brakes. This inertia-based sensor responds to the deceleration of your tow vehicle as you brake by signaling the controller to send out enough power to your trailer brakes so that they are activated with an intensity that matches. The result is uniform braking across your towing setup. No push-pull action - just smooth, proportional braking every time.


Power Boost for Heavy-Duty Towing

Aside from smoother, more efficient braking, Tekonsha's Primus IQ brake controller also offers a boost feature that gives you more initial braking power for those times when you're towing heavy loads. You can switch boost levels so that the power output to your trailer brakes automatically starts out at either 13 percent or 25 percent of the predetermined power setting.


So, if you boost the initial power so that your trailer brakes activate with 25 percent of the overall intensity at the start, the brakes will reach maximum braking faster. This is particularly beneficial if you are towing a heavy load because the intensity required to stop that load may be far greater than that needed to halt your Ford Aerostar. Therefore, sending out more initial power to the trailer brakes - and causing them to reach maximum braking faster - allows you to better control the trailer so that it doesn't push your tow vehicle before coming to a complete stop.


If your trailer weighs less than your tow vehicle, no boost is needed. But if you wish to set the boost so that your trailer leads the braking of your towing setup, you can select level B1. The following table gives an indication of when you might use the different boost levels and the power increases that they offer.


Approximate Gross Trailer WeightBoost LevelIncrease in Initial Power Output
Less than tow vehicle GVWB113%
Equal to tow vehicle GVWB1 or B213% or 25%
Up to 25% more than tow vehicle GVWB2 or B3*25%
Up to 40% more than tow vehicle GVWB3*25%

*Both B2 and B3 offer a 25-percent boost in initial power. But the braking curve for B3 is more aggressive than that of B2. This means that, even though you will start out with the same intensity when using these boost levels, you will get an overall more aggressive braking experience with the higher level. So if you use B3, you will reach maximum braking sooner than if you use B2.


Safety Features

The Primus IQ offers advanced safety features to prevent damage to various components of your towing setup. For example, when it is not in use, this brake controller will be in power-saving mode. In this setting, the power draw falls to minimize drain on your Ford Aerostar's battery.


When you stop at red lights, or any time that your truck and trailer are at a standstill with the brakes applied for more than 5 seconds, the Primus IQ's "hold" feature will activate. When this happens, the power output to your trailer's brakes will be reduced to just 25 percent of the preset power setting so that the brakes will not overheat.


If ever there is a time that you need to brake your trailer separately from your tow vehicle - when traveling down a steep incline, for example - the manual override is easily accessible. Pushing this slide bar engages the brakes on your trailer with full power. In addition, when you activate this override, the brake lights on your trailer will illuminate, properly warning those behind you of the braking action of your rig.


In addition to all of those safety features listed above, the Primus IQ offers diagnostics such as:

  • Open ground
  • Overload
  • Output short
  • Faulty mounting
  • Power loss
  • No trailer connection

Automatic Leveling and Simple Installation

The self-leveling feature of the Primus IQ ensures that the brake controller continues to function even as you drive up steep hills or through the mountains. Simply mount it in your cab at a vertical angle that is between 0 degrees (level) and 70 degrees, and the controller will level itself automatically.


Correct Primus mounting70-Degree Primus mounting

Note: The Primus IQ must be mounted on a level horizontal (side-to-side) plane and must be lined up with the direction of travel for the internal sensor to function properly.


Installation is a snap. After mounting the Primus IQ unit in your cab using the included bracket, hardwire one end of the included pigtail harness directly into your Ford Aerostar. The other end plugs into the brake controller. To transfer the Primus IQ to another vehicle or to remove it for storage, just unplug the unit and snap it out of the bracket.


Installation Accessories

For even easier installation, a vehicle-specific wiring adapter (sold separately) is available for most newer trucks and SUVs. One end of the custom adapter plugs into your Ford Aerostar, and the other end plugs into the controller - no hardwiring required.


Note: If a custom brake-control wiring adapter is not available for your Ford Aerostar, one of the following will be required:

20-Amp circuit breaker (9506P - sold separately) for 2- to 4-brake applications

30-Amp circuit breaker (38630 - sold separately) for 6- to 8-brake applications


See also etrailer.com's exclusive 7- and 4-way brake-control installation kit (ETBC7 - sold separately) if you don't already have a 7-way plug at the back of your Ford Aerostar.



90160 Tekonsha Primus I-Q Proportional Trailer Brake Control

39528 Hidden Hitch Proportional Brake Control

20191 Draw-Tite I-Stop IQ Proportional Brake Control








Customer Reviews

Tekonsha Primus IQ Trailer Brake Controller - 1 to 3 Axles - Proportional - TK90160

Average Customer Rating:  ratingratingratingratingrating4.9 out of 5 stars   (180 Customer Reviews)

Proportional brake controller automatically levels when mounted within a 70-degree vertical range. Includes digital display, 3 boost levels, battery protection and continuous diagnostics. Easily transfer between different automobiles.


- TK90160

ratingratingratingratingrating by: Jim H.06/11/2014


Shipping was great. Stared at it for a couple of days before unpacking. The trailer connector mounting was easy with the holes almost matching the existing holes on my 2013 Toyota Highlander. The first four wires are a snap, they are just plugged into the existing four pin connector. I routed the two wire cable towards the front using ty wraps and improvised L brackets fixed to existing chassis screws. I mounted the Circuit Breakers on the inside of the left fender making sure there was hood clearance (see photo). Then I hit a snag. There was no easy way to get the brake and 12V power wire to the brake controller inside the car. For grins, I goggled "brake controller video" for my car and came up with a video made by "eTrailer." (Thank you eTrailer) Three things from the video helped me: wire access from inside the car through the firewall, a place to mount the controller and how to locate the brake wire. After the installation I had 18" of two wire cable left over. The install took me about six hours. (I'm 71 and I took my time.) A couple days later I connected the trailer for a test ride. The brake controller worked like a dream. Things I liked: Retaining the four wire trailer plug setup next to the seven wire trailer plug. Controller display works but you don't have to look at it. The two wire cable was adequate for the job. Being an Engineer (retired) I worry about things like that. Thing I didn't like: The mounting plate for the trailer plug is a little weak. A stiffer plate would have been better suited for me. and, oh yeh, somebody else to install it. ;=) 135250






- TK90160

ratingratingratingratingrating by: David06/17/2014


Installed quickly an easily into my 2009 GMC Sierra 2500HD by wiring up to the factory harness. Be sure to watch the etrailer.com video to see which wires need connected at the fuse box in the engine compartment! (Easy hook-ups, just need to make sure you see which ones get hooked up and where.) And if you don't use your ash tray, these brake controllers squeeze nicely into the ash tray compartment/recess in the lower part of the dash. Makes a great place to keep most of the controller out of the way and it's easy to install (you will have to create 2x new holes in the plastic detachable controller mounting bracket but its very easy - you can see the mounting screws in the 'new' holes and the old holes go unused as shown in the photo). Only had a trailer hooked up once, but the controller functioned as designed. I think the 'Boost' function will come in handy if I use a well-loaded trailer and need some additional stopping power from the trailer. 135875






- TK90160

ratingratingratingratingrating by: A happy, new farmer09/04/2013


I installed this on my 1997 Chevy K1500 pickup to pull my farm trailer, Kubota tractor, and it's implements (total of about 5500#s). I bought my truck new in 1997 with the towing package. eTrailer had a number of links related to the installation, but the most helpful was the one that identified the blue brake and orange power wires that, in my case, were preinstalled at the factory. That made the job significantly easier. What I thought would be the most challenging part of the install turned out to be simple, but only because of pure, dumb luck. Because I had installed aftermarket security and stereo systems shortly after I bought the truck, there was no way to identify/compare the pictures/discussions to identify the hot brake wire under the dash near the brake (other than that it was likely a white or gray wire). The circuit tester (purchased with my order from eTrailer) turned out to be a godsend. Unbelievably, the first white wire I tested turned out to be the hot brake wire! I was very lucky to hit the correct wire on the first try. The first time I hooked up to my trailer, the system worked flawlessly... exactly as the instructions described. And the performance is excellent. Note: I double/triple checked connections as I worked. I highly recommend doing this. Hunting down electrical connection malfunctions is not something you want to do. Overall, I'm VERY happy with my purchase and the support from eTrailer. I highly recommend this product and eTrailer. 98210






- TK90160

ratingratingratingratingrating by: J06/19/2013


THANKS for the Brake Controller unit from ETrailer. It arrived w/in 5 days from your MO location to my So CAL residence. Even as an Engineer/Scientist from the Delta IV rocket program and no experience with brake controllers, I was able to install this unit by myself. Your continued (live human) support and online video clips proved to be the key elements to this installation...without my symbolic pocket protector. I have attached a few images of the unit, mounted to the fuse-panel cover (3/16 attachments with locking hex nuts) in a 2006 Toyota 4Runner SR5 (with factory tow package). The placement of the unit onto the panel cover allows a new panel cover (no holes drilled) to be used when it is time to sell the vehicle. 85308






- TK90160

ratingratingratingratingrating by: Linus01/30/2014


Pictures of the install. Approximately a 20 min job. First picture my finger is pointing to the factory plug with the etrailer supplied harness plugged in. Note the harness did not specify that the white common with the ring terminal should be connected to ground. But then again that SHOULD be obvious. I will be towing this weekend so I will rate the product then. One minor gripe is that there is always power to the unit which is a battery drain (as evidenced with the key out of the ignition and the unit stayed on) Not sure as to the impact but the controller can always be unplugged or removed. Sorry for the dirty floor mats in the photos. 115201





Comments

Just a quick note, there is an automatic shut-off on the Primus IQ. After 15 minutes or so of in activity, the controller will power down automatically. As soon as the controller detects movement, it comes back on. No battery drain, and you do not have to remember to turn the controller off or on.

Patrick B - 01/30/2014

2673

- TK90160

ratingratingratingratingrating by: Tater05/13/2014


The Tekonsha Primus IQ controller is a well made compact unit that is perfect for my FJ. The ETBT7 wiring kit has all you need to go from 4 to 7 pin connectors. I was worried about how to remount the 4 pin, but the new 7 pin has a 4 built in it. It is a very clean install. The kit had everything needed to install, including a test light. The Tekonshcontroller and the wiring kit are high quality and have complete easy instructions, and had everything needed for the install. Etrailer didn't have the ETBT7 in stock when I ordered and I paid for expedited shipping. They followed up with emails and calls to inform me what was happening, and offered to refund the shipping fee. I told them just expedite it when it came in and they did, got to me in two days. I recommend trailer highly, they kept me informed, were prompt, friendly, and concerned, and paid attention to detail. If only other companies followed their example... Excellent prices, Great product line, great company, great staff. I will use them for all my trailer needs. I Recommend them highly. 130304






- TK90160

ratingratingratingratingrating by: Stanley L.05/01/2013


I purchased the Tekonsha Primus IQ Trailer Brake Controller and the wiring kit for my Toyota 4Runner. It was simple installation and the customer service was EXCELLENT! They sent me extra schematics I needed by email and was very supportive! I will definately do business with them in the future. 78575





Comments

Tekonsha Primus IQ Trailer Brake Controller has worked great! Very satisfied with it and purchasing it from this company.

Stanley L. - 05/05/2014

3966



- TK90160

ratingratingratingratingrating by: Pam G.06/12/2013


I chose this device based on my trailer repairman's brand recommendation. He usually has them in stock but was out. I got mine before his order came in. He also did not have a wiring harness for my vehicle so I ordered that, too. This is the first time I've ordered anything significant that I knew virtually nothing about. From the descriptions and pictures on the etrailer site it was easy to look up what I needed. I also read on the site about time control vs proportional and then knew the proportional would be good for me. I have a new camping trailer that has electric brakes; need the controller to operate the trailer brakes. The product quality of the brake controller appears very good. The wiring kit is quite substantial. My mechanic will wire up for me this week end and I'll have his opinion then. I am very satisfied with the speed of the delivery and the quality of the products. thank you 84360






- TK90160

ratingratingratingratingrating by: Sam S.10/09/2013


Like other reviewers the biggest challenge was getting the cover plate removed (and replaced) to access the factory connection. The connection was at the very top of the wiring bundle and I was able to cut about 1/2" of the tape holding the bundle together very near the connection to gain access without removing or cutting all of the tape. The ground terminal was easily accessed and the installation was quick and mostly painless. The instructions to set the braking level was spot on. I have a Sequoia with a knee airbag and tire pressure monitoring. I place the controller with the open back of the bracket allowing access to reset the tire pressure monitoring switch. 103222






- TK90160

ratingratingratingratingrating by: Alan B01/08/2014


Purchased the Tekonsa Primus IQ controller with wiring adapter for my Dodge Ram. Shipment arrived quickly and was exactly what I needed. Installation was a piece of cake. Cut an opening in the plastic stock dash location. Plugged the adapter into the Dodge plug under the dash and into the Primus. Worked perfectly. No fuss. Installed in about 10 minutes which included the time to cut the opening.. Picture will be poster... I was so happy with the service from etrailers that I ordered the Blue Ox Swaypro hitch. Thanks ETrailer.com! 112238






- TK90160

ratingratingratingratingrating by: Ray B of Colo.11/18/2013


I purchased a Primus IQ from our local NAPA dealer and had already installed it in one of our Dodge trucks before I learned about Etrailer. Needless to say it cost a bit more than the one I ordered from Etrailer a couple weeks later. you cant return electrical products once installed. I received the one from Etrailer in a very timely manner. I was hoping it wasn't a #2 for it being so much cheaper, but it is just fine and installation was no problem because I already had Tenkonsha Voygers so just chop the wire and install new control unit. We have two trucks and pull various trailers, so am real happy with product and will further order trailer items from ETRAILER.COM. Thank you, just Ray 107693






- TK90160

ratingratingratingratingrating by: Erik N.05/19/2013


I bought this product after reading several reviews. I recently purchased a Fun Finder 189FBS Travel trailer, and I needed a Brake Controller that was proportionally controlled. After my first trip with my 2012 Rubicon/ Fun Finder; I am very pleased with my purchase. This controller works best for my setup, on the "b1" boost level. Setup and installation took less than 2 hours, and I did it myself. The instructions and reference video from etrailer.com were very helpful. I was quoted nearly $400 to install this controller from my local RV shop. I bought it hear, spent 2 hours, and saved $250. If you can crimp a wire, and run a drill- You can do this! 80929






- TK90160

ratingratingratingratingrating by: Brent B04/07/2014


This product plugged right in and worked perfectly as it should. I like the different boost levels as a quick adjustment between loaded and unloaded trailers. No messing with the gain controller to keep the tires from sliding. The special dodge plug made install a breeze and less than 5 minutes. Much better than splicing into wires. Plus eliminates the need to hunt for the correct wires. This controller works off of inertia so as it senses your truck braking it applies equal braking to the trailer eliminating the jerk experienced from other controllers. Shipping from etrailer was quick as well. Great overall product at a reasonable price. 124031






- TK90160

ratingratingratingratingrating by: Kevin G.09/11/2012


Product works great, as advertised. The Tech at the RV dealer commented on the reliability of this brake controller, and the install literally took 15 minutes, start to finish. The supplied factory wiring harness made quick, simple work of the installation. The video on the etrailer website is right on the money as well. I have dealt with etrailer for all my towing needs since 1995, and they have never let me down. Great, quality products......quick delivery, and customer service that is second to none. There is no reason to shop anywhere else. Thanks etrailer.......you are the best! 54172






- TK90160

ratingratingratingratingrating by: Brooks02/14/2014


I ordered mine with the wiring harness for toyo and Lexus. Everything plugged in nicely and fit perfectly in a Toyota Sequoia under the steering column on the right side. The only suggestions is the that the factory wiring harness in the sequoia has absolutely no slack, so it you order this with an adapter for this make and model, it is a little to short to run it to where I have it. I really had to work to get it mounted. If it had a longer run by about 6 inches it would have been a piece of cake. I still gave it an excellent rating because other than that it was a 5 minute install. 116521






- TK90160

ratingratingratingratingrating by: Doug M.10/05/2012


While I have not had the chance to use it yet pulling my trailer I picked this particular unit because of the reviews it has received from people that have and are using it. I had it professionally installed and it is working as the instructions say it should. The company that installed it had nothing but good things to say about it as well. I especially want to thank Nicole for her help and customer service she provided to me and I can promise you that all my future trailer needs will be purchased from your company via Nicole. Big Thanks to all of you. 56414






- TK90160

ratingratingratingratingrating by: HHH06/15/2013


Great controler for the price. Easily mounted and set up using the vehicle specific harness. Installed in a 2003 Toyota Sequoia just under the key in the flat of the center cover. Perfect for the 0 - 70 deg mounting location required by this controler. Setup and operation just as was stated in user manuals. eTrailer was great as well, everything came together and on time. 84801





Comments

Im a novice with a 2003 Tundra. Vehicle specific harness options offered while ordering? What level of difficulty would you rate it, what required tools? Thanks

comment by: Corey J. - 06/26/2013


1687

A plug-in brake controller harness can be used with your 2003 Tundra, if it came equipped with a factory installed 7-Way trailer connector in the rear. You would use harness 3040-P for most Tekonsha controllers. I have sent you a link to a video that shows an install on a 2007 Tundra. It will give you a clear illustration of the install. All you need is a drill or screw gun, and your standard selection of screwdrivers. If you do not have a factory 7-Way, you will need to use kit ETBC7 to install the system and that is a bit more involved, but we also have videos of that kit so you can see how that is done.

Patrick B - 6/27/2013




- TK90160

ratingratingratingratingrating by: Patricia04/03/2013


I am unable to correctly rate this product at this time because there is no Dodge 2013 harness with which I can attach it. If/when the harness becomes available (a year plus after the truck came out, of course), I will re-review the product. Note that lack of this harness is NOT the fault of eTrailer, but if you're purchasing this for a 2013 Dodge truck, you might want to wait. 73972





Comments

Tekonsha is currently slated to have the harnesses, 3023-P, available by the end of April 2013. There have been running changes to the 2013 Dodge Ram that have made harness availability particularly challenging.

Patrick B - 04/05/2013

1291
Comments

I just purchased mine for my 2013 Ram Crew Cab 4x4, got it with the adapter for the truck installed in 15 minutes and works perfect. April 2013

comment by: Yvan - 04/20/2013


1422

Thank you for the input. I am glad to hear they might be caught up.

Patrick B - 4/25/2013




- TK90160

ratingratingratingratingrating by: Todd G07/03/2012


Plug and play is a true definition. My family was bugging me to go boating this last weekend and being the procrastinator that I am I had not yet installed a brake contoller on my 2011 Ram yet. Got the controller and Harness in the mail on Saturday after only 3 days since order was placed. The install took 10 minutes max including the bracket install and away we went to the River. Thanks etrailer!!!!! Would have never heard the end of it from my 14 year old daughter if we would not have made it boating!!!!! 46597






- TK90160

ratingratingratingratingrating by: chris c.07/25/2013


I have had a few different trucks in the past, all with brake controllers, some factory some not. So when picking one for my truck, I wanted something with as few a knobs, dials, etc as possible. I looked around on the internet and found the Primus, it was the middle of the road as far as sophistication and basic. It was shipped promptly and arrived within a few days. The installation was easy with great instructions. Would recommend to anyone who wants ease of operation without spending a fortune to get it. 91572






- TK90160

ratingratingratingratingrating by: John D12/10/2013


The tekonsha controller was easy to install with the help of the instructions, (very well written), and the video, specific to my 2006 Dodge Ram. Set up was also quick as I dialed the power setting to 7, and have just the right amount of braking for my empty trailer. When I loaded trailer for the first time, I adjusted the boost level to the b1 position and that was all that I need to do to have the safety of well adjusted trailer brakes at finger tip control. Very pleased with this pur hase. 109795






- TK90160

ratingratingratingratingrating by: Al R.07/17/2014


I was very pleased with the installation. I had a dealer tell me it would take about three hours, which I knew was a stretch, to install a brake controller on my 2009 Dodge Ram. Including opening the package and looking at the installation procedures, it took me fifteen minutes to install. I had looked at the on line information that was provided befor purchasing the brake controller. It was a great experience. I have not had a chance to see how it works, but I am sure it will be fine. 141743






- TK90160

ratingratingratingratingrating by: William B.07/24/2013


This item was in stock and shipped the same day. It arrived undamaged and the installation took about 15 minutes thanks to the wiring adapter that let me directly connect this unit to my 2007 Mercury Mountaineer. Hard to image that it could be easier than this. 91296






- TK90160

ratingratingratingratingrating by: Al Tahoe11/30/2013


This is my third Tekonsha brake controller and the quality is excellent. I've got to say that your installation video saved me a lot of grief. I spent about 20 minutes trying to find the factory connector under the dash without success. The video showed me exactly where it was hidden. Without your help, I'd still be looking!! Your salespeople were helpful, too. Anything else I need for my trailer I'll be using you- and recommending you too. 108744






- TK90160

ratingratingratingratingrating by: Andy K.04/02/2012


I cannot rate the Primus IQ controller yet as I have just received it.However, the instructions/disk are very clear and straight forward. What I can comment on is eTrailer.com. I don't think I have ever seen an online retailer with better customer service and online support (videos showing step by step installation instructions for almost every specific model truck) It took a real effort on eTrailer's part to provide this. Great job! 35943






- TK90160

ratingratingratingratingrating by: Roy F01/08/2014


The product was exactly as advertised, arrived very promptly, and I installed it myself in just minutes with the prewired harness for my 2007 Dodge 2500. I have not had the chance to hook up the trailer to set up and gauge the actual performance of the Primus IQ controller, but I don't expect any difficulties. I will definitely use etrailer again. For an actual performance review, you will have to wait a bit. Many thanks... 112245






- TK90160

ratingratingratingratingrating by: Bob R.03/10/2014


Have not had a chance to road test yet but with the help of the videos and tech support, I had it installed in less than 30 minutes. Most of that was deciding where to mount it. Plugged in trailer and all information appeared in the window as described. Will have to review road test at a later date. etrailer expedited delivery which was very much appreciated and shows they aim to please in any way they can ....thxs guys!! 120080






- TK90160

ratingratingratingratingrating by: Scott S09/20/2012


Works very well in my 2012 Tundra. Worked first time. 55282





Comments

It still works great, using it occasionally to haul a heavy camping trailer. In my 2012 Tundra, it mounds w plastic mount on the right over the tire pressure calibration switch, so it can be accessed by temporarily removing the unit. The square hole in the plastic mound allows access to the switch. I love the boost feature on the unit. It just works. Thanks Scott Smith

comment by: Scott S - 03/21/2014


3211

Thanks for coming back and following up with us!

Patrick B - 3/26/2014




- TK90160

ratingratingratingratingrating by: Steven M04/01/2014


Recieved the product and it was very well packaged. Very easy installation with the wiring harness that I purchased with the controller. I highly recommend that. Followed the simple instructions inside and took it to the road. Went to Martinsville with our camper for race weekend and the brake controller worked awesome. I like the boost capability. It makes a difference if you have a lighter tow vehicle for sure. 123137






- TK90160

ratingratingratingratingrating by: Brandon W08/03/2013


Great product so far. I'm a novice at towing and I got this controller in the mail 2 days before I bought my first camper ever. I found a video on YouTube that gave me step by step instructions on installing. I did it myself and hooked up to my camper for the first time. Worked perfectly. Also shipping was faster that I expected. Etrailer had the best price out of everyone for it. Glad I bought this one. 93130






- TK90160

ratingratingratingratingrating by: Bryan01/21/2013


I purchased the Primus brake controller after recently buying a 20 ft car hauler. The controller was a must due to the weight of the trailer and its cargo. The controller works great and the adjustment roller and turbo boost are fantastic and easily accessed. The installation only takes about 30 minutes too. Thanks Primus for a great product and thanks e-trailer for getting the product out to me so quickly. 63657






- TK90160

ratingratingratingratingrating by: Richard M.05/12/2014


The Tekonsha Primus IQ Trailer brake Controller is exactly as listed, but the best part is all the great customer service from etrailer.com Orders are processed quickly and their videos are very helpful for installation! Allow a little extra shipping time for regular shipping and you will be good to go. ETRAILER is a great company to do business with and no they didn't pay me to write this! 130224






- TK90160

ratingratingratingratingrating by: D. Adams06/17/2013


Shipping was fast, and the controller was offered at a great price. Saved some money and avoided issues by installing it myself. If there is something else I need, I'll check etrailer first, 84900






- TK90160

ratingratingratingratingrating by: Chuck01/14/2014


Installation was very easy, went into a 2014 Suburban with the tow package. Just 4 wires to splice in the cabin and attach the bracket to the dash. Then 2 wires under the hood for factory connections to power the unit. Took maybe a half hour ,start to finish. Have not had a chance to tow the trailer yet, buried in a snow bank, but expect it to work well. 112779






- TK90160

ratingratingratingratingrating by: Bradley03/11/2013


I wire this up on my 2004 chevy colorado, mostly to pull my 5x10 7000 GVWR dump trailer. Got the wiring kit from etrailer as well and it was pretty simple to install with the diagram and directions they sent. Just make sure to ground your circuit breakers well. I'm very happy with the whole set up. I can hardly feel the trailer behind me when i break. 70015






- TK90160

ratingratingratingratingrating by: Roger B10/14/2013


Good installation instructions for my 2014 Acura MDX equipped with trailer package. It already had a wired pigtail with an snap in attachment under the dash, so soldering and insulating the 4 wires was a snap. Delivery was within 6 days and the install took about 45 min. Haven't hooked either of the trailers yet but will give followup when used. 103810






- TK90160

ratingratingratingratingrating by: G Lewis11/03/2011


Install was very easy in my 2008 Chevy Silverado. Haven't purchased the trailer yet so I can't rate its operation, but I'm sure it will work just fine. A bit of advice for others installing this or any brake controller in a 2008 Silverado...the truck's light blue/white stripe wire had faded with age to a pale green. Don't let that confuse you. 26493






- TK90160

ratingratingratingratingrating by: Jon M10/08/2012


This product was extremely easy to install - with multiple options. The only thing missing was the electrical connectors, but I'm not sure if they were supposed to be a part of the package or not. I really like the fact that I can snap the controller in or out of the vehicle. The product also performed great the first time out. 56775






- TK90160

ratingratingratingratingrating by: Baughdog07/15/2013


What can I say? After watching etrailer.com video on installation of the unit, I installed myself with corresponding harness in less than an hour. Worked as suggested and got a better controller for less money than my local camper place was going to charge me to install their unit. Made me a believer on etrailer.com for sure! 89547






- TK90160

ratingratingratingratingrating by: Bruce04/10/2014


I just installed the Tekonsha Primus IQ controller and used the plug adapter 3035P to hook into my wiring harness on my 2013 Itasca Sunstar 26 HE. The chassis is a Ford F53 with a V10 motor, in case some one needs any reference to hooking into their motorhome wiring. Its was installed quicker than making my coffee! 124540






- TK90160

ratingratingratingratingrating by: Chris Rutherford08/11/2014


This product is a great product, it installed easily, although it took a phone call to the customer help line to figure out the mounting bracket installation, once that was cleared up, I had it installed and operating in about 20 minutes. I was totally satisfied with the product and customer care response. 145808






- TK90160

ratingratingratingratingrating by: Sharon06/29/2014


Ordering this product was easy and delivery was fast. etrailer.com was very helpful in choosing the right brake controller for my car. I installed the brake controller myself taking about 5 minutes. I purchased the brake controller to use for pulling my 27 ft tag along camper. It works great. 138217






- TK90160

ratingratingratingratingrating by: Doug V.08/07/2012


Purchased electric brake controller for our 2000 Toyota Tundra as we are pulling a large camper. Very easy to install and adjust for camper weight using boost feature. Very happy with Primus and with etrailer as they got the controller to us a day ahead of delivery date. 50918






- TK90160

ratingratingratingratingrating by: David P.11/02/2012


Product was a breeze to install. So impressed with ETrailers that have won my repeate business. Super fast shipping. It was shipped the same evening we placed the order and actually arrived a day ealier than scheduled. Only used the controller once but so far so good. 58674






- TK90160

ratingratingratingratingrating by: Rob C06/24/2014


Works great. Much better then I thought it would. Great product 137520






- TK90160

ratingratingratingratingrating by: Eric L.09/25/2012


I purchased the brake controller for my 2008 Dodge RAM 1500, to pull my 28 foot travel trailer. Product installed easily and is straightforward. Customer service at etrailer.com was also EXCELLENT. I could not have asked for a better, more personal process. 55813






- TK90160

ratingratingratingratingrating by: bill caylor08/03/2012


Electronic trailer brake works great and extremely easy to install . Would also like to add Customer service was outstanding ! I needed my order shipped out the same day as ordered and Pat from customer service and Zachary in shipping made that happen . Thank you 50386






- TK90160

ratingratingratingratingrating by: Chuck Q01/22/2013


I appreciate the help and patience your technical personnel gave to me on installing the Primus brake controller in my GMC Sierra. I called twice (my fault) and both were very friendly and helpful. I will definitely shop from your company in the future. 63878






- TK90160

ratingratingratingratingrating by: Allan K05/15/2014


Second purchase for 2 nd vehicle and arrived on time both times well packaged and exactly as discribed. Called in on the second order and was very satisfied as to the knowledge and assistance given. I would not look anywhere else. Thank you etrailer.. 130882






- TK90160

ratingratingratingratingrating by: Gary06/23/2014


As advertised!! works great.. Took about 15 min to install on my 2007 Sliverado. The 3015-p wire adapter saved me from cutting and splicing wires, well worth the $15.00. Tech supprot was great for a question I had. I will buy from e-trailer again! 137073




63
193
Show More Reviews

Ask the Experts about this Tekonsha Brake Controller
Expert Answers about Tekonsha Primus IQ Trailer Brake Controller - 1 to 3 Axles - Proportional - TK90160Do you have a question about this Brake Controller?


  • What are the Differences Between the Prodigy P3 and Primus IQ Brake Controller
  • There are quite a few differences. The ones you can see easily on the outside are the display and control buttons. The P3, part # 90195, uses a multi-color LCD to provide more information where as the Primis IQ uses basic LED numbers like what you would have on your digital alarm clock. The P3 uses a rotary lever on the underside for a manual over ride where as the Primus uses the older slide design that some people have problems with the slide sticking depending on how they grip and...
    view full answer...

  • Comparison Between the Tekonsha P2 # 90885 and Primus IQ # TK90160 Electronic Brake Controllers
  • The Prodigy P2 brake controller # 90885 and the Primus IQ # TK90160 share some basic features, but there are many differences. The most obvious ones are the displays and appearances of the units, which are connected to the usability of the brake controllers while towing. The P2 has a brighter, light-colored LED display that is easier to read than the red LED display on the Primus, and the P2 also features a rotary lever for the manual braking feature, while the Primus uses an older style...
    view full answer...

  • Installation Instructions for the Primus IQ Proportional Braking System 90160
  • There are three possibilities for your vehicle. If you have a factory 7-Way you will be able to use the Tekonsha PRIMUS IQ Electronic Brake Controller, item # TK90160, and the Tekonsha Wire Replacement for Ford, item # 3035-P, to install the brake controller on your RV. The connector for the brake controller wire harness should be located under the dash to the left of the steering column. You will be looking for a 6-pin connector that mates to the brown connector on the # 3035-P harness. The...
    view full answer...

  • Where To Connect The Brake Controller To The 7-Way Trailer Connector On The Tow Vehicle
  • On the 7-way connector, that is on your vehicle, the pin you will connect the brake controller wire to is the (2) Blue pin. If you are looking at the inside (back) of the 7-way connector, it will be the pin at the 7:00 position. Looking at the 7-way from the outside (front) it will be at the 5:00 position. The wiring installation is the same on all of the of the brake controllers. I am including a picture of a 7-way and it shows the functions of each pin. You will want to make sure that...
    view full answer...

  • Installing an Electric Trailer Brake Controller on a 2008 Chevy Silverado 1500
  • Your 2008 Chevy Silverado will have the wiring for a brake controller located under the dash, below the steering column and to the left of the brake pedal. The wires are held together by a white tag that may also list the functions of the wires. If not, you can follow the color/function code below. Brake Controller White to Truck White (ground) Brake Controller Red to Truck Light Blue (stop light) Brake Controller Blue to Truck Dark Blue (electric brake output) Brake Controller Black...
    view full answer...

  • How to Wire a 2011 Subaru Outback for a Brake Controller
  • The 2011 Subaru Outback is not equipped with an under-dash connector for installing a brake controller, but a controller can still be installed using our Brake Controller Install Kit, part # ETBC7 if a 7-way trailer connector is needed, or # ETBC6 for a 6-way connector. The install process, although a bit involved, is pretty straightforward and can be completed by the average do-it-yourselfer. We have plenty of help available online through the website, through our experts, or by phone. Other...
    view full answer...

  • What Is The Boost Button Used For On The Tekonsha Primus IQ Electronic Brake Controller # TK90160
  • The boost button on the Tekonsha Primus IQ Electronic Brake Controller, # TK90160, is used when you might be towing a full trailer versus an empty trailer, if the electric brakes are worn or not adjusted correctly, or if you will want the trailer braking to lead the tow vehicles braking. It allows a more aggressive setting for your trailer brakes. The boost will have three different levels. When the boost is off, the power to the brakes starts out at zero and increases with deceleration....
    view full answer...

  • Which is Best Digital Brake Controller at the Lowest Cost for a 2000 Chevrolet C1500
  • Brake controllers are divided into two categories, time delayed like the Draw-Tite Activator II Electric Trailer Brake Controller, item # 5500, that you mentioned, and proportional like the Tekonsha PRIMUS IQ Electronic Brake Controller, item # TK90160, which has a digital display. These are the two lowest cost digital readout controllers in each category. A time delayed brake controller sends a predetermined amount of braking power to the trailer and then there is a delay as the unit...
    view full answer...

  • Setting Up the Tekonsha Primus Electric Trailer Brake Controller # TK90160
  • The initial set up involves connecting the trailer to the vehicle, starting the engine, and then fully engaging the manual override lever. While the lever is fully engaged, set the power wheel knob to 6. You will then start doing the driving/braking test and then adjust the power wheel accordingly. The power wheel does adjust the amount of power sent to the trailer brakes like you have said. More power (rotating the knob toward the front of the vehicle) will set the brakes more aggressively...
    view full answer...

  • What is the Difference Between the Primus IQ Brake Controller and the Prodigy P2 Brake Controller
  • There are quite a few differences. The ones you can see easily on the outside are the display and control buttons. The P2, part # 90885, uses a rotary lever on the underside for a manual over ride where as the Primus uses the older slide design that some people have problems with the slide sticking depending on how they grip and operate the slide. The P2 has several buttons on the face for adjusting settings and navigating through the menus. The Primus IQ uses a dial and one button to...
    view full answer...

  • How to Install Tekonsha Primus IQ Brake Controller TK90160 on a 2010 Toyota 4Runner
  • I checked with Tekonsha, and you would be able to use a plug-in brake control wiring adapter, part # 3040-P, to make the install of the brake controller on your 2010 Toyota 4Runner very simple. You should find the factory brake controller harness underneath the dash and to the left of your steering column, near the emergency brake pedal. This harness will have a 5-pin connector that will mate up to the plug on the # 3040-P wiring. If you do choose to hard wire the unit, the Primus...
    view full answer...

  • How to Install The Primus IQ Brake Controller on a 1998-1999 Chevrolet Tahoe Classic
  • Installation of a brake controller on your 1998-1999 Chevrolet Tahoe Classic is pretty straight forward. You will need several items to complete the install. First, you will need a working 4-Way connector, item # 118319, if you do not already have one. I have linked installation instructions for you to review. Once you have a working 4-Way connector you will need a Brake Controller 7 & 4 Way Installation Kit, item # ETBC7, to complete the wiring from the back of the vehicle, to the brake...
    view full answer...

  • Brake Controller Install on 2012 Subaru Outback
  • The Tekonsha Primus you mentioned should work very well for you and would be a good choice unless you are planning on towing a trailer with an electric over hydraulic braking system some time in the future. If this is the case, you might want to go with the Tekonsha Prodigy P2, part # 90885. Since you need to provide a connector for the trailer anyway, I would upgrade to the more common 7-way connector. This way you could tow the trailer with a different vehicle if need be. To install...
    view full answer...

  • Is the Tekonsha Primus IQ Electric Trailer Brake Controller Time Delay or Proportional
  • The Tekonsha Primus IQ Brake Controller, # TK90160, is the only Primus model available. The TM could stand for trade mark. The IQ is a proportional brake controller meaning that it applies braking power to the trailer brakes in proportion to how much the vehicle is braking. I have included a link to the installation details for reference along with a link to our brake controller FAQ article.
    view full answer...

  • Parts Needed To Install Tekonsha Primus IQ Brake Controller # TK90160 On 2000 Ford F-350
  • If your 2000 Ford F-350 has a factory 7-way, all you will need is the Tekonsha Wire, part # 3035-P, to install the Tekonsha Primus IQ Brake Controller, part # TK90160. One end will plug into the back of the brake controller, the other to the brake controller port located underneath the dash towards the center. The brake controller port will be tucked up and out of the way and may be hidden by wires (see video). If your F-350 just has a factory 4-flat connector, in addition to part #...
    view full answer...

  • Should My Tekonsha PRIMUS IQ Brake Controller # TK90160 Always Have Constant Power
  • The brake controller needs to be connected to a constant power source so that the settings on the brake controller are not lost. When the brake controller is unplugged, the brake controller is reset and needs to be setup again. Having constant power to the brake controller is the correct way to have the brake controller wired on your 1995 Chevrolet Silverado and on any vehicle. You will not have to worry about the brake controller draining your battery as it draws milliamps of power....
    view full answer...

  • Adding a 7-Way to a 2007 Toyota FJ Cruiser
  • You are going to need to install the correct 4-Way wiring harness before you can install the 7-Way. You will need the Tow Ready Trailer Wiring Harness, # 118405. This includes the converter to convert the signals used by your vehicle to the correct signals used by the trailer. The vehicle requires this powered converter that has a direct connection to the battery to provide the power for the trailer lights. This is to protect the vehicle wiring. After it is installed, you can plug in...
    view full answer...

  • Installation Procedures for Tekonsha Primus IQ Trailer Brake Controller # TK90150 on Infiniti QX56
  • On the Infiniti QX56 with the factory 7-way, you would use the brake controller you referenced with the Tekonsha Plug-In Wiring Adapter # 3050-P. This adapter plugs into the 6-pin connector on your vehicle's built-in brake control wiring harness. The harness is located underneath the dash, to the left of the steering column, taped to another harness near the emergency brake pedal. On some Infiniti vehicles, the connection may be behind the drivers side kick panel. I have attached a link...
    view full answer...

  • Finding the Stop Light Wire on the Brake Switch for a 2010 Subaru Outback for a Brake Controller
  • As you have probably found, the brake switch on your 2011 Subaru Outback has several wires running to and from it. You will need to find the wire on the cold side of the switch that carries a signal ONLY when the brake pedal is pressed. Wire color can vary from vehicle to vehicle, so I can not provide a specific color for this wire. You will need to use a circuit tester, like the Quickee # 3808, to find it. Just probe the wires by first connecting the alligator clip to a suitable ground...
    view full answer...

  • How to Turn Off a Tekonsha PRIMUS IQ Electronic Brake Controller When Not Being Used
  • Electronic brake controllers like the Tekonsha PRIMUS IQ Electronic Brake Controller, part # TK90160, receive their power through the wiring harness that plugs into the rear of the unit. The other end of the wiring harness plugs into a connector under the dash board. If you do not intend to tow anything for the foreseeable future you can simply disconnect the wiring harness where it plugs into the vehicle wiring. In the event that in the future you do want to use the brake controller...
    view full answer...

  • What Do I Need to Install a Tekonsha Primus IQ Brake Controller # TK90160 in my 2006 Toyota Tundra
  • Yes, you could install a Tekonsha PRIMUS IQ Electronic Brake Controller, part # TK90160, into your 2006 Toyota Tundra. If you have the factory tow package with a 7-Way connector at the rear of your vehicle, you could simply install a Tekonsha Wire Replacement Brake Controller Harness, part # 3040-P, into the port under the dash of your Tundra and then plug the other end into the back of the brake controller and you would be ready to go. If you do not have a tow package, you can still...
    view full answer...

  • Parts Needed to Install a Trailer Brake Controller on a 1997 Chevy C/K 1500
  • A trailer brake controller will need to be hardwired on a 1997 Chevy C/K series truck. I do not have a video showing this vehicle specifically but since hardwire installations are so similar among vehicles I have included a link to a video showing how it will be installed. You will start by adding a 4-Way trailer wiring harness to the truck unless you already have one. Use # 118315 to add a 4-Way. Once installed, or using one already present on the truck if applicable, you will need...
    view full answer...

  • Tekonsha Primus IQ Brake Controller # TK90160 Not Working on 2009 Honda Pilot With # 3070-P Harness
  • The Tekonsha Wiring Harness, part # 3070-P, with the Tekonsha Primus IQ Brake Controller, part # TK90160, is for use on a 2009 Honda Pilot with the OEM tow package and the factory 7-Way trailer connector on the rear of your vehicle. You will want to make sure that your vehicle has the factory OEM tow package. The wire colors on your Honda factory brake controller connector could be different than the standard black, red, blue and white colors on the # 3070-P connector. Each vehicle...
    view full answer...

  • Brake Controller Wiring Location in the Cab of a 2010 GMC Sierra 1500
  • I was unable to find a guide for your specific vehicle, however I have included a link to a video for a 2008 GMC Sierra that shows the brake control wires under the dash below the steering column and down by the brake pedal. The wires will be bundled up and there may be a white tab around them. Let me know if this is not helpful and we will do further research to try to help you find these wires. The video shows the technician pulling the wires from the brake pedal area at the 1 minute...
    view full answer...

  • Wiring a Trailer Brake Controller to the Factory Harness on a 2012 Toyota Tundra
  • The extra wire that is on the factory harness is not used by the brake controller. You can tape it up and stow it out of the way. On the brake controller and its wiring harness, the wire colors and functions are as follows: White = ground Black = 12 volt power Blue = output to trailer brakes Red = input from brake switch
    view full answer...

  • Will the Tekonsha PRIMUS IQ Electronic Brake Controller, # TK90160, Work on a 2007 Toyota Tundra
  • Yes, the Tekonsha PRIMUS IQ Electronic Brake Controller - Proportional, part # TK90160, will work on your 2007 Toyota Tundra. The Universal Brake Control Wiring Adapter, 2003 - 08 Toyota, part # 20265, is compatible with the # TK90160, and will help simplify the installation if you have a the factory tow package with a 7-way connector. If your Tundra does not have a 7-way connector present at the rear of your vehicle you will most likely need to install an Brake Controller 7 & 4 Way...
    view full answer...

  • Can I Drive a Short Distance Before Setting Brake Controller Settings on Tekonsha PRIMUS # TK90160
  • If everything is hooked up, the brake controller will send power to the trailer brakes each time you apply the brakes on your truck. You should use the manual brake lever on the brake controller to activate the brakes until you are at a safe location to setup the controller. To set up the brake controller, you will want to use the manual slide to activate the trailer brakes to get them warm. Warming the brakes will simulate conditions when the brakes are being used. You will then follow...
    view full answer...

  • Brake Controller Wiring on 2010 Jeep Grand Cherokee
  • The 2010 Jeep Grand Cherokee is not pre-wired with a brake controller port for installation of a brake controller. To install a brake controller on your 2010 Jeep Grand Cherokee with a factory 7-Way you will need to do a little hard wiring. The only wire Jeep provides is the electric brake output wire that goes back to the 7-Way trailer connector. This wire is probably a light green wire that is behind the in cab fuse box. It will connect to the blue wire on the brake controller. You...
    view full answer...

  • What is the Extra Wire for on the 2011 Toyota Tundra Brake Controller Wiring Harness
  • You are correct, if your 2011 Toyota Tundra is equipped with the factory towing package the fifth wire would be an illumination circuit tied into the tail light switch on your vehicle. This circuit is not used for any brake controller that we carry at this time. To wire the PRIMUS IQ Electronic Brake Controller, item # TK90160 on your Tundra you can use the Draw-Tite brake controller wiring for Toyota , item # 20265. The 4 wires from the connector will splice to the wires on the Primus...
    view full answer...

  • How to Find the Stop Light Switch to Install a Brake Controller on a 2007 Dodge Ram 1500
  • The cold side of the brake switch is the part of the brake switch, located above the brake pedal, that does not have constant power going to/from it. When installing a brake controller like the Tekonsha PRIMUS IQ Electronic Brake Controller, # TK90160, you will need to attach the red wire on the brake controller to the wire on the cold side of the brake switch that carries a signal ONLY when the brake pedal is pressed. It is possible that this wire is blue with white tracer, but manufactures...
    view full answer...


Ford Aerostar Accessories


Info for this part was:


Test Fit:
Joe V

Photos by:
Theodore B

Expert Research:
Michael L

Video Edited:
Zack K

Expert Research:
Sarah L

Video Edited:
Andrew K

Expert Research:
Robert G

Expert Research:
Patrick B

Expert Research:
Michael H

Expert Research:
Jeff D

Expert Research:
Reno H

Expert Research:
Jameson C

Video by:
Joshua S

Test Fit:
Nicholas E

Expert Research:
John H

Updated by:
Adele M

Expert Research:
Brandon M

Video Edited:
Andrew L

Expert Research:
Adam R

Video Edited:
Mike H

Video Edited:
Dustin K

Installed by:
Cole B

Test Fit:
Shane T

Expert Research:
Rachael H

Expert Research:
Jeffrey L

Video Edited:
Sue W

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.




Stay Connected


Subscribe to email newsletter

Email

privacy - we don't send unsolicited email






etrailer.com reviewsetrailer.com reviews

All images, layout and content copyright etrailer.com
