Brake controller activates trailer brakes in proportion to deceleration. LED screen shows settings and diagnostics. Features 3 boost levels. Automatically levels when mounted within 90-degrees in the vertical plane.
With a proportional brake controller, you can get heavy-duty emergency braking, general braking, or slow-to-an-idle braking for your trailer automatically. The intensity with which your trailer brakes are activated and the rate at which they are applied are dependent on the deceleration of your tow vehicle. This means that, unlike time-delay controllers - which send the same amount of preset power to your trailer brakes every time - proportional controllers are able to adapt to every braking situation differently.
So, if you slam on the brakes in your truck, your trailer brakes will activate with that same extreme intensity. And if you merely slow down as you approach a red light, your trailer will gradually brake in the same manner.
As long as the I-Command is properly mounted according to the included instructions, the controller will automatically level, sense the tow vehicle's deceleration, and adjust the trailer's braking accordingly. The result is uniform braking across your towing setup. No push-pull action - just smooth, proportional braking every time.
Power Boost for Heavy-Duty Towing
The I-Command offers a boost feature that gives you more initial braking power for times when you're towing heavy loads. You can switch boost levels so that the power output to your trailer brakes automatically starts out at either 14 percent or 28 percent of the predetermined power setting.
So, if you boost the initial power so that your trailer brakes activate with 25 percent of the overall intensity at the start, the brakes will reach maximum braking faster. This is particularly beneficial if you are towing a heavy load because the intensity required to stop that load may be far greater than that needed to halt your vehicle. Therefore, sending out more initial power to the trailer brakes - and causing them to reach maximum braking faster - allows you to better control the trailer so that it doesn't push your tow vehicle before coming to a complete stop.
If your trailer weighs less than your tow vehicle, no boost is needed. But if you wish to set the boost so that your trailer leads the braking of your towing setup, you can select level B1. The following table gives an indication of when you might use the different boost levels and the power increases that they offer.
|Approximate Gross Trailer Weight||Boost Level||Increase in Initial Power Output|
|Less than tow vehicle GVW||B1||14%|
|Equal to tow vehicle GVW||B1 or B2||14% or 28%|
|Up to 25% more than tow vehicle GVW||B1, B2, or B3*||28%|
|Up to 40% more than tow vehicle GVW||B2 or B3*||28%|
* Both B2 and B3 offer a 25-percent boost in initial power. But the braking curve for B3 is more aggressive than that of B2. This means that, even though you will start out with the same intensity when using these boost levels, you will get an overall more aggressive braking experience with the higher level. So if you use B3, you will reach maximum braking sooner than if you use B2.
The I-Command offers advanced safety features to prevent damage to various components of your towing setup. Integrated reverse battery protection shields the brake controller and your trailer's breakaway system from shorts.
If ever there is a time that you need to brake your trailer separately from your tow vehicle - when traveling down a steep incline, for example - the manual override lever is easily accessible. Pushing this lever engages the brakes on your trailer with full power.
The I-Command has a digital LED display to keep you informed of your trailer's braking. The display shows the gain setting when the control is activated. It can also be used to check for connectivity with your trailer, to determine your boost setting, and to troubleshoot.
Automatic Leveling and Simple Installation
Because this controller operates with an internal inertia sensor, it must be mounted between -20 degrees and 70 degrees in the vertical plane. The I-Command must be mounted on a level horizontal (side-to-side) plane and must be lined up with the direction of travel for the internal sensor to function properly.
The automatic leveling feature of the I-Command ensures that the brake controller continues to function even as you drive up steep hills or through the mountains. Mount the controller at a vertical angle that is between 0 degrees (level) and 70 degrees, and the controller with level itself automatically.
Installation of the I-Command requires that you either purchase a custom wiring adapter designed to plug into the controller or that you hardwire the controller directly into your vehicle. To hardwire the controller, you must remove the plug at the end of the integrated wiring harness.
For easier installation, a vehicle-specific wiring adapter (sold separately) is available for most newer trucks and SUVs. One end of the custom adapter plugs into your vehicle, and the other end plugs into the controller - no hardwiring required.
For even easier installation, a vehicle-specific wiring adapter (sold separately) is available for most newer trucks and SUVs. One end of the custom adapter plugs into your vehicle, and the other end plugs into the controller - no hardwiring required.
Note: If a custom brake-control wiring adapter is not available for your vehicle, one of the following will be required:
20-Amp circuit breaker (9506P - sold separately) for 2- to 4-brake applications
30-Amp circuit breaker (38630 - sold separately) for 6- to 8-brake applications
See also etrailer.com's exclusive 7- and 4-way brake-control installation kit (ETBC7 - sold separately) if you don't already have a 7-way plug at the back of your vehicle.
Video of Draw-Tite I-Command Trailer Brake Controller - 1 to 4 Axles - Proportional
Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

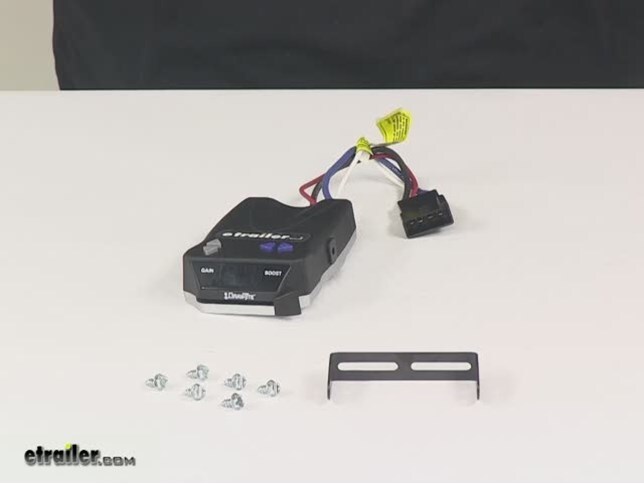

Today we're going to be taking a look at the Draw-Tite I-Command Proportional Trailer Brake Controller. This controller is going to activate the trailer brakes in proportion to your vehicle's braking action, it's going to automatically adjust the trailer's braking based on deceleration of the towed vehicle, and it activates immediately, so there's no pausing like when using time-delayed brake controllers. This unit's also going to automatically level. The brake control will automatically acquire the proper level setting, it's also going to automatically adjust as you travel up or down hills. A few unique features about this system. As you can see here, we have the easy to access buttons, we're going to have the boost setting right here on top and it says 'Boost' right here on the disc plate, so that way we know these button go with that setting. On this side we're going to have the gain control, and it says 'Gain' right there so we know that these buttons are associated with that control.
The boost setting is going to let you adjust the aggressiveness with which the brakes are activated, so this is setting is great in situations where you're hauling heavier loads or your trailer weight is significantly more than your vehicle weight. It's going to be available in three settings, you're going to have Boost 1, Boost 2, and Boost 3. It's going to allow you to get full power output faster by pressing the plus buttons right here, or the minus buttons to achieve maybe a smoother braking action. You can get full output power faster by pressing the plus button to increase the activation speed, and then you can achieve smoother braking by pressing the minus button to supply power gradually. Located right here at the front is going to be the easy to read digital display. This is going to be an LED display, it's going to show the controller activity.
The unit is short-circuit protected. On this side you're going to have the gain setting, this is going to establish the maximum amount of power available to the trailer brakes. As the gain increases, and you just the plus or minus buttons to do that, so it's very easy to adjust, but as that increases what that means is more power is going to be available to the brakes when the brake peddle in the vehicle is pressed or when the manual control is used. We do have the built in slide bar manual override right here at the front, very easily accessible. Gain is going to be shown from zero to ten, with zero being the minimum and ten being the maximum. That simply represents a percentage of the full power.
It's a quick and easy installation, your mounting bracket and hardware are included, and then it's going to be able to plug into a vehicle specific brake control adapter. Those are sold separately and can be used for certain applications to help reduce installation time. Again, this is designed for trailers with up to four axles or A-brake assemblies. It's designed for use with electric brakes only. When mounting this, you can mount this anywhere from -20 degrees nose down, anywhere to 70 degrees nose up in the vertical plane.
You want to make sure this is parallel with the direction of travel, but anywhere in between those indicators that I gave you, -20 degrees nose down or 70 degrees nose up, this is still going to be fully functional. All the leveling, the sensor inside, that's going to be functional as long as you stay within those increments, or those measurements of negative 20, 70 degrees nose up. Really nice design, it's a nice small compact unit as well. Here at the widest part it's only going to measure about 2-3/4" wide, and then the overall length is going to be about 4-1/4", and then the depth or the thickness is only 1-1/8". It's going to be covered with a unlimited lifetime warranty. Now what I want to do is I just want to show you how easily that display can be read. I'm just going to hook up a couple of wires here today just to send some power to it, I'm going to hook up a ground power then the power wire, and then we thumb through some of the settings and you can get an idea for how easy it is to read and how easy it is to see that display. NC is going to stand for Not Connected, but it's still going to allow us to kind of go through. We have our gain setting, you can see how that easily adjusts with a simple press of the button, and again you can go all the way up to ten, you can hold it down, which is going to allow you to adjust quicker, all the way up to ten. Then you can press individual to make finer adjustments, or you can hold it down and it's going to go all the way down to zero. You can adjust to anywhere in between that setting, really nice design. You're also going to have the manual override right here, which for me it's just saying I'm not connected, which is correct since I'm just feeding off a power box. Then you're going to have your boost setting. You're going to have Boost 1, Boost 2, Boost 3, then just the B shows you that you're in the boost settings, then you have 1, 2 and 3 to choose from. That's going to do it for today's look at the Draw Tite I-Command Proportional Trailer Brake Controller.
