Tekonsha Brake Controller for the 1998 Ram Pickup by Dodge

Tekonsha Brake Controller

ratingratingratingratingrating (676 reviews)

Code:   90885



Shipping Special

Shipping Weight: 2 pounds


Tekonsha Brake Controller 90885 Review - Video
Brake Controller Installation - 2005 Dodge Ram 3500 - Video
Trailer Brake Controller Installation - 2002 Dodge Ram 3500 - Video
Trailer Brake Controller Installation - 2001 Dodge Ram - Video
Show all 74 videos

Tekonsha Prodigy P2 Trailer Brake Controller - 1 to 4 Axles - Proportional - 1998 Ram Pickup by Dodge

Proportional brake controller automatically levels when mounted within a 360-degree vertical range. Includes digital display, 3 boost levels, battery protection and continuous diagnostics. Easily transfer between different automobiles.


  • Brake controller activates trailer brakes in proportion to your Dodge Ram Pickup's braking action
    • Automatically adjusts trailer's braking based on deceleration of tow vehicle
    • Activates immediately - no pausing like with time-delayed brake controllers
  • Automatic-leveling ability - internal sensor detects deceleration even if controller is not mounted flat
    • Position at any angle up or down in the vertical plane
  • 3 Boost levels let you adjust initial braking power and aggressiveness
  • Continuous diagnostic check alerts you to any potential problems
  • Integrated safeguards protect your vehicle, trailer and the controller
    • Minimizes drain on car battery by drawing only 3.6 milliamps when not in use
    • Prevents trailer brakes from overheating by reducing power output to them during prolonged stops
    • Defends brake controller and trailer breakaway systems against shorts
  • Digital, blue LED display is easy to read
  • Built-in, rotary-style manual override lever
  • Quick-disconnect feature lets you easily remove and store the control when not in use
    • Replacement wiring harness (sold separately) and replacement bracket (7686 - sold separately) required to move the controller from one vehicle to another
  • Plug-in, vehicle-specific brake-control adapter (sold separately) can be used for certain applications to reduce installation time


  • Application: trailers with up to 4 axles (8 brake assemblies)
    • Designed for use with electric or electric-over-hydraulic trailer brakes
  • Dimensions: 3-1/8" wide x 5-1/8" long x 2" tall
  • Mounting: 360-degree vertical plane operating range
  • Limited lifetime warranty

Proportional Braking

With a proportional brake controller, you can get heavy-duty emergency braking, general braking or slow-to-an-idle braking for your trailer automatically. The intensity with which your trailer brakes are activated and the rate at which they are applied are dependent on the deceleration of your tow vehicle. This means that, unlike time-delay controllers - which send the same amount of preset power to your trailer brakes every time - proportional controllers are able to adapt to every braking situation differently. So, if you slam on the brakes in your truck, your trailer brakes will activate with that same extreme intensity. And if you merely slow down as you approach a red light, your trailer will gradually brake in the same manner. Just set the initial power level, select a boost setting, and you're good to go.

As long as the P2 controller sits level on a horizontal plane and is pointed in the direction of travel, it will sense - via an internal inertia sensor - how your tow vehicle brakes. This inertia-based sensor responds to the deceleration of your tow vehicle as you brake by signaling the controller to send out enough power to your trailer brakes so that they are activated with an intensity that matches. The result is uniform braking across your towing setup. No push-pull action - just smooth, proportional braking every time.

Power Boost for Heavy-Duty Towing

Aside from smoother, more efficient braking, Tekonsha's P2 brake controller also offers a boost feature that gives you more initial braking power for those times when you're towing heavy loads. You can switch boost levels so that the power output to your trailer brakes automatically starts out at either 14 percent or 28 percent of the predetermined power setting.

So, if you boost the initial power so that your trailer brakes activate with 28 percent of the overall intensity at the start, the brakes will reach maximum braking faster. This is particularly beneficial if you are towing a heavy load because the intensity required to stop that load may be far greater than that needed to halt your Dodge Ram Pickup. Therefore, sending out more initial power to the trailer brakes - and causing them to reach maximum braking faster - allows you to better control the trailer so that it doesn't push your tow vehicle before coming to a complete stop.

If your trailer weighs less than your tow vehicle, no boost is needed. But if you wish to set the boost so that your trailer leads the braking of your towing setup, you can select level B1. The following table gives an indication of when you might use the different boost levels and the power increases that they offer.

Approximate Gross Trailer WeightBoost LevelIncrease in Initial Power Output
Less than tow vehicle GVWB114%
Equal to tow vehicle GVWB1 or B214% or 28%
Up to 25% more than tow vehicle GVWB2 or B3*28%
Up to 40% more than tow vehicle GVWB3*28%

*Both B2 and B3 offer a 28-percent boost in initial power. But the braking curve for B3 is more aggressive than that of B2. This means that, even though you will start out with the same intensity when using these boost levels, you will get an overall more aggressive braking experience with the higher level. So if you use B3, you will reach maximum braking sooner than if you use B2.

Safety Features

The Prodigy P2 offers advanced safety features to prevent damage to various components of your towing setup. Integrated reverse battery protection shields the brake controller and your trailer's breakaway system from shorts. When the P2 is not in use, it will be in power-saving mode. In this setting, the power draw falls to only 3.6 milliamps, minimizing drain on your Dodge Ram Pickup's battery.

When you stop at red lights, or any time that your truck and trailer are at a standstill with the brakes applied for more than 5 seconds, the P2's "hold" feature will activate. When this happens, the power output to your trailer's brakes will be reduced to just 25 percent of the preset power setting so that the brakes will not overheat.

If ever there is a time that you need to brake your trailer separately from your tow vehicle - when traveling down a steep incline, for example - the manual override lever is easily accessible. Pushing this lever engages the brakes on your trailer with full power. In addition, when you activate this override, the brake lights on your trailer will illuminate, properly warning those behind you of the braking action of your rig.

In addition to all of those safety features listed above, the P2 offers diagnostics such as:

  • Open ground
  • Overload
  • Output short
  • Power loss
  • No trailer connection

Automatic Leveling and Simple Installation

The self-leveling feature of the P2 ensures that the brake controller continues to function even as you drive up steep hills or through the mountains. Simply mount it in your cab at any vertical angle, and the controller will level itself automatically thanks to its 360-degree rotational range.

Correct P2 mounting360-Degree P2 mounting

Note: The P2 must be mounted on a level horizontal (side-to-side) plane and must be lined up with the direction of travel for the internal sensor to function properly.

Installation is a snap. After mounting the P2 unit in your cab using the included pocket mount, hardwire one end of the included pigtail harness directly into your Dodge Ram Pickup. The other end plugs into the brake controller. To transfer the P2 to another vehicle or to remove it for storage, just unplug the unit and slide it out of the pocket mount.

Installation Accessories

For even easier installation, a vehicle-specific wiring adapter (sold separately) is available for most newer trucks and SUVs. One end of the custom adapter plugs into your Dodge Ram Pickup, and the other end plugs into the controller - no hardwiring required.

Note: If a custom brake-control wiring adapter is not available for your Dodge Ram Pickup, one of the following will be required:

20-Amp circuit breaker (9506P - sold separately) for 2- to 4-brake applications

30-Amp circuit breaker (38630 - sold separately) for 6- to 8-brake applications

See also's exclusive 7- and 4-way brake-control installation kit (ETBC7 - sold separately) if you don't already have a 7-way plug at the back of your Dodge Ram Pickup.

90885 Tekonsha Prodigy P-2 Proportional Trailer Brake Control

Video of Tekonsha Prodigy P2 Trailer Brake Controller - 1 to 4 Axles - Proportional

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

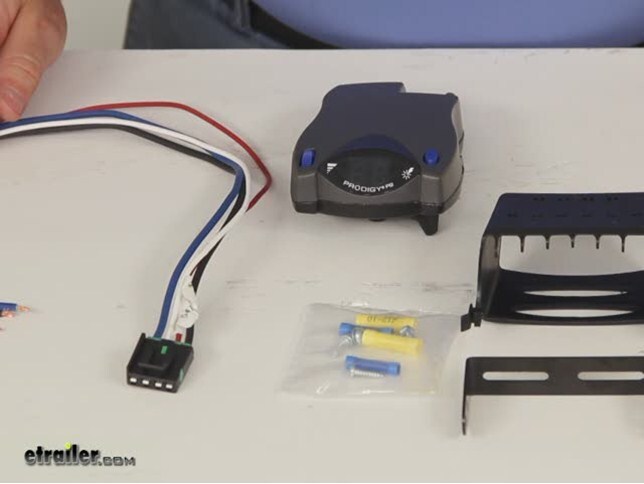

Video Demo Tekonsha Brake Controller 90885
