Tekonsha Prodigy P2 Proportional Brake Controller with Honda Ridgeline and Pilot Adapter

Tekonsha Brake Controller with Wiring - 90885-3070P

The Prodigy P2 electric brake controller supplies power to your trailer brakes proportionally. It levels automatically and offers a variety of mounting options.

Features:

• Applies power to the trailer's brakes in proportion to vehicle's braking action
  • Brakes immediately instead of pausing like time-delayed brake controllers
  • Works when you're in reverse gear so that you can back into tricky parking spots
• Includes a plug-in, vehicle-specific brake-control adapter for simple, fast installation
  • Also includes a pigtail wiring harness that can be hard-wired into another vehicle
• Levels automatically
  • Self-adjusts to varying terrain
  • Eases installation and allows for more mounting options
• Offers "boost" feature that adds more initial braking power when you're towing heavier trailers
• Features a continuous diagnostic check
  • Monitors proper connection and magnet condition so that you can find problems before you hit the road
• Furnishes protection for battery and brake-control functions
  • Reverse battery protection defends your brake controller and trailer breakaway systems from shorts
  • Power-saving mode reduces drain on the battery when vehicle is not in use - draws only 3.6 milliamps
• Shows voltage delivery to trailer brakes on a blue digital LED display
• Has a built-in, rotary manual override lever
• Detaches for easy portability - just unplug the brake controller from the brake-control adapter

Specs:

• Application: up to 4-axle trailer brake systems (8 brake assemblies total)
  • Works with electric-over-hydraulic systems
• Dimensions: 3-1/8" wide x 5-1/8" long x 1-3/16" high
• Boost power increase: 0 percent, 14 percent and 28 percent
• Mounting: 360-degree vertical range
• Pigtail wiring harness length: about 34"
• Limited lifetime warranty

The Prodigy P2 electric brake controller supplies power to your tow vehicle's brakes proportionally. This means that your trailer brakes at the same time and with the same strength as your vehicle - even in reverse gear. So if you have to slam on your truck's brakes, the trailer's brakes respond instantly, too - there's no delay. Thus your vehicle's brakes aren't overworked from trying to stop the entire load, and they suffer less wear and tear. The P2 also cuts power to the trailer's brakes when your vehicle is stopped - extending the life of the magnets and brake shoes in the trailer's brake assemblies.

Aside from smoother, more efficient braking that results from proportional application of stopping power, the Prodigy P2 also has a boost feature that gives you more initial braking power for those times when you're towing heavier loads. That's when more braking power is needed to stop the trailer at the same time as the tow vehicle. The boost setting sends 13 or 25 percent more power (depending on which setting you choose) back to the trailer brakes, thus compensating for heavier loads. You can boost the power manually at the push of a button as well. The boost feature gets more power to the trailer brakes exactly when you need it most, and your fully loaded rig brakes smoothly and comfortably.

This brake controller levels automatically as you drive, so there's no problem using it on steep hills or when towing through the mountains. The self-leveling feature also makes the Prodigy easy to install: Simply mount it in your cab at any vertical angle (it has 360-degree rotation). It's easy to see the display and to access the pivoting manual override lever on the bottom of the unit.

The P2's continuous diagnostic check monitors your connection and magnet condition, so you can fix any problems before they land you on the side of the road. This newest version of Tekonsha's popular Prodigy brake controller has reverse battery protection to preserve the unit and accessory systems. And the power-save mode reduces battery drain when the controller isn't in use.

The included mounting pocket and vehicle-specific wiring harness make your brake controller portable. Your unit slides out of the pocket mount for easy transfer of the brake controller to another vehicle. And one end of the adapter harness plugs directly into your vehicle, while the other plugs into your P2 - no hard-wiring required. Just unplug the unit to move it to another vehicle or for storage. An instructional DVD that is included with the brake controller's written instructions allows you to take full advantage of all the features.

How the Prodigy P2 Is Different from the Original Prodigy

• More mounting options - 360-degree vertical rotation
• Better protection - reverse battery protection for vehicle and trailer breakaway systems
• Versatility - works with electric-over-hydraulic trailer brake systems
• Blue LED digital display

Installation:

The vehicle specific adapter has one end that plugs into the back of the brake controller, while the other end plugs into the port located under the dashboard, to the left of the steering column. It will be taped to another harness near the brake pedal.

Note: If your vehicle has a factory-installed trailer hitch and 7-way connector, then all the wires for the brake controller have already been run. If not, additional parts will be required to complete the installation of the brake controller.

90885 and 3070-P Tekonsha Prodigy P-2 Proportional Brake Controller with Honda Ridgeline and Pilot Adapter

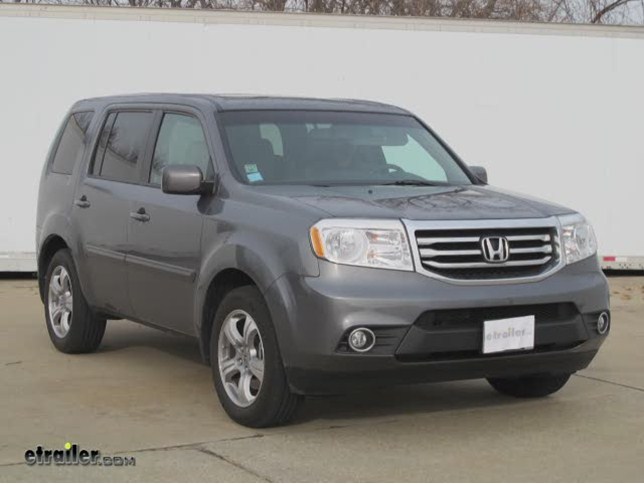

Video of Tekonsha Prodigy P2 Proportional Brake Controller with Honda Ridgeline and Pilot Adapter

Customers Who Purchased This Brake Controller with Wiring Also Bought...

Ask the Experts about this Tekonsha Brake Controller with Wiring
Do you have a question about this Brake Controller with Wiring?

• Parts Needed to Install a Prodigy P2 Brake Controller on a 2008 Honda Ridgeline

• 2008 Honda Ridgeline models that did not come with a factory 7-Way may not have a brake controller plug under the dash. You will need to check for the connector, and if it is there, you will need to ensure that all connections for the 7-Way are made correctly in the front and rear of the vehicle, and that any fuses or circuit breakers that are needed for the 7-Way and brake controller circuits are installed by Honda. It is common to see 7-Way plugs that only get partially installed to power br
  view full answer...


• Installing Tekonsha Prodigy P2 Brake Controller # 90885 On 2009 Honda Pilot

• Since your 2009 Honda Pilot does not have a factory 7-way connector at the rear, you will need to install Tow Ready Custom Fit Vehicle Wiring, part # 118491, and the Brake Controller 7 and 4 Way Installation Kit, part # ETBC7. Your 2009 Pilot may not have the plug under the dash for the brake controller, or it may be there with the wiring not completely ran. To install Brake Controller 7 and 4 Way Installation Kit, part # ETBC7, begin by plugging the 4-way of part # 118491 into part # ETBC7.
  view full answer...


• Location of Factory Brake Controller Port on a 2011 Honda Ridgeline

• If your 2011 Honda Ridgeline has the factory tow package with the factory 7-Way connector, then you will plug the Tekonsha Brake Controller Wiring Harness, part # 3070-P into the brake controller port which is located under the dashboard, to the left of the steering column. It will be taped to another wiring harness near the brake pedal. I am including a picture of the factory brake controller plug location under the dash on your 2011 Honda Ridgeline.
  view full answer...


• Parts Needed to Install a Tekonsha P2 Trailer Brake Controller on a 2011 Honda Pilot

• Since your 2011 Honda Pilot came with a factory installed 7-Way, all you will need to install the brake controller is the brake controller itself, # 90885 that you have referenced, and the wiring harness, # 3070-P. This adapter plugs into the 4-pin connector on your vehicles built-in brake control wiring harness. The harness is located underneath the dash, to the left of the brake pedal. I have included a link to a picture that should help. The brake controller gets all of its power from
  view full answer...


• Parts Needed to Add 7-Way Trailer Connector for Brake Controller on 2001 Chrysler Town and Country

• We have just about everything you are going to need packaged in one kit. Take a look at the 4 and 7-Way installation kit # ETBC7. This kit is going to provide a 7-Way (the existing 4-Way will just plug into the 4-Way receptacle on the adapter) and it comes with all the wiring and circuit breakers you will need to wire in the brake controller. The only other parts you will need are a circuit tester like # 3808 unless you already have one, the wiring harness for the controller, # 20127, and a m
  view full answer...
