CE Smith Post-Style Guide-Ons for Boat Trailers - 40" Tall - Black - 1 Pair
(2227 reviews)
Price: $114.44
In Stock
CE Smith Post-Style Guide-Ons for Boat Trailers - 40" Tall - Black - 1 Pair
Item # CE27626
Retail:$202.59
Our Price: $114.44
You Save: $88.15
In Stock
Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.
Error submitting comment. Please try again momentarily.
Need help with installation?
Locate installers near me- All Info
- Reviews (2227)
- Q & A (0)
- Photos
CE Smith Boat Trailer Parts - CE27626
- Guides
- Post-Style Guide
- 40 Inch Tall
- Galvanized Steel
- PVC
- CE Smith
Guide-on posts make it easy to load your boat onto your trailer and back your trailer down the ramp. They attach to the rear of your trailer and extend out of the water, providing visual targets to center the boat between during loading.
Features:
- Guideposts provide a visual target on your trailer to help you load and unload your boat
- Extend out of the water to help you center your boat while loading
- Assist you in backing your trailer down the boat ramp
- 16-Gauge, pre-galvanized steel posts are strong and durable
- Black PVC pipes slide over steel posts so you can see your submerged trailer
- Simple installation on rear crossmember of trailer frame with included hardware - no drilling required
- Adjusts out to 13" from trailer
- Made in the USA
Specs:
- Application: trailer frames up to 3" wide x 4-1/4" tall
- For frames up to 5-1/4" tall, 2 extra-long U-bolt kits (CE11416 - sold separately) are required
- Overall height: 40"
- Steel post dimensions: 18" tall x 1-1/2" diameter
- PVC Pipe diameter: 2-3/8"
- Quantity: 2 boat guide-ons
Note: Check with your state Department of Transportation for restrictions regarding maximum trailer width.
Guide Your Boat Into and Out of the Water with Ease

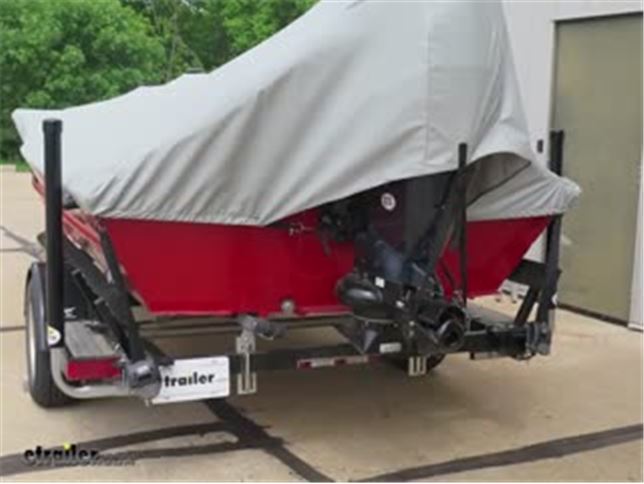

When your boat trailer has been backed down the ramp and is partially submerged, these 40" tall guideposts that are mounted on the rear corners of the frame will stick out of the water, giving you 2 highly visible targets to guide your boat between for loading. The PVC pipes also provide a visual aid to help you back your boat trailer down the ramp when you're unloading and loading your boat.
Installation
The posts are simple to install. Slide the PVC pipes over the pre-galvanized steel support posts. Then mount the posts on the top or below the trailer frame, as close to the rear corners as possible. Adjust the posts so that the distance between each post and your boat is less than 1".
Pre-Galvanized Steel
Pre-galvanized steel parts are stamped from a sheet of steel after it has already been galvanized. The edges of pre-galvanized parts often lose their zinc coating during the stamping process. Because of the thinness of the coating (less than 1 mil) and the fact that the edges remain exposed, pre-galvanized parts can begin to oxidize and rust quickly, so it's recommended that they be primed and painted.
27626 Post Style Boat Guide Ons by CE Smith - 3' 4" Tall - Black
California residents: click here
Customer Satisfaction Score:
98% were satisfied with this product
2% of customers were not satisfied
- Wrong item was ordered
- Product did not meet expectations
- Alternate product found
Customer Reviews
CE Smith Post-Style Guide-Ons for Boat Trailers - 40" Tall - Black - 1 Pair - CE27626
Average Customer Rating: 4.8 out of 5 stars (2227 Customer Reviews)
Guide-on posts make it easy to load your boat onto your trailer and back your trailer down the ramp. They attach to the rear of your trailer and extend out of the water, providing visual targets to center the boat between during loading.by: Ken07/04/2023
The gloss black PVC tubes were severely marred due to poor packaging. Everything in the box was unprotected, no wraps, no tie downs or styrofoam to prevent or protect the contents from handling and shipping damage. The order was received 7-3-23. The order number is
Ken
7/20/2023
I reported and provided photos of damage to the two gloss black PVC pipes. I recieved one replacement. Will not do business with this company again. I will still have to buy another piece in order to correct the shipping damage.
by: John03/12/2019
This was my first experience with buying from trailer and was not disappointed. I purchased a set of 40” Heavy Duty Black Post-Style Guide-Ons for my Tracker Pro-170 bass boat and item was received exactly as described on the web site and shown in the videos. The posts were incredibly easy to install (thanks to the instructions included and the web site video). Outstanding customer service and product support! The post guide-one are excellent and perform superbly in assisting trailering of my boat.
John R.
3/13/2020
Working well...I did have to secure the bottom of the guides to the trailer because the styrofoam padding tended to make them float up and off the metal posts as the boat was backed into deeper water.
by: Marvin 03/25/2024
Arrived on time, installation was easy and looks great
by: Amaury01/08/2024
Everything that was needed to install was included. Several mounting options with clear and easy instructions.
by: William07/26/2022
These will help a lot when backing my trailer and dinghy. My trailer was built from a CE Smith kit and the boat is an inflatable dinghy. They sit very low and I can’t see them when backing down a ramp. Product was easy to install and is sturdy. I expect to get many years of service from it.
by: Andrew04/04/2022
These guide ons are great. After putting them off for years I got fed up trying to fight the wind and current while putting my boat on the trailer by myself. These quickly solved that problem. Money well invested. Easy to mount on my trailer and stays put. I'll never again have a boat trailer without them.
Andrew
4/5/2023
Im considering buying a second set of these guide ons. You just cant go wrong with these. Loading my boat onto the trailer in any wind or current is easy and it doesnt seem to matter how deep the trailer sits in the water at the ramp. Guides the boat perfectly on the bunks and stays there.
by: Al05/26/2020
Great product. I have a 16’ light bass boat. In high winds the boat would drift over the top of a fender if the trailer was in water too deep. I bolted 4 of these on my boat. 2 on the back rails and two in the forward middle of the trailer. Now the wind is no problem. When the boat starts to blow off coarse, the rails keep it perfectly centered.
by: Matthew05/12/2022
The guide-ons arrived very quickly and without damage. Love buying from etrailer for fast shipping, selection, and how to videos for self installation.
Matthew
5/15/2023
Guide-ons were easy to install and have been very helpful in loading and launching my boat. Definitely recommend them to anyone with a boat trailer.
by: Frank05/08/2019
My trailer and boat disappeared behind my truck while towing it. These guide-ons will not only assist me in loading from the water, but combined with the light mounting brackets, I now have a visual in my rear mirrors while I'm driving. Installation was a breeze! I invested in an electrician's snake, that aided tremendously in passing the wires down the PVC posts and staying out of the angled tubes.
by: Timothy11/21/2020
Easy to install, now I can load my boat on trailer without worrying about the wind or water currents moving or blowing the boat sideways and bust my trailer lights ever again,thank you.
by: George 09/28/2023
Easy to install and made a huge difference in loading my boat at the ramp
by: Brice04/29/2018
Pics of new guide poles I purchased. Awesome product very easy to install and look great. Only problem you can see on my tracker trailer these will not work if the wooden step was still in place could not mount..
by: Frank 08/23/2023
Fast delivery, was to be here Friday, got here Wednesday at 1pm. Just installed ,great looking now I can see the trailer when backing, thanks
by: Jimmy 08/08/2023
It's a good product, it's made loading my bass boat so much easier, the only problem I had was someone taking my reflective PVC cap. Other than that they're great.
by: Ron 04/26/2023
The boat trailer guides were exactly what I required , and were well made.there was one problem however one of the PVC pipe caps was cracked and could not be used other wise no problem
by: Craig08/14/2022
The Post Guide-Ons arrived quickly and have been installed.
They have not been water tested yet, but look like they will do the trick. Loading the boat on the trailer has been challenging when you can’t tell where you are side to side.
A couple things to consider: The width of the boat relative to the frame of the trailer make the bottom tubes of the guides just barely long enough. I believe it will work, but another inch of tube would be good for my setup. When installing, if you have a deep socket, you won’t have to switch to an open wrench. Other than that, I am very happy with these!
by: Steve 02/19/2024
Easy install, should work well.
by: Keith Spriggs 06/16/2019
We recieved the product and within 1 hr. It was on the hardest part was tightening the bolts drop the u bolts on in a x pattern match the bolts up with the plate put channel in and tighten
by: David 07/31/2023
Arrived quickly and was packaged well no loose parts. I was able to install myself easily and works as intended. I can now see my trailer when the boat is not on.
by: Edward 06/09/2023
I have put these on every boat I've owned. You can't see the trailer in the water. Very difficult to line up without these. Especially with wind.
by: Mark03/25/2018
More sturdy than I was expecting. Simple install. Etrailer was the only place I could find this item in black pipe. I customized my install to make it align better with the angle of the boat.
by: David07/07/2018
The Post helped a great deal when driving the boat on the trailer. Excellent product for the value.
by: James 07/13/2023
Very easy to install with the hardware provided and secures tight to trailer.
by: John08/12/2023
Doesn’t quite fit trailer I have
by: Steven 06/26/2023
high quality hardware and sturdy guides. Highly recommended.
25
2223
Show More Reviews
See what our Experts say about this CE Smith Boat Trailer Parts
- CE Smith Post Style Guide Steel Post DimensionsThe CE Smith Post-Style Guide-Ons for Boat Trailers - 40" Tall - Black - 1 Pair # CE27626 has steel posts that are 1-1/2 inches by 1-5/8 inches and 18 inches tall with the PVC pipe diameter of 2-3/8 inches.
view full answer... - Will CE Smith Post-Style Guide-Ons Work With G3 Eagle 166 Boat TrailerBased on your 30" measurement yes, the CE Smith Post-Style Guide-Ons # CE27626 will work well with your boat trailer setup. You can place them in front of the fender, behind it, or add a pair in both locations.
view full answer... - How is the 40" Height Measured on CE Smith Post-Style Guide-OnsYou are correct about the measurement. The CE Smith Post-Style Guide-Ons for Boat Trailers # CE27626 are measured from the bottom where it is galvanized to the top of the cap on the PVC pipes. This measurement is the overall height which is 40".
view full answer... - Where To Properly Mount Post-Style Guide-Ons On A Boat TrailerWhen it comes to installing The CE Smith Post-Style Guide-Ons for Boat Trailers # CE27626, ideally you would want to install them as close to the back of the trailer as possible, but like you said it comes down to being a personal preference. The guide-ons are made out of a 16-gauge, pre-galvanized steel that are strong and durable. The black PVC pipes slide over the steel posts so you can see your submerged trailer. The guides have a simple installation on the rear crossmember of the...
view full answer... - Will the PVC Tubes Come Off the CE Smith Post-Style Guide-On If the Boat Is Launched Too FarThe tubes on the CE Smith Post-Style Guide-On part # CE27626 are notched which then allows them to be held in placing by lining these notches up with the tab on the post. This will then keep the tubes attached if you were to launch your trailer too far under water. There is also the option of running a single self tapping screw though the tube and into the post if you do have issues but I do not feel you will have any problem with the above.
view full answer... - Will CE Smith Post-Style Guide-Ons # CE27626 Fit a 2 Inch Wide by 4 Inch Tall Trailer FrameCE Smith Post-Style Guide-Ons # CE27626 were designed to fit trailer frames that are up to but no larger than 3 inches wide and 4-1/4 inches tall. At 2 by 4 inches your frame does meet that description! I have linked a video review for you.
view full answer... - Will the CE Smith Post-Style Guide-Ons for Boat Trailers Fit a 1 Inch x 3 Inch FrameYes, the CE Smith Post-Style Guide-Ons for Boat Trailers part # CE27626 will fit trailer frames up to 3" wide x 4-1/4" tall. The key word here being "up to" so they will indeed work with your 1" wide x 3" tall frame rails. The extra space you have between the sides of the u-bolt and trailer frame will just need to filled with some treated wood. There will be no space on the top and bottom as the u-bolts will clamp down on these parts of the frame.
view full answer... - Do Post-Style Guide Ons Have Any Flex in ThemI think that question is dependent on how much flexing you're talking about. The CE Smith Post-Style Guide-Ons # CE27626 are made out of PVC pipe so there is some flex that can happen, but a heavy boat could easily snap the PVC if you're needing them to flex quite a bit. I would try to find a happy medium in their position. It will be okay for the boat to touch them but I wouldn't put them in a spot where the boat will be putting a lot of pressure on them. You'll just need to play with...
view full answer... - Minimum Distance Between Frame and Upright Post of CE Smith Guide Ons CE27626While the L-bracket of the CE Smith Post-Style Guide-Ons for Boat Trailers # CE27626 does angle away slightly so the exact number will vary it's right at 5 inches as the minimum distance between where it attaches and the lower portion of the upright post.
view full answer... - Are Extension Brackets Available for the CE Smith Post-Style Guide-Ons Part # CE27626The steel posts on the CE Smith Post-Style Guide-Ons part # CE27626 can actually be adjusted so that they sit 13" from the outside of your trailer. They do not make any longer steel posts for this kit but it should not be needed unless you had a really wide boat and short trailer. I am sure they will work just fine for you.
view full answer... - Are CE Smith Post-Style Guide-Ons Meant to Touch the Boat or Only for Visual AidThe CE Smith Post-Style Guide-Ons for Boat Trailers # CE27626 are really for visual aid. The black section you'll see while loading your boat is made out of PVC and while it will be okay with a soft nudge from your boat, if you were to press your boat up against it and use it to guide your boat on the trailer that way it would only be a matter of time before the PVC would break.
view full answer... - What is Max Frame Width the Bracket of CE Smith Post-Style Guide-Ons # CE27626 Will FitThe dimension of the bracket that comes with the # CE27626 that you sent in a picture of is 3 inches.
view full answer...
- Will The CE Smith Post-Style Guide-Ons CE27626 Fit A 1-1/2" x 3" Beam?The CE Smith Post-Style Guide-Ons # CE27626 will work very nicely with the 1-1/2" x 3" beam on your Shorelander Lund Trailer. The included u-bolts and brackets will fit frames up to 3" wide and 4-1/4" tall, so your frame will be well within parameters for fitment.
view full answer... - Longer U-Bolts For CE Smith Post-Style Guide-Ons The CE Smith Extra-Long U-Bolt Kit # CE11416 includes U-bolts that are 1" taller to fit frames up to 5-1/4" tall. The bolts that come with the CE Smith Post-Style Guide-Ons # CE27626 are only able to fit up to a 4-1/4" tall frame.
view full answer... - What Size Frames Will the Mounting Brackets for the CE Smith Post-Style Guide-Ons FitThe brackets and U-Bolts that come with the CE Smith Post-Style Guide-Ons # CE27626 will fit 3" wide frames up to 4-1/4" tall. If you need longer U-Bolts then those are available as part # CE11416 which allow you to fit 3" wide frames up to 5-1/4" tall. The brackets themselves measure 4" wide x 4-5/8" long. Attached is a review/installation video that you can reference.
view full answer...
- Can 40" Height of CE Smith Post-Style Guide-Ons Be IncrreasedThe tubing for the CE Smith Post-Style Guide-Ons for Boat Trailers - 40" Tall # CE27626 is pretty much in a fixed location height-wise (see attached photo for connection style) so if you're needing taller guide-ons I recommend going with the 60" version, part # CE27646, and then trimming the guide-ons as needed. You could try finding a way to add a sort of stopper higher up on the brackets to increase the height of the 40" setup but if that were to fail then the guides could drop while...
view full answer...
- Height of Galvanized Steel Uprights of CE Smith CE27740 Boat Trailer Guide-OnsThe galvanized uprights used on the CE Smith # CE27740 are 18 inches tall. Once the PVC uprights are added, the guide-ons are 40 inches tall. I've linked to a product video for the # CE27740 guide-ons.
view full answer... - How to Choose Correct Height for Post-Style Boat Trailer Guide-OnsThe best way to determine the height needed is to measure from the top of your trailer frame to the top of the sides of your boat. If the 40" Tall Guide-Ons # CE27626 sit right at or slightly above the sides of your boat then the shorter will work for you. Otherwise the 60" Tall Guide-Ons # CE27646 will be the better option. These posts are made of PVC pipe so in reality you can just get the 60" tall kit and then cut them to the desired height once you get your boat to the water. Attached...
view full answer...
- How Far Does CE Smith Post-Style Guide-On Protrude From Trailer FrameThe CE Smith Post-Style Guide-Ons, part # CE27626 can be adjusted to a length of 13-inches from the trailer frame. These guide-ons can fit trailer frames up to 3-inches wide and 4-1/4 inches tall. If your trailer frame measures between 3-inches and 5-1/4 inches wide you can use part # CE11416 which is an extra-long U-bolt kit for the guide-ons
view full answer... - Boat Guide Ons that Extend Out Longer than 13 inches from Trailer FrameWe have the CE Smith Post-Style Guide-Ons for Boat Trailers # CE27637 that extends out 19 inches. I attached a review video for this kit for you to check out as well.
view full answer... - What Color Does 40" Tall CE Smith Post-Style Guide-Ons with LED Lights Come InSo there isn't an option for black guide-ons with LED lights; the only color for the guide-ons with LED lights is White, which is the following part number: - CE Smith Post-Style Guide-Ons with LED Lights for Boat Trailers - 40" Tall # CE27740 If you really wanted the guide-ons in Black and were okay with not having the LEDs on top, you can get those with the CE Smith Post-Style Guide-Ons for Boat Trailers - 40" Tall # CE27626. Both guide-ons do come with U-bolts that mount to trailer...
view full answer... - How to Upgrade 40" CE Smith Boat Guide-Ons to 60" Tall Guide-OnsThe padded covers we have for the 40" Post-Style Guide-Ons # CE27626 you purchased can be found as part # CE27902 for 36" tall pads. If you want to upgrade to 60" tall guide-ons you can do so with part # CE11354 which comes in a quantity of 1 so you'll need 2 for your setup. For these you need the 48" tall pads # CE27903 for 48" instead.
view full answer... - Availability of Guide-Ons For Sweetwater Pontoon Boat TrailerIt sounds like you're looking for guide-ons like the CE Smith Post-Style Guide-Ons for Boat Trailers # CE27620. These fit trailer frames up to 3" wide and 4-1/4" tall. The overall height with the white PVC pipes on the posts is 40". They are also available in black # CE27626. The other option for guides on the outside of the trailer is the roller style like the # CE27610. Since it is a pontoon boat you may also be interested in the CE Smith Roller Style Guide-Ons for Pontoon Boat Trailers...
view full answer... - CE Smith Post-Style 40" Guide-Ons Comparison Black and WhiteThe only difference in the CE Smith Post-Style Guide-Ons for Boat Trailers # CE27626 and # CE27620 is the color of the PVC posts. The # CE27620 uses white PVC posts while the # CE27626 has black PVC posts. Both sets of posts are 40" tall, have a pipe diameter of 2-3/8", adjust out up to 13" and attach to the frames of trailers up to 3" wide x 4-1/4" tall. You can use the CE Smith Extra-Long U-Bolt Kit # CE11416 for trailer frames up to 3" wide x 5-1/4" tall. And the LED Light Kit #...
view full answer...
