Ball Mounts > Adjustable Ball Mount > Single Ball Mount > Rise - 8-3/8 Inch, Drop - 9-5/8 Inch > Class III, 6000 lbs GTW > Fits 2 Inch Hitch > Hollow Shank > Extra Long > Steel > Hidden Hitch

Ball Mount Adjustable Fits 2" Trailer Hitch Receiver, 6,000 lbs

Rating: rating rating rating rating rating
29 reviews

Code: 80412

Retail:$136.47

Price:$94.95

Shipping Weight: 15 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Pin and Clip:
Quantity:

Hidden Hitch Adjustable Ball Mount Review - Video

Hidden Hitch Ball Mounts - 80412

Perfect for towing trailers of varying coupler heights. Adjustable to 12 different ball height positions. Shank can be used in the up or down position, as required for high or low ground clearance.

Features:

Maximum rise: 8.375"
Maximum drop: 9.625"
Shank Dimensions: 2" x 2"
Capacity: 6,000 lbs GTW and 600 lbs TW
Conveniently adjusts using included 5/8" pins
12" From center of hitch pin hole to center of ball hole

7-1/2" from the center of hitch pin hole to the adjustable holes

Ball platform thickness: 3/4"
1-1/2" From the center of 1 hole on the upright bar to the center of another hole
1" Diameter shank required for ball
Limited lifetime warranty

Class III (2" x 2") ball mount accessories

Video of Ball Mount Adjustable Fits 2" Trailer Hitch Receiver, 6,000 lbs

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

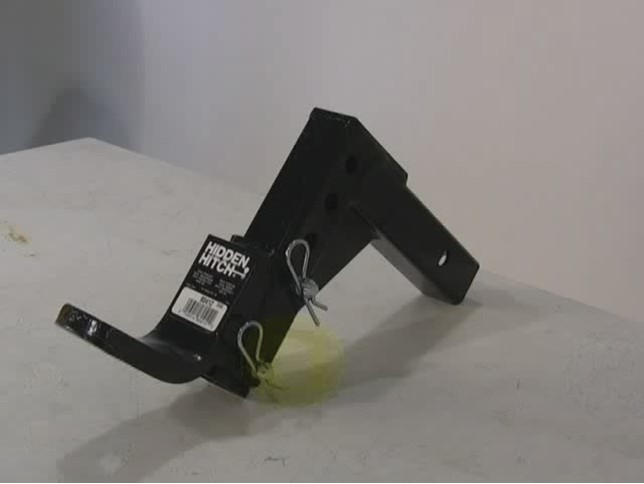

Video review of hidden hitch ball mount 80412

Hidden Hitch Adjustable Ball Mount Review

Video Transcript for Hidden Hitch Adjustable Ball Mount Review

Today we are going to show you part number 80412 from Hidden Hitch. What we have here is a ball mount that is adjustable for a 2 inch trailer hitch and is also rated for 6000 pounds. A couple specs on this is it has a maximum rise of 8.3 inches and the maximum of 9.6 inches. Also the tongue weight can handle 600 pounds. It is really to adjust up and down. We will show you that in just a second. And also the ball measure 12 inches from the center of the hitch pin hole to the center of the ball hole on the end. The platform itself is about 3/4 of an inch thick and requires a hitch ball that uses a 1 inch diameter shank. First when we install it it will be very simple. You can either install it in the drop position like this or if your trailer sits higher and your truck sits lower you can put it in the rise position. So if you decide to use it that way you can install the other half in whichever position you would use it. Down there or increments all the way to the top. You can also use it in the inverted position also like this. Again you can use it either way. There you have it for part number 80412 from Hidden Hitch, the adjustable ball mount for 2 inch receivers.
