Ball Mounts > Adjustable Ball Mount > Two Ball Mount > Rise - 7 Inch, Drop - 6 Inch > Class IV, 10000 lbs GTW > Fits 2 Inch Hitch > Solid Shank, Anti-Rattle Shank > Standard > Aluminum > Diversi-Tech


Solid-Tow Adjustable, Aluminum Ball Mount - 2 Chrome Balls - 6" Drop, 7" Rise - 10K

Diversi-Tech Ball Mounts

ratingratingratingratingrating (4 reviews)


Code:   DTSTBM6600

Retail:$249.95

Price:$204.95


Shipping Special

Shipping Weight: 18 pounds

Quantity:






Diversi-Tech Ball Mounts - DTSTBM6600

Switch easily between trailers with this adjustable, aluminum ball mount. Go from a 6" drop to a 7" rise in 1" steps, and swap 2" and 2-5/16" chrome-plated balls. Solid-Tow system prevents rattling. Tow up to 10,000 lbs.

Features:

  • Adjustable ball mount makes it easy for you to haul different trailers
    • Ball height adjusts in increments of 1" so that you can easily switch between trailers with different tongue heights
    • Reversible ball platform lets you swap between 2 different-size balls
  • Self-tensioning, anti-rattle Solid-Tow system tightens ball mount inside receiver tube and secures ball platform to ball mount
    • Stops rattle and clunk
    • Uses internal, stainless steel bolts for long life
    • Adjusts with Allen wrench (included)
  • Ball mount is machined from a solid piece of aircraft-grade billet aluminum
    • Solid aluminum produces a lightweight yet strong ball mount
      • Avoids welds, which can cause weak points that might break
    • Polished finish creates a high-quality appearance
  • 2 Chrome-plated steel hitch balls included
  • Made in the USA


Specs:

  • Fits: 2" x 2" trailer hitch receivers
  • Ball diameters: 2" and 2-5/16"
  • Towing capacity: 10,000 lbs
  • Tongue weight capacity: 1,500 lbs
  • Maximum rise: 7" from the top of the hitch receiver opening
  • Maximum drop: 6" from the top of the hitch receiver opening
    • Height adjustment: 1" increments
  • Distance from center of hitch pin hole to back of upright bar: 4-1/4"
  • Distance from center of hitch pin hole to center of ball: 8-1/2"
  • 1-Year limited warranty


Ball mount shank showing pin in lowered positionBall mount shank showing pin in raised position

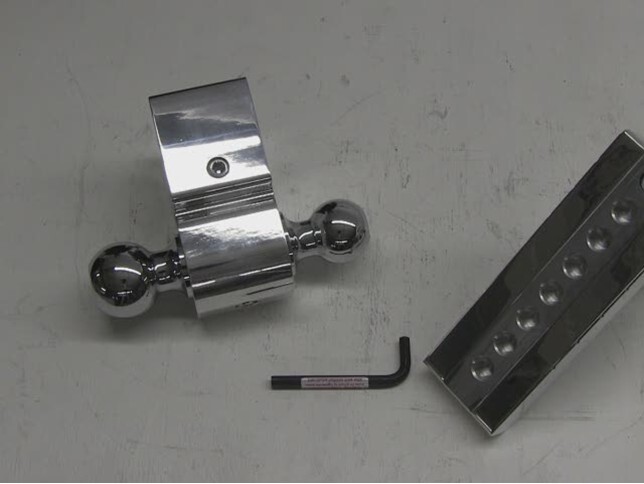

This Diversi-Tech Solid Tow adjustable ball mount provides solid, rattle-free towing performance. A stainless steel pin, operated by the included hex tool, extends out from the shank and tightens the ball mount in your receiver. The balls and the adjustable ball platform tighten also, eliminating movement. You'll enjoy the quiet, rattle-free towing experience.



Ball mount shank showing platform-to-leg bolt

A bolt in the side of the ball platform tightens it to the mount. When you loosen the bolt with the hex tool, you can slide the platform up or down to change the ball height. Or, you can slide the platform off and reverse it to use the other ball.



Ball mount shank showing ball-to-platform bolt

A bolt in the end of the platform tightens the ball set in place. When the bolt is removed, you can take out the ball set. Then you can easily replace the balls.



DT-STBM6600 Diversi-Tech Solid-Tow Series 6" Drop, 7" Rise Adjustable Hitch - Solid Billet Aluminum





Video of Solid-Tow Adjustable, Aluminum Ball Mount - 2 Chrome Balls - 6" Drop, 7" Rise - 10K


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Demo Diversi Tech Ball Mount DTSTBM6600
Diversi-Tech Adjustable Solid-Tow Aluminum Ball Mount Review

Video Transcript for Diversi-Tech Adjustable Solid-Tow Aluminum Ball Mount Review

This is Diversi-Tech Adjustable Solid Aluminum Ball Mount, part number DTSTBM6600. Like other Diversi-Tech ball mounts, it is made from a single piece of billet aluminum. It has a gross trailer weight capacity of 10,000 lbs and a tongue weight capacity up to 1,500 lbs. It can be used in either the rise or orientation. In the rise position, it can go as high as 7 inches, or, in the position, it will as much as 6 inches. It can be adjusted in 1 inch increments. The ball platform has 2 fixed balls on it. A more common 2 inch ball and a larger 2-5/16 inch ball. We will used the included Allen key to assemble our ball mount. On the side of the ball platform is a locking screw. We will back this screw off, so we can remove the front screw. When we back off the front screw, we will create enough clearance that we can slide our ball mount on top of our shank. We will slide it over our adjustable shank and begin to tighten this front Allen screw down again. You will know it is properly seated in one of the adjustment holes, when you are able to get the screw flush with the ball mount itself. We will re-install the set screw on the side, to lock everything into place. On top of the ball mount, is Diversi-Tech tensioning system. There is a pin that will pop out of our ball mount and remove any slack between our ball mount and our receiver hitch. Again we will use the included Allen key to adjust the tension. And that is it for the Diversi-Tech Adjustable Aluminum Ball Mount, part number DTSTBM6600.


Customer Reviews

Solid-Tow Adjustable, Aluminum Ball Mount - 2 Chrome Balls - 6 - DTSTBM6600

Average Customer Rating:  ratingratingratingratingrating5.0 out of 5 stars   (4 Customer Reviews)




- DTSTBM6600

ratingratingratingratingrating by: Ed C.06/26/2013

Is this review helpful?


Got the order right on time. I really like the anti-rattle feature. The more expensive models come with a key for adjustment. This one uses a specialty Allen wrench. I just hope I don't lose it. Thanks eTrailer Ed C. Escondido, CA86193



- DTSTBM6600

ratingratingratingratingrating by: Darryl D.12/26/2012

Is this review helpful?


This is an extremely well made and attractive product. 61902



- DTSTBM6600

ratingratingratingratingrating by: Michael Rotter07/30/2012

Is this review helpful?


The hitch is well made, easy to use, and it looks good too49860



- DTSTBM6600

ratingratingratingratingrating by: Paul12/16/2010

Is this review helpful?


Solid Product The DT ball mount is well built and easy to use. The adjustability is great. The anti-rattle is a nice feature. It limits the wear and tear on the shank.4257



Ask the Experts about this Diversi-Tech Ball Mounts
Expert Answers about Solid-Tow Adjustable, Aluminum Ball Mount - 2 Chrome Balls - 6" Drop, 7" Rise - 10K - DTSTBM6600                                        Do you have a question about this Ball Mounts?


  • Adjustable Ball Mount with 1-7/8 and 2 inch Ball
  • The Diversi-Tech Adjustable Solid-Tow Aluminum Ball Mount, due to the high capacity is only offered with the 2 inch and 2-5/16 inch balls. We do offer some alternatives, however. The Curt Curt Multi-Ball Adjustable Ball Mount, part # D900 offers either a rise or drop of 5-3/4 inches. If you prefer the all-aluminum construction, part # AM3414 which offers a maximum rise of 11 inches or drop of 10 inches. If you do not need that much rise or drop, part # AM3411 offers a maximum rise of 6-1/
    view full answer...

  • Can the Diversi-Tech Ball Mount # DTSTBM6600 Be Used in the Rise Position
  • I spoke with my contact at Diversi-Tech and she informed me that you can absolutely use this Diversi-Tech Ball Mount # DTSTBM6600 in the rise position. I asked her about how you saw something in the paperwork that said not invert the ball mount and she was unsure what I was referring to, but she assured me that you can use this # DTSTBM6600 in the rise position. I have pulled a couple of these ball mounts from our warehouse and I will agree, these are much too pretty to scratch up.
