Ball Mounts > Adjustable Ball Mount > Two Ball Mount, Locking Ball Mount > Rise - 7 Inch, Drop - 6 Inch > Class V, 10000 lbs GTW > Fits 2-1/2 Inch Hitch > Solid Shank > Standard > Aluminum > Diversi-Tech


Self-Locking, Adjustable, Aluminum Ball Mount - 2 Chrome Balls - 6" Drop, 7" Rise - 10K

Diversi-Tech Ball Mounts

ratingratingratingratingrating (17 reviews)


Code:   DTALBM6625

Retail:$349.95

Price:$264.95


Shipping Special

Shipping Weight: 19 pounds

Quantity:






Diversi-Tech Ball Mounts - DTALBM6625

Easily swap trailers with this adjustable, aluminum ball mount with 2-1/2" shank. Go from a 6" drop to a 7" rise in 1" steps, and swap 2" and 2-5/16" balls. Self-locking system stops theft. Tow up to 10,000 lbs.

Features:

  • Adjustable ball mount makes it easy for you to haul different trailers
    • Ball height adjusts in increments of 1" so that you can easily switch between trailers with different tongue heights
    • Reversible ball platform lets you swap between 2 different-size balls
  • 2-1/2" Shank fits 2-1/2" receivers
  • Convenient, self-locking system locks ball mount to receiver tube and ball platform to ball mount
    • Built-in locks can't get lost like other kinds of hitch locks
    • Lock seals are double-sealed to keep out water
      • Resists corrosion
      • Requires no maintenance
    • Uses pick-resistant, tube-style keys (4 included)
  • Ball mount is machined from a solid piece of aircraft-grade billet aluminum
    • Solid aluminum produces a lightweight yet strong ball mount
      • Avoids welds, which can cause weak points that might break
    • Polished finish creates a high-quality appearance
  • 2 Chrome-plated steel hitch balls included
  • Made in the USA


Specs:

  • Fits: 2-1/2" x 2-1/2" trailer hitch receivers
  • Ball diameters: 2" and 2-5/16"
  • Towing capacity: 10,000 lbs
    • 2" Ball - 7,500 lbs
    • 2-5/16" Ball - 10,000 lbs
  • Tongue weight capacity: 1,500 lbs
  • Maximum rise: 7" from the top of the hitch receiver opening
  • Maximum drop: 6" from the top of the hitch receiver opening
    • Height adjustment: 1" increments
  • Distance from center of hitch pin hole to back of upright bar: 4-1/4"
  • Distance from center of hitch pin hole to center of ball: 8-1/2"
  • 1-Year limited warranty


cut away view of DT locking mechanism in action

This cutaway view of the shank shows the locking mechanism in action. The locking pins extend out from the shank when the key is turned, locking the ball mount into the hitch.



Key in lock that locks ball platform to leg of ball mount

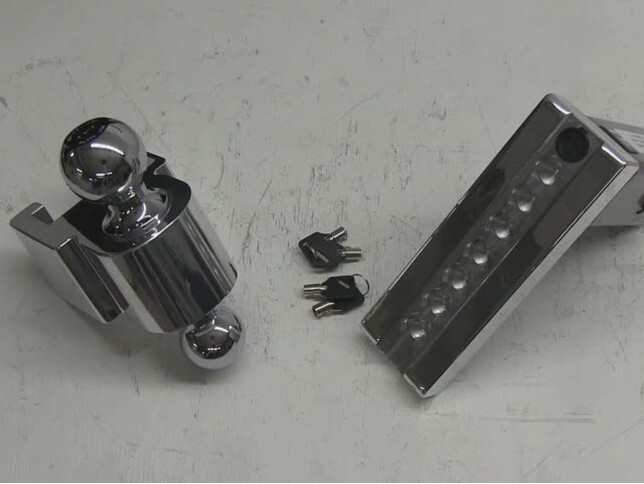

The ball platform locks to the ball mount with an internal lock. When you unlock the platform you can slide it up or down to adjust the ball height. You can also slide the platform off, reverse it, and slide it back on to change ball sizes.



DT-ALBM6625 Diversi-Tech Self-Locking Series 6" Drop, 7" Rise Adjustable Hitch - Solid Billet Aluminum





Video of Self-Locking, Adjustable, Aluminum Ball Mount - 2 Chrome Balls - 6" Drop, 7" Rise - 10K


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

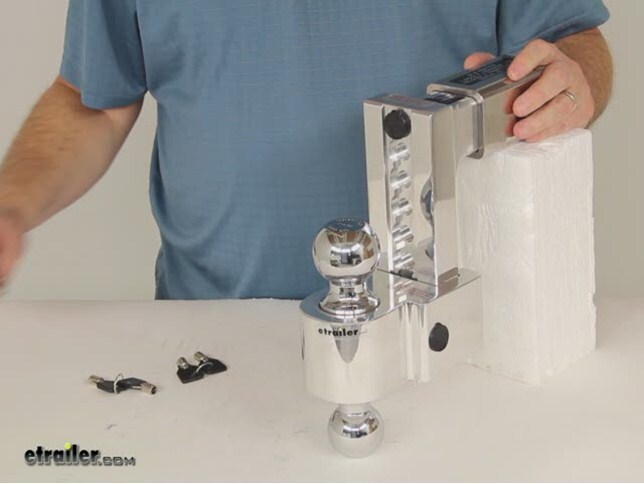

Video Demo Diversi Tech Ball Mount DTALBM6625
Diversi-Tech Self-Locking Adjustable Aluminum Ball Mount Review
Video Demo Diversi Tech Ball Mounts DTALBM6625
Diversi-Tech Ball Mounts DTALBM6625 Review

Video Transcript for Diversi-Tech Self-Locking Adjustable Aluminum Ball Mount Review

This is Diversi-Tech Self-Locking Adjustable Aluminum Ball Mount, part number DTALBM6625. This ball mount, like other Diversi-Tech ball mounts is made from aircraft grade billet aluminum, it is machined from a single piece of aluminum. It is designed for use with 2-1/2 inch by 2-1/2 inch trailer receiver hitches and is rated for up to 10,000 lbs gross trailer weight and 1,500 lbs tongue weight. It can be used in the rise position for up to 7 inches of rise, or in the position for up to 6 inches of and can be adjusted in 1 inch increments. The ball platform has 2 fixed balls, a 2-5/16 ball as well as a more common 2 inch ball. To mount our ball platform to our shank, we need to retract this pin. To do so, we will use the lock on the side. When we turn the lock the pin is retracted so we can mount it to our shank. Slip the platform over the shank and when you lock the key the pin will into place. You will not be able to remove the key unless the pin is seated all the way into the shank. This ball mount also features Diversi-Tech self-locking hitch pin. You will not need to use a separate pin and clip or a hitch lock with this ball mount. The pin is integrated into the ball mount. To install the ball mount, turn the lock and the pins will retract. Once you have it mounted properly in your hitch, turn the lock back and the pins will extend, securing the ball mount inside your hitch. This is a great security feature as there is no hitch pin extending outside of the hitch, for potential thieves to cut and it is also more convenient because you will not need to remember a separate pin and clip or locking hitch pin. And that does it for Diversi-Tech Self-Locking Adjustable Ball Mount, part number DTALBM6625.


Customer Reviews

Self-Locking, Adjustable, Aluminum Ball Mount - 2 Chrome Balls - 6 - DTALBM6625

Average Customer Rating:  ratingratingratingratingrating4.7 out of 5 stars   (17 Customer Reviews)




- DTALBM6625

ratingratingratingratingrating by: Ed S.05/23/2012

Is this review helpful?


Great quality product, no problems ordering. 41434



- DTALBM6625

ratingratingratingratingrating by: KenD03/31/2014

Is this review helpful?


Every picture tells a story. The 2 most popular hitch size. Internal lock feature meaning anti thief proof. No key, no takey. Solid chrome through out, adjustable. That's why I spent the money and purchased, it was well worth it. Hassel free and the finish well add more character to your vehicle. You always get what you pay for. but in this case much more. If you have a Harley make sure you take the right key as they appear the same.122964



- DTALBM6625

ratingratingratingratingrating by: Nick B.01/13/2014

Is this review helpful?


Amazing product! I have had one for my f150 and just purchased the 2.5 receiver for my f350. Etrailer was very diligent in shipping it out to me both times. Would definitely recommend using etrailer and this product. 112633



- DTALBM6625

ratingratingratingratingrating by: Mark T08/22/2013

Is this review helpful?


I shopped around and did my homework to find which hitch would best suit my needs for towing behind a 2013 Ram 2500 diesel. I chose this hitch then found the best price on Etrailer. Easy to use website. Delivered within a week. Emails updating me with the tracking info. I would recommend. The hitch pins were off by 1/8in which made it really tight to put into the receiver. Called the manufacturer and they handled the issue immediately. 96370



- DTALBM6625

ratingratingratingratingrating by: Tom P.02/15/2011

Is this review helpful?


So far the hitch is great. Etrailer is easy to work with to.7179



- DTALBM6625

ratingratingratingratingrating by: Todd B12/20/2010

Is this review helpful?


Trailer Hitch Work well in the new 2011 F-350 hitch, Hopefully the locks won't freeze up, would like to have a option without the locks.4358



- DTALBM6625

ratingratingratingratingrating by: Adam Morton02/14/2009

Is this review helpful?


Awsome Love it. It's so nice not having to use a pin and having the right drop for any trailer I need to hook onto. Top quality1574



- DTALBM6625

ratingratingratingratingrating by: Artie Sutherland02/16/2011

Is this review helpful?


Excellent product, excellent service, excellent shipping....... excellent.7254



- DTALBM6625

ratingratingratingratingrating by: Tom04/07/2014

Is this review helpful?


Love this hitch it is my second one. the first one was for a 2" hitch but i bought a bigger truck with a class V hitch so i had to buy a new one. highly recommend it!124118



- DTALBM6625

ratingratingratingratingrating by: S. Riddle03/07/2014

Is this review helpful?


Looks and feels solid. Very nice design 119879



- DTALBM6625

ratingratingratingratingrating by: Sean W02/09/2014

Is this review helpful?


Great hitch. No need to have multiple different size hitches.116124



- DTALBM6625

ratingratingratingratingrating by: Rich12/31/2013

Is this review helpful?


Only had it one day and only used it 1 time. Seems nice and works fine. The cost of $265 is pretty high, but it is very heavy weight!!111552



- DTALBM6625

ratingratingratingratingrating by: Bill V.E.09/10/2013

Is this review helpful?


rattles when in receiver. expected better fit for a product of this cost. will have to find a way to stop rattle or it will drive me nuts.99244


Comments

Some rattle is normal, though nonetheless , annoying. Remember this hitch is essentially a 2 inch hitch with an adapter to fit inside a 2-12 inch hitch. Adapters add to rattle. Add in the fact that it is adjustable, and you get another rattle point. Anti-rattle devices can do quite a bit to keep things quiet in the hitch. It will also quiet down some when you hook up a trailer and it has a load on it rather than bouncing around in the hitch.

Patrick B - 9/11/2013

2059

- DTALBM6625

ratingratingratingratingrating by: Fabio k04/30/2013

Is this review helpful?


Great hitch, ready to flex 78523



- DTALBM6625

ratingratingratingratingrating by: chris02/08/2013

Is this review helpful?


Looks good and fits good in the bigger hitch receiver, i would prefer it to be a tighter fit like the smaller hitches but it works.65529



- DTALBM6625

ratingratingratingratingrating by: Cody01/11/2013

Is this review helpful?


Everything looks and works great. Very good service. 62692



- DTALBM6625

ratingratingratingratingrating by: Ron H.03/10/2012

Is this review helpful?


Great product, great price, great service...what more can you say.33495



Ask the Experts about this Diversi-Tech Ball Mounts
Expert Answers about Self-Locking, Adjustable, Aluminum Ball Mount - 2 Chrome Balls - 6" Drop, 7" Rise - 10K - DTALBM6625                                        Do you have a question about this Ball Mounts?


  • Adjustable Ball Mount Recommendation for a Ford F-350 Pickup
  • The adjustable ball mount you will need will depend on the height of the top of the hitch opening on your F-350 with 2-1/2 inch receiver hitch. We have an article that explains how to measure to select the correct ball mount, see link. For instance, on my 2004 Dodge Ram 2500 the top of the receiver opening is 20 inches from the ground when parked on a level surface. I use an adjustable drop receiver at 5 inches of drop, top of receiver opening to top of ball mount, for towing a equipment trai
    view full answer...

  • How Well Do the Locking Mechanisms Stand Up in the Diversi-Tech Aluminum Ball Mounts
  • We have not had any complaints regarding the Self-Locking, Aluminum Ball Mount, # DTALBM6625, locking up or freezing. Sometimes you may need to lift up on or jostle the ball mount to take pressure off of it so it is easier to turn the key. Diversi-Tech recommends using air tool oil in the locking mechanisms to keep it in good working condition. You can check out the customer reviews on the product page. I have also included a link to a video review for you.
    view full answer...

  • Is a 1-7/8 Inch Hitch Ball Available for the Diversi-Tech Adjustable Ball Mount # DTALBM6625
  • I do have a solution that will allow you to use a 1-7/8 inch ball mount with the Diversi-Tech Adjustable Aluminum ball mount, but I spoke with my contact at Diversi-Tech and she told me that they do not offer a separate ball mount platform with a 1-7/8 inch ball mount. Instead, take a look at the Diversi-Tech Adjustable, Aluminum Ball Mount for 2-1/2 inch Receivers, # DTALBM6625-3S. This adjustable ball mount allows you to use the same ball mount platform for a 1-7/8 inch, 2 inch and a 2-5/1
    view full answer...

  • Adjustable Aluminum Ball Mount That Reduces Rattle In 2-1/2 Inch Receiver
  • I spoke with my contact at Diversi-Tech about the adjustable ball-mounts that fit a 2-1/2 inch receiver opening. All of the 2-1/2 inch adjustable ball-mounts we carry have an adapter attached. I recommend part # DTSTBM6625. This ball mount has a 6 inch drop and 7 inch rise with increments of 1 inch for adjusting. It has an adjustable pin in the top of the shank that protrudes through the adapter that prevents rattling. The attached balls measure 2 inches and 2-5/16 inches. I have attached a phot
    view full answer...

  • Can Diversi-Tech Adjustable Ball Mount # DTALBM6625 be Used Without Outer Sleeve in 2-Inch Hitch
  • The steel sleeve around the shank of the USA-made Diversi-Tech Adjustable Ball Mount # DTALBM6625 is not a removable component, like an adapter. It is part of the integrated locking mechanism that secures the shank in your receiver tube. This ball mount is designed for use only in 2-1/2-inch hitch receivers. It cannot be used in a 2-inch hitch. The linked video will help illustrate the operation of the lock mechanism. We do offer a comparable product from Diversi-Tech designed for 2-inch h
    view full answer...
