Ball Mounts > Adjustable Ball Mount > Two Ball Mount, Locking Ball Mount > Drop - 6 Inch, Rise - 7 Inch > 10000 lbs GTW > Fits 2 Inch Hitch > Solid Shank > Standard > Aluminum > Diversi-Tech


Self-Locking, Adjustable, Aluminum Ball Mount - 2 Stainless Balls - 6" Drop, 7" Rise - 10K

Diversi-Tech Ball Mounts

ratingratingratingratingrating (12 reviews)


Code:   DTALBM6600-2S

Retail:$399.95

Price:$319.95


Shipping Special

Shipping Weight: 18 pounds

Quantity:






Diversi-Tech Ball Mounts - DTALBM6600-2S

Switch easily between trailers with this adjustable, aluminum ball mount. Go from a 6" drop to a 7" rise in 1" steps, and swap 2" and 2-5/16" stainless steel balls. Self-locking system stops theft. Tow 10,000 lbs.

Features:

  • Adjustable ball mount makes it easy for you to haul different trailers
    • Ball height adjusts in increments of 1" so that you can easily switch between trailers with different tongue heights
    • Reversible ball platform lets you swap between 2 different-size balls
  • Convenient, self-locking system locks ball mount to receiver tube and ball platform to ball mount
    • Built-in locks can't get lost like other kinds of hitch locks
    • Lock seals are double-sealed to keep out water
      • Resists corrosion
      • Requires no maintenance
    • Uses pick-resistant, tube-style keys (4 included)
  • Ball mount is machined from a solid piece of aircraft-grade billet aluminum
    • Solid aluminum produces a lightweight yet strong ball mount
      • Avoids welds, which can cause weak points that might break
    • Polished finish creates a high-quality appearance
  • (2) 303 stainless steel hitch balls included
    • 303 Stainless steel is great for marine applications and highly resistant to corrosion
  • Made in the USA


Specs:

  • Fits: 2" x 2" trailer hitch receivers
  • Ball diameters: 2" and 2-5/16"
  • Towing capacity:
    • 2" Ball: 7,500 lbs
    • 2-5/16" Ball: 10,000 lbs
  • Tongue weight capacity: 1,500 lbs
  • Maximum rise: 7" from the top of the hitch receiver opening
  • Maximum drop: 6" from the top of the hitch receiver opening
    • Height adjustment: 1" increments
  • Distance from center of hitch pin hole to back of upright bar: 4-1/4"
  • Distance from center of hitch pin hole to center of ball: 8-1/2"
  • 1-Year limited warranty


cut away view of DT locking mechanism in action

This cutaway view of the shank shows the locking mechanism in action. The locking pins extend out from the shank when the key is turned, locking the ball mount into the hitch.



Key in lock that locks ball platform to leg of ball mount

The ball platform locks to the ball mount with an internal lock. When you unlock the platform you can slide it up or down to adjust the ball height. You can also slide the platform off, reverse it, and slide it back on to change ball sizes.



DT-ALBM6600-2S Diversi-Tech Self-Locking Series 6" Drop, 7" Rise Adjustable Hitch - Solid Billet Aluminum







Video of Self-Locking, Adjustable, Aluminum Ball Mount - 2 Stainless Balls - 6" Drop, 7" Rise - 10K


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

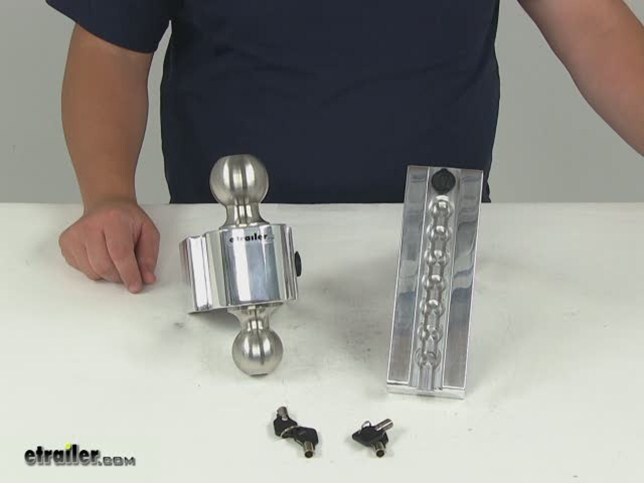

Video Demo Diversi Tech Ball Mounts DTALBM6600 2S
Diversi-Tech Ball Mounts DTALBM6600-2S Review

Video Transcript for Diversi-Tech Ball Mounts DTALBM6600-2S Review

Today, were going to review part number DTALBM6600-2S. This is the Diversi-Tech Self-Locking Adjustable Aluminum Ball Mount. This adjustable ball mount will make it easier for you to haul different trailers. Right here, you can see the ball height would be adjustable in increments of 1-inch so that you can easily switch between trailers with different tongue heights. Over here, the reversible ball platform will let you swap between the 2 different size hitch balls. In this case, they got a 2-inch hitch ball, stainless steel hitch ball.

In this end if you flip it over, a 2-5/16 size stainless steel hitch ball in the other side. It does use a convenient self-locking system which will lock the ball mount right here to your receiver tube and then where you can lock the ball platform to the ball mount.These built-in locks right here cant get lost like other kinds of hitch locks. They do have these rubber seals that are double-sealed to help keep out any water. This will help resist corrosion and it requires no maintenance. It does use these pick-resistant, tube-style keys.

There are 2 sets, theres 4 total included. Now, the ball mount is machined from a solid piece of aircraft grade billet aluminum. The solid aluminum produces a lightweight yet very strong ball mount and as you can see there are no welds on it; the welds which the weight will cause weak points that could break.It does have a nice polished finish which help create a high-quality appearance and again on the ball platform here, it has 2. The 303 stainless steel hitch balls are included and the 303 stainless steel is great for marine applications because its highly resistant to corrosion. Now on the top of the ball mount, you can see theres this spring loaded like ball bearings right up here and this is a built-in anti-rattle system which will keep your ball mount quiet and it lessens the wear.

It will help stop movement of the ball mount when theres no trailer attached. This part is made in the USA. It is designed to fit on 2-inch trailer hitch receivers and again the ball diameters are 2-inch and 2-5/16. The towing capacity on this is 10,000 pounds. The tongue weight capacity is 1,500 pounds.It does come with a 1-year limited warranty and basically I just want to show you how this would work.

If you would take your ball mount and it can be used in either the rise or the drop position. So if you just open your seal here where the lock is located, then you can take one of your keys, go ahead and insert it in and youll notice as I turn the key, youll see these pins go inside the ball mount itself. Now, that will allow you to slide this into the hitch receiver opening, line that pin up with the hitch pin hole in your receiver and then just turn the key and these pins will extend out into your hitch receiver and lock this ball mount into place. As I mentioned, these spring loaded balls up here will also help keep it from rattling.So once thats locked into place, you can go ahead and push your seal back in. Then what you want to do, then you can attach it and decide which ball size youre going to use, 2-inch or 2-5/16. In this case, well use the 2-5/16 and the same way, it has a pin. If you open this, go ahead and put the key in. Turn this and youll see the pin retract in to the ball mount and then you just basically would install it. If youre going to do a drop, you install it to whatever height you want. You got 1-inch increments here. Im going to put it on the very bottom one just so we can get some measurements for you. Lets go Trying to get that to line up correctly. There we go. Pull the key out. Go ahead and push that cover back in.So I have it right now. The ball mount or the ball platform is locked to the ball mount at the lowest position. So basically, a few measurements what Im going to give you in the maximum drop position like it is right now. If you measure from the top of the hitch receiver opening to the top of the ball platform, the maximum drop as you can see is going to be 6 inches. Now if you do decide to use it in the rise position, which would be this way. Its in the maximum rise position. The measurement from the top of the ball platform to the hot top of the hitch receiver opening is going to be 7 inches.So those are your maximums and again as we mentioned, you can move this to whatever in 1-inch increments whatever height you would need for your trailer. Now, the distance from the center of the hitch pin hole to the back of this upright bar is going to measure 4.25 inches and then the measurement from the center of the hitch pin hole to the center of hitch ball itself is 8.5 inches. That should do it for the review of part number DTALBM6600-2S, the Diversi-Tech Self-Locking Adjustable Aluminum Ball Mount. .




Customer Reviews

Self-Locking, Adjustable, Aluminum Ball Mount - 2 Stainless Balls - 6" Drop, 7" Rise - 10K - DTALBM6600-2S

Average Customer Rating:  ratingratingratingratingrating4.5 out of 5 stars   (12 Customer Reviews)

Switch easily between trailers with this adjustable, aluminum ball mount. Go from a 6" drop to a 7" rise in 1" steps, and swap 2" and 2-5/16" stainless steel balls. Self-locking system stops theft. Tow 10,000 lbs.


- DTALBM6600-2S

ratingratingratingratingrating by: Chuck B.10/10/2013


I have owned 2 of these hitches. First one lost when I had a hitch pin fall out of a 2 1/2" adapter...fortunately not towing! The hitch is easy to adjust, very durable, looks nice and is well engineered for towing. Finer points that need attention: 1. rubber caps over cylinder locks have a tether to prevent loss that never allows the rubber cap to fit back in place...ever. It's a design flaw. New out the box, the cap won't fit back into place after you remove it the first time. Expect to have to always have to secure the rubber caps or just cut it off. 2. The anti-rattle spring loaded ball bearings are not effective. I have used this hitch in over a dozen vehicles and none have had hitch openings tight enough to allow the anti-rattle bearings to be effective or make contact. The hitch will rattle, always, unless you use some metal shims or tape with duct tape around the draw bar. 3. If you try to adapt the 2" draw bar to a 2 1/2" hitch, it puts the hitch about 3-4" farther back away from the truck. This could be a problem from the standpoint of hitting your shins on the bar, to putting your load farther back, to decreasing your rear clearance. 4. Spending this much money on a hitch, I typically go through 2-4 vehicles with the same hitch and they all have different size hitches. If you buy the 2 1/2" size draw bar with the cylinder lock, it's only good for a 2 1/2" hitch. Not good if you try to back convert to a 2" hitch or use it in one of your buddy's 2" receivers. If you buy the 2" draw bar, you can purchase the $50 adapter to use in either a 2" or 2 1/2" hitch size. 103332






- DTALBM6600-2S

ratingratingratingratingrating by: Nick09/16/2013


The aluminum and stainless design is superior to all other hitches this style. I have another aluminum hitch with steel locking pins and if you aren't careful they will seize together. The design with the pins being self lubricated and enclosed means nothing can seize together. The look and functionality is superior to all other drop hitch/ball's. 100119






- DTALBM6600-2S

ratingratingratingratingrating by: B.L. S03/07/2014


great product,extra flash! Disappointed I must have received older inventory, my model isn't equipped with the anti-rattle feature.. 119818





Comments

The inventory you received is current. This series of ballmounts recently underwent a bit of a re-design and the anti-rattle detents have been removed. We did not know this change was happening until we received updated shipments.

Patrick B - 03/10/2014

3053



- DTALBM7025-2S

ratingratingratingratingrating by: Nate05/08/2013

Review from a similar Diversi-Tech Self-Locking Adjustable Ball Mount with Stainless Balls


Application: 2012 F250 Powerstroke. Overall crafsmanship is awesome. Makes me proud that it was MADE IN THE USA. Haven't had it on truck long enough to give you an extended review hence only a 4 out of 5, but hitch is solid and looks like it can take a beating. Ended up going with the solid stainless balls for a little extra money rather than have the chrome peel and wear after time. 79387



- DTALBM6800-2S

ratingratingratingratingrating by: Warren M.08/19/2013

Review from a similar Diversi-Tech Self-Locking Adjustable Ball Mount with Stainless Balls


Great looking and well made product. HOWEVER, I don't understand why you cannot just buy the unit with the 2" ball only. This is why......yesterday while backing my boat up my driveway using the 8" drop location the lower ball hit the driveway as I started up the incline. It was a PAIN. I hope I did not damage my trailer tongue. I will now have to use th 6" (or higher) slot which will now cause my boat to be not level. 95733



- DTALBM6825-2S

ratingratingratingratingrating by: Mike S.09/02/2014

Review from a similar Diversi-Tech Self-Locking Adjustable Ball Mount with Stainless Balls


This product is of the highest quality - extremely easy to use, and looks great - highly recommended. Received excellent service when I changed my order and received within 2 days quicker than promised. 149667



- DTALBM6625-2S

ratingratingratingratingrating by: Sean07/16/2013

Review from a similar Diversi-Tech Self-Locking Adjustable Ball Mount with Stainless Balls


Shipping was a little slow, but part was worth the wait. Very high quality part with great finish machine work. The fit in the reciever is a little loose, will try plastic shim to minimize rattle noise. I probably should have ordered the 4" drop, as the 6" hangs a bit low on my 2012 3500 GMC but if I ordered 4 I would have needed 6. Overall great product, very happy 89844



- DTALBM6625-2S

ratingratingratingratingrating by: Brock03/21/2013

Review from a similar Diversi-Tech Self-Locking Adjustable Ball Mount with Stainless Balls


What a great product. Polished aluminum and Stainless steel. No worry about rust here in the cleveland winters. Very convenient to have the height adjustability and both ball sizes all in one easy to store and use package. It's not cheap, but you get what you pay for. This will last for years to come. 71693



- DTALBM7000-2S

ratingratingratingratingrating by: Jack m.04/15/2012

Review from a similar Diversi-Tech Self-Locking Adjustable Ball Mount with Stainless Balls


We were very happy with the customer service and the emails on status of the product we ordered. Also the prompt delivery. Thank you 37263



- DTALBM6625-2S

ratingratingratingratingrating by: Milan Robison09/16/2014

Review from a similar Diversi-Tech Self-Locking Adjustable Ball Mount with Stainless Balls


So far I'm excited about my new hitch. I'll no more after a Michigan winter. Sure is nice looking!!! 151450



- DTALBM6625-2S

ratingratingratingratingrating by: Dean L.09/24/2014

Review from a similar Diversi-Tech Self-Locking Adjustable Ball Mount with Stainless Balls


I have only used the ball mount once, but it worked very well and looks great. 152790



- DTALBM7025-2S

ratingratingratingratingrating by: Russ S.09/15/2014

Review from a similar Diversi-Tech Self-Locking Adjustable Ball Mount with Stainless Balls


Used it to tow my a tv up to my hunting camp in upstate pa. Worked great. 150998

12
12


Ask the Experts about this Diversi-Tech Ball Mounts
Expert Answers about Self-Locking, Adjustable, Aluminum Ball Mount - 2 Stainless Balls - 6" Drop, 7" Rise - 10K - DTALBM6600-2SDo you have a question about this Ball Mounts?


  • Availability of Adjustable Ball Mount With Removable Stainless Steel Hitch Balls
  • The hitch balls cannot be removed on the Diversi-Tech Ball Mounts, part # DTALBM6607, you have referenced. It comes with two chrome-plated steel hitch balls that are 1-7/8 inch and 2-inch size. I have two ball mounts with removable stainless steel balls that have the same rise and drop, but the hitch ball sizes are 2-inch and 2-5/16-inch. They are the Diversi-Tech Ball Mounts, part # DTALBM6600-2S, and the newer Solid Tow design in the Diversi-Tech Ball Mounts, part # DTSTBM6600-2S....
