Self-Locking, Adjustable, Aluminum Ball Mount - 2 Chrome Balls - 4" Drop, 5" Rise - 10K

Diversi-Tech Ball Mounts - DTALBM6425

Easily swap trailers with this adjustable, aluminum ball mount with 2-1/2" shank. Go from a 4" drop to a 5" rise in 1" steps, and swap 2" and 2-5/16" balls. Self-locking system stops theft. Tow up to 10,000 lbs.

Features:

• Adjustable ball mount makes it easy for you to haul different trailers
  • Ball height adjusts in increments of 1" so that you can easily switch between trailers with different tongue heights
  • Reversible ball platform lets you swap between 2 different-size balls
• 2-1/2" Shank fits 2-1/2" receivers
• Convenient, self-locking system locks ball mount to receiver tube and ball platform to ball mount
  • Built-in locks can't get lost like other kinds of hitch locks
  • Lock seals are double-sealed to keep out water
    • Resists corrosion
    • Requires no maintenance
  • Uses pick-resistant, tube-style keys (4 included)
• Ball mount is machined from a solid piece of aircraft-grade billet aluminum
  • Solid aluminum produces a lightweight yet strong ball mount
    • Avoids welds, which can cause weak points that might break
  • Polished finish creates a high-quality appearance
• 2 Chrome-plated steel hitch balls included
• Made in the USA

Specs:

• Fits: 2-1/2" x 2-1/2" trailer hitch receivers
• Ball diameters: 2" and 2-5/16"
• Towing capacity: 10,000 lbs
• Tongue weight capacity: 1,500 lbs
• Maximum rise: 5" from the top of the hitch receiver opening
• Maximum drop: 4" from the top of the hitch receiver opening
  • Height adjustment: 1" increments
• Distance from center of hitch pin hole to back of upright bar: 4-1/4"
• Distance from center of hitch pin hole to center of ball: 8-1/2"
• 1-Year limited warranty

This cutaway view of the shank shows the locking mechanism in action. The locking pins extend out from the shank when the key is turned, locking the ball mount into the hitch.

The ball platform locks to the ball mount with an internal lock. When you unlock the platform you can slide it up or down to adjust the ball height. You can also slide the platform off, reverse it, and slide it back on to change ball sizes.

DT-ALBM6425 Diversi-Tech Self-Locking Series 4" Drop, 5" Rise Adjustable Hitch - Solid Billet Aluminum

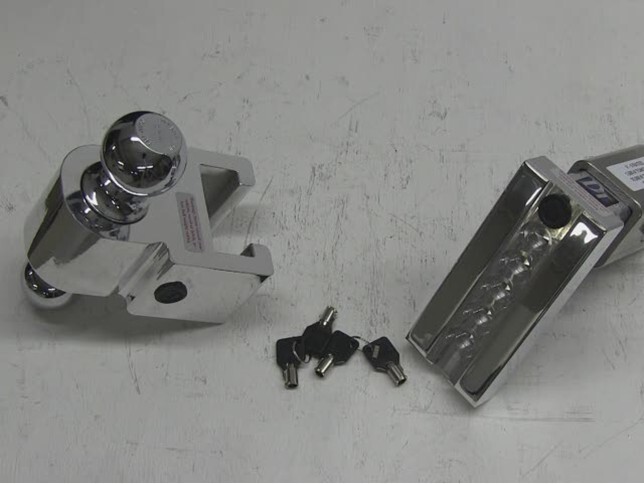

Video of Self-Locking, Adjustable, Aluminum Ball Mount - 2 Chrome Balls - 4" Drop, 5" Rise - 10K

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Diversi-Tech Self-Locking Adjustable Aluminum Ball Mount Review

Customers compare DTALBM6425 to these similar products

Self-Locking, Adjustable, Aluminum Ball Mount - 2 Chrome Balls - 6" Drop, 7" Rise - 10K$264.95

Self-Locking, Adjustable, Aluminum Ball Mount - 2 Chrome Balls - 6" Drop, 7" Rise - 10K$229.95

Self-Locking, Adjustable, Aluminum Ball Mount - 2 Chrome Balls - 4" Drop, 5" Rise - 10K$229.95

Rapid Hitch Adjustable, Aluminum Ball Mount Kit w/ 2 Chrome Balls - 5-1/2" Drop$184.95

Solid-Tow Adjustable, Aluminum Ball Mount - 2 Chrome Balls - 4" Drop, 5" Rise - 10K$199.95

Customers Who Purchased This Ball Mounts Also Bought...

Replacement Clip for Rapid Hitch 4-1/4" x 5/8" Non-Locking Adjustment Pin $0.85

Pin and Clip For Class III, IV and V Trailer Hitch Receiver $5.16

Reese Titan Reducer Sleeve 2-1/2" to 2" $20.95

Self-Locking, Adjustable, Aluminum Ball Mount - 2 Chrome Balls - 4" Drop, 5" Rise - 10K $229.95

Self-Locking, Aluminum Ball Mount - 2" Drop, 1" Rise - Anti-Rattle Tensioned - 14,000 lbs $79.95

Replacement parts available for this product

Diversi-Tech Re-Keying Kit for DTLBM and DTALBM Series Self-Locking Aluminum Ball Mounts - 2 Locks $20.95

Ask the Experts about this Diversi-Tech Ball Mounts
Do you have a question about this Ball Mounts?

• Diversi-Tech Ball Adjustable Ball Mount with a 1-7/8 Inch Hitch Ball

• The balls on the Self-Locking, Adjustable, Aluminum Ball Mount, # DTALBM6425, cannot be changed to accommodate a 1-7/8 inch ball, however, you can pickup part # DTALBM6407 which is the same product except it comes with a 2 inch ball and a 1-7/8 ball that you are looking for. This ball mount has the same rise and drop dimensions and fits 2 inch hitches, but keep in mind that the towing capacity of this ball mount, when using the 1-7/8 inch ball, is limited to 2,000 lbs. I have attached a
  view full answer...


• Locking Diversi-Tech Adjustable Ball Mount Recommendation for a 2012 Ford Super Duty

• The Self-Locking, Adjustable, Aluminum Ball Mount # DTALBM6425 that you referenced is designed for 2-1/2 inch hitch openings, and while it does appear to be a 2 inch ball mount with a sleeve on it, it will work just fine on a 2-1/2 inch hitch. The portion that looks like a sleeve is not removable and does not offer any movement so it really should not be an issue. This ball mount has a locking mechanism that would prevent theft. I have personally handled this ball mount several times and the
  view full answer...


• Recommendations for an Adjustable Ball Mount with Multiple Balls and Height Adjustments

• That is a difficult question to answer because there are so many variables. On bigger trucks with receiver heights well above the ground going with an adjustable ball mount with the most rise or drop would be fine in this case and would be what I recommend. There is no rule of thumb as far as how much space you should have from the ground to the bottom of the ball mount because there are so many things you would have to factor in. Vehicles that are lower to the ground like vans for example wo
  view full answer...
