Convert-A-Ball Cushioned Pintle Hook Combo w/ 3 Nickel-Plated Balls - 2" Hitches - 16,000 lbs

Rating: rating rating rating rating rating
1 reviews

Code: PH2

Retail:$215.73

Price:$179.95

Shipping Weight: 26 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

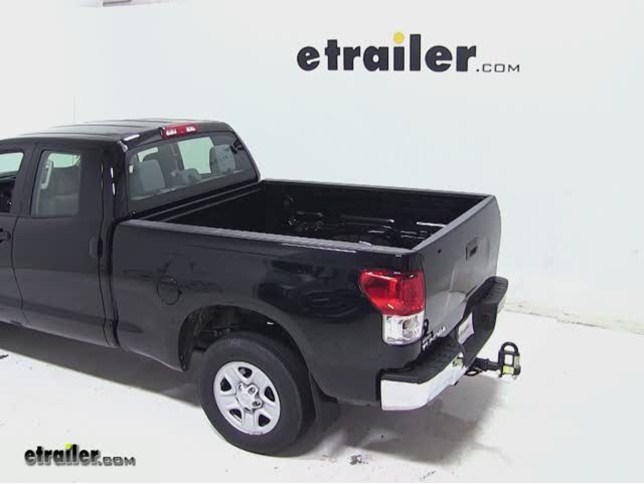

Convert-A-Ball Cushioned Pintle Hook Combo Review - 2013 Toyota Tundra - Video

Convert-A-Ball Ball Mounts - PH2

Strength, versatility and Convert-A-Ball quality unite in this cushioned combination pintle hitch/ball mount that fits a 2" trailer hitch. Includes 3 nickel-plated balls (3,500 to 8,000 lbs GTW) and a pintle sleeve adapter (16,000 lbs GTW).

Features:

Cushioned to protect tow vehicle's driveline and hitch assembly, as well as trailer's contents
- Polyurethane interior acts as a shock absorber, reducing bounce and rhythmic vibration
Offers towing convenience and versatility
- Converts quickly and easily from pintle to standard ball mount - no tools needed
Equipped with a double-engagement, rust-resistant locking system to secure lunette ring
Slides easily into 2" square trailer hitch receiver and attaches with 5/8" hitch pin (sold separately)
Includes 3 interchangeable hitch balls, 1 pintle sleeve and mounting hardware
Manufactured with nickel-plated steel balls, shank and pintle sleeve on a black powder coated steel base
- Shank is constructed with interior polyurethane cushioning
Made in USA

Specs:

Fits 2" x 2" trailer hitch receivers
Pintle hitch
- Works with lunette rings that have:
  - Inner diameter: 3"
  - Maximum outer diameter: 6-3/8"
  - Maximum ring cross section: 1-5/8"
- Towing capacity: 16,000 lbs
- Tongue weight capacity: 800 lbs
Ball hitch
- Ball shank diameter: 1"
- Ball sizes: 1-7/8", 2" and 2-5/16"
- Towing capacity for 2" and 2-5/16" hitch balls: 8,000 lbs
- Towing capacity for 1-7/8" hitch ball: 3,500 lbs
- Tongue weight capacity: 800 lbs
2-Year limited warranty

To use the unit as a pintle hitch, simply slip the nickel-plated steel pintle sleeve over the 1" diameter hitch ball shank. Once in place, the sleeve accepts the lunette ring on the trailer, and the handle comes over and locks in place to create a strong, reliable pintle hitch with a towing capacity of 16,000 lbs. Backed up by the security of a double-locking system, this pintle hook combo offers safety, versatility and performance for those towing with a lunette ring.

To use the unit as a ball hitch, simply slip any size Convert-A-Ball nickel-plated steel hitch ball onto the ball shank after the pintle sleeve has been removed. As a ball hitch, the PH2 maintains its strong performance, with a towing capacity up to 8,000 lbs.

Step by Step

To Install Pintle Sleeve:
First, remove manual safety pin. Next, pull out silver knob on lower, left-hand side of unit while lifting up on handle - this will disengage the pintle lock. Place the pintle sleeve over the ball shank. Now that both locks have been unlatched, you can rotate handle to a position directly above the pintle sleeve. Release silver knob, and handle's spring-loaded lock will snap down on sleeve, automatically engaging. Re-insert safety pin for extra security, and you're set to go.

To Remove Pintle Sleeve:
Remove safety pin, pull out silver knob and lift pintle handle while rotating it 90 degrees to the side. The handle will automatically snap into place in "self-parked" position. Last, remove sleeve and re-insert safety pin.

To Install Hitch Ball:
Remove the manual safety pin, move pintle handle to "self-park" position and double-check that it is fully engaged. Note: Do not try to latch the handle when using a ball coupler because this will interfere with and possibly damage the ball mount and coupler.

Diagram showing operation of Convert-A-Ball integrated pin

Diagram showing underside of Convert-A-Ball with integrated pin

After re-installing safety pin, choose appropriate ball size. Locate dimple on ball's side and push integrated pin completely through ball. Place ball on ball mount shank, line up pin with shank hole, and push pin back through. Coupler will completely cover ball during travel, ensuring that pin cannot work loose. To remove, simply reverse the process.
