Ball Mounts > Adjustable Ball Mount > Two Ball Mount > Drop - 8 Inch, Rise - 8 Inch > Class IV, 14000 lbs GTW > Fits 2 Inch Hitch > Standard > Steel > Andersen

EZ Heavy Duty Adjustable Hitch with Combo Ball - 8" Drop/Rise - 14,000 lbs

Andersen Ball Mounts

(73 reviews)


Code:   AM3298

Retail:$189.99

Price:$179.99


Shipping Special

Shipping Weight: 25 pounds

Quantity:






Andersen Ball Mounts - AM3298

This all-steel, adjustable ball mount lets you tow up to 10,000 lbs with the 2" ball, 14,000 lbs with the 2-5/16" ball, and offers the convenience of a 8" drop or 8" rise. Fits 2" trailer hitches.


Features:

  • Adjustable ball mount with reversible, 2" and 2-5/16" diameter hitch balls
    • 2-Sided platform has 2" diameter ball on one side and 2-5/16" diameter ball on the other
    • Hitch balls secure to ball housing with included pin that allows for easy interchangeability
  • Ball mount adjusts in 1" increments up to 8" drop and 8" rise with just a pull of the included pin
    • Lets you tow various trailers and keeps them level with your vehicle for safer towing
    • Offers ease of use for a fleet of vehicles with a variety of towing needs
  • Heavy-duty, all-steel construction
  • Meets V5 and SAE J684 certifications
  • Made in the USA


Specs:

  • Fits 2" x 2" hitch receivers
  • Ball diameters: 2" and 2-5/16"
  • Measurement from center of hitch pin hole to center of ball pin hole: 7"
  • Towing capacity:
    • 10,000 lbs GTW with 2" hitch ball
    • 14,000 lbs GTW with 2-5/16" hitch ball
  • Tongue weight: 1,500 lbs
  • Maximum rise: 8" from top of the inside of receiver
  • Maximum drop: 8" from top of the inside of receiver
  • 1-Year limited warranty


Tow up to 14,000 lbs with the safety and convenience of the adjustable 8" drop and 8" rise on the EZ Hitch ball mount system. Turn the ball mount over to select a drop or rise. After the ball mount has been installed on your vehicle, just pull the included pin to adjust the combo ball up or down or to flip the combo ball between the 2" or 2-5/16" hitch ball as needed. Replace the pin, and you're ready to tow. The ball mount fits 2" square trailer hitches and is a great solution for those who tow several different trailers.


Keeping your trailer level with your tow vehicle makes it easier and safer to tow. If your trailer is more than 2" nose up, it will sway during towing - increasing tire wear and making your ride less comfortable. Lots of sway makes it harder to drive your vehicle. If the trailer is more than 2" nose down, the load may put too much weight on the hitch and tow vehicle, exceeding the weight limit for both. This puts too much stress on the connection between your trailer and hitch and doesn't leave enough weight on your front wheels, affecting your ability to steer and brake properly. An adjustable ball mount system makes it easy to keep whatever you tow as level as possible.



3298 Andersen 8" EZ HD 14K Hitch








Related Products



Customers compare AM3298 to these similar products





Customers Who Purchased This Ball Mounts Also Bought...





Economy
$53.04 Less
Value
$4.96 More

Rapid Hitch Adjustable, Aluminum Ball Mount Kit w/ 2 Chrome Balls - 5-1/2" Drop


Rapid Hitch Adjustable, Aluminum Ball Mount Kit w/ 2 Chrome Balls - 5-1/2" Drop
Andersen Ball Mounts

54 reviews

Code: AM3410


Price:$184.95


Long

Aluminum

Drop - 5 Inch

Rise - 6 Inch

10000 lbs GTW



Tow up to 10,000 lbs with supreme safety and the convenience of an adjustable 5-1/2" drop and 6-1/2" rise with the Rapid Hitch ball mount system. Includes chrome-plated steel ball combo (2" and 2-5/16"). Fits 2" hitches.

more information →
Premium
$119.01 More

Weigh Safe 2-Ball Mount w/ Built-In Scale - 2-1/2" Hitch - 6" Drop, 7" Rise - 14.5K


Weigh Safe 2-Ball Mount w/ Built-In Scale - 2-1/2" Hitch - 6" Drop, 7" Rise - 14.5K
Weigh Safe Ball Mounts

111 reviews

Code: WS6-25


Price:$299.00


Aluminum

Drop - 6 Inch

Rise - 7 Inch

Fits 2-1/2 Inch Hitch

Class V

14500 lbs GTW

Built-In TW Scale

Weigh Safe



Measure your tongue weight to determine if you can safely tow by simply coupling your trailer to ball mount. Ball platform locks to shank and can be flipped to stow under your hitch. Includes a 2" and a 2-5/16" ball. Tow up to 14,500 lbs.

more information →

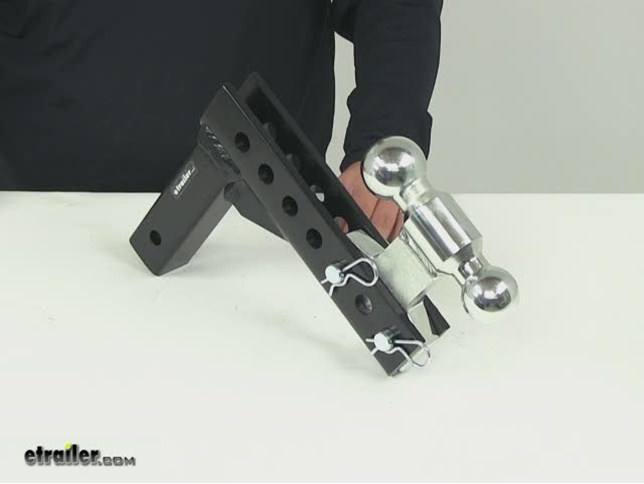

Video of EZ Heavy Duty Adjustable Hitch with Combo Ball - 8" Drop/Rise - 14,000 lbs


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.




Video Transcript for Andersen Ball Mounts AM3298 Review

Today were going to take a look at the Andersen Easy heavy duty adjustable hitch with combo ball, part number AM3298. This item comes with a two piece combo ball hitch. It has a 2 5/16-inch ball and a 2-inch ball. It fits a 2-inch trailer hitch receiver and has a solid shank. It has both a rise and drop of 8 inches which would be measured from the top of the shank to the top of the ball platform here. It meets both V5 and SAE J684 certifications.

It has a gross towing capacity of 10,000 pounds for the 2-inch ball, and 14,000 pounds for the 2 5/16-inch ball. The tongue weight for both is 1,500 pounds. Now the way this would work, you would take your double ball hitch ball set and the included pins, and then you would figure out which size this needs to be to tow your trailer, match the holes there, clip that off, put the second pin through, and clip that off as well, and now you see this in the maximum rise position, and right here in the maximum drop. Now to get this to fit in your trailer hitch receiver, you would simply slide this into the receiver, and then you would get your pin and clip. Now, this item is not included with this trailer hitch; however, you can get it right here at etrailer.com, part number PC3.

Just put that through there, slide that in, and youre good to go. That should do it for our Andersen Easy heavy duty adjustable hitch with combo ball, part number AM3298.
