This all-steel, adjustable ball mount lets you tow up to 10,000 lbs with the convenience of an 8" drop or 8" rise. Includes 2" and 2-5/16" steel hitch balls, and fits 2" trailer hitches. Call 800-298-8924 to order Andersen Ball Mounts part number AM3296 or order online at etrailer.com. Free expert support on all Andersen products. Guaranteed Lowest Price and Fastest Shipping for EZ Hitch Adjustable, Steel Ball Mount Kit w/ 2 Hitch Balls - 8" Drop or Rise - 10,000 lbs. Ball Mounts reviews from real customers.
$139.95
Select Your Vehicle

View Cart

Ball Mounts > Adjustable Ball Mount > Two Ball Mount > Rise - 8 Inch, Drop - 8 Inch > Class IV, 10000 lbs GTW > Fits 2 Inch Hitch > Hollow Shank > Long > Steel > Andersen

EZ Hitch Adjustable, Steel Ball Mount Kit w/ 2 Hitch Balls - 8" Drop or Rise - 10,000 lbs

Andersen Ball Mounts

(49 reviews)


Code:   AM3296

Price:$139.95


Shipping Special

Shipping Weight: 18.88 pounds

Quantity:






Andersen Ball Mounts - AM3296

This all-steel, adjustable ball mount lets you tow up to 10,000 lbs with the convenience of an 8" drop or 8" rise. Includes 2" and 2-5/16" steel hitch balls, and fits 2" trailer hitches.


Features:

  • Adjustable ball mount with reversible, 2" and 2-5/16" diameter hitch balls
    • 2-Sided platform has 2" diameter ball on one side and 2-5/16" diameter ball on the other
    • Hitch balls secure to ball housing with included pin that allows for easy interchangeability
  • Ball mount adjusts in 1" increments up to 8" drop and 8" rise with just a pull of the included pin
    • Lets you tow various trailers and keeps them level with your vehicle for safer towing
    • Offers ease of use for a fleet of vehicles with a variety of towing needs
  • Heavy-duty, all-steel construction
  • Made in the USA


Specs:

  • Fits 2" x 2" trailer hitch receivers
  • Recommended for vehicles that measure more than 23" from the ground to the top of the receiver opening when vehicle is level
  • Ball diameters: 2" and 2-5/16"
  • Pin diameter of each pin hole: 3/4"
  • Measurement from center of hitch pin hole to the closest edge of the vertical upright: 3-3/4"
  • Width of vertical upright: 2-3/4"
  • Measurement from center of hitch pin hole to center of ball: 9-3/4"
  • Towing capacity:
    • 8,000 lbs GTW with 2" hitch ball
    • 10,000 lbs GTW with 2-5/16" hitch ball
  • Tongue weight: 1,000 lbs
  • Maximum rise: 8" from top of the inside of receiver
  • Maximum drop: 8" from top of the inside of receiver
  • 1-Year limited warranty


Tow up to 10,000 lbs with the safety and convenience of the adjustable 8" drop and 8" rise on the EZ Hitch ball mount system. Turn the ball mount over to select a drop or rise. After the ball mount has been installed on your vehicle, just pull the included pin to adjust the combo ball up or down or to flip the combo ball between the 2" or 2-5/16" hitch ball as needed. Replace the pin, and you're ready to tow. The ball mount fits 2" square trailer hitches and is a great solution for those who tow several different trailers.


Keeping your trailer level with your tow vehicle makes it easier and safer to tow. If your trailer is more than 2" nose up, it will sway during towing - increasing tire wear and making your ride less comfortable. Lots of sway makes it harder to drive your vehicle. If the trailer is more than 2" nose down, the load may put too much weight on the hitch and tow vehicle, exceeding the weight limit for both. This puts too much stress on the connection between your trailer and hitch and doesn't leave enough weight on your front wheels, affecting your ability to steer and brake properly. An adjustable ball mount system makes it easy to keep whatever you tow as level as possible.



3296 Andersen EZ Hitch Ball Mount - Steel - 8" Drop, 8" Rise - 2" and 2-5/16" Ball Combo

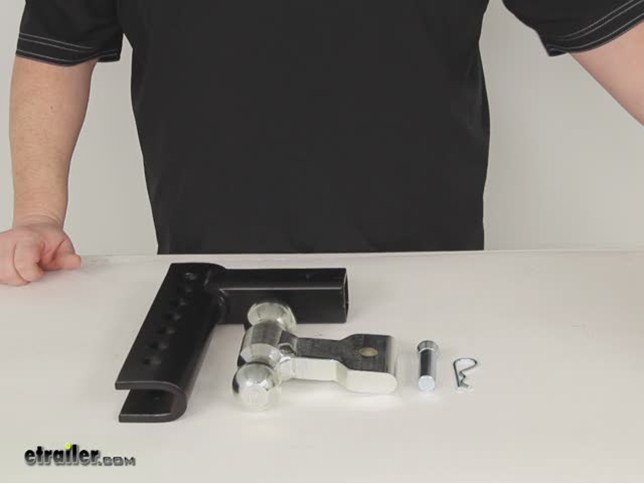

Video of EZ Hitch Adjustable, Steel Ball Mount Kit w/ 2 Hitch Balls - 8" Drop or Rise - 10,000 lbs


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.



Video Transcript for Andersen Ball Mounts AM3296 Review

Today we are taking to look at the Rapid Hitch EZ Hitch Adjustable Steel Ball Mount Kit, number AM3296. This is an adjustable ball mount with reversible 2 inch and 2-5/16 inch diameter hitch balls. It has a two-sided platform with a 2 inch diameter ball on one side and a 2-5/16 inch diameter ball on the other. The hitch balls secure to the ball housing with the included pin that allows for easy interchangeability and I'll show you how to do that in just a second. The ball mount adjust in 1 inch increments down the side here for a total drop of 8 inches and a total rise of 8 inches as well with just a pull of the pin. It allows you to tow various trailers and keep them level with your vehicle for safer towing.

And it also offers ease of use for a flee the vehicles with the variety of towing needs. This feature is a heavy duty all steel construction and it is made in the U.S. And I'll show you how we put this together take your hitch balls here and you just line them up. Pop your pin in and then clip that off and you're good to go. Again, 2 inch ball diameter, 2-5/16 inch ball diameter, the diameter of each pin hall is 3 quarters of an inch.

The towing capacity is 8,000 pounds. Gross towing weight with the 2 inch ball 10,000 pounds, gross towing weight with the 2-5/16 inch hitch ball and it features a ton weight of 1,000 pounds. Again, the maximum rise measuring from the top of the shank to the top of the hitch ball here is 8 inches and the maximum drop using the same measurements top of the shank to the top of the hitch ball is also 8 inches and this item does feature a 1 year limited warranty. That should about to do it for our Rapid Hitch EZ Hitch Adjustable Steel Ball Mount, Number AM3296.


Customers compare AM3296 to these similar products





Customers Who Purchased This Ball Mounts Also Bought...








Customer Reviews

EZ Hitch Adjustable, Steel Ball Mount Kit w/ 2 Hitch Balls - 8" Drop or Rise - 10,000 lbs - AM3296

Average Customer Rating:  4.8 out of 5 stars   (49 Customer Reviews)

This all-steel, adjustable ball mount lets you tow up to 10,000 lbs with the convenience of an 8" drop or 8" rise. Includes 2" and 2-5/16" steel hitch balls, and fits 2" trailer hitches.


- AM3296

by: Phil D02/25/2014


I was pleasantly surprised that the trailer hitch I received was of such high quality and appearance. I am totally satisfied with every product that I have ordered through etrailer. I am a very satisfied customer. 117560





Comments

Great. Thank you again. Phil D.

Phil D - 02/27/2015

9783



- AM3296

by: Mark S.06/04/2014


This is exactly what I needed. Works gr eat! 134270





Comments

It works perfectly for what I needed.

Mark S - 06/04/2015

12319



- AM3296

by: Luke F.04/16/2014


Not only does the trailer hitch work great but e trailer has some of the best customer service I have ever received while ordering stuff online. They send you numerous confirmation emails letting you know when the product is sent and the lady even pumped me to priority cause she could for no charge. Good to know there's companies that still care about customer service. I would definitely recommend e trailer! 125667






- AM3296

by: Paul T.11/11/2014


Due to so unpleasantness with my homeowners association, my 21' bow-rider is now in my 22' deep garage. It's a pretty tight fit. Also, I have to drop the bow enough to clear a 7' high garage door. It's a cinch with this hitch. I tow with the lock pin in the 5th. hole and drop down to the 3rd. hole to clear the door. Also, the short trailer increased the hitch load. This product is rated for 1000#. 160337






- AM3296

by: Greg04/11/2013


Looks just like what I need; haven't gotten to use it yet. This will replace having to haul four different ball mounts around for my different trailers/tow bars. Site was great with photos aand detailed specifications - especially measurements. Would have been nice to have been able to get the locking 5/8" pin for the ball (manufacturer doesn't make it any more). 75432






- AM3296

by: Reg R.09/16/2014


Recently I purchased a car hauler/utility trailer that is very low to the ground, compared to the hitch height of my pickup. This EZ Adjustable Hitch with 8" drop is exactly what was needed to level the trailer and truck. Excellent quality, great service. Definitely recommend. Thank You! 151497






- AM3296

by: Maarten L11/03/2014


Trailer sits perfectly flat. Love it. 158922






- AM3296

by: C Willi05/24/2013


The last hitch I'll need to buy? Had another brand/design made up of several tube segments develop a crack. Caught it before it came apart. This design doesn't have that problem and has all the height adjustment I should ever need. 81789






- AM3296

by: P. Granger12/13/2013


I bought a EZ adjustable hitch steele ball mount kit w/ 2 hitch balls 8in drop or rise 10,000 lbs . Best deal I have got in a long time ! It came in the five days they said it would. and it is very well made and works great! 110065






- AM3296

by: john d.02/26/2015


better than expected !!!! this should do the trick. this isn't the first time I've delt with etrailer----they keep getting better and better, customer service is the best---that's why I'll never order from anyone else !!!!! 176201






- AM3296

by: Emile F.03/20/2015


Reasonable cost, excellent welds and workmanship, simple but effective functionality, plus made in the USA. I have a horse trailer, dump trailer, small utility trailer, and pop up and this little beast yanks all of them. 179892






- AM3296

by: Brian02/07/2014


The hitch is simple and effective. The online buying experience from etrailer has exceeded my expectations every time! If etrailer sells it and I need it they get my business every time. 116050






- AM3296

by: James S.05/13/2014


Great quality. Shipping was super fast. The hitch works great. The staff assisted in making sure I had the item that I needed to do the job. This is a heavy duty hitch 130467






- AM3296

by: O. Seal03/30/2012


A great heavy duty adjustable trailer hitch. It has both 2" and 2-5/16" balls and allows me to level any trailer behind my lifted 4x4 truck. 35657






- AM3296

by: chipster01/02/2014


Great service and prompt shipping. We have a variety of trailers and trailer weights - this should do it all! 111697






- AM3296

by: Jack09/12/2012


Haven't towed with it yet, but it looks like just what I need. looks plenty strong and fits well. 54467






- AM3296

by: Paul06/02/2014


Getting ready to tow with it this weekend. Seems solidly made. Etrailer service is excellent. 133832






- AM3296

by: Edgar O04/21/2014


The EZ hitch adjutable is great, very well constructed and robust, easy to drop or rise. 126108






- AM3296

by: Paul W.08/08/2014


Happy with it so far. Currently traveling from Florida to Oregon with no issues. 145028






- AM3296

by: Matt naccara01/09/2015


Just what I was looking for and it arrived in just a few days 168427






- AM3296

by: Rich F.12/10/2011


As described. Great service and quick delivery! 27954






- AM3296

by: Randy P.05/23/2013


As promised on time and works great, th anks 81755






- AM3296

by: Km03/14/2014


Great product great price fast delivery 120798






- AM3296

by: Patrick04/03/2015


Great product, fast service! 182618






- AM3295

by: Michael S. (Oregon)02/27/2015

Review from a similar Andersen EZ Hitch in Ball Mounts


Thank you all, Katie D., Jena D., Julie MH., as well as Everyone else at E-Trailer who helped me to identify, locate, order, recieve all the towing and hitch related items. Makes my life, towing, much more simple. I had for quite awhile been looking for a short rise and drop hitch sleeve with a 2” ball and 1 7/8” ball combination. Having contacted E-Trailer directly with my specific request, shortly thereafter, you came up with #AM3295 - EZ Hitch Adjustable Ball Mount, with a 4” Rise/Drop, with a 2” and 1 7/8” ball combo by Anderson. PERFECT! With the locking pins to match, same key, #AM3493, also by Anderson, I have on my 2013 Tundra at all times, everything I need or could use. Nothing to go missing, search for, take on and off. From 6 or more items down to just 2 locked in place. I am also most grateful for all the time and effort it took to get the extra set of keys. P.S., the red lines on lock pins, fingernail polish, as a visual LOCKED identifier. Thank you, Michael S. 176430



- AM3290

by: Bryan G08/16/2013

Review from a similar Andersen EZ Hitch in Ball Mounts


Now that I have had this for awhile and been able tow quiet a bit with it I wish that i would have gotten a different one. It is easy to adjust and convenient. My problem is the general slack, play, wiggle room in the product. The receiver square tube does not fit snuggly into the 2" hitch and leaves plenty of room for movement up and down. There is slight play on the adjustable aluminum ball connecting to the black mount, which i expected some due to this being a single pin style as opposed to dual pin like more expensive models, but the most play in this connection is side to side. When towing a heavy load down a wavy road, you can get some serious jerks and feel the rigidity of the hitch bouncing up and down in the receiver. When towing a light empty trailer on a bouncy road it is noisy from the hitch bouncing around in the receiver and light jerks felt in the truck. I have not used the higher end aluminum style and other dual pin set ups but i would imagine their fits are much snugger and wish i had opted for one of those. I am debating just switching back to carrying around multiple hitches. 95365



- AM3298

by: Brian B.01/05/2015

Review from a similar Andersen EZ Hitch in Ball Mounts


Our newest company truck is a Dodge Ram 2500 diesel 4x4. With more than six trailers to tow, we needed a lot of vertical adustment and a very stout ball mount to take advantage of the truck's towing capacity. This mount offers the largest range of vertical adjustment I could find while still providing an impressive 10,000 and 14,000 lb capacity respectively for the 2" and 2-5/16" balls. Great fit, finish and construction. We hauled our first trailer load of product back from one of our manufacturers within hours of recieveing the mount this morning. Very happy with this product. 167744



- AM3290

by: Marko12/10/2012

Review from a similar Andersen EZ Hitch in Ball Mounts


I was searching trailer hitches, this one suited my needs, and etrailer had the best deal. This is one really heavy-duty hitch which actually exceeds my needs, and I wouldn’t be afraid to haul anything with it. After ordering I wanted to add something, but it was evening, so I sent etrailer an email, and got a phone call the next day. They were very helpful and took care of me. Shipping was also quick. I would highly recommend this product and etrailer. 61060



- AM3290

by: Wally01/03/2012

Review from a similar Andersen EZ Hitch in Ball Mounts


Purchased the EZ 4" drop or rise adjustable hitch ball mount. Have not toed with it yet, but positioned the trailer to the proper towing height. Also purchased the CIPA custom towing mirrors for a 2011 Ford F-150. Easy to put on and nice fit. Shipping was quick! Received the order the next morning. 29035



- AM3290

by: Brad03/05/2012

Review from a similar Andersen EZ Hitch in Ball Mounts


I purchased a new trailer. It has a 2in ball that didn't match my other 2 5/16 ball trailer. This new trailer was also set up 4in lower. This hitch was my answer. It's heavy duty rated for my larger trailer and it easily changes ball sizes as well as height adjustment. All in one hitch! 33116



- AM3290

by: Sonny W10/27/2011

Review from a similar Andersen EZ Hitch in Ball Mounts


I just received this product from etrailer and have not used it yet, but I am impressed with the heavy duty nature of hitch and the fit and finish of the unit. I plan to use this on multiple trucks and I think the versatility of height adjustment will be very helpful. 26238



- AM3298

by: Randy J01/30/2015

Review from a similar Andersen EZ Hitch in Ball Mounts


Excellent fit and finish. This piece will work perfectly for my multiple trailers with various tongue heights and ball sizes. I wish I had bought this item a long time ago instead of multiple ball mounts! 171847



- AM3298

by: Gary H12/07/2013

Review from a similar Andersen EZ Hitch in Ball Mounts


Very Nice Piece!! Well constructed and the adjustable ball tightens up nicely when the 2nd pin is inserted. It also was delivered to my door in half the time that it was supposed to arrive!! 109495



- AM3290

by: Tim Walker04/17/2015

Review from a similar Andersen EZ Hitch in Ball Mounts


I like the versatility of the hitch. I'm pulling a camper trailer with the 2 5/16" ball, and a utility trailer with the 2". Adjustable height lets me keep both trailers on the level. 185851



- AM3298

by: Lowell Owen02/17/2014

Review from a similar Andersen EZ Hitch in Ball Mounts


Drop hitch looks good, it arrived on schedule and I was very impressed with the service given me especially item tracking prior to delivery. Thank you Lowell Owen 116793



- AM3290

by: Nick H.06/29/2012

Review from a similar Andersen EZ Hitch in Ball Mounts


Great hitch, strong, easy to use, did not want the chrome look so this was perfect for my rig. Delivered fast and on-time! Thank you etrailer! 46107



- AM3290

by: Henryk07/31/2014

Review from a similar Andersen EZ Hitch in Ball Mounts


Very versatile piece and a must if you know 2 or more trailers with different ball sizes, height requirements etc., quality built, A1+ 143796



- AM3298

by: Gene05/13/2015

Review from a similar Andersen EZ Hitch in Ball Mounts


This hitch is a lot stronger than it looks in the pictures. The receiver tube is solid steal. Great product and fast shipping. 192571



- AM3298

by: Shai C.05/15/2014

Review from a similar Andersen EZ Hitch in Ball Mounts


I haven't use it yet for towing but the hitch looks very well made and super heavy duty. Very satisfied.... 130789



- AM3298

by: Mathew F.01/07/2015

Review from a similar Andersen EZ Hitch in Ball Mounts


Wow...very heavy duty and high quality....multiple trailers so this just fits the bill...buy USA. 167987



- AM3298

by: KC09/29/2014

Review from a similar Andersen EZ Hitch in Ball Mounts


Stout rig. Like the convenience of having both sized balls in one outfit. Definitely recommend. 153527



- AM3298

by: Hannibal Lecter03/16/2013

Review from a similar Andersen EZ Hitch in Ball Mounts


Item accurately listed ,shipped wicked fast , shopping could not be any easier. 71056



- AM3298

by: Rick05/24/2014

Review from a similar Andersen EZ Hitch in Ball Mounts


What craftsmanship. Works perfect. Hitch it and forget it. 132311



- AM3290

by: James02/26/2013

Review from a similar Andersen EZ Hitch in Ball Mounts


Awesome product!!! 67882


Comments

The Products are working great! Thank you!

comment by: James - 02/28/2014


2979

- AM3298

by: BILL BIVINS12/30/2013

Review from a similar Andersen EZ Hitch in Ball Mounts


Product and service was great. Thanks 111519



- AM3298

by: Doug06/18/2015

Review from a similar Andersen EZ Hitch in Ball Mounts


Exactly what I was looking for. 204398



- AM3298

by: Michael matlock03/31/2014

Review from a similar Andersen EZ Hitch in Ball Mounts


Excellent product 122930



- AM3298

by: A. Rafael08/29/2013

Review from a similar Andersen EZ Hitch in Ball Mounts


simple is awesome 97491



- AM3298

by: Dale07/30/2015

Review from a similar Andersen EZ Hitch in Ball Mounts


Exactly what I wanted and ordered. You can feel that this is heavy duty from the weight of it. Very easy to use. 215441

50
50


Ask the Experts about this Andersen Ball Mounts
Do you have a question about this Ball Mount?


  • Parts Needed to Move Trailer leaf Springs to Top of Axle on a Zinger ZT19RD Travel Trailer
  • To lift your trailer leaf springs from the bottom of your axle to the top of your axle to provide lift for the suspension you will need 4 new spring seats, 8 u-bolts, 16 nuts and 4 U-Bolt plates, see links. This is assuming that your trailer suspension is in good condition otherwise. The diameter of your trailer axles will determine the size of these parts that you will need to order. If your axles are 3 inches diameter, the kit you referenced, # K71-385-00, would be a great choice. I...
    view full answer...

  • Can Trailer Height be Raised by Changing the Suspension
  • If the trailer leaf springs are currently mounted on the bottom of your axle, moving them to the top of the axle will lift the suspension. To do so you will need 4 new spring seats, 8 u-bolts, 16 nuts and 4 U-Bolt plates per axle. The diameter of your trailer axles will determine the size of the parts you will need to order. If the axles are 3 inches in diameter, part # K71-385-00 would be a good choice. If you are thinking about lifting your trailer because your tow vehicle hitch...
    view full answer...

  • Why Does the EZ Hitch Adjustable Ball Mount Rattle While Driving
  • The hitch balls on the EZ Hitch Adjustable Ball Mount, # AM3296, will rattle somewhat in the ball mount when not towing. The rattle is due to the shank of the hitch ball being narrower than the mounting slot on the shank of the ball mount. While towing the rattle will be minimal because the weight on the hitch ball will push the hitch ball shank into the slot on the ball mount. If the rattle you are experiencing is at your trailer hitch receiver, then that can be easily remedied with...
    view full answer...

  • Measurement of Center of Hitch Pin Hole to Center of Ball on EZ Hitch Adjustable Ball Mount # AM3296
  • On the EZ Hitch Adjustable, Steel Ball Mount Kit, part # AM3296, the measurement from the center of the hitch pin hole to the center of the ball is 9-3/4 inches. I am including a picture that will show the measurement. I also recommend the Dead Bolt Trailer Hitch Receiver Lock for 2 Inch Trailer Hitches, part # 7683.
    view full answer...

  • Measurement of Center of Hitch Pin Hole to Vertical Upright on EZ Hitch Ball Mount # AM3296
  • On the EZ Hitch Adjustable, Steel Ball Mount Kit, part # AM3296, the measurement from the center of the ball mount hole to the closest edge of the vertical upright is 3-3/4 inches. The width of the vertical upright is 2-3/4 inches. The distance from the closest edge of the 2-5/16 inch ball to the vertical upright is 1-7/8 inches. I am including a picture that will include the measurements listed above.
    view full answer...

  • Availability of 1-7/8 Inch Trailer Ball For EZ Hitch Adjustable Ball Mount Part # AM3296
  • I have spoken with one of my contacts with Andersen Manufacturing who tells me that a 1-7/8 inch trailer ball is not available for the EZ Hitch Adjustable Steel Ball Mount. I understand that they currently have no plans to offer one. Your best bet would be to go with the EZ Hitch you were looking at, part # AM3296. For your smaller trailer that uses the 1-7/8 inch ball, assuming that you are needing a maximum of an 8 inch drop I would suggest an adjustable ball mount like part # 80414...
    view full answer...

  • Is there a Lock for the Andersen EZ Hitch Adjustable, Steel Ball Mount Kit
  • I went out to the warehouse and pulled adjustable ball mount # AM3296 to measure the diameter of the pin that holds the ball portion on the shank. It is a 3/4 diameter pin and there are no locks this size. But I do have an option for you. You could use a padlock in place of the clip on the end of the pin. The hole diameter for the clip is 0.21 inches so a shackle diameter of 3/16 inches would work.
    view full answer...

  • Compatiblility of EZ Hitch Adjustable Steel Ball Mount with 2003 Hummer H2
  • The EZ Hitch Adjustable Steel Ball Mount Kit, part # AM3296 will work just fine with a 2x2 inch Class III receiver on your Hummer H2. The Ball Mount has a 8000 lb capacity when used with the 2 inch ball, or 10,000 lbs when used with the 2-5/16 ball, although your maximum capacity will be limited by the manufacturers stated towing capacity.
    view full answer...

  • Locking Pin Recommendation for the EZ Hitch Adjustable, Steel Ball Mount AM3296
  • As long as the pin diameter matches up on your Adjustable Ball Mount part # AM3296 with the part # C23556 the locks being a bit too long would not matter. Normally we would recommend the part # AM3493, but if the Curt fits it would work as well.
    view full answer...

  • Availability of an Adjustable Ball Mount with a 10k Capacity
  • We have a ton of adjustable ball mounts with a 10k capacity, but none of them have the sway control tab like the # 7390 has. I attached a link to a page that has all of them listed. For a very similar one check out the EZ Hitch Adjustable, Steel Ball Mount Kit # AM3296. I attached a review video for you to check out as well.
    view full answer...


Do you have a question about this Ball Mount?



Info for this part was:


Photos by:
Theodore B

Expert Research:
Michael L

Expert Research:
Michael H

Expert Research:
Jeff D

Written by:
Tricia G

Expert Research:
Jameson C

Expert Research:
John H

Expert Research:
Adam R

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.










Stay Connected


Subscribe to email newsletter

Email

privacy - we don't send unsolicited email






etrailer.com reviewsetrailer.com reviews

All images, layout and content copyright etrailer.com
