Accessories and Parts > Roof Cargo Carrier > Replacement Parts > Roof Box > Hardware > Thule


Replacement Hinge for Thule Cargo Boxes

Thule Accessories and Parts

ratingratingratingratingrating (38 reviews)


Code:   TH14936

Price:$9.95


Shipping Special

Shipping Weight: 0.32 pounds

Quantity:






Thule Accessories and Parts - TH14936

This replacement hinge fits many different Thule Roof Racks.

Features:

  • Fits Thule Hyper XL (TH612), Thule Adventurer, Thule Cascade (678 and 678XT), Thule Sonic XXL (TH636B), Thule Force XXL (TH626), Thule Force XL (TH625), and Sportrack Horizon 17 (SR7017) Series Roof Mount Cargo Boxes
  • Also fits these discontinued products: Thule Atlantis (TH686XT, TH686BXT, TH687, TH687XT, TH688BXT), Thule Ascent 1700 (TH605), and Thule Evolution (673 and 673B)
  • Qty: 1 hinge


14936 Replacement Hinge for Thule Evolution & Atlantis, Hyper XL, Adventurer, Ascent Series Cargo Boxes







Video of Replacement Hinge for Thule Cargo Boxes


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

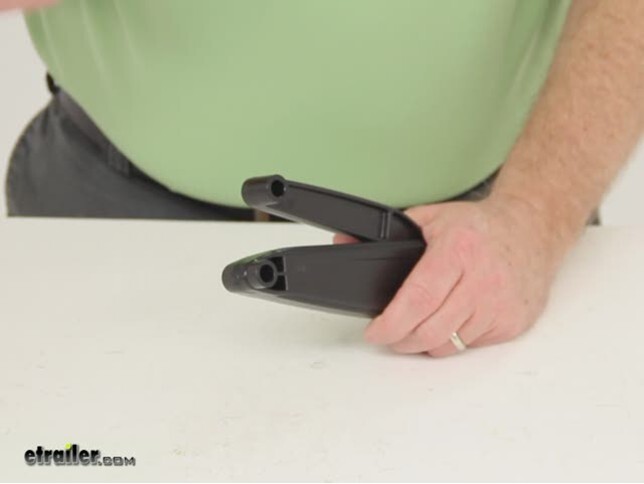

Video Demo Thule Accessories and Parts TH14936
Thule Accessories and Parts TH14936 Review
Video review thule replacement hinge th14936
Thule Replacement Hinge Installation

Video Transcript for Thule Accessories and Parts TH14936 Review

Today we're going to review part number TH14936. This is the replacement dual force strut hinge. This part will fit the Thule Evolution cargo box and the Thule Atlantis cargo box. This is a hinge that's attached to the cargo box, and the way it attaches is on the cargo box, on the bottom of the cargo box there will be a ball socket. This will snap onto the ball socket at the bottom and on the top lid of the cargo box will be another ball socket. This top part of hinge will snap onto that.

It is used when you open your cargo box. This is spring loaded so it will open. It has spring tension onto it. That should do it for part number H14936.




Customer Reviews

Replacement Hinge for Thule Cargo Boxes - TH14936

Average Customer Rating:  ratingratingratingratingrating4.7 out of 5 stars   (38 Customer Reviews)

This replacement hinge fits many different Thule Roof Racks.


- TH14936

ratingratingratingratingrating by: James M05/31/2013


I swear this replacement hinge didn't exist anywhere on the internet until recently. Whatever the case, I was elated to find this part available at etrailer. Installing this hinge was a bit of a chore - it took a lot more pressure to pop the socket over the hinge posts. Don't laugh, but I actually crawled inside the topper to get a better angle on installing the hinge. That worked for me, at least. The hinge works perfectly, and my Evolution 1600 doesn't need a prop stick to hold it open anymore. 82747






- TH14936

ratingratingratingratingrating by: Todd G12/31/2013


I recently put our Thule cargo box on the roof of our Denali to head north for a week of skiing with the family. Unfortunately the lid lever broke which made opening and closing the box difficult. After a quick search of the internet, the only folks that could help me was etrailer.com. Even Thule was out of stock. The lever arrived a day later and we are having a great week of skiing with a fully functional Thule Box. Well done etrailer.com. 111640






- TH14936

ratingratingratingratingrating by: Eileen D.11/03/2013


We ordered this to replace a broken one on our Thule box, and we had been having trouble getting our local Thule dealer to help us with the part. Etrailer customer service was excellent, I was given immediate information on shipping, and follow up emails when it arrived. We received it quickly and I would definitely order from this company again! 106122






- TH14936

ratingratingratingratingrating by: Jacob H.10/28/2013


Hinge was exactly what was needed to replace a broken hinge on my Atlantis 1800 Thule. E-Trailer was the only place I could find this simple piece. Their site was easy to use, customer service and shipping was prompt and tracking identification was sent when package was in the mail. 105403






- TH14936

ratingratingratingratingrating by: Kevin05/02/2014


Installation on a late-model Thule Adventurer box was fairly straightforward. The original gas-assisted cylinders had stopped working, and needed something to replace them. They're not a perfect fit on the ball/socket, but it should do exactly what we need for quite a while. 128521






- TH14936

ratingratingratingratingrating by: Birdie12/23/2013


This hinge worked GREAT! It was quite difficult to pop onto the ball, however that means that it will be equally difficult to come back off, which is the goal. Product just as described. Thank you for your fast shipping and quality communication throughout. 110919






- TH14936

ratingratingratingratingrating by: Brian A.07/31/2013


I needed, for a 15 year old Thule roof carrier, a replacement for a hinge that was a discontinued part. I got great advice on a hinge that would work as a substitute. The shipping and delivery were as fast as advertised, and the part worked perfectly. 92511






- TH14936

ratingratingratingratingrating by: Thaddeus08/12/2014


Excellent replacement for the worn out hinges on my Thule box. Somewhat stiff to install but I think this is a good thing as they are pressure fitted balls fitting into the socket on the hinge. Excellent service and shipping. Thanks 146167






- TH14936

ratingratingratingratingrating by: Mike N.09/13/2014


Read review that the hitch would work with Sears 20-SV. Even asked the e-trailer pro and was told to buy two even though there was no right or left strut. Did not work and made closing lid impossible. Was a waste of money and time. 150937





Comments

On this particular part, the spring inside is stronger than the original equipment on the 20-SV. However, the arm length is the same, and functionality and mounting will be the same as well. It will require more input to close, as the spring is stronger and thus requires more force to collapse and allow the box to close. The TH14933 has a different spring and was for our smaller boxes, therefore it would be easier to close the box if that part is installed.

Michael L from - 09/15/2014

6848

Thanks for checking in Mike. Here's a link to part # TH14933
Replacement Dual Force Strut for Thule Roof Box
$9.50
.

Patrick B - 9/19/2014




- TH14936

ratingratingratingratingrating by: Ian C03/23/2014


Product worked as advertised. Customer service from etrailer was first class, arrived ahead of schedule with great e-mail communication to let me know where it was at each stage of the process. Would highly recommend etrailer 121838






- TH14936

ratingratingratingratingrating by: Rich B.02/04/2014


The part looks perfect and was delivered on time. I haven't installed it yet, so I can't comment on that yet. However, I'm very certain that it will work well on my Adventurer box. I will advise if this is not the case. 115716






- TH14936

ratingratingratingratingrating by: Andy03/08/2013


I bought the hinge to replace two broken hinges on an older Cascade XL model. With a bit of drilling (the older hinges have a stud and nut design) they worked perfectly! Thanks for saving me $$$ on a new Thule box! 69688






- TH14936

ratingratingratingratingrating by: Robb M.09/16/2013


This product is exactly what I was expecting. I am using this hinge on a 20-year-old Thule cargo carrier, and with slight modification to the carrier, this is a great replacement part for the old gas piston lifters. 100093






- TH14936

ratingratingratingratingrating by: Bruce G.10/18/2013


This product saved the day! Replacement pistons from Thule were no longer available, and the lid on my Adventurer box wouldn't stay up at all. These spring-loaded hinges are perfect! 104288






- TH14936

ratingratingratingratingrating by: Trevor G.11/03/2011


Super fast delivery, several emails in a couple days indicating each phase of procurement, shipping, tracking, etc. Exactly right in procedure and product - definitely recommend! 26501






- TH14936

ratingratingratingratingrating by: Rob D.08/19/2014


Perfect brand new replacement part. Easy to install, just snaps in place. This is definitely a quality part. etrailer instructional video made this a 1 minute installation. 147508






- TH14936

ratingratingratingratingrating by: Josh08/02/2013


Part fit and worked perfect. Was a little tough to get on there at first, but worked like a charm. Arrived quick and they kept me informed by email during the whole process 92826






- TH14936

ratingratingratingratingrating by: Matt P01/12/2014


Product works very well. I don't think I could be any happier with the performance of the product. That being said, installation can be very difficult without a good tool. 112590






- TH14936

ratingratingratingratingrating by: RonG07/24/2013


Perfect replacement part for the Thule Adventurer. Easy to install and works great! Etrailer has been great to work with. Easy ordering and fast delivery! 91321






- TH14936

ratingratingratingratingrating by: JDR09/29/2014


Fast well packaged shipping. Hinges better than originals that came on sears Luggage carrier. Sturdy with stronger spring. Excellent supplier. 153588






- TH14936

ratingratingratingratingrating by: Phil07/16/2013


Perfect replacement for my Evolution hinge. At this price might buy a spare to have in the event I need another replacement. 89767






- TH14936

ratingratingratingratingrating by: Peter R02/08/2012


Great service. I was able to track package from the day I ordered it. Would order from etrailer again. Thanks Peter R 31327






- TH14936

ratingratingratingratingrating by: john g01/16/2013


the part i ordered was a perfect fit. if i ever need any other parts, i will get them from you. thanks 63216






- TH14936

ratingratingratingratingrating by: Stephen J09/30/2011


Thank you the exact product I needed was shipped correctly and received intact. Perfect Thank you 24920






- TH14936

ratingratingratingratingrating by: Bill S.10/22/2014


Product as described. Great customer service and prompt shipping. Kelly was terrific. A+ 157526






- TH14936

ratingratingratingratingrating by: KC08/25/2014


Tough part to find but worked great. Installed and in use in less than a minute. 148366






- TH14936

ratingratingratingratingrating by: Glenn W07/28/2014


Very easy to replace and hard to believe it was so inexpensive. I got an extra. 143198






- TH14936

ratingratingratingratingrating by: William03/19/2013


Product as described, only surpassed by the customer service. Thanks Lexus 71604






- TH14936

ratingratingratingratingrating by: Larry03/12/2013


Useless; did not fit on ball joint. Using a tennis racket to hold box open. 70104






- TH14936

ratingratingratingratingrating by: Oellrich10/27/2014


Perfect fit, hard to get it, but then it won't pop out. happy 158064






- TH14936

ratingratingratingratingrating by: Mark07/26/2013


Excellent service! Great installation instructions ! 91813






- TH14936

ratingratingratingratingrating by: Scott05/20/2011


Installation was easy and the lid works like a charm! 14911






- TH14936

ratingratingratingratingrating by: Maine08/22/2013


The product works as well as the origin al. 96381






- TH14936

ratingratingratingratingrating by: Aaron02/17/2014


Works better than the original part. 116736






- TH14936

ratingratingratingratingrating by: paul04/02/2014


exactly what I needed...thanks. 123428






- TH14936

ratingratingratingratingrating by: Tim A10/28/2014


Love the installation video. 158290






- TH14936

ratingratingratingratingrating by: Robert01/18/2013


Very satisfied with purchase 63456






- TH14936

ratingratingratingratingrating by: T. Schatz08/05/2014


Fit perfect- 144438




38
38


Ask the Experts about this Thule Accessories and Parts
Expert Answers about Replacement Hinge for Thule Cargo Boxes - TH14936Do you have a question about this Accessories and Parts?


  • Installation of Thule Replacement Hinge # TH14936 on a Thule Ascent Cargo Box
  • The Thule Replacement Hinge, part # TH14936 is attached to the cargo box by snapping the round hole on the end of each hinge onto the ball sockets on the mounting brackets. I went out in our warehouse and opened a Thule cargo box and snapped the hinge off of the ball socket and back on and it did take some pressure to get it to snap off and on to the ball. To get it to go back on to the ball you might even need to tap it on with a hammer. I am including a link to a video review of the...
    view full answer...

  • Replacement Hinge for a Sears Sport 20-SV Cargo Box
  • I spoke with my contact at Thule and was informed that for the Sears branded Sport 20-SV cargo box you would need to use hinge # TH14936. My contact also stated that both hinges should be changed at the same time for best performance. I have linked a video review of the hinge for you. But we have recently been told that on that particular box you should use # TH14933 which has a spring with less tension making the box easier to close. Otherwise both hinges are the exact same size and shape.
    view full answer...

  • Availability of Replacement Hinges for Thule Cargo Boxes
  • If you have an Evolution or Atlantis Series cargo box, you can use the Replacement Hinge, # TH14936. These hinges are sold in quantities of 1. If you have a Mountaineer or Frontier Series box, you would use the Replacement Dual Force Strut, # TH14933, also sold in quantities of 1.
    view full answer...

  • Replacement Hinge for a Sears X-Cargo Sport 20 Cargo Box
  • I spoke with my contact at Thule and was informed that for the Sears branded Sport 20-SV cargo box you would need to use hinge # TH14936. My contact also stated that both hinges should be changed at the same time for best performance. I have linked a video review of the hinge for you. But we have recently been told that on that particular box you should use # TH14933 which has a spring with less tension making the box easier to close. Otherwise both hinges are the exact same size and shape.
    view full answer...

  • Replacement Hinge for Thule Ascent 1700 Cargo box
  • I verified with my contact at Thule that the Replacement Hinge, # TH14936, that you referenced is the correct replacement hinge for the Ascent 1700 cargo box, # TH605. This hinge has replaced older hinges which may be why they look different from those in your cargo box. This hinge will snap on to the ball socket on the top and bottom of the cargo box. You can purchase two hinges if you would like to replace both with the same hinge. I have attached a video of the Ascent cargo box with...
    view full answer...

  • What is the Correct Replacement Strut for a Thule Mountaineer Cargo Box 669ES
  • The correct replacement hinge you need is the Replacement Dual Force Strut, # TH14933, which is for the Mountaineer Cargo Box 669ES and the Frontier Cargo Box 668ES.
    view full answer...

  • Replacement Mounting Hardware or U-Bolt for the Thule Adventurer Cargo Box
  • We do have various replacement u-bolts for Thule Cargo boxes that are available by themselves. However, the original hardware for the Adventurer cargo box is actually # TH04997. For u-bolts we have the following: # TH02943, The center to center distance between each end of the u-bolt is 4 inches. It is 2 inches deep in the center. # 43216, The inside width is 3-1/4 inches and the inside height is 3-3/16 inches. For the Adventurer cargo boxes you can use the replacement hinge #...
    view full answer...

  • Replacement Strut for a Thule Cascade Cargo Box
  • I spoke with my contact at Thule and she stated that the exact strut originally used in the Cascade box had a different design but you can use # TH14933 as a replacement and it will work. The strut measures 10-1/2 inches long from the center hole on one end to the center hole on the other end when fully extended. I have included a link to a video review for you.
    view full answer...

  • Replacement Hinge for Thule Sonic XL 635B Cargo Box
  • I spoke with my contact at Thule and she confirmed that replacement hinge # TH14936 will fit the Thule Sonic XL 635B. I have included a link to a Video of Replacement Hinge # TH14936 for Thule Cargo Boxes.
    view full answer...

  • Sears Sport Track SV-20 Hinges Recommendation
  • I spoke with my contact at Thule and was informed that for the Sears branded Sport 20-SV cargo box you would need to use hinge # TH14933. My contact also stated that both hinges should be changed at the same time for best performance. I have linked a video review of the hinge for you. We have also had some customers experience difficulty closing the box because the spring tension is greater in strut # TH14936 compared to # TH14933. Both of these have the exact same dimension but # TH14933...
    view full answer...

  • Replacement Lid Hinge for a Thule Adventurer Roof Mount Cargo Box
  • For the Adventurer cargo boxes you can use the replacement hinge # TH14936. It is not the exact same part that is on the box (which is no longer made) but Thule has confirmed that the replacement hinge can be used in place of the struts.
    view full answer...

  • Older Sears X-Cargo Car Top Carrier Latch Replacement
  • We have other customers who have used the # 03347 latch as a replacement on their X Cargo boxes (see photo), and it has worked just fine. Since your box is a little older, and appears to have used the metal latches, you might need to relocate the mounting holes for the latch, but other than that, the latch should work just fine for you. For the Sears X-Cargo boxes, the only hinge that will fit according to Thule is # TH14933. Both hinges measure 10-1/2 inches long from the center...
    view full answer...

  • Replacement Hinge for Thule Force XL Cargo Box
  • The replacement hinge you referenced, part # TH14936 is indeed the correct replacement hinge for your Thule Force XL cargo box. I have confirmed this with Thule.
    view full answer...

  • Replacement Hinge for a Thule Alpine 700 European Cargo Box
  • I spoke with my contact at Thule and he stated that for the Alpine 700 cargo box the best fit would be replacement hinge # TH14936 that you referenced.
    view full answer...

  • What is Correct Replacement Hinge for Thule Atlantis 1800 XT Rooftop Cargo Box
  • The Thule replacement part you referenced, # TH14936, is the correct replacement hinge for all of the Thule Evolution and Atlantis Series Cargo Boxes. It also is a correct fit for their Adventurer and Ascent boxes. My contact at Thule confirmed this is the correct replacement hinge for your Atlantis 1800 XT cargo box.
    view full answer...

  • Replacement Hinge for a Thule Adventurer Cargo Box
  • For the Thule Adventurer cargo boxes you can use replacement hinge # TH14936. This is not the exact same hinge that originally came on the boxes but it can be used. The original is no longer available. Strut # TH14933 that you referenced fits different Thule boxes and will not fit the Adventurer.
    view full answer...

  • Replacement Hinge or Strut for a Sears Brand Super 20 Cargo Box
  • I spoke with my contact at Thule and was informed that for the Sears branded Sport 20-SV cargo box you would need to use hinge # TH14936. My contact also stated that both hinges should be changed at the same time for best performance. I have linked a video review of the hinge for you. But we have recently been told that on that particular box you should use # TH14933 which has a spring with less tension making the box easier to close. Otherwise both hinges are the exact same size and shape.
    view full answer...

  • Does the Replacement Hinge part # TH14936 Work as a Left and Right Side Hinge
  • The Replacement Hinge part # TH14936 will work on both the left and right side hinges. I attached an install and review video for you to check out as well.
    view full answer...

  • Replacement Hinge for a Thule Evolution Cargo Box
  • There is only one hinge style for the Thule Evolution cargo boxes and it is # TH14936. It will fit the front or rear. It would be a good idea to replace both so you have two new ones and not just one new and one that is worn. I have linked a video showing installation of the hinge.
    view full answer...

  • Replacement Hinges/Struts for a Sears Sport SV Cargo Box
  • There isn't a left and a right. There is just one strut that works on both sides. Replacement hinge or strut # TH14936 might be a tight fit since it is slightly different than the originals, which are no longer available, but it should still work. We have had customers use this hinge with success on the Sears Sport SV cargo box. We have also had some customers experience difficulty closing the box because the spring tension is greater in strut # TH14936 compared to # TH14933. Both of...
    view full answer...

  • Replacement Hinge/Strut for a Thule Adventurer Cargo Box
  • The replacement hinge for the Thule Adventurer cargo box is # TH14936. This is just one hinge. You would want to replace both hinges for the best operation. I have included a couple of links to the right to videos on this hinge for you.
    view full answer...

  • Replacement Hinge for a Thule Classic Series Cargo Box
  • The difference between the Thule hinges or struts # TH14936 and # TH14933 is the spring tension. The shorter length boxes use the lighter spring strut, # TH14933. Since your box is 90 inches long, that would be a longer model and you would use # TH14936. All of the Thule Classic boxes used the same strut but the original is no longer available. That would be why the newer ones look different.
    view full answer...

  • Replacement Strut for a Thule Spirit Cargo Box
  • I spoke with my contact at Thule and she determined that the proper replacement strut for the Spirit cargo boxes is # TH14936. It looks nearly identical to the other strut but they have different dimensions. I do recommend replacing both of them so you do not end up with one strong one and one old one which could cause the box to not open quite right.
    view full answer...

  • Replacement Cargo Box Hinge Recommendation for a Thule Atlantis or Ascent
  • The Thule Replacement Hinge # TH14936 that you referenced will work on Atlantis and Ascent Thule cargo boxes. So either way it should work for you. I attached a review video for this product for you to check out also.
    view full answer...

  • Will the Thule Ascent 1500 Cargo Box Fit the Factory Roof Rack on a 2012 GMC Acadia
  • The Thule Ascent series of cargo boxes has been discontinued but I was able to find a 2012 application guide and found the answer. Thule did list the box as a fit to the factory crossbars on your 2012 GMC Acadia. You might want to check to see if the crossbars are adjustable on your roof rack. The current box that is closest to the Ascent 1500 that fits your Acadia is the Pulse XL # TH615. I have included a link to a video review for you.
    view full answer...


Expert Answers about Replacement Hinge for Thule Cargo Boxes - TH14936Do you have a question about this Accessories and Parts?



Info for this part was:


Photos by:
Theodore B

Expert Research:
Michael L

Expert Research:
Michael H

Expert Research:
Jeff D

Expert Research:
Jameson C

Expert Research:
John H

Updated by:
Adele M

Expert Research:
Adam R

Photos by:
Amber A

Video Edited:
Chad S

Installed by:
Randy B

Video by:
Chris R

Updated by:
Sarah W

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.










Stay Connected


Subscribe to email newsletter

Email

privacy - we don't send unsolicited email





Free Shipping on Orders Over $99

Only 18 Hours 15 Minutes Remaining


etrailer.com reviewsetrailer.com reviews

All images, layout and content copyright etrailer.com
