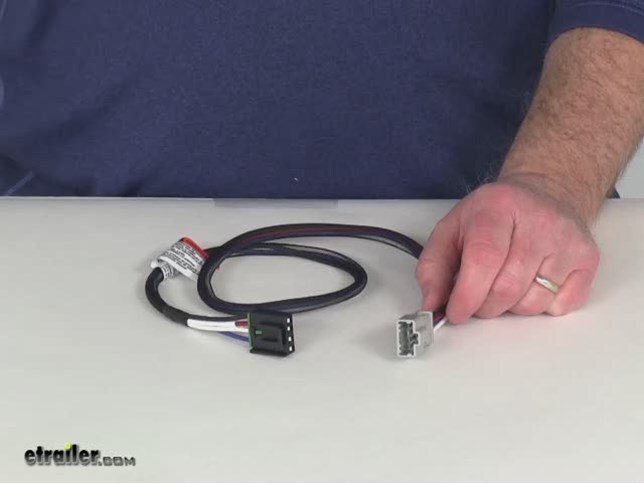

Install your electric brake controller quickly and easily with this custom wiring adapter. Simply plug one end of the adapter into your brake controller and then plug the other end into the built-in harness beneath your vehicle's dash.
Features:
Wiring adapter eases installation of your electric brake controller
Custom connector end plugs into the built-in port beneath the dash of your vehicle
Other end plugs into the back of your electric brake controller
Compatible time-delayed brake controllers: Draw-Tite Activator I (5100), Draw-Tite Activator II (5500), Draw-Tite Activator III (5520) and Tekonsha PowerTrac (39523)
Compatible proportional brake controllers: Tekonsha Prodigy (90185), Tekonsha P2 (90885), Tekonsha P3 (90195), Tekonsha Primus IQ (TK90160) and Tekonsha Voyager (39510)
Limited 1-year warranty
Installation of Tekonsha Brake Controller Adapter
This adapter plugs into the 4-pin connector on your vehicle's built-in brake control wiring harness. The harness is located underneath the dash, to the left of the steering column, taped to another harness near the emergency brake pedal.
To install your electric brake controller you need to connect the wiring of the controller to your vehicle. Certain manufacturers offer pre-wired options, typically known as tow packages, wherein these wires are run for you from the dash to the trailer connector on the back of your vehicle. Often, a brake controller wiring harness is included with your tow package. This harness plugs into a port beneath your dash and connects to the four wires of the brake controller. If, however, you have a brake controller with a plug in place of the four loose wires, you can use the Tekonsha adapter.
This adapter requires no hardwiring. It is designed to plug directly into your electric brake controller for the simplest installation possible. Because there are no wires to connect, installation is not permanent. You can unplug and remove your brake controller at any time and securely stow it away.
3070-P Tekonsha Brake Control Wiring Adapter with 2 Plugs
Customers compare 3070-P to these similar products
Wiring harness plugged right in and had plenty of length to give flexability for placement of the brake controller. Has a nice, durable protective cover around the wires to protect from rubbing. I was a Honda technican for 3 years and the quality of the harness rivaled that of OEM. Very impressed! Take this option over splicing and hacking wires in with a generic harness. Can't beat the price either. Awesome!78264
etrailer.com is the best! So much information and such helpful people!
This adapter worked perfectly to plug my new Tekonsha brake controller into my new 2013 Honda Pilot. Thank you etrailer.com! 76365
This was the part I needed to complete the installation of my Prodigy brake controller in my '08 ridgeline. After plugging in, it appears to function properly, although haven't pulled anything yet. Finding the place to plug in was fun, finally consulted the owners manual and followed directions. Located the plug connection, as per owners manual, and rest of install was a snap.74397
I ordered this with a controller for my 2010 Ridgeline. Finding the hidden connector on my Ridgeline was a challange but once I did the 3070-P plugged in no problem. I'm very satisfied with everything.46291
Product worked just as described for quick plug and play. I had it installed in 5 minutes. etrailer has amazing customer service and quick shipping, I wouldn't hesitate to buy from etrailer again.31452
The Wiring Adapter, part # 3070-P will work on the Honda Ridgeline only. The 2007 Pilot does not have the provision for plugging in a controller under the dash. To install a controller in your Pilot, you will have to hardwire the controller, using our Brake Controller Installation Kit, part # ETBC7 (for a 7-way connector) or ETBC6 (for a 6-Way connector). The install kits contain everything necessary for installing your brake controller.
If your Pilot does not already have the 4-pole trailer co view full answer...
Yes, with an OEM tow package and 7-Way trailer connector, part # 3070-P would make newer Tekonsha brake controllers a plug and play installation.
The harness is compatible with brake controllers like the Primus IQ, Prodigy, Prodigy P2, and P3. view full answer...
The Tekonsha Brake Controller Wiring Harness, # 3070-P, is only for Honda Ridgeline and Honda Pilot with the factory tow package.
To wire the Prodigy brake controller on your 2005 Honda Odyssey you will need to have a 4-Pole trailer connector on your vehicle.
Then, you will have to hardwire the brake controller with the Brake Controller 7 & 4 Way Installation Kit, # ETBC7, to your vehicle.
If you do not have a 4-Pole trailer connector on your vehicle, then you will need to install the view full answer...
The Wiring Adapter, part # 3070-P will work on the Honda Ridgeline only. The 2007 Pilot does not have the provision for plugging in a controller under the dash. To install a controller in your Pilot, you will have to hardwire the controller, using our Brake Controller Installation Kit, part # ETBC7 (for a 7-way connector) or ETBC6 (for a 6-Way connector). The install kits contain everything necessary for installing your brake controller.
Since your Pilot already has the 4-pole trailer connect view full answer...
The 2011 Honda Odyssey with the factory tow package does not come with a connector for the 3070-P brake controller wiring harness under the dash, so you will have to hard wire the vehicle for a brake controller. The Brake Controller 7 and 4 Way Installation Kit, item # ETBC7, will be needed, along with a 4-Way wiring harness, item # 118521, at the back of the vehicle. If you already have the 4-Way with the factory tow package you will not need the 4-Way wiring harness to complete the brake contr view full answer...
If your Ridgeline is equipped with the factory tow package, you can use the Tekonsha Wiring Adapter, part # 3070-P to connect a controller. The presence of the factory 7-way trailer connector on the rear bumper is a sure indication that your Ridgeline is equipped with the tow package.
To install the controller, simply plug the larger end of the connector into the connector located under the dash. The connector can be found taped to another harness, to the left of the steering column near the view full answer...
The Tekonsha Wiring Harness, part # 3070-P, with the Tekonsha Primus IQ Brake Controller, part # TK90160, is for use on a 2009 Honda Pilot with the OEM tow package and the factory 7-Way trailer connector on the rear of your vehicle. You will want to make sure that your vehicle has the factory OEM tow package.
The wire colors on your Honda factory brake controller connector could be different than the standard black, red, blue and white colors on the # 3070-P connector. Each vehicle manufactu view full answer...
The 2009 Honda Pilot can use a wiring adapter for the brake controller but there is no adapter available for the 2003. So you will need to hardwire it. But lets start with the 2009.
You will need the brake controller and the wiring harness. The brake controller is part # 90195 and the wiring harness is # 3070-P that you have referenced. I have included a link to the installation details for the brake controller for you.
The brake controller comes with a harness that has blunt cut wires. Yo view full answer...
If your Pilot came from the factory with the 7-way trailer connector at the rear bumper, it will have the connector under the dash that the # 3070-P would plug into. You would attach the controller to the underside of the dash within easy reach of the driver, plug one end of the wiring adapter into the connector under the dash and plug the other end into the back of the controller.
Since it sounds as if you had to install a 4-pole wiring harness, the connector will not be present and you will view full answer...
I went out to the warehouse and pulled the Tekonsha Plug-In Wiring Adapter for Electric Brake Controllers, # 3070-P and found that it is 32 inches long overall. I produced a short video showing the length of the adapter for you.
view full answer...
As long as your 2009 Honda Pilot Touring came with a factory 7-way connector at the back of the vehicle, then you can use the Tekonsha Plug-In Wiring Adapter, # 3070-P. This adapter will plug into the back of your Tekonsha brake controller and the other end will plug into the 4-pin connector on your vehicles built in brake control wiring harness. The harness will be located under the driver side dash just to the left of the steering column. It may be taped to another harness near the emergency b view full answer...
To install a brake controller on a 2005 Acura MDX you will need to hardwire it in using a 4-Way, # 118336, and installation kit # ETBC7. I have included some links to instructions and FAQs that will help with installation.
For a brake controller I reocmmend the Tekonsha P2, # 90885. It is one of our most popular controllers because it is easy to set up and easy to use. I have linked instructions for it as well. view full answer...
It sounds like you are missing the fuse in your smaller, secondary under-hood fuse box that powers the brake controller. I checked in a manual for a 2012 Honda Pilot, and it was the number 14 fuse labeled Trailer E-Brake. It should be close if not identical in your 2013 model. There should be a diagram on the underside of the fuse box cover you can use to verify this. view full answer...
