Replacement Breakaway Switch for Roadmaster Even Brake & Brake Pro

Roadmaster Accessories and Parts

(8 reviews)


Code:   RM-650898

Retail:$28.37

Price:$25.95


Shipping Special

Shipping Weight: 0.22 pounds

Quantity:






Roadmaster Accessories and Parts - RM-650898


  • Included:
    • Breakaway switch for Even Brake




Video of Replacement Breakaway Switch for Roadmaster Even Brake & Brake Pro


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

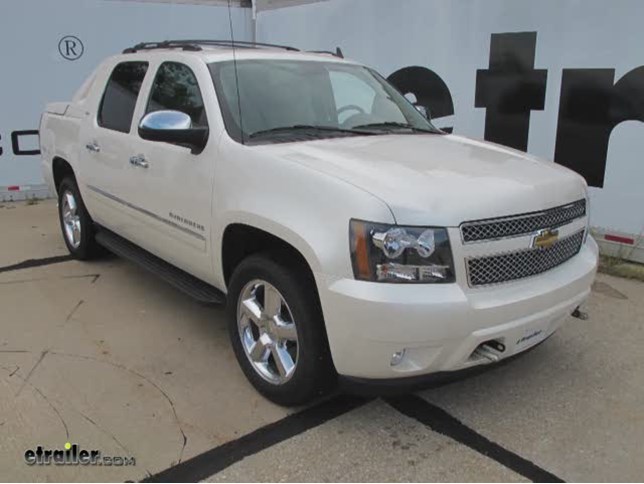

Video Transcript for Roadmaster Replacement Breakaway Switch Installation - 2011 Chevrolet Avalanche

Today on our 2011 Chevrolet Avalanche we're going to be installing the Roadmaster Replacement Breakaway Switch for Roadmaster Even Brake and Brake Pro, part number RM-650898. In addition to the breakaway switch we're also going to be installing the Roadmaster Breakaway Harness for Even Brake Braking Systems, part number RM-650900. Here's what our new breakaway switch looks like. It does come with a bolt and a nut to secure it, as well as a rubber grommet if you would need to drill a hole through any sheet metal to route the wiring. Here's what the harness looks like that we're going to be installing today. The ends, as you'll notice, match up with our breakaway switch. They just plug in like that. The other end will be routed into the cab of the vehicle where it'll tie in with your braking system. On the front of this vehicle there's not many locations that you won't have to drill or cut through the painted portions of the front fascia.

We're going to go ahead and put our breakaway switch in this general area here. It'll be out of the way of the removable arm, yet low enough that we won't be in the way of the safety cable from the base plate. It'll also give us straight pull forward if it would ever need to be pulled due to breakaway situation. We have our breakaway switch here and I took a bracket that came with our face plate kit and I kind of bent it to make it fit how we're going to mount things. Again depending on your exact location that you choose to mount your breakaway switch may determine what sort of bracket you use or what modifications you might have to make. We're going to go ahead and use the bolt and the nut that come with the kit to attach our bracket to the breakaway switch.

Tighten it down enough to hold it in place. We'll be able to feed it through the hole here and it'll end up in there something like that. This will allow us still a straight pull for the breakaway switch to be pulled out. Now with our breakaway switch installed we're going to go ahead and drill a hole through the portion of frame to attach the bracket to it. Let's take our paint marker to mark where we need to drill. To connect our bracket to the frame we're going to be using a hex bolt, a washer and a flange nut.

You will need to supply these additionally. Go ahead and install that through the frame. Then we'll put the flange nut on. Go ahead and tighten down everything by hand for now. We can go ahead and make some final adjustments and then finish tightening down the hardware. Next we'll need to go ahead and take our wiring harness, we'll plug in into the back side of the breakaway switch.

Once we have it plugged in we're going to go ahead and take a little bit of electrical tape to wrap up our connection and help protect it from the elements. I'm going to go ahead and wrap up the two wires that come out of the back side of the breakaway switch as well, just to give them a little more protection too. Now that we have out connection made we'll need to take the wiring harness, we'll need to route it up into the cab of the vehicle where we'll store it up underneath the dash on the driver side. Now when routing the wire or the cable, you want to make sure that you stay away from areas that have sharp edges, any moving parts or areas that may become hot as all of these could easily damage the wire. We'll also be using a few zip ties along the way to help us in securing the wire. Now we've routed the wire up and there's a large grommet right down there on the firewall where the main wiring harness goes into the cab of the vehicle. That's where we're going to end up routing our wire into the cab through. Before we do that we're going to go ahead and trim off any excess zip tie that we may have used to secure the wiring. Next we're going to go ahead and take our razor knife and we're going to put a cut here in the rubber grommet so that we can pull our wire through. We'll then need to go on the inside of the vehicle and put a cut on the grommet as well. We've gone ahead and threaded a pull wire through the rubber grommet where we put a slit on both sides. Our pull wire that we're using is just an old piece of air line tubing, but you can use other things as the pull wire. You just need something that's rigid enough that you can push it through the rubber grommet. Now we'll go out underneath the hood, we'll take the wiring harness to the other end of our pull wire, where we'll pull it through the grommet into the cab of the vehicle. We'll then go ahead and secure up any excess wire here so that whenever we're not using our braking system it'll be up out of the way. Make sure you leave enough wire so that when you are ready to use your braking system, you can simply pull the breakaway wire down and plug it into the breakaway system. We can then trim off any excess zip tie. That'll do it for the installation of the Roadmaster Replacement Breakaway Switch for Roadmaster Even Brake and Brake Pro, part number RM-650898 in conjunction with the Roadmaster Breakaway Harness for Even Brake Braking Systems, part number RM-650900 on our 2011 Chevrolet Avalanche. .


Customers compare RM-650898 to these similar products





Customers who look at this part compare it to





Customers Who Purchased This Accessories and Parts Also Bought...








Customer Reviews

Replacement Breakaway Switch for Roadmaster Even Brake & Brake Pro - RM-650898

Average Customer Rating:  5.0 out of 5 stars   (8 Customer Reviews)



- RM-650898

by: David01/23/2013


I had purchased and had installed the Roadmaster Brake Pro system on my '00 Nissan Frontier about 10 years ago. I recently traded that vehicle in for a '12 Frontier, but before I did that, I removed the Brake Pro and tow hitch components. I installed all of these components on my new truck, but found that the orginal breakaway switch no longer worked reliably. Roadmaster doesn't sell repair components directly to consumers, but a web search led me to etrailer. The component that they provided was easy to install as a replacement and works perfectly. 63966






- RM-650898

by: Steve09/02/2014


This is a new switch, carefully packaged, and complete. My purchase was easy and delivery was fast. etrailer's order status link was helpful with package tracking. This is the second purchase I have made from etrailer and I will continue to be a loyal customer. 149672






- RM-650898

by: Mike V.04/01/2013


Worked and installed easily per the directions. Wired it up through a flat-4 trailer-type connector, along with power, to the Roadmaster ICX transmitter unit--makes for easy install/removal. 73627






- RM-650898

by: Mike10/13/2014


Bought this as a back-up/replacement to use for my Roadmaster Supplemental Braking System. It came quickly and was just what I needed. 155704






- RM-650898

by: Pete W.07/04/2014


Exactly what I wanted. Great service from Wayne. 139177






- RM-650898

by: John C.09/03/2014


Not installed yet, but it should work f ine. 149950






- RM-650898

by: Duane04/29/2015


Product arrived on time and works great. 188817






- RM-650898

by: john L.03/27/2014


good product and good price 122565
