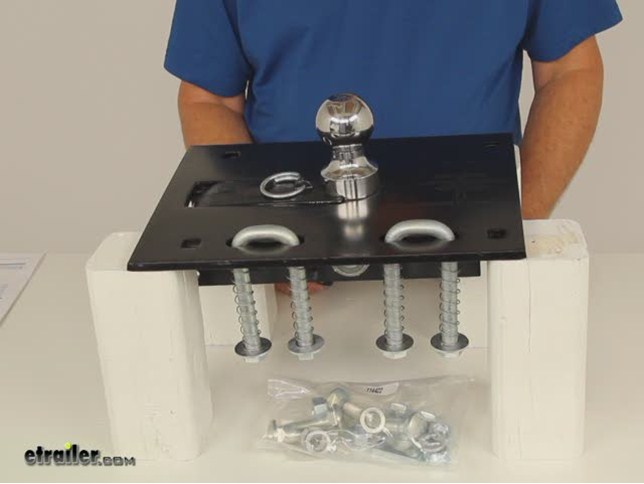

Video Demo Reese Accessories and Parts 8339

Reese Accessories and Parts 8339 Review

Fold-Down Gooseneck Trailer Hitch

Draw-Tite Accessories and Parts

Code:   8339

Retail:$240.35

Price:$164.95


Shipping Special

Shipping Weight: 41 pounds

Quantity:







Draw-Tite Accessories and Parts - 8339


Features:

  • Platform and ball rated for 25,000 lbs gross vehicle towing weight and 6,250 lbs vertical load weight
  • Fold-down design allows unrestricted use of truck bed when not towing
  • Takes only seconds to raise or lower the ball into position
  • Heat-treated 2-5/16" ball
  • Integrated drop-down spring-loaded safety chain loops
  • Oversize pull ring allows user to raise or lower the ball while wearing gloves
  • Integrated grease fitting is visible and easily accessible
  • No alteration of factory exhaust systems required
  • Mounting rails sold separately
  • Dimensions: 12" long x 14.5" wide x 1/4" thick




Fold Down Gooseneck Trailer Hitch

Fold Down Gooseneck Hitch is designed for use with vehicle-specific mounting rails. To find the rails for your truck, use the Hitch Hunter gooseneck fitguide. Save on the hitch and rails when purchased together!



8339 Fold-Down Gooseneck Trailer Hitch



8339 Installation InstructionsInstallation Details 8339 Installation instructions



Video of Fold-Down Gooseneck Trailer Hitch


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.




Video Transcript for Reese Accessories and Parts 8339 Review

Today we're going to review part 8339. This is the Reese fold-down gooseneck trailer hitch. This fold-down gooseneck hitch is designed for use with vehicle-specific mounting rails. This hitch will bolt using the included mounting hardware right here, to the vehicle-specific mounting rails. We would recommend for you to go on our website and under our fitguide put in your year and model of vehicle. That would tell you if they do have vehicle-specific mounting rails that you could use on your vehicle, to attach this to it. The platform and the ball itself is rated for 25,000 pounds gross vehicle towing rate, and 6,250 pounds vertical load weight. The fold-down design allows unrestricted use of your truck bed when you're not towing.

You just pull up on this here, the ball will fold down. Push that back in place, and you have full use of your truck bed. It does take only seconds to raise and lower the ball. Again, just pull up on this, ball would pop up. Again, just lower your .. right there, and you're ready to go.

It uses a heat-treated 2-5/16 diameter gooseneck ball. Has the integrated, as you can see right up here . integrated, drop down spring-loaded safety chain loops. Just hook your safety chain loops to that. Right here, the oversized pull ring allows you to raise or lower the ball. Basically just pull up on it, lower it. Also right here at the top ...

might be hard to see, but on the ball, it does have an integrated grease fitting, which is visible and easily accessible to grease the ball. That does require no alteration of the factory exhaust systems. Again we mentioned, the mounting rails are sold separately. Now we also do sell packages where you can buy the mounting rails for your vehicle, with this included. The dimensions on this, I want to give you a few dimensions. The width on it: 14.5 inches, length is 12 inches and it's 0.25 inch thick. Again, just to demonstrate, now that you have it, you're not towing with it.

It's in the stored position. You have full truck bed access. When you're ready to tow the goosneck. Pull up on this, it will pop up. Push it back down. That would hold it into place, and you're ready to tow with your gooseneck. Now, that should do it for the review on part number 8339, the Reese fold-down gooseneck trailer hitch.

0
0


Ask the Experts about this Draw-Tite Accessories and Parts
Do you have a question about this Accessories and Part?


  • Installation Kit to Install Folding Gooseneck Trailer Hitch 8339 on a 2011 Ram
  • If you have a 2011 Ram 1500 series 6 or 8 foot bed and it is not a crew cab then to install the folding gooseneck hitch # 8339 you will need installation kit # 4446. If you have a 2500 or 3500 series 6 or 8 foot bed then you would need installation kit # 4435.
    view full answer...

  • Can a Toolbox be Used while Towing a Gooseneck Trailer with a 2001 Ford F-250 Short Bed
  • The space needed in front of the gooseneck ball depends on how large the coupler is that fits over the ball. Remember that the coupler can not only rotate on the ball side to side but also tilt forward and back some so you would want to take some measurements without the box installed to determine about how much travel there is at the coupler and then get a box that will fit. The other thing to be concerned about is when making tight turns. If the gooseneck trailer is squared off at...
    view full answer...

  • How to Release the Gooseneck Ball on a Gooseneck Trailer Hitch for a 2002 GMC Sierra 2500HD
  • If you have a Fold Down Gooseneck Trailer Hitch like # 8339, that you have referenced, all you have to do is pull on the ring and the ball will fold out. But there are other types of gooseneck hitches that hide the ball in the bed. Some require a handle that exits from under the bed into the driver side wheel well, like # 9460. For this type, you would pull the handle out to release the locking pin, turn the ball over, and push the handle back in to lock it in place. If you can determine...
    view full answer...

  • Gooseneck Trailer Hitch Installation Kit for a 2011 Ford F-150 Long Bed
  • The correct installation kit for a 2011 Ford F-150 and gooseneck hitch # 8339 is Gooseneck Trailer Hitch Installation Rail Kit, # 4437. This kit fits the following: 2009 - 2011 Ford, F-150, New Body Style, Regular Cab w/6.5 and 8 ft. Beds 2009 - 2011 Ford, F-150, New Body Style, SuperCab w/6.5 and 8 ft. Beds 2009 - 2011 Ford, F-150 SuperCrew, New Body Style, w/6.5 ft. Beds You may also need a template for easier installation, # 6425. According to Draw-Tite, the correct hitch...
    view full answer...

  • How Does Reese Low-Profile 5th Wheel Trailer Hitch Work with a Folding Gooseneck Hitch Ball
  • The head, which is the top most part of hitch # RP30054, is held to the base below it with pins. Just undue the pins and you can lift the head off. The legs are short enough so that if you had a gooseneck ball that folds, such as # 8339 for example, the legs would not interfere with the operation of the gooseneck or the gooseneck coupler on the trailer. The low profile 5th wheel hitch is usually used on flat bed trucks and requires a professional installation. I have linked the install...
    view full answer...

  • Is the Under Bed Mounting Hardware Included in Fold-Down Gooseneck Kit 8339-4430 for my 1999 F-250
  • Part # 8339 includes just the gooseneck trailer hitch. For an installation kit, you would need Gooseneck Trailer Hitch Installation Rail Kit, # 4448. I have included a link to the installation details for you. Using Fold Down Gooseneck Hitch Installation Template, # 6425, will make installation easier.
    view full answer...

  • 2008 Ford F250 Super Duty 4 Door Pickup Gooseneck Installation Kit
  • We do have a Fold-Down Gooseneck Trailer Hitch with Installation Kit - Ford Super Duty Trucks, item # 8339-4448, that will fit your pickup with 6-1/2 foot or 8 foot bed. The installation of this gooseneck hitch is straight forward and instructions (see link) are very good for these hitches. .
    view full answer...

  • Does Gooseneck Trailer Hitch and Install Kit # 8339-4438 Have Everything Needed for Installation
  • The Fold-Down Gooseneck Trailer Hitch with Installation Kit, # 8339-4438, comes with the hitch, the installation kit, and the hardware needed to install it in the following trucks. 2003 - 2005 Dodge Ram Pickup 6 Foot Bed, 1500 Series 2006 - 2008 Dodge Ram Pickup 6 Foot Bed, 1500 Series, except Mega Cab 2003 - 2008 Dodge Ram Pickup 8 Foot Bed, 1500 Series I have included a link to the installation details for you to review. Basically, you would install the rails first. The rails...
    view full answer...

  • Fit of Draw-Tite Gooseneck Hitch 8339 with Installation Rail Kit 4435
  • Yes, the Draw-Tite gooseneck hitch # 8339 is a confirmed match to the installation rail kit # 4435 which fits your 2007 Dodge Ram 2500 6-foot-bed mega cab. We offer both together as part # 8339-4435 and each portion is available individually too as parts # 8339 and # 4435. If you need a wiring harness for the truck we have Bargman in-bed gooseneck harness # 51-97-411.
    view full answer...

  • Available Folding Gooseneck Hitch for a 1997 Ford F-350 Single Rear Wheel
  • At this time, we do not carry a folding gooseneck for a 1997 Ford F-350, but we do have other types of goosenecks available. The Curt Quick Goose 2, part # C630-636, is a complete kit that includes the under bed rails and the gooseneck hitch. There is much less bed drilling involved with this kit than the folding style goosenecks. The Quick Goose 2 uses a couple of wheel well handles that will engage and disengage the ball without having to climb in the truck bed at all. The hitch...
    view full answer...

  • Frame Rails Needed to Install Gooseneck Hitch on 2000 Ford Super Duty
  • Installation rails are needed with the gooseneck hitch. For the Reese Fold Down Gooseneck Hitch, part # 8339 you would need Gooseneck Trailer Hitch Installation Rail Kit, # 4448. The rail system is what actually attaches the hitch to the truck frame. The truck bed itself is not strong enough to provide the only attachment point. For your convenience, I will provide links to the install instructions for the rail kit as well as the hitch itself.
    view full answer...

  • Gooseneck Hitch Recommendation for 2003 GMC Sierra 2500 Long Bed for Use with High Rise Adapter
  • I have a solution for you, but the High Rise part # 9480 will not work on the Fold-Down Gooseneck Trailer Hitch # 8339 that you referenced as it will only fit the B&W Turnover Ball, the Hide a Goose and Under Bed hitch by Draw Tite, Reese or Bulldog. You could still use an adapter like the Andersen Ultimate Connection part # AM3200 with the # 8339 though. If you are looking for a gooseneck hitch for your 2003 GMC Sierra 2500 long bed that would be compatible with the High Rise you...
    view full answer...

  • Replacement Fold-Down Gooseneck Hitch for 2001 GMC Sierra 2500HD
  • The Reese Fold Down Gooseneck Hitch and its install kit, part # 8339-4434 are indeed a fit for your 2001 GMC Sierra 2500HD. The plate itself is 12 x 14-1/2 inches, slightly wider than the hitch you currently have. To install the hitch, you'd first need to completely remove your existing hitch and frame mounting rails. Since your existing frame rails haven't been tested with the Reese hitch, the weight capacity would be completely unknown if you tried to reuse them. Since I don't...
    view full answer...

  • Is Template # 6425 Included with the Fold Down Gooseneck Hitch Part # 8339
  • All installation hardware is included, but the template is not, and would need to be ordered separately. The template is part # 6425.
    view full answer...

  • Will the Draw-Tite Gooseneck Installation Rail Kit # 4435 Fit a 2004 Dodge Ram 3500 Short Bed Diesel
  • The Gooseneck Hitch Installation Rail Kit, # 4435, is the correct rail kit for your 2004 Dodge Ram 3500 Short Bed Diesel. This rail kit works with the Draw-Tite Remov-A-Ball Gooseneck Hitch, # 6300, and the Reese Fold-Down Gooseneck Hitch, # 8339. This is also a custom rail kit that does not require any drilling to install. I have attached a link to the installation instructions as well as links to the gooseneck hitches for you to check out.
    view full answer...

  • Gooseneck Hitch Option For 2014 Ford F-350 Cab & Chassis With Flat Bed
  • We do not offer any custom gooseneck hitches for your F-350 Cab And Chassis, but we do have the Fold-Down Gooseneck Trailer Hitch with Installation Kit, part # 8339. This hitch has a 25,000-lb gross towing capacity and includes a 2-5/16 inch ball. The ball folds down so you have full use of the truck bed when not towing. This kit would require custom brackets and hardware to mount on your flat bed. The hitch must be attached to the frame of the truck and cannot be mounted with just...
    view full answer...
