Accessories and Parts Pro Series PS1400750340

Pro Series 6", Detachable Caster w/ Pin for 2" Diameter Jacks - 1,200 lbs

Rating: rating rating rating rating rating
56 reviews

Code: PS1400750340

Retail:$14.04

Price:$12.99

Shipping Weight: 3.63 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Pro Series Trailer Jack PS1400600303 Review - Video

Pro Series Accessories and Parts - PS1400750340

Corrosion-resistant, removable caster has fitting for 2" jack tube and is rated at 1,200 lbs.

Features:

Caster assembly fits jacks with 2" tubing
Clear zinc finish on caster base resists rust

Specs:

Fits: jacks with 2" diameter tubing
Wheel diameter: 6"
Capacity: 1,200 lbs
Limited 1-year warranty

1400750340 Pro Series 6" Caster with Pin - 1,200 lbs

1400750340 Fulton Removable Caster and Pin Assembly

Video of Pro Series 6", Detachable Caster w/ Pin for 2" Diameter Jacks - 1,200 lbs

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

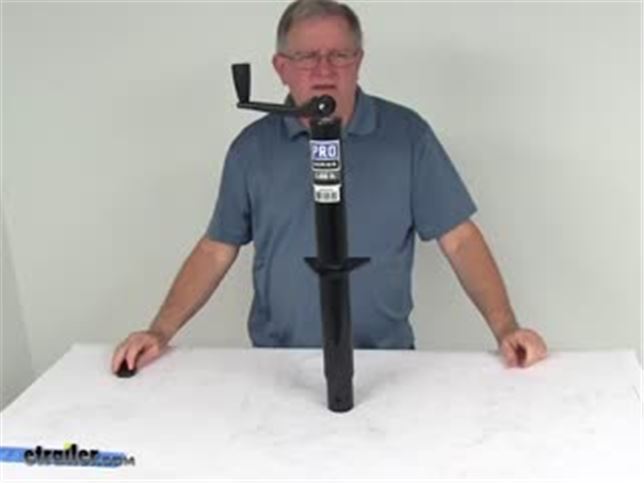

Video Demo Pro Series Trailer Jack PS1400600303

Pro Series Trailer Jack PS1400600303 Review

Video Transcript for Pro Series Trailer Jack PS1400600303 Review

Today, were going to review part number PS1400600303. This is the Pro Series Round, A-Frame Topwind Jack. This jack has a lift capacity of 5,000 pounds. It is a standard A-frame jack, will work good as a utility jack, and is perfect for agricultural and commercial applications. It is made with precision-fit parts which would provide exceptional stability and reliability. The mounting bracket, which is the triangular piece right here with the three holes in it, is what is used to mount it to any standard A-frame trailer.

It can be welded on and it does have three elongated holes so it can be bolted on. It will wind up to the holes on a standard A-frame trailer because they do use an industry standard of 3 inches, the distance between the center of the holes. The outer tube and the inner tubes have a black paint finish. This is a topwind jack so the handle is at the top and it winds that way. It has smooth ergonomic design for easy cranking.

This jack does not come with a base. A footplate or a caster assembly is sold separately. I do want to give you a few dimensions on this. The clearance on this jack which would be from the mounting plate to the top of the jack is 14-1/2 inches. This jack is in the fully retracted position, so the retracted height which would be from the end to the mounting bracket is 10-13/16.

Now, the fully extended position, Im going to show you, I have another jack here to save some time and it is already in the fully extended position. That measurement from here to here will be 25-13/16. What that means is that if you would subtract the retracted measurement from the extended measurement, that will give you 15 inches of lift. Now, the outer tube diameter is 2-1/4 inches. The inner tube diameter is 2 inches.

This jack does have a 5,000-pound lift capacity. It does come with a limited one-year warranty. I also just wanted to show you the bases that are sold separately to give you an idea of what you could use on this. You can use the footplate, which will be part number PS1400700340, and basically you would install that by -- there are the holes right here at the bottom of the inner tube and you would take the pin and clip out, align the footplate with hole in the jack, put your pin through, and then push the pin on to lock it in place. That would give you the jack with the footplate. The footplate is sold separately. The other part would be the caster assembly, which would be this part here. This is the wheel caster assembly. It is part number PS1400750340. In the same way, you take that out, line up the holes, put the pin through, pin on, and now you would have a jack with the caster assembly on the bottom. That should do it for a review on part number PS1400600303.

Customers compare PS1400750340 to these similar products

Jack Caster for Shelby 2K A-Frame Jacks $13.99

Trailer Jack Caster for 2K and 5K Jacks $21.95

Replacement Heavy-Duty, 6" Caster for 2" Diameter Bulldog Jacks - 1,500 lbs $36.95

Pro Series Detachable Footplate w/ Pin for 2" Diameter Jacks - 2,000 lbs to 5,000 lbs $5.99

Removable Wheel with Pin for A-Frame Trailer Jacks by Dutton-Lainson $25.95

Customers who look at this part also view

Pro Series Round, A-Frame Jack - Topwind - 14" Lift - 2,000 lbs $19.95

Pro Series Round, A-Frame Jack w/ External Gearbox - Sidewind - 14" Lift - 2,000 lbs $28.95

Pro Series Round, A-Frame Jack - Topwind - 15" Lift - 5,000 lbs $25.95

Pro Series Round, A-Frame Jack - Topwind - 15" Lift - 2,000 lbs $22.95

Customers Who Purchased This Accessories and Parts Also Bought...

Pro Series Detachable Footplate w/ Pin for 2" Diameter Jacks - 2,000 lbs to 5,000 lbs $5.99

Bonded 4 Wire - per foot $0.57

Pro Series Round, A-Frame Jack - Topwind - 14" Lift - 2,000 lbs $19.95

Pro Series Round, A-Frame Jack - Topwind - 15" Lift - 2,000 lbs $22.95

Pro Series Round, A-Frame Jack w/ External Gearbox - Sidewind - 14" Lift - 2,000 lbs $28.95

Ask the Experts about this Pro Series Accessories and Parts
Expert Answers about Pro Series 6", Detachable Caster w/ Pin for 2" Diameter Jacks - 1,200 lbs - PS1400750340 Do you have a question about this Accessories and Parts?

Need Tube Dimensions On A Caster Wheel For A 2 Inch O.D. Tube On A Trailer Tongue Jack
The tube diameters on the Pro Series 6 Inch, Detachable Caster w/ Pin, part # PS1400750340, is 2 inch inside diameter and 2-1/4 inch outside diameter. The down tube on a 2 inch jack will fit inside the 2 inch tube on the caster. You will need to make sure that the jack will have the hole in the down tube for the pin on the caster to go through and hold the caster to the jack. Also, both of the casters have a weight capacity of 1,200 lbs. If these casters are used on a jack with a higher weig
view full answer...

Can Pro Series Jack Wheel, # PS1400750340 Handle a Trailer Tongue Weight of 535 Pounds
The Pro Series Jack Wheel, # PS1400750340, has a capacity of 1,200 pounds. Since the weight that will be on it is the tongue weight, maybe a little higher depending on where the jack is positioned, the wheel should be able to support the weight without issue. If the trailer weighed in at 7,500 pounds and the tongue weight was at 10 to 15 percent, that would be a range of 750 to 1,125 pounds. The upper capacity is close to the capacity of the wheel but still under it. At 3,500 pounds, the r
view full answer...

Could a 2800 lb Trailer With a Pro-Series Caster Be Maneuvered by a Single Person
If you were on level, smooth ground and you had this Pro Series Detachable Caster # PS1400750340 installed on your jack you should be able to move your trailer around. This of course depends on your physical strength as well, but you should not have a problem maneuvering your trailer. If your trailer happens to be a tandem axle trailer then it may prove to be difficult to move around. If it is a single axle it should not be too difficult to move around.
view full answer...

Recommend Trailer Jack Caster For Jack w/ 2-1/4 Jack Tube
I contacted our representative at Pro Series informed me that the inside diameter of the Pro Series Caster, part # PS1400750340, measures 2-1/16 inches. This wheel is designed to fit over the tube of your trailer jack. I believe you will need to use the Shelby Jack Caster, # 5702, which is designed to fit jacks with a 2-1/4 inch tube. The Shelby Jack # 5702 has a capacity of 2,000 lbs. You should not grind or modify the jack, as it could reduce the structural integrity of the jack or make
view full answer...

Replacing Caster on Jack with 1-7/8 Outside Tube Diameter
In order to choose the correct caster for your jack, we will need to know the the diameter of the inner jack tube. Given the outside diameter of your jack, most likely you would use part # AT80259 for a 1-3/4 inch tube, but you should still measure to be sure. If you hitch the trailer to a vehicle, and then raise the jack, you should be able to remove the caster you are currently using. Once the caster is removed it should be pretty simple to use a tape measure to get the diameter of that inn
view full answer...
