An oval, black PVC grommet needed for flush mounting 6-1/2" oval lights. This PVC grommet gives shock mount protection that extends the life of the lamp. Along with the sealed light, a 3-wire pigtail is required to complete the installation. Call 800-298-8924 to order Optronics Accessories and Parts part number a70gb or order online at Free expert support on all Optronics products. Guaranteed Lowest Price and Fastest Shipping for PVC Grommet for 6-1/2" Oval Trailer Tail Lights. Accessories and Parts reviews from real customers.
Select Your Vehicle

View Cart

Accessories and Parts > Trailer Lights > Replacement Parts > Mount Parts > Grommet > Oval > Optronics

PVC Grommet for 6-1/2" Oval Trailer Tail Lights

Optronics Accessories and Parts

(161 reviews)

Code:   a70gb



Shipping Special

Shipping Weight: 0.17 pounds


Optronics Accessories and Parts - a70gb

An oval, black PVC grommet needed for flush mounting 6-1/2" oval lights. This PVC grommet gives shock mount protection that extends the life of the lamp. Along with the sealed light, a 3-wire pigtail is required to complete the installation.


  • PVC grommet for flush mounting 6-1/2" oval lights
  • Shock protection extends lamp life
  • Open back gives easy access for wiring
  • Requires a three-wire plug (A45PB or A47PB) along with the light to complete installation
  • Dimensions: 7-5/8" L x 3-3/8" W x 1-1/8" D

Manufacturer Cross Reference
Grommet will work as an exact replacement for:
Wesbar # 226088
Truck Lite # 60700
Grote # 92420
Peterson # 421-18
Bargman # 40-06-020

Manufacturer Specifications

Black PVC grommet allows oval lights to be flush mounted. Provides shock mount to lengthen bulb life.

dimensions of rubber grommet

A-70GB Optronics Rubber Grommet for 6-1/2" Oval Trailer Tail Lights

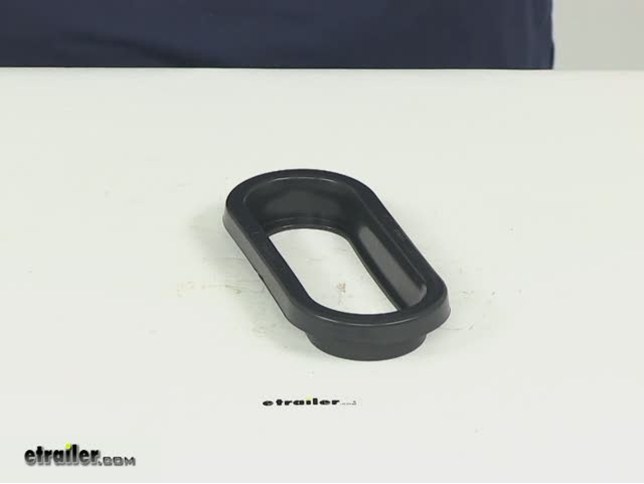

Video of PVC Grommet for 6-1/2" Oval Trailer Tail Lights

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Transcript for Optronics Accessories and Parts A70GB Review

Today we'll be reviewing part number A70GB. This is the Optronics Rubber Grommet for 6 1/2 inch Oval Trailer Lights. It is designed for flush mounting those lights. It's going to provide shock protection. This is going to extend the life of your lamp. It's going to feature that open back design that's going to give easy access for wiring.

This does require a 3 wire plug along with the lights to complete installation. Those are going to be sold separately. Couple different plugs that we would recommend is part number A45PB or A47PB. Let's go over the dimensions of the grommet. It's going to give us an overall length of 7 5/8 of an inch. Overall width of 3 3/8 and then an overall depth of 1 1/8.

That's really easy to install, a light I have in right here for our demonstration. Once you have your 6 1/2 inch over light, all you got to do is place it through the grommet. Then just push it into place. The grommet comes up over the light and that's all there is to it. The light is nice and secure in there.

Again, you have the open back for easy access to the wiring. That going to do it for today's review of part number A70GB. This is the Optronics Rubber Grommet for 6 1/2 inch Oval Trailer Lights. .

Customers compare a70gb to these similar products

Customers who look at this part compare it to

Customers Who Purchased This Accessories and Parts Also Bought...

Customer Reviews

PVC Grommet for 6-1/2" Oval Trailer Tail Lights - a70gb

Average Customer Rating:  4.8 out of 5 stars   (161 Customer Reviews)

An oval, black PVC grommet needed for flush mounting 6-1/2" oval lights. This PVC grommet gives shock mount protection that extends the life of the lamp. Along with the sealed light, a 3-wire pigtail is required to complete the installation.

- a70gb

by: oval trailer tail lights03/29/2014

Great looking taillights wish I had bought them sooner. thanks 122823


just like a TIMEX watch takes a licking

oval t - 03/21/2015


- a70gb

by: Wholesale Window & Door Co.02/03/2014

I was extremely happy with your web site, which helped me to know the exact tail light I needed. The product came quickly and was of very good quality. It fit right in the old trailer we use for our business. Steve 115561


The parts are still working well!

Wholesale W - 02/03/2015


- a70gb

by: Kevin04/08/2014

dont fit as snug as the original ones my trailer has, but they work fine. 124381


Still working just fine.

Kevin - 04/08/2015


- a70gb

by: Ken M10/04/2013

Made it a professional looking job! 102529


Holding LEDs in place, no signs of dry rot.

Ken M - 10/05/2014


- a70gb

by: Jim s.09/20/2013

Grommet fits perfect. 100758


no problems after a year.

Jim s - 09/20/2014


- a70gb

by: Jeff.B07/25/2014

Just what i needed,fit pefect. 142933


Great product.

Jeff.B - 07/25/2015


- a70gb

by: Terry M05/07/2013

Didn't fit the holes in my trailer, although LED lights fit and were same size as original. Measure the cut out in your trailer before ordering. Product was fine but my assumption was it was a standard size. My fault - they will go in the trash now. 79286


I just had the same experience, needed a thicker or bigger gasket, even trailer manufacturer confirmed this issue, not sure where to get the thicker gasket from? Like You, I thought these were all the same size, the lights to go into the gaskets are...but not the gaskets?

comment by: todbnla - 05/20/2013


Do you have the part number from the old gasket? Should be molded on it somewhere. That may help shed some light.

Patrick B - 5/20/2013

- a70gb

by: gary h11/20/2013


- a70gb

by: Denise H.04/24/2015

I ordered two new lights for my boat trailer and two new rubber grommets to go with them. The rubber grommets were too small and the light and grommet would fall out of the hole. I ended up using my old grommets with the new lights. They were very inexpensive but worth zero. 187798

- a70gb

by: Nathan C.09/30/2013

This is a really nice quality grommet that works perfectly with the Optronics series of lights. You cannot beat the price on these - it makes reusing the old ones silly because you will inevitably tear, stretch or otherwise destroy the old ones taking the lights out. 102047

- a70gb

by: shawn b.04/08/2013

Product is good quality and was shipped quickly - only issue I didn't measure well enough and the grommet is about 1/4" too small. But that's my own fault! 75005


Theyre still going great so far. With trailer lights up here I need stuff thats durable. So far so good.

comment by: shawn b - 04/10/2014


- a70gb

by: Matt W09/27/2013

Its a rubber grommet. It holds the light in nice and tight. Not much else to say besides they're priced cheap and a whole lot better than the sun rotten ones I just threw away. Not quite as thick as the original, but who cares,its $0.95 and works! 101749

- a70gb

by: gary h11/08/2013

it was exactly what i was looking for exact match; very affordable and delivery was only 4 working day;s. i have made another purchase yesterday and will be using e-trailer site again when needed thank you 106698

- a70gb

by: LCS06/23/2013

I got exactly what I needed - a replacement tail light for my 13 year old trailer. I'm so happy with - they had what I needed when I needed it and at a reasonable price. And they shipped it right away, too. 85634

- A70GB

by: Marty08/28/2012

My purchase of the water proof tail light assembly was handled excellently, but better yet it shipped on the day I ordered (Sunday). Good email communications with memebers of etrailer. I will use them again. Marty 53353

- A70GB

by: Marty08/28/2012

My purchase of the water proof tail light assembly was handled excellently, but better yet it shipped on the day I ordered (Sunday). Good email communications with memebers of etrailer. I will use them again. Marty 53352

- a70gb

by: Kevin B08/16/2013

Here is a photo. 95410

- a70gb

by: Doral J05/14/2013

This was a very good shopping experience. The light, wiring harness, grommet were easy to match up and the price was right! This will dress up my three wheeler nicely and keep me safe on the road!! Thanks 80306

- A70GB

by: John11/12/2012

I was so happy to work with etrailer!!!! They (John the sales rep.) were VERY helpful and patient with me. I received everything and my trailer lights up and looks awesome with the new LED lights! 59264

- a70gb

by: Gene C.06/10/2014

Just what I needed. My old lights and grommets were original (1989) and the rubber was all dried out. These fit the new lights and into the frame of my boat trailer with no problem. 134974

- a70gb

by: Doc s Marine05/04/2015

This product was great. No problems at all, fast delivery and very friendly efficient people you deal with. As a female they didn't make me feel bad at all like some places. Thanks 189693

- A70GB

by: Terry Nola08/15/2012

Parts were just what we were needing for a special Customer requirement; parts shipped in a timely manner and were very competitive price wise; will use this Website again for sure. 51782

- a70gb

by: Hugh C07/13/2015

Both the grommets and the sealed tail lights worked very well and were simple to install. I gotta say that etrailer was excellent in terms of communication and fast delivery. 211405

- a70gb

by: Jose R.04/21/2015

The quality of the products received was outstanding and the price was great. Communication with the seller was excellent and I will definitely buy from this vendor again! 186954

- a70gb

by: Deb B12/02/2014

I made this purchase for my son's boat trailer. I ordered on the Monday before Thanksgiving and it arrived the day before. Everything arrived as expected and well packed. 163105

- a70gb

by: Charlie04/04/2013

I should have bought more of these as along with the lights and connectors. These were very easy to use once I cut my hole out and worked perfect for what I needed. 74101

- A70GB

by: Gary C.04/12/2012

I've used these on several trailers. I have't had any problems installing them or with failures. Can't beat the prices and selection. I'll always buy from etrailer. 36962

- a70gb

by: edd03/08/2013

I received my part in a timely fashion and it was in new condition and was exactly the part I had asked for and the price was not to be beat. A+++++ 69693

- a70gb

by: hris04/16/2014

The outside diameter of the grommet was not as large as the ones that were on the trailer. Cleaned up the old ones and reused them with the new LED lights 125674

- A70GB

by: Sean06/19/2012

Not as thick as the original seals. One hole was to big for this seal to seat in, had to reuse the old one. One hole was just right, and the fit was snug. 44878

- a70gb

by: lwal08/07/2015

These are very good quality and quite necessary for the light and bracket to be installed properly. When assembled they make a very good fit and product. 217677

- a70gb

by: Hugh C.04/21/2014

the products were great, but the communication was even better. This was a small order that received big attention. Will definitely use again. 126278

- a70gb

by: Jim in CO05/01/2015

Great compliment to the LED light capsule. Provides "spring back" give to allow for it to snug the light into oval hole, plus easy removal. 189379

- a70gb

by: JJ03/07/2015

These grommets fit great. I replaced both, one of mine was torn. I installed them in a rear ranch hand bumper on a 2006 chevrolet silverado. 177462

- a70gb

by: Big John12/05/2013

I just figured if I was replacing all 4 tail lights it only made sense to replace the rubber seals so I did and at the price who wouldn't? 109271

- a70gb

by: art g07/08/2014

seems like good quality rubber material. If lucky, it might be man made and last longer than rubber would in the Florida Sun and heat. 140171

- a70gb

by: Corinna S06/19/2014

Rubber Grommet and trailer light were delivered promp and in excellent condition. Would not hesitate to buy from again. 136624

- a70gb

by: Mike B07/08/2014

Product was perfect. I was replacing my bulb backup lights on my motorhome with LEDs. The fit was perfect and the install easy. 140081

- a70gb

by: Tommy06/15/2015

Product came exactly as described. It is good quality. Shipped and arrived fast. Great seller. Would order from again. 203556

- a70gb

by: Rich07/03/2014

Fit like a glove on my Eagle trailer. ST70RB light fit great too. Just put in rubber grommet and then slide taillight in. 139049

- a70gb

by: Scott P.04/28/2014

Awesome job. Thank you. The equipment that i ordered was quickly received. I will definitely use again. 127754

- A70GB

by: Bob Macchione04/30/2012

Factory OE level excellent quality. Fits right, shaped right. Would recommend to friend. Expert technical level user. 38790

- a70gb

by: Keith Lutz04/01/2014

Great replacement, a little better than the original lights and the gasket was a perfect fit. Thanks trailer! 123302

- A70GB

by: Teresa R.02/23/2012

My husband replaced the old lights on his enclosed trailer and the new grommets and lights were perfect. Thanks 32278

- a70gb

by: Tony Ray04/30/2014 , is there really another choice, they have it all, plus great savings, KEEP UP THE GREAT WORK ! 128301

- A70GB

by: Dan V12/14/2012

Product did exactly what it was suppose to. Held the light in the hole once cut. Mounted good and looks great. 61477

- a70gb

by: Sal R09/25/2013

Nice product, great price and fast shipping..What more can you ask for!! I will definitely shop here again.. 101485

- A70GB

by: Levi02/09/2011

These grommets make it much easier to install lights than trying to reuse older and less pliable grommets. 6918

- a70gb

by: AJ01/27/2015

etrailer as always does an excellent job of having the pieces I need at great prices with fast delivery. 171352

- a70gb

by: Levi01/20/2014

These new grommets make installing tail lights much easier. They are much more flexible than old ones 114198
