Accessories and Parts > Wiring > Accessories > Wire > Bonded Wire > 16 Gauge > 4 Wire > Deka


Bonded 4 Wire - per foot

Deka Accessories and Parts

ratingratingratingratingrating (29 reviews)


Code:   16-4B-1

Price:$0.57


Shipping Special

Shipping Weight: 0.15 pounds

Quantity:







Deka Accessories and Parts - 16-4B-1

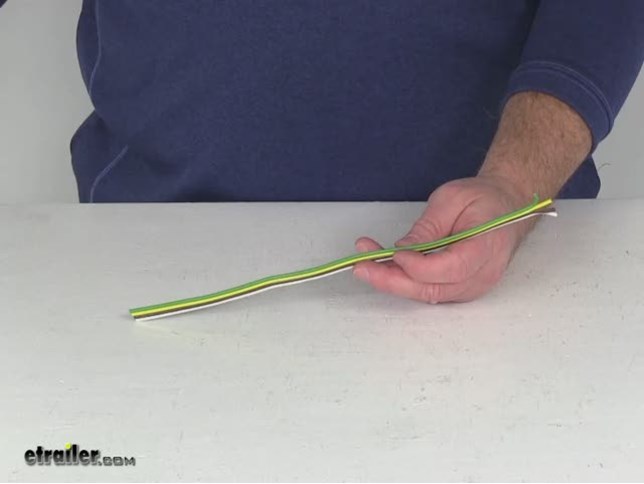

Parallel primary wire has four parallel conductors bonded together by Thermo-Plastic insulation. Each conductor is independently color coded for easy identification. Meets SAE J1128 Specifications, for use with 50 volts or less.
  • Each Wire is 16 Gauge
  • Price is per foot of wire







Customer Reviews

Bonded 4 Wire - per foot - 16-4B-1

Average Customer Rating:  ratingratingratingratingrating4.9 out of 5 stars   (29 Customer Reviews)



- 16-4B-1

ratingratingratingratingrating by: Warren M.05/31/2013


Good to go.. 82791





Comments

Very good product. Happy Happy Happy

Warren M. - 05/31/2014

4552



- 16-4B-1

ratingratingratingratingrating by: Steve E.03/18/2011


I ordered 40' of this for re-wiring my 15' trailer (running it down both sides). This wire is solid yet easy to work with, i.e. separating out an individual wire for splicing, bending, snaking inside trailer framing, etc. This wire is color coded with the 4 standard colors for trailer wiring. 9785






- 16-4B-1

ratingratingratingratingrating by: David S.05/22/2014


Hi, I am sorry to give you a not so good review but I feel I must be honest. When I received my wire it was in a rat nest I spent some time unknotting it and some of the wires were not connected to the bonded 4 wire by at least 11/2 foot. however the shipping was fast. Thank You David S. 131906






- 16-4B-1

ratingratingratingratingrating by: Ray H08/05/2011


So nice to find a company that has exactly what you are looking for.. with the drawings that help also!!! Will be shoping here again.. defintly have what your looking for.. thank you again!!!! will send a picture when we have it compleated.. thanks again... 21199






- 16-4B-1

ratingratingratingratingrating by: Bryan P.05/08/2014


As always my order was received in record time. The products are great quality with some of the best customer service I have ever received. Etrailer goes above and beyond to provide great products as well as very informative technical information. 129558






- 16-4B-1

ratingratingratingratingrating by: Cecil01/28/2013


Good product. Recieved order fast. 64374






- 16-4B-1

ratingratingratingratingrating by: Charlie04/04/2013


This wire worked great and is the same gauge on all four wires rather than having a bigger gauge on just the ground like some wire is. I'm glad I ordered the amount I did because I didn't think I would use it but I did. 74095






- 16-4B-1

ratingratingratingratingrating by: John S.04/07/2014


It is wire. However, the length was the reason for ordering as local retail outlets only had 25 foot lengths available and I didn't want splices in the middle of my "toad" taillight connections. 124158






- 16-4B-1

ratingratingratingratingrating by: Clint08/24/2011


Every thing that I ordered was received in a well packaged container. It was of excellent quality. very pleased with the service. Thanks again Clint 22605






- 16-4B-1

ratingratingratingratingrating by: Ray10/28/2012


Easy to use. Bonded so you have to run only one flat cable. Easy to separate where necessary. Nice that you can buy by the foot. Less waste. 58218






- 16-4B-1

ratingratingratingratingrating by: Ron P.10/16/2013


Heavy duty wire perfect for a small homemade trailer application. Worried about size of wire this was perfect. 104026






- 16-4B-1

ratingratingratingratingrating by: Yeti Golf06/17/2014


This came nicely wrapped which is nice because the potential of the wire getting tangled is very high. 135985






- 16-4B-1

ratingratingratingratingrating by: John02/14/2013


Great for running to back and front of the flat bed for the two sets of brake lights. 66313






- 16-4B-1

ratingratingratingratingrating by: Don C.05/14/2013


Good quality wire with good insulation, makes for easy trailer wiring. 80129






- 16-4B-1

ratingratingratingratingrating by: brian03/29/2013


right wire for the job , not the small gauge available everywhere else 73310






- 16-4B-1

ratingratingratingratingrating by: Chris06/12/2013


Wire quality is very good, easy to install yet appears very durable. 84233






- 16-4B-1

ratingratingratingratingrating by: jeremy y03/16/2011


Great product, extremely fast shipping, great transaction throughout. 9525






- 16-4B-1

ratingratingratingratingrating by: chris03/04/2013


Very good quality. Exactly what I was e xpecting. 68780






- 16-4B-1

ratingratingratingratingrating by: Phillips J.09/19/2013


Great product, great service from etrai ler.com. 100574






- 16-4B-1

ratingratingratingratingrating by: Mark L05/09/2013


Good quality wire and easy to run without kinks 79663






- 16-4B-1

ratingratingratingratingrating by: tom11/01/2013


worked out perfect looks clean lays flat 106037






- 16-4B-1

ratingratingratingratingrating by: Jamie G02/27/2011


Great product and very good protection. 8006






- 16-4B-1

ratingratingratingratingrating by: Micheal Reeves04/24/2014


Good delivery and wire was top quality 127096






- 16-4B-1

ratingratingratingratingrating by: Leroy E08/28/2012


Works for the wireing tha I need to do 53375






- 16-4B-1

ratingratingratingratingrating by: charles butts12/19/2013


great products fast shipping thanks 110552






- 16-4B-1

ratingratingratingratingrating by: Mark L.08/31/2011


Quality item, shipped promptly! 23312






- 16-4B-1

ratingratingratingratingrating by: JAMES D HASKELL08/26/2011


JUST GREAT!!!!!!!! 22900






- 16-4B-1

ratingratingratingratingrating by: JD05/17/2013


Just as described 80739






- 16-4B-1

ratingratingratingratingrating by: A ramjohn07/12/2012


very happy 47591




29
29


Ask the Experts about this Deka Accessories and Parts
Expert Answers about Bonded 4 Wire - per foot - 16-4B-1Do you have a question about this Accessories and Parts?


  • Standard Color Code for Wiring Simple 4 Wire Trailer Lighting
  • You have it right so far, the 4-way connector is just as you have stated. Remember that Yellow has a L in it so that is the left side brake/turn signal and green has a R in it so that is the right side brake/turn signal. The colors for wiring a 7-way connector are as follows with the 4 colors of the 4-way connector remaining the same. White-Ground Brown-Tail/Running Lights Green-Right Turn/Brake - Remember green has an R in it Yellow-Left Turn/Brake - Remember yellow has an L in...
    view full answer...

  • How to Wire 4-Way Round Pin Trailer Wiring Connector PK11409
  • There is not an industry standard layout for wiring the 4-Way round pin connector, but there is a layout that is most accepted. If you you are looking at the front side of the 4-Way round trailer side plug, the top left prong would be used for right hand turn signal and brake function, the top right pin would be the left side turn signal and brake light function, while the bottom left would be used for the tail light function. The last pin, on the bottom right would be used for the...
    view full answer...

  • Complete Wiring for Lights, Electric Brakes and Controller for a 94 GMC 1/2 Ton Truck and Trailer
  • Lets start with your 1994 GMC 1/2 Ton Truck. You will need to start with the # 118315 4-Way connector. Once the 4-Way is installed, see instructions link, you will need the Brake Controller Installation Kit, # ETBC7, and a brake controller. I recommend the P3 Brake Controller, # 90195, which is one of the best controllers we carry. We have detailed instructions for installation of the controller and the wiring kit, see links, and we have installtion videos of a brake controller and wiring...
    view full answer...

  • How to Install a 7-Way Trailer Connector to Add a 12 Volt Power Wire to a Trailer
  • It sounds like you are missing a wire for the running lights on your trailer. Trailers that are wired for lights only typically have 4 wires, one for right stop/turn, one for left stop/turn, one for ground and one for running lights. Does your trailer have functioning turn signals, brake lights and running lights? When installing a 7-way trailer connector, you will need to cut off your current trailer connector and you can either connect your trailer wires to a 7-way connector like the...
    view full answer...

  • How Do Utility Trailer Lights Wire Up to the Trailer Wiring Harness.
  • The red wire is the turn signal wire and will be run to the green wire of your harness if its the right turn signal side, and the black wire will run to the brown wire of your harness. The yellow wire from your harness will run to the left turn signal red wire. The brown wire will also run to the black wire of this light also. I attached an FAQ on trailer wiring for you to check out also.
    view full answer...

  • Brake Lights and Tail Lights Do Not Work on Trailer With 4 Wire System
  • On a trailer that uses a 4-Way wiring harness, the brake lights and turn signals are on the same circuit. So it is strange that the brake lights are not working when the turn signals are. There could be a few different issues going on here, so I recommend starting the troubleshooting process from the beginning. First, with the trailer not connected, check the connector on the tow vehicle for signal using a circuit tester like # 3808. This is to make sure that a signal is coming through...
    view full answer...

  • 4-Way Trailer Wiring Harness has 5 Wires Coming Out of It
  • It sounds like you have a wishbone harness. A wishbone harness has 4 pins like a regular 4-Way but where the wires come out the running light circuit is split so you do not have to run a jumper wire between tail lights. You cannot always go by color. If the wire that is split is right next to the ground pin (covered pin) then this is what you have, a split running light wishbone harness like # A20WB.
    view full answer...

  • Lighting Functions and Extension Cable for the E-Z Mount Tow Light Kit
  • The E-Z Mount Tow Light Kit, # EZT20B, provides stop, turn and taillight functions for flat towing. If you need an extension There are several options depending on the length that you need. If 48 inches would be long enough you can use the 48 inch Car and Trailer End Loop, # 18044. If 60 inches is needed use the 60 inch Car and Trailer End Loop, # 18045. If you need a custom length wire you could purchase a 4-Pole Trailer End Connector, # 18004, which is 12 inches long, a 4-Pole Vehicle...
    view full answer...

  • What is Needed to Wire Replacement LED Trailer Lights for Separate Turn and Stop Light Functions
  • A standard 4-pole flat trailer connector carries brake light and turn signals on the same wires. Typically the yellow wire carries both left turn and stop light signals and the green wire carries both right turn and stop light signals. The brown wire carries the running light signal for both sides of the trailer and the white wire is the ground. Please refer to the photo attached. In order to separate the turn and brake signals so they can be sent to separate lights you will need a vehicle-to-vehicle...
    view full answer...

  • Troubleshooting Running Light Circuit on Trailer
  • The first step in troubleshooting your trailer taillights would be to determine if the problem is on the vehicle, or in the trailer wiring. Start first by using a circuit tester like part # 40376. Turn on the vehicle headlights, and use the tester to check the pin on the trailer connector that carries the running light circuit. If you have a 4-pole connector, test the pin fed by the brown wire. If you have a 7-way, check the pin in the 11:00 position. If you get a signal on that pin, the...
    view full answer...

  • Combining Brake Lights and Turn Signals to Tow a Trailer with a Honda Gold Wing
  • What are the functions of the wiring harness on the Gold Wing? Use a circuit tester like # 3808 if needed to test its functions to determine what each one does. You should have a ground and running lights for sure. But it is the turn signal and brake signals we are concerned with. What you could do is use a converter, # RM-732. It will take the separate turn signals and brake lights, combine them, and on the output side the signals will be combined to work with the trailer. If you...
    view full answer...

  • Running Lights are not Working on a Trailer with a 4-Way Flat Trailer Connector
  • There are a few troubleshooting steps that you can run through to determine why your running lights are not working. The first step that I would take is to check all of your ground connections. A faulty ground connections can cause many different issues. Check that the ground connections from your vehicle and trailer side connectors and from your trailer lights are attached to a clean, bare metal surface such as the vehicle or trailer frame. If all ground connections are in good condition,...
    view full answer...

  • Trailer Brake Lights Do Not Work When Connected to a 1997 Dodge Intrepid
  • You have gotten the correct functions for the wiring on a 4-Way. The brake lights not working is strange because they are on the same circuit as the turn signals. It is possible that the brake lights draw more power than the wiring harness and/or vehicle wiring on the vehicle can handle. There could be a blown stop light fuse in the vehicle. use the owners manual to find its location and determine if that is the issue. Check the main grounds on the trailer connector, trailer side, and...
    view full answer...

  • Trailer Light Kit for a 10 Foot Trailer
  • Legally a trailer only needs right and left turn signals, brake lights, and running lights. The license plate light will be tied into the running light circuit. On a trailer, the turn signals and brake lights are on the same circuit on each side. So the minimum you will need is 4-wire bonded wire such as # 16-4B-1 that you have referenced. For a trailer side 4-Way you can use # A20WB and you would not need the wire by itself. This is a 20 foot length and the running light circuit is...
    view full answer...

  • How Long are the Cables and Wiring for the Roadmaster Deluxe Tow Light Kit
  • I spoke with my contact at Roadmaster. he indicated that the cables on the Deluxe Magnetic Tow Light Kit, # RM-2100, are 25 feet long. What you can do to get an additional 8 feet with this kit is to use the Hopkins Heavy-Duty Trailer Coiled Extension, # HM47045. However, this kit is not submersible so you would have to remove them from the boat before backing it into the water to launch. You could use a submersible kit, like # TLL9RK. Since you would need an extension either way, you...
    view full answer...

  • Can Bonded 4-Wire be Used on a Trailer with a 4-Way Connector but with 5 Wires
  • The bonded 4-wire, # 16-4B-1 has white, brown, yellow, and green wires. Typically, white is ground, brown is running lights, yellow is left turn and brake, and green is right turn and brake. With the wiring you have as listed, the turn left would connect to the yellow wire, turn right would connect to the green wire, tail marker would connect to the brown wire, and white would be ground. I have included a link to our wiring FAQ that also has some helpful wiring diagrams. On a 4-Way...
    view full answer...

  • Where to Run The Trailer Wiring Harness Out of the Passenger Compartment on a2005 Nissan Xterra
  • Usually there is a grommet some where that can be utilized to route the trailer wiring out of the interior of the vehicle and mount it near the trailer hitch. When you access the rear of the left side tail light look for a grommet. Once you find one close enough that the 4-way connector can reach you will need to make a small slit in the grommet to put the 4 wires in and then route the connector through the hole and reinstall the grommet. If you find a spot that you can use but it is...
    view full answer...

  • Standard 4-Way Trailer Connector on 2004 Ford Ranger Fits a 5-Wire 4-Way Trailer Wishbone Harness
  • It sounds like you have a wishbone harness on your trailer, like # A35W42B. This type of connector will have a regular 4-Way but the running light circuit is spit into 2 wires at the back of the connector so you do not have to run a jumper wire to each side of the trailer. The vehicle 4-Way is configured as follows: White = ground, Yellow = left turn/brake lights, Green = right turn and brake lights, and Brown = running lights. On the trailer, white is ground, yellow is left turn/brake,...
    view full answer...

  • Can Spectro Trailer Wiring Junction Box Part # 38656 Be Used on Tow Vehicle for Splicing Wiring
  • Yes, the Spectro junction box can be used in your tow vehicle for making wiring connections. This part has a heavy-duty weatherproof plastic housing and includes grommets and cable clamps. You will need to supply two nuts, washers and 1/4-inch bolts of the appropriate length to install the box on your vehicle. I have linked a video showing installation of this part on a trailer frame. The housing measures 3-1/2 x 2-1/4 x 7 inches. In case you need connectors or wire for your splicing...
    view full answer...

  • How to Rewire an Old Cattle Trailer
  • It sounds like you are on the right track to rewire your cattle trailer. You are correct about the wire colors on the 7-way connector that you purchased. The colors that you see on the 7-way connector are typical for RV style trailers rather than utility, cargo, or livestock style trailers. The black wire should be connected to the terminal in the 7-way connector labeled black. This is the terminal in the 11 oclock position when you are looking at the back of the trailer connector (see...
    view full answer...

  • What are the Red and Black Wires For on a 7-Way Trailer Connector
  • Typically, the black wire is 12 volt power and the red wire is left turn/brake lights. But you cannot always go by color. If the wiring in question is on the trailer side then there are two ways to determine which color wire does what function. You can physically trace the wires from the connector to where they terminate to discover their functions. Or you could apply power to each wire using a separate 12 volt battery and see what light or function turns on. If the wiring is on the...
    view full answer...

  • Troubleshooting Left Taillight Malfunction When Right Taillight is Working a 4-pole Wiring Harness
  • There are several possibilities that an contribute to why you have one tail light working but not the other. The first diagnostic approach is to isolate the cause of the problem, it could be the vehicle or the trailer. Then once that is isolated you can proceed accordingly. The first step that I recommend is to check the connector on the vehicle. If the connector appears to be in good working order and is free of corrosion or road grime, then I would use a circuit tester like the Quickee...
    view full answer...

  • Trailer 4-Way Wiring Harness has 2 Wires Coming Out of Running Light Pin
  • It sounds like you have a wishbone harness. A wishbone harness has 2 wires for the running light circuit, one for each side of the trailer. That way you do not have to run a jumper wire from one side of the trailer to the other for running lights on both sides. Yellow/brown would be for the left side and green/brown the right side. On a 4-Way, trailer side, the covered pin is ground. Next to it is the running light pin. Then the left turn/brake light pin, and the last pin is right turn/brake...
    view full answer...

  • Need to Tap into 7-Way on 2004 F-250 To Power Stop, Turn, Tail Lights on Headache Rack
  • Since you need to retain the use of the 7-way at your rear bumper for towing while having the same lighting signals available near the cab for your headache rack, one option to consider is using a 5th wheel harness such as # 41157 from Hopkins. This plug-in harness provides on one end dual round U.S. Car connectors in a Y-arrangement that allow you to tap into your existing 7-Way (while keeping all of its functions active for your tow rig). On the other end of the 8-foot cable is a standard...
    view full answer...

  • How to Power a Separate Clearance Trailer Light
  • Having to run a separate wire to power the collision avoidance light on your trailer will depend on how and when you want that light to illuminate. If you want that light to be on only when the running lights are on, then you would not have to run a separate wire. You could simply cut the wire at the 6-way trailer connector and splice it into the running light circuit. If you do not want the light on all the time and you want the ability to turn the light on and off as you please, then...
    view full answer...

  • Options for Installing a Plug-In Style Connector for a 12v Air Compressor for a 2006 Chevy Duramx
  • I assume you want to use a 7-way connector, like part # PK12706, on your 12v air compressor to power the compressor using the 7-way trailer connector on your truck. You can use a 7-way trailer connector on your air compressor as long as the wire size for the power wire and ground wire from the compressor are not thicker than the 12 volt power wire and ground wire on your truck. The ground wire and 12 volt power wire on your truck are likely either 10 or 12 gauge wire. If your compressor...
    view full answer...

  • Need to Adapt 6-Way Connector on Motor Home to 4-Pole Round Tow Bar Cable
  • I would recommend installing a 4-pole round socket, part # PK11404 on the rear of the motor home, rather than trying to construct an adapter. The socket would need to be tapped into the wires feeding your 6-way. We offer 4 conductor wire, part # 16-4B-1 that is sold by the foot, you would probably want at least two feet. The wire is conveniently color coded, and would attach to the 4-pole socket as follows: Attach the brown wire to the # 2 terminal. Terminal # 1 would be grounded to...
    view full answer...

  • Recommendations for Converting a Pop Up Trailer 6-Way to a 4-Way
  • If your trailer is a Jayco you could pretty easily use a 4-way to 6-way Adapter # 30104. If the brand of your trailer is different then your best bet would be to cut off the 6-way of the trailer and wire up a 4-way to the circuits. For a 4-way you could use a Wesbar 4-Pole Connector # W787264. You will need to determine what the wiring of your trailer is and then wire those circuits to the 4-way accordingly. You could use a 12 volt car battery and run a jumper wire to all of the circuits...
    view full answer...
