Accessories and Parts > Wiring > Wire Connectors > Quick Splice > 18-14 Gauge > 3M

3M SCOTCHLOK Quick Splice Wire Connector - Blue Gel - 14-18 AWG (Qty 1)

3M Accessories and Parts

(19 reviews)


Code:   804C

Retail:$1.10

Price:$0.62


Shipping Special

Shipping Weight: 0.003 pounds

Quantity:






3M Accessories and Parts - 804C


Scotchlok quick wiring connector. Connector is filled with weather protecting gel to resist corrosion. Blue. 14-18 AWG



804C 3M SCOTCHLOK Quick Splice Wire Connector - Blue Gel - 14-18 AWG (Qty 1)

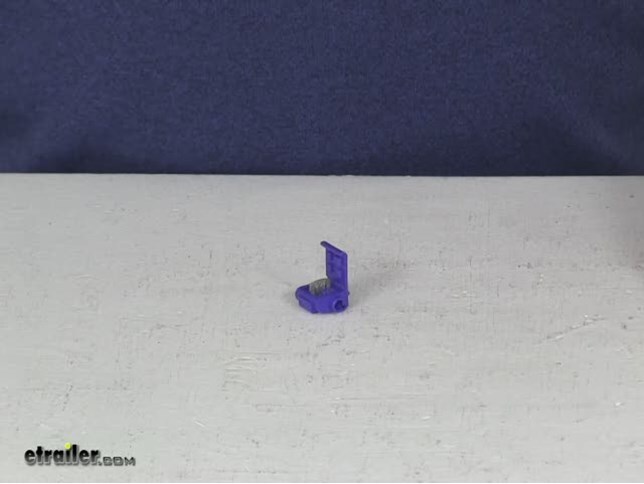

Video of 3M SCOTCHLOK Quick Splice Wire Connector - Blue Gel - 14-18 AWG (Qty 1)


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.




Video Transcript for 3M Accessories and Parts 804C Review

Today, we're going to review part number 804C. This is the 3M Scotch Lock quick splice wire connector. This is a blue connector and also has the gel on the inside. It is used for size 14 to 18 gauge wire. Basically, the gel that's used on the inside here is a weather protecting gel so when the wires make their connection, it helps resist corrosion. This is used to either connect two ends of wires together if you want to or I'll show you there is the other feature where you can connect it to a running wire where there is no end to it, you want to tap into that wire. You can use this connector also. Basically, also just wanted to mention to you it is stamped on here, if you look real close, it will say 3M and then AWG, which means American Wire Gauge and it will say 14-18, which means that's the gauge thickness of wire that will fit in here.

I got a couple of wires here I'm going to show you. Basically, if you want to connect them end to end, what you can do, the theory of this is you can see this metal piece in the . Once you push the wire in this side, it won't go any further and then what you'll do is if you want to connect two ends, this one will go in the other end and that one can go all the way through but what you want to do is if you want to connect end to end, you just put them like that. Once you push down on this top here and close it, there is a little ridge here that will lock into place. It will push that metal down and pierce both wires and give you a connection point. Then, you'll have two wires connected together. Now, the other thing you can do is if you wanted to connect, tap this green wire into let's say this white wire was running along a trailer, there's not end to it so you want to tap into it, what you can actually do ...

Let's take that off for now. You'll see this end where the lid is, pop it down and then what you can do is put your green wire in the same spot, run it all the way through, and see the gel come up. What that will allow you to do is slide onto a running wire just like that, push it back up, and it will snap into place. That way, it will allow you to tap into a running wire where there's no end to connect it to and do the same thing. Push down on this, squeeze it together with pliers to lock it into place and it will make a good, clean connection and then have the gel to protect it. You can use it either one of two ways when connecting wires. That should do it for the review on part number 804C.

This is the 3M Scotch Lock quick splice wire connector, blue in color, has the gel on the inside, and is designed for 14 to 18 gauge wire. .


Customer Reviews

3M SCOTCHLOK Quick Splice Wire Connector - Blue Gel - 14-18 AWG (Qty 1) - 804C

Average Customer Rating:  4.9 out of 5 stars   (19 Customer Reviews)



- 804C

by: Phil05/23/2014


Seemed to work just fine. The little blade may slip down in too far and prevent you from getting the wire pushed in all the way, at first. No big deal. Just pull the blade back a bit, and it'll work. The gel is a little thinner than I anticipated, but not a real problem. 132094



- 804C

by: Greg D.05/05/2015


This company get's an A+ in customer satisfaction. Shipping was very fast, and the product works great. You can rest assured that I will be doing business with this company in the future. They have excellent products. 190628



- 804C

by: Lance J.03/25/2014


These make it easy to splice wires together. The grease should do a good job keeping water out. I made 5 connections with these, and all connections worked on the first attempt. 122138



- 804C

by: Cam C.06/15/2013


These 3M connecters are a lot better than the cheap ones from the parts store. It is worth it to spend the money on these when you rewire your whole trailer. 84782



- 804C

by: wade05/13/2015


Supper easy to use. Exactly what i needed for wiring up my trailer. Only reget i didnt get more to replace all the butt connectors on the trailer 192846



- 804C

by: Gary M07/11/2013


NEEDED A GOOD WATERPROOF SPLICE AND THIS SEEMS TO HAVE DONE THE JOB. ORDERED A FEW EXTRA TO HAVE ON HAND THE NEXT TIME THE NEED ARISES. 88895



- 804C

by: Tim06/27/2013


These worked flawlessly with my brake magnet job. Glad that these were on the magnet page as a suggestion !! 86458



- 804C

by: JackF09/14/2015


I used these to splice into existing wiring for a new set of trailer brakes and they worked great. 225518



- 804C

by: Dan J05/31/2013


Simple and easy to use. Effective splicing of trailer wires. 82705



- 804C

by: Shaun10/09/2014


Good quality and pre-greased, worth the extra pennies. 155341



- 804C

by: Cleon08/06/2015


As always, excellent service and quality products. 217188



- 804C

by: jason03/22/2016


Exactly what we had on our trailer, work great 241279



- 804C

by: Ryan03/28/2012


Easy to use watch the video if unsure. 35304



- 804C

by: Don B08/22/2015


Excellent service at a good price 220968



- 804C

by: H Lee09/24/2012


Easy to use, and work great 55698



- 804C

by: Mark G,.11/21/2014


Quick clean connection. 162052



- 804C

by: Bob M10/07/2011


Works like a champ! 25244



- 804C

by: Wm C08/12/2014


Great product! 146414



- 804C

by: JDHALL11/14/2014


ON TIME! 160831

19
